Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door glass. For additional information, refer to WINDOW GLASS - FRONT DOOR .
Remove the front door beltline inside and outside weather-strips.

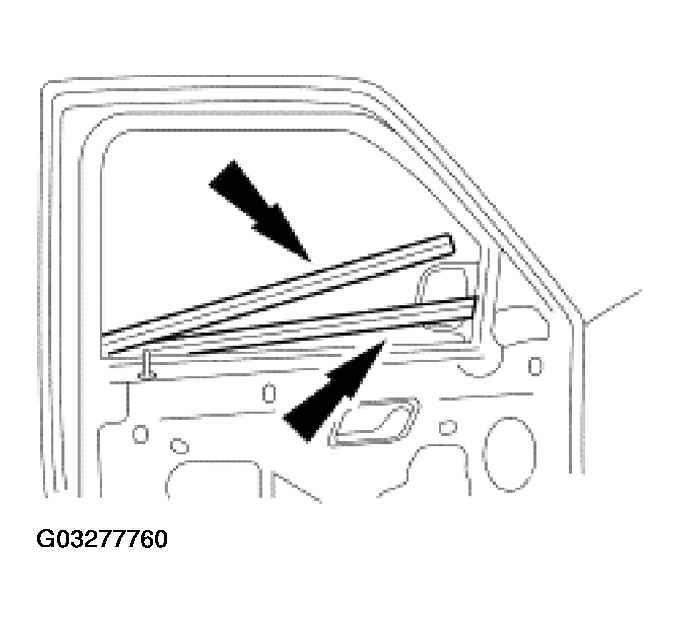

Fig 1: Removing Front Door Beltline Weather-Strips
Courtesy of FORD MOTOR CO.
Remove the door glass top run bolt.

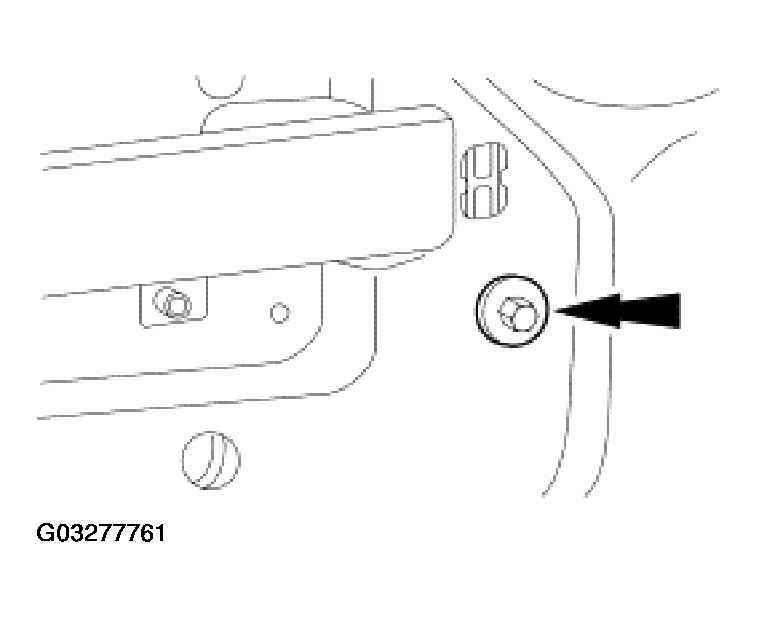

Fig 2: Removing Door Glass Top Run Bolt
Courtesy of FORD MOTOR CO.
Remove the door glass top run.

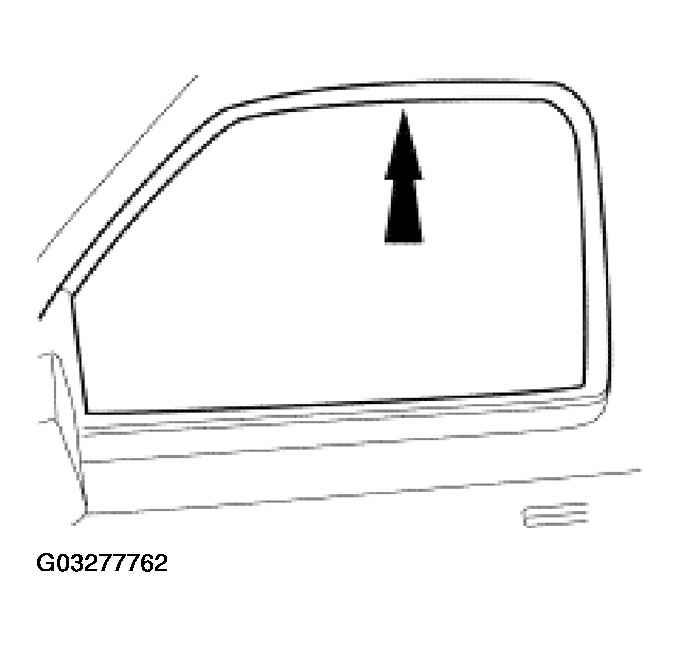

Fig 3: Removing Door Glass Top Run
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

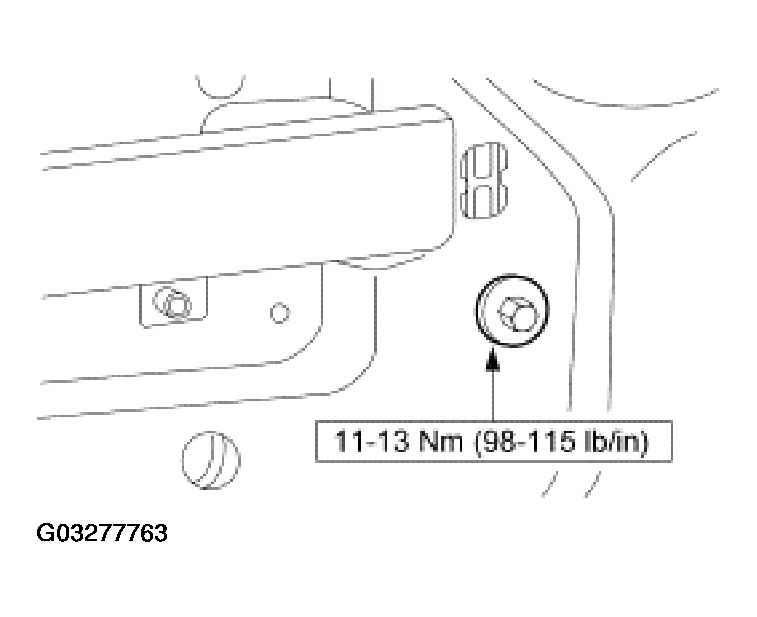

Fig 4: Installing Door Glass Top Run Bolt

Courtesy of FORD MOTOR CO.
