Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Front Door Window Glass. For additional information, refer to WINDOW GLASS - FRONT DOOR .
Remove the door glass center run retainer nuts.
1. Remove the bottom nut.
2. . Remove the top nut.

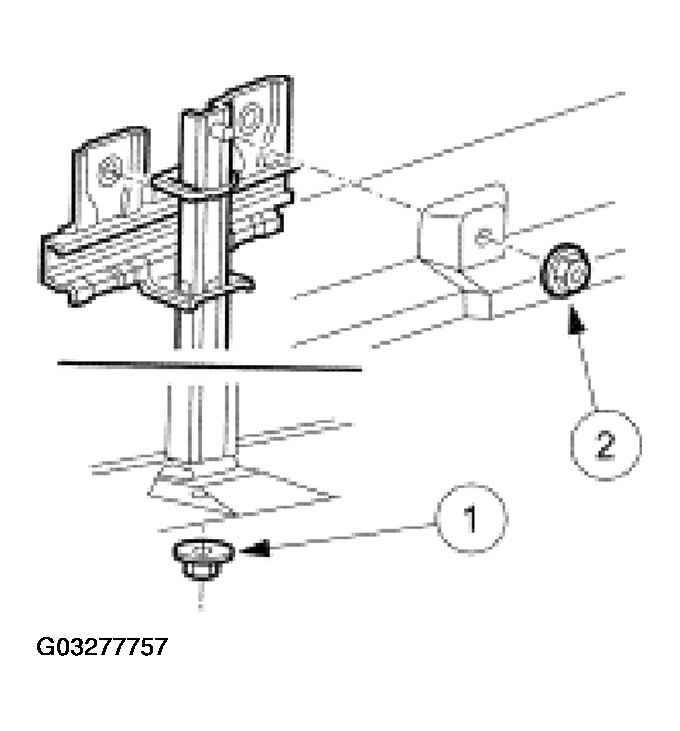

  Fig 1: Removing Door Glass Center Run Retainer Nuts
  Courtesy of FORD MOTOR CO.
Remove the door glass center run retainer.

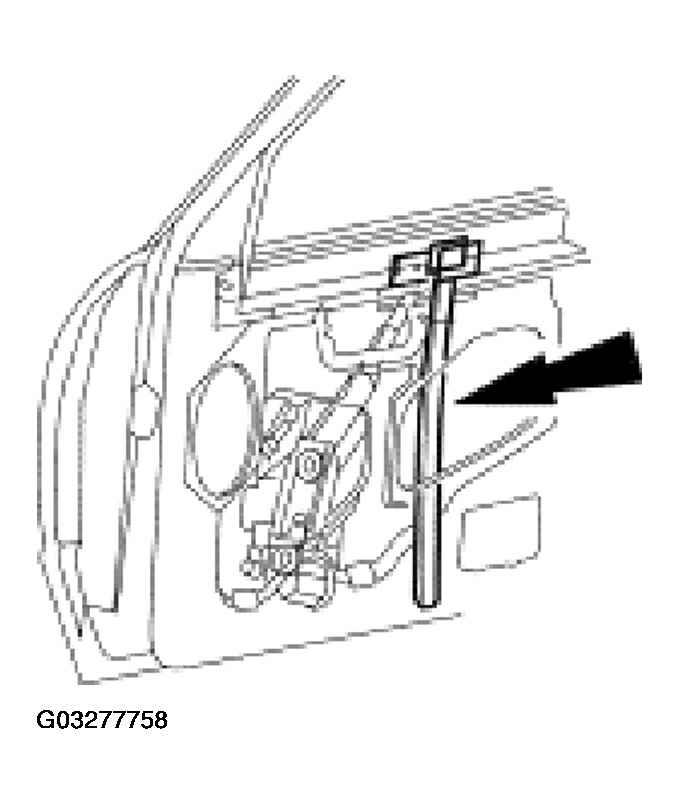

Fig 2: Removing Door Glass Center Run Retainer
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Use Heavy Duty Riveter to install the new rivets.

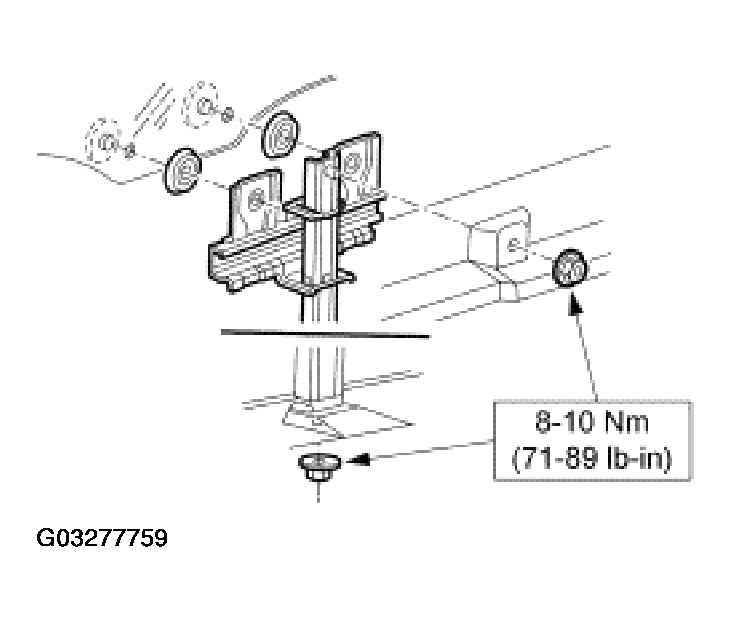

  Fig 3: Installing New Rivets
  Courtesy of FORD MOTOR CO.
