Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure, see Fig 1-Fig 4 .

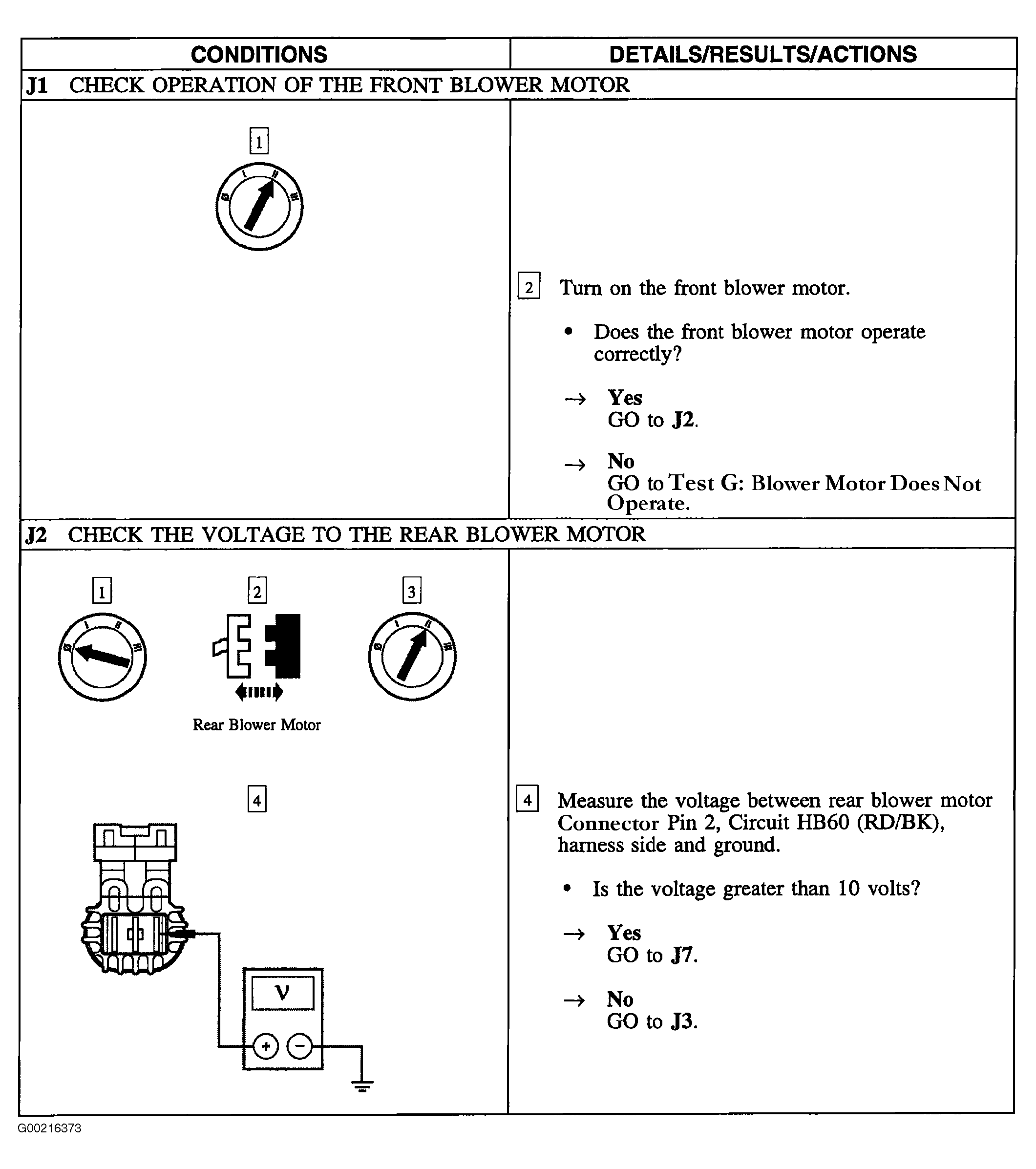

Fig 1: Test J (Steps J1-J2)

Courtesy of FORD MOTOR CO.

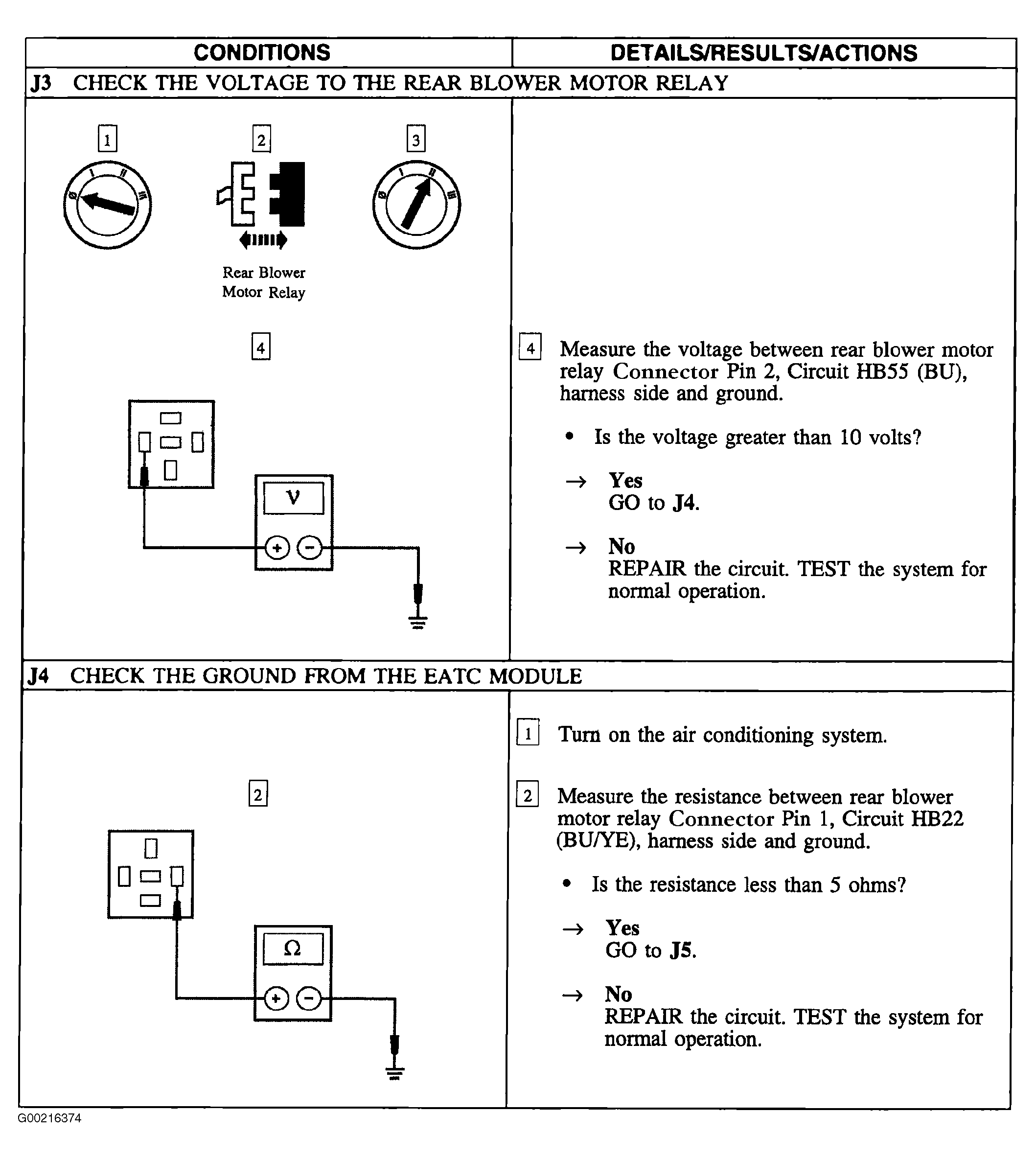

Fig 2: Test J (Steps J3-J4)

Courtesy of FORD MOTOR CO.

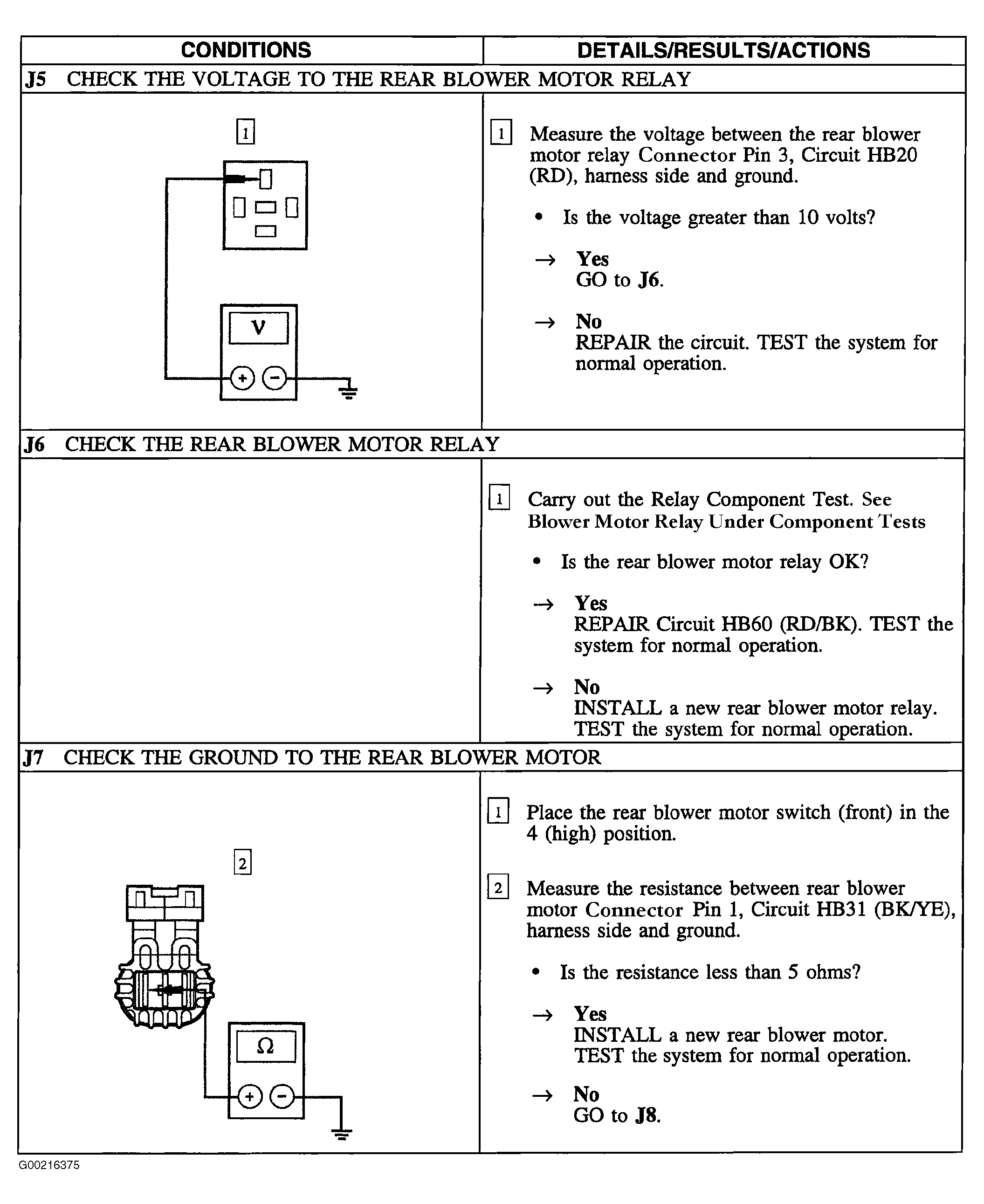

Fig 3: Test J (Steps J5-J7)

Courtesy of FORD MOTOR CO.

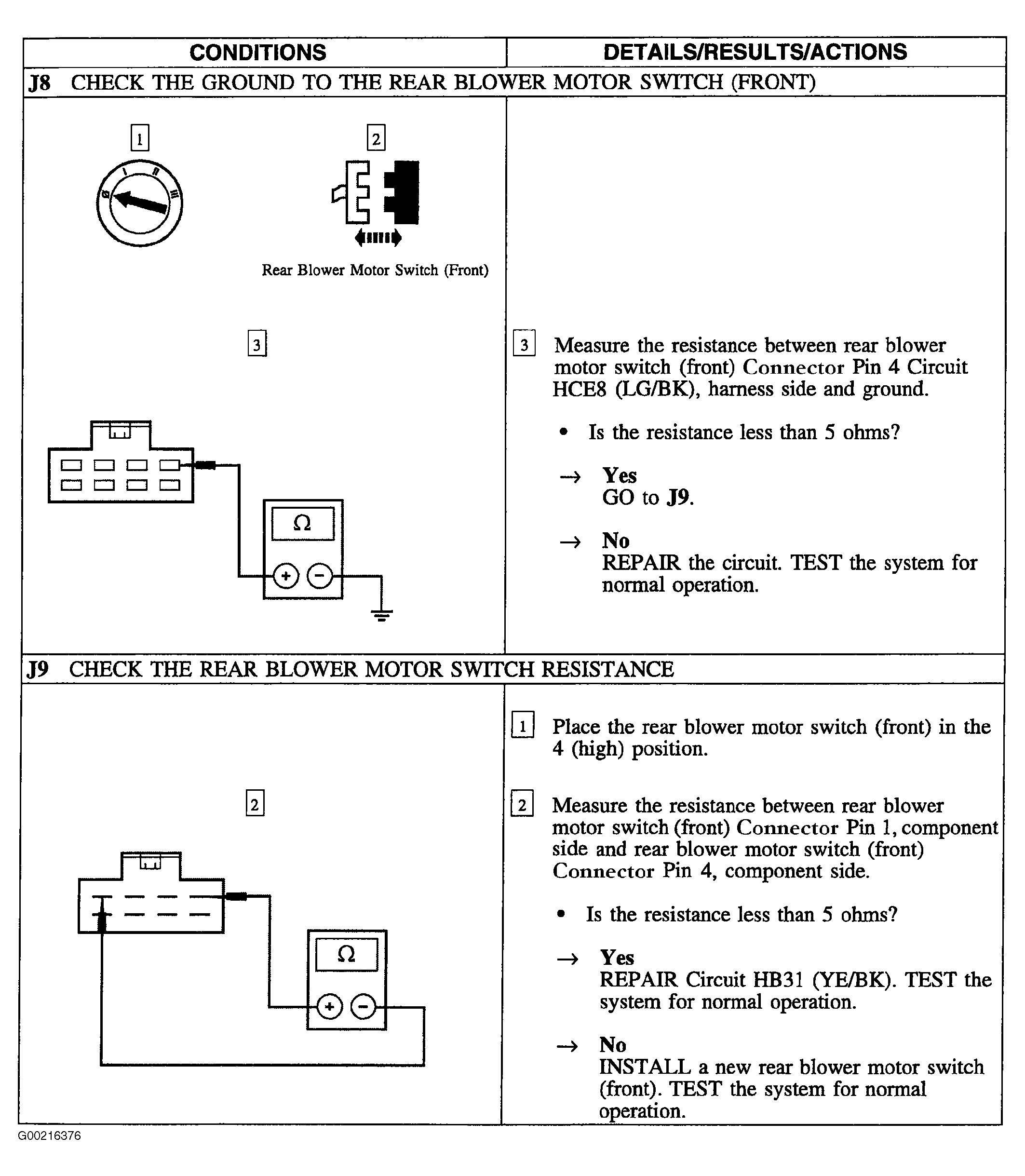

Fig 4: Test J (Steps J8-J9)

Courtesy of FORD MOTOR CO.
