Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure, see Fig 1.

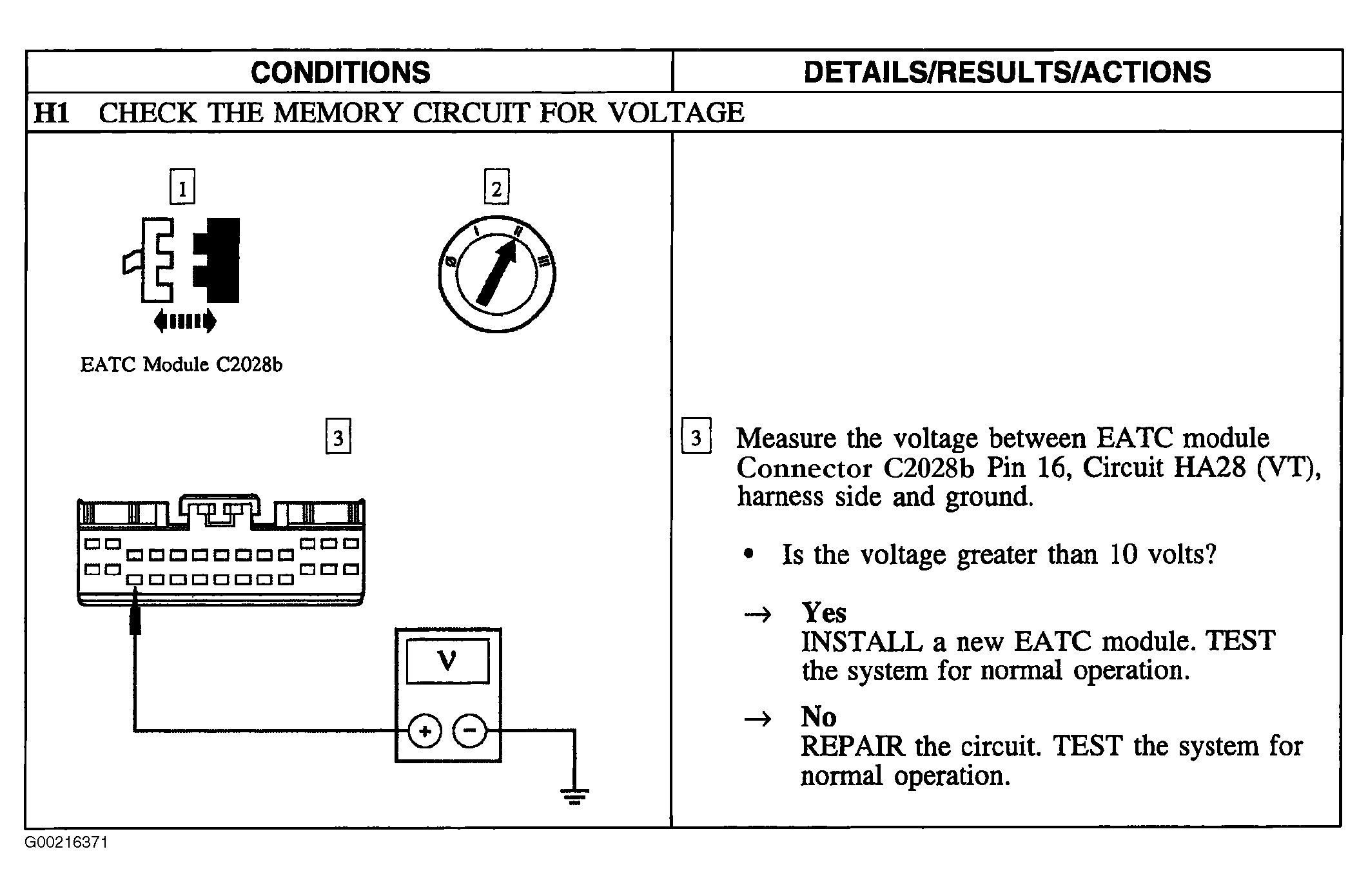

Fig 1: Test H
G00216371Courtesy of FORD MOTOR CO.
