Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure, see Fig 1-Fig 6 .

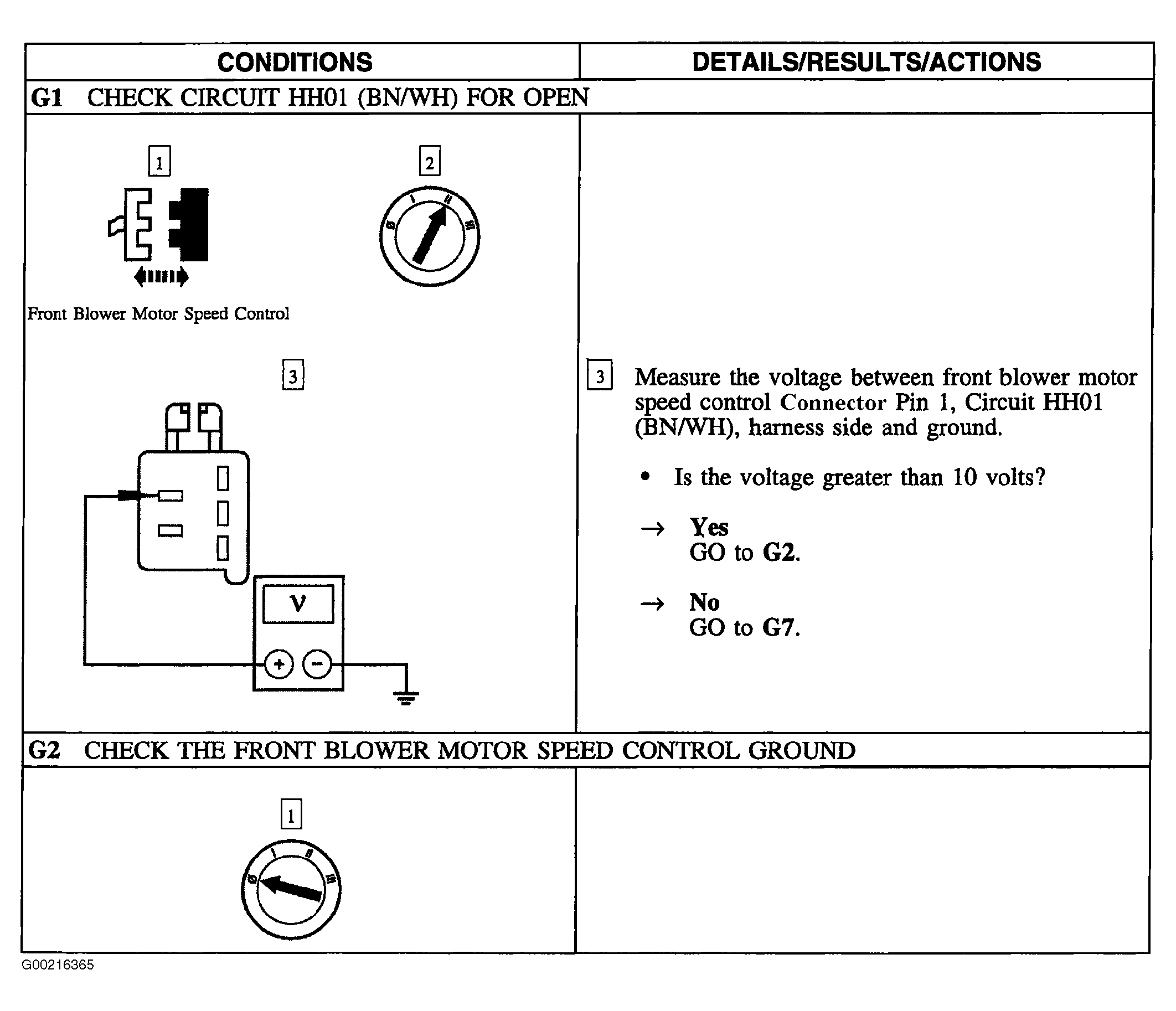

Fig 1: Test G (Steps G1-G2)

Courtesy of FORD MOTOR CO.

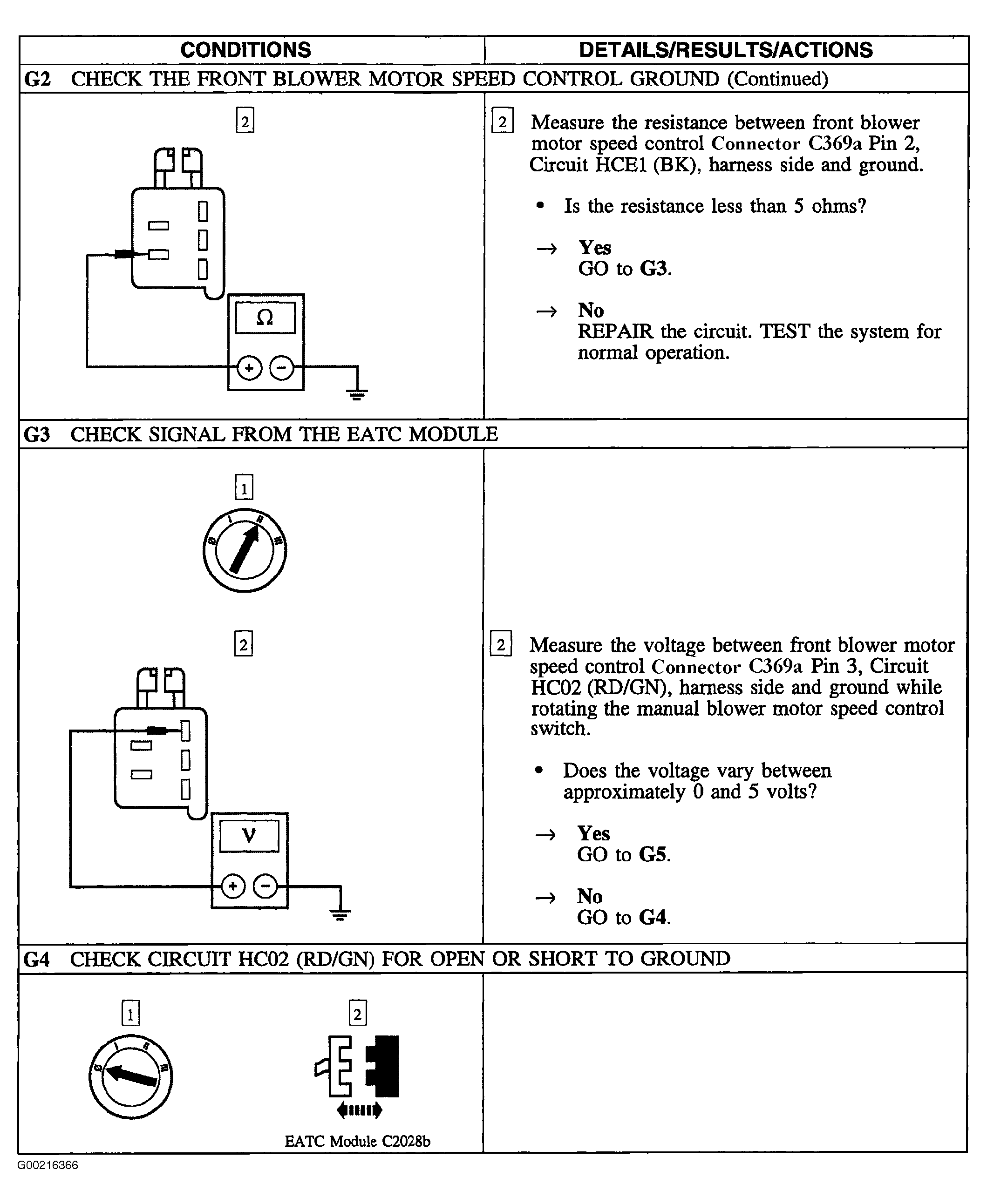

Fig 2: Test G (Steps G2 Cont.-G4)

Courtesy of FORD MOTOR CO.

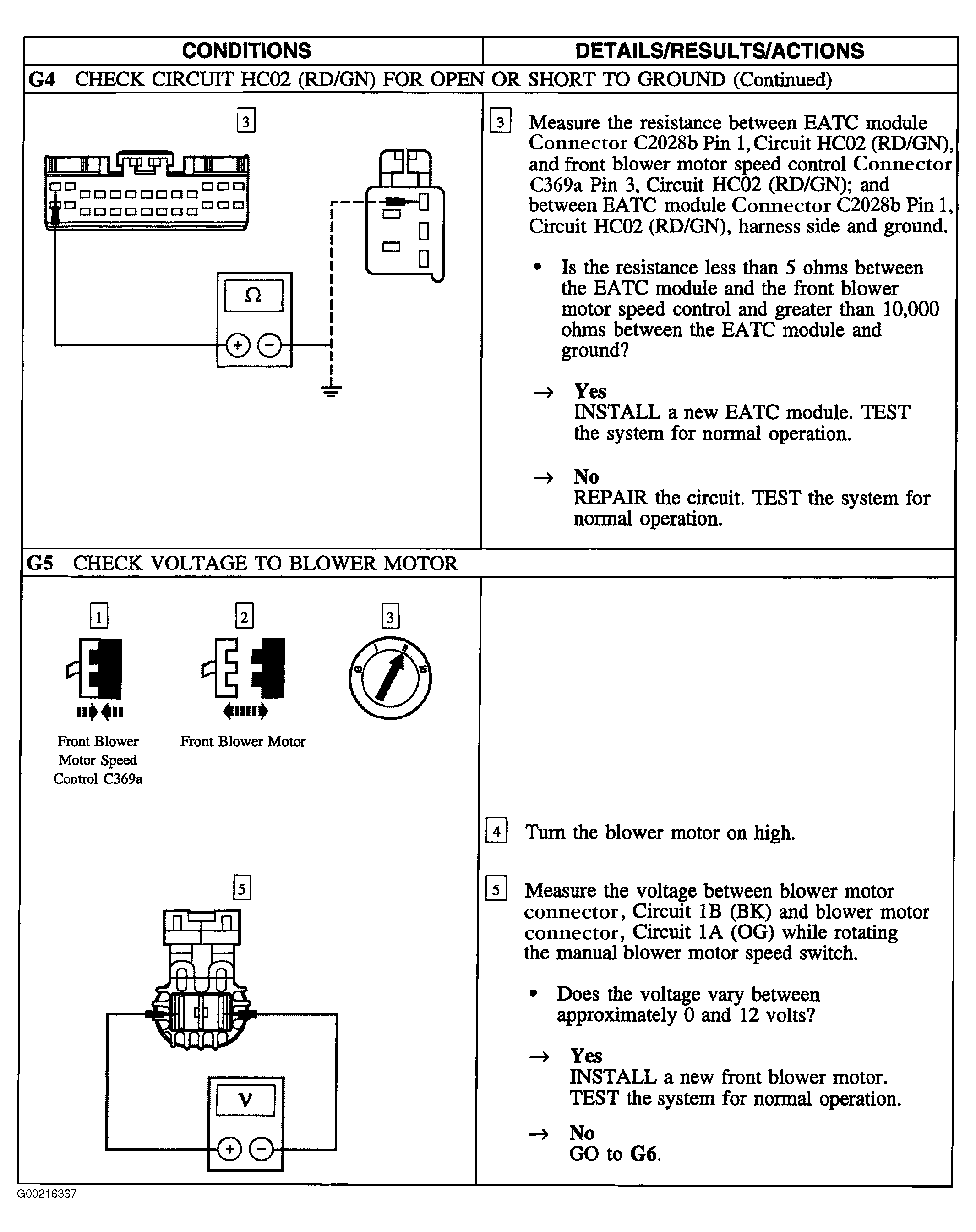

Fig 3: Test G (Steps G4 Cont.-G5)

Courtesy of FORD MOTOR CO.

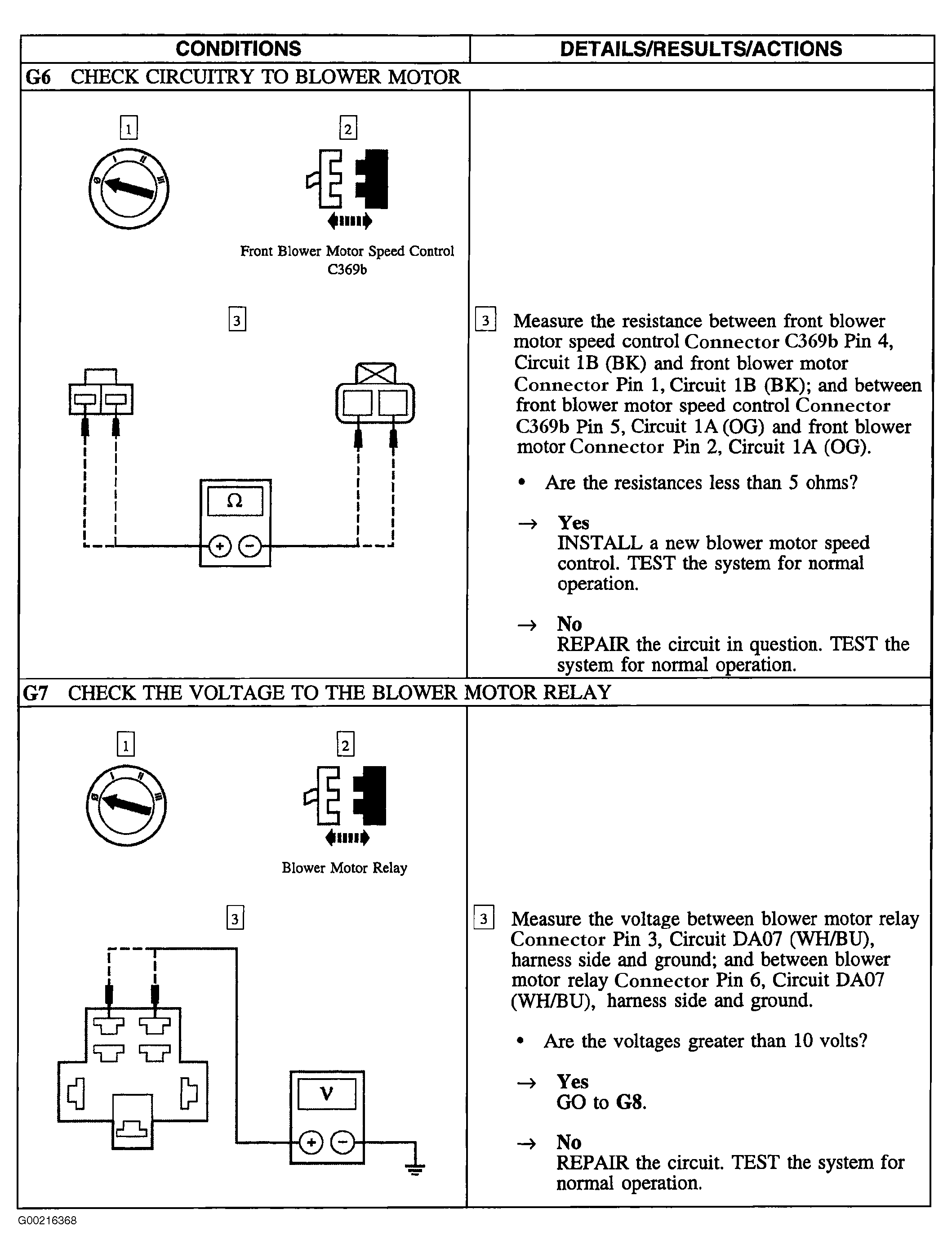

Fig 4: Test G (Steps G6-G7)

Courtesy of FORD MOTOR CO.

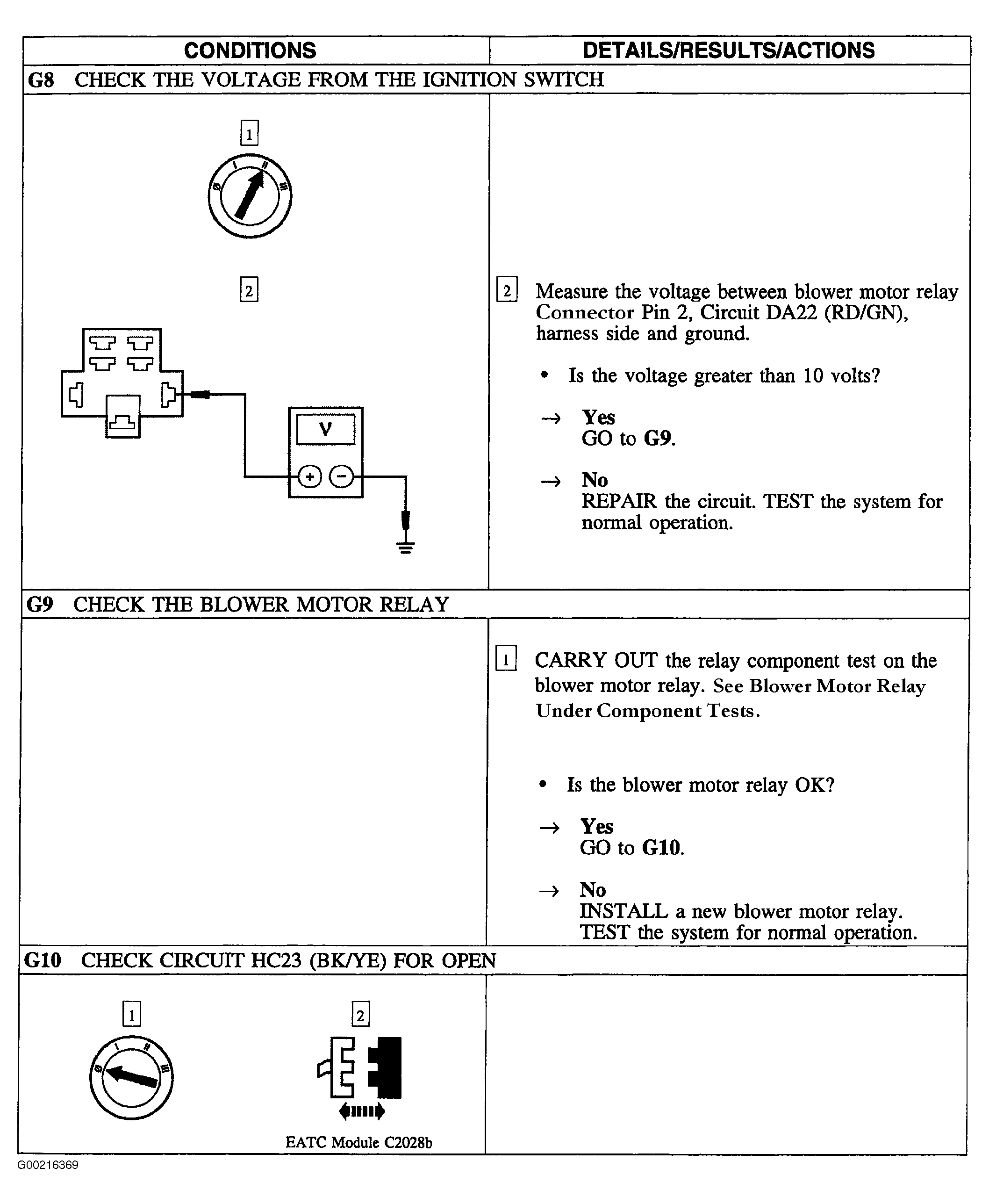

Fig 5: Test G (Steps G8-G10)

Courtesy of FORD MOTOR CO.

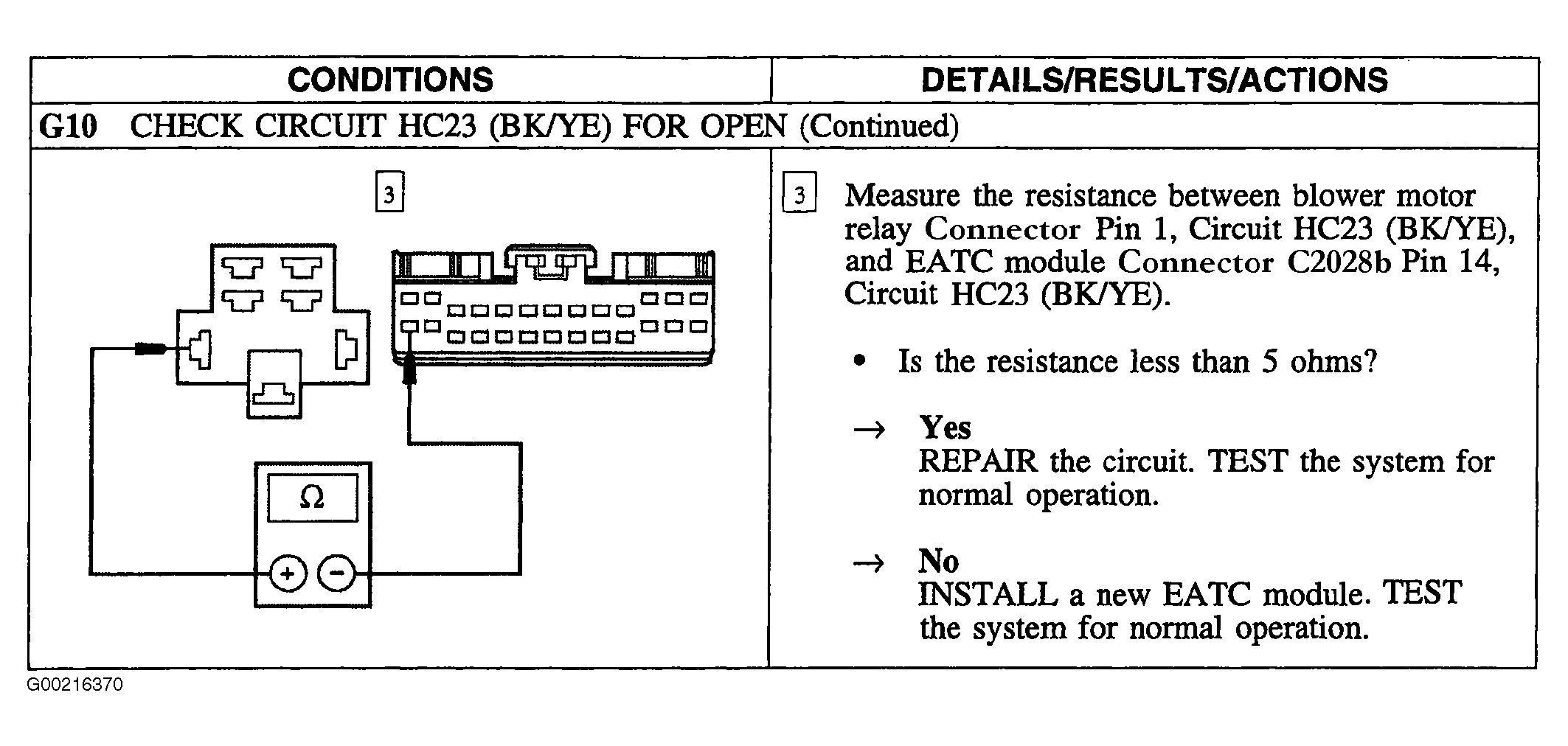

Fig 6: Test G (Step G10 Cont.)

Courtesy of FORD MOTOR CO.
