Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure, see Fig 1-Fig 5 .

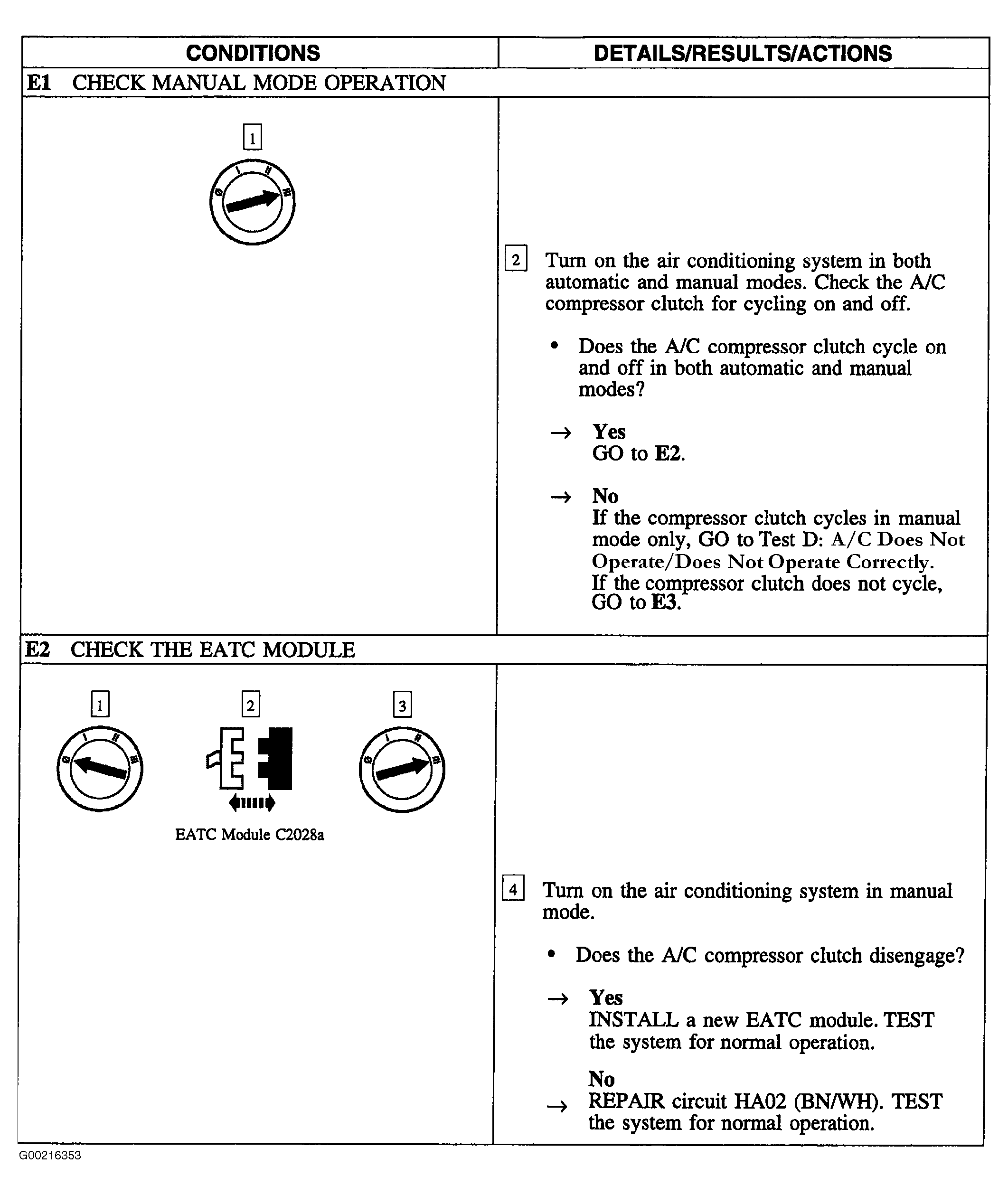

Fig 1: Test E (Steps E1-E2)

Courtesy of FORD MOTOR CO.

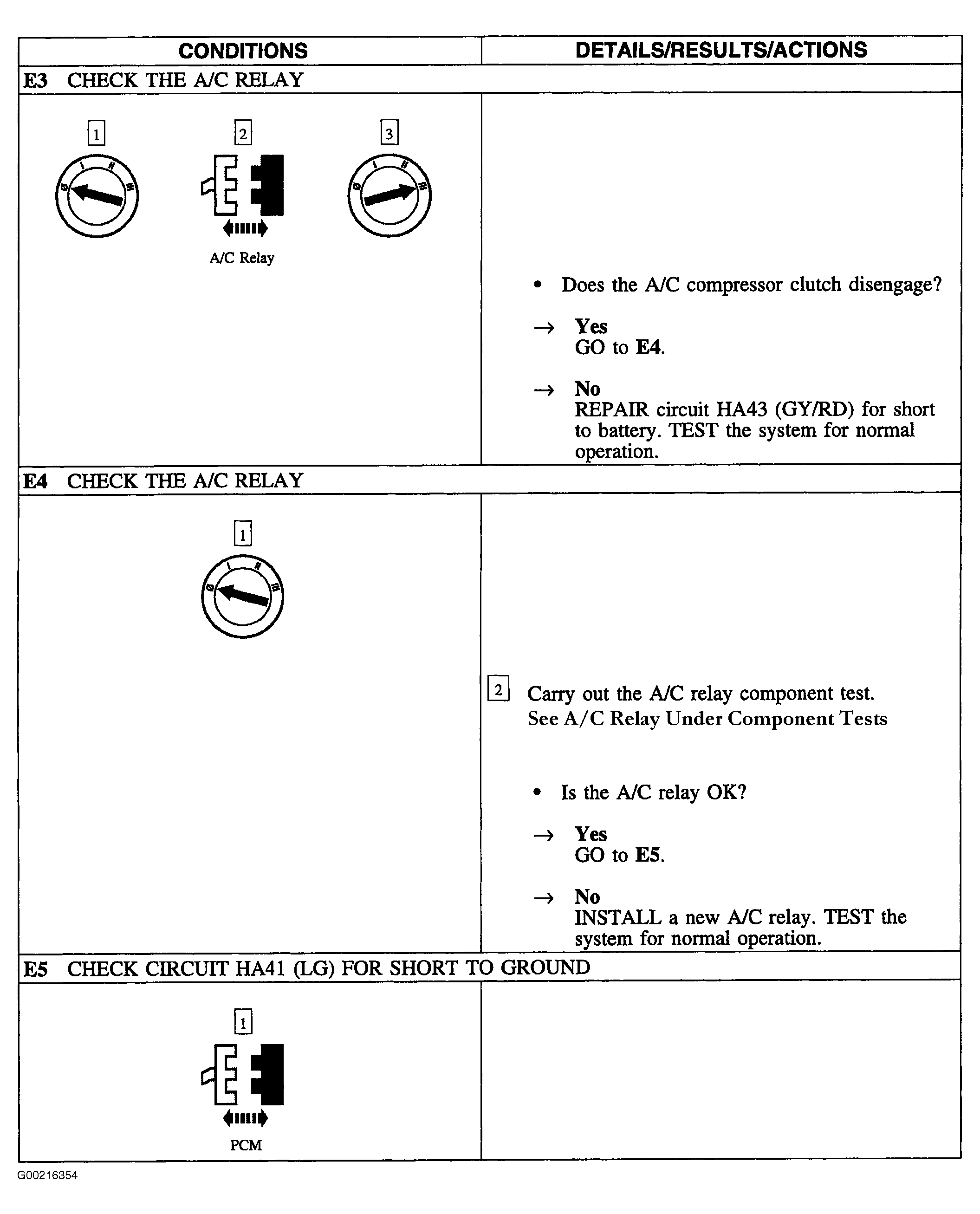

Fig 2: Test E (Steps E3-E5)

Courtesy of FORD MOTOR CO.

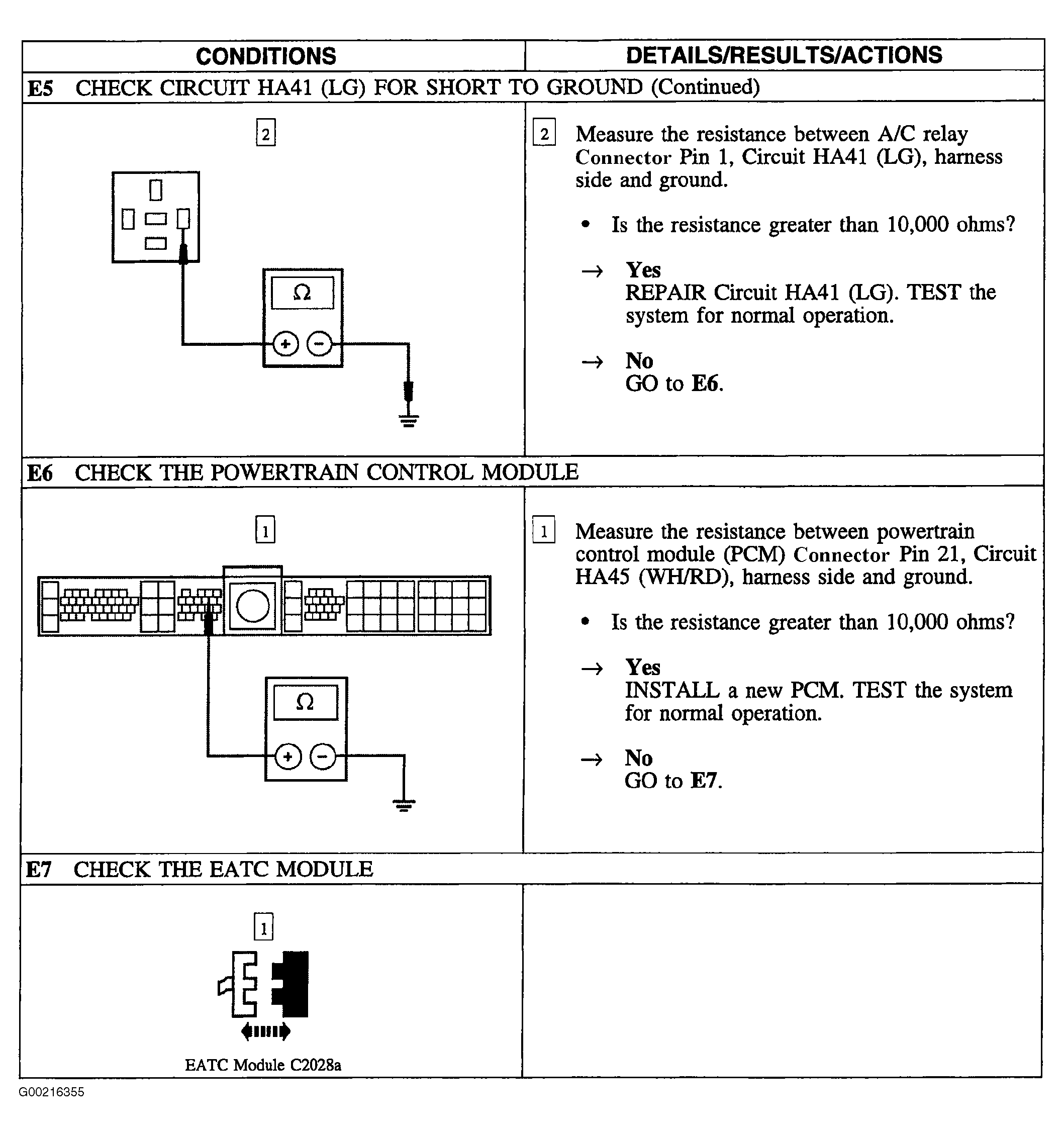

Fig 3: Test E (Steps E5 Cont.-E7)

Courtesy of FORD MOTOR CO.

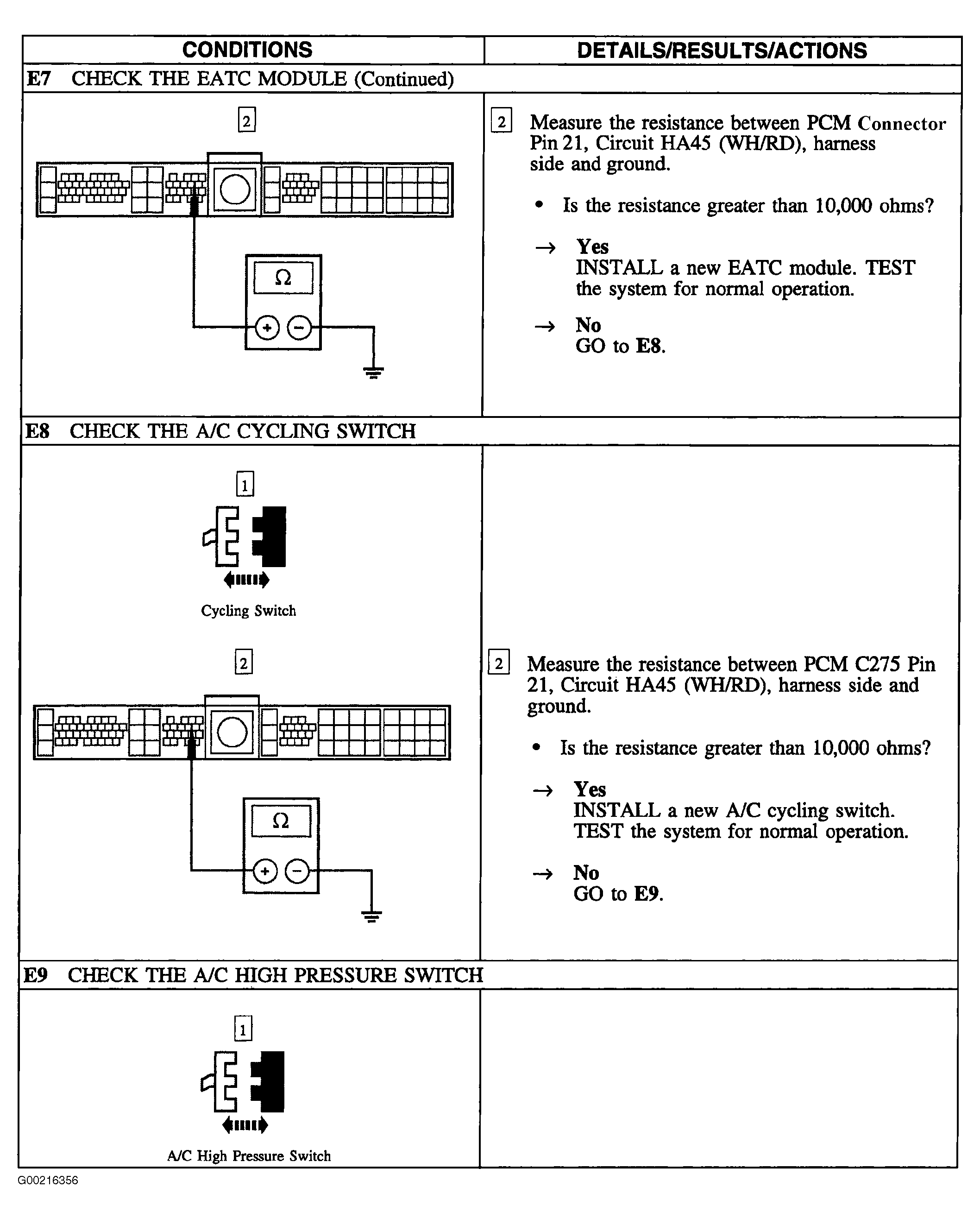

Fig 4: Test E (Steps E7 Cont.-E9)

Courtesy of FORD MOTOR CO.

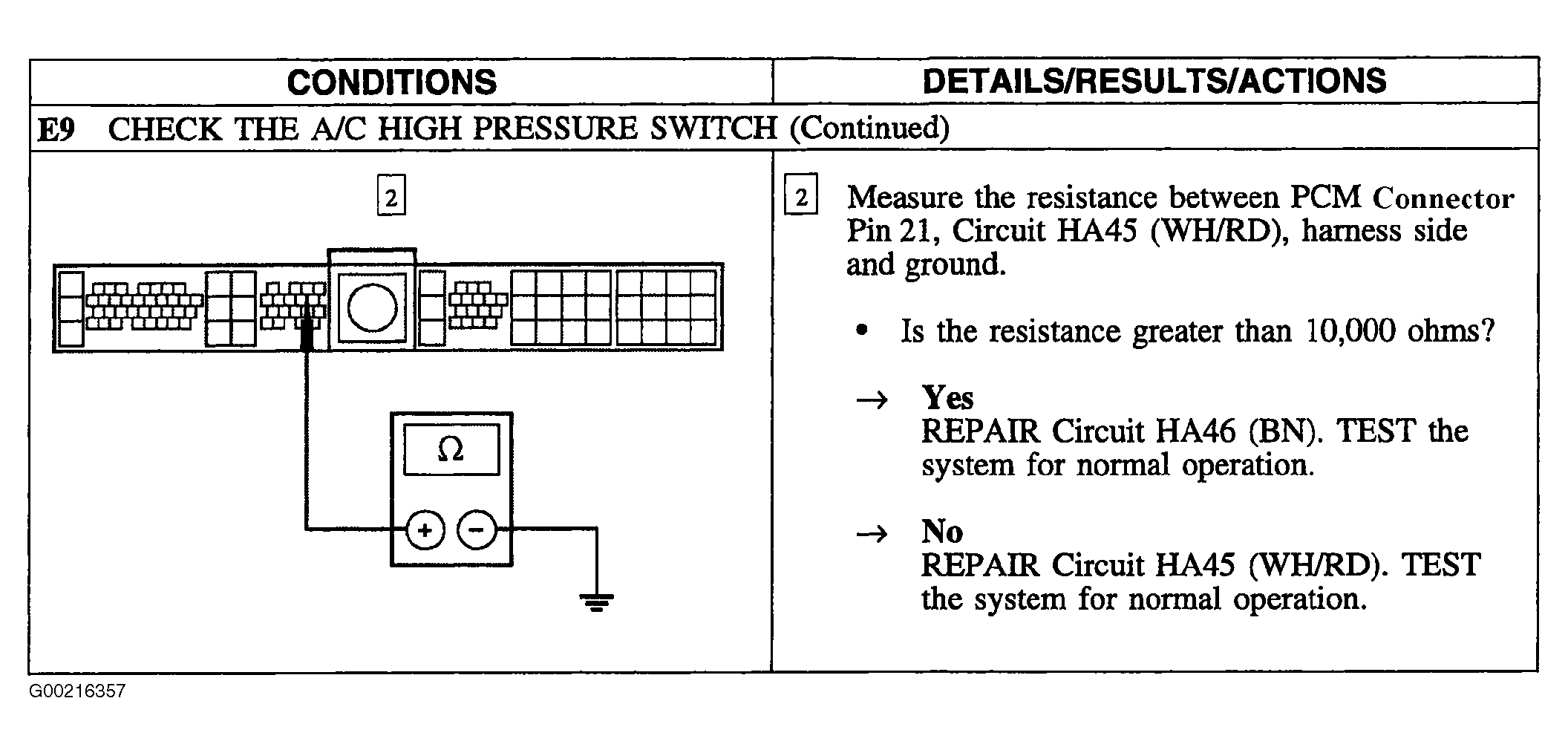

Fig 5: Test E (Step E9 Cont.)

Courtesy of FORD MOTOR CO.
