Seat Track - Bucket and 40 Percent: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

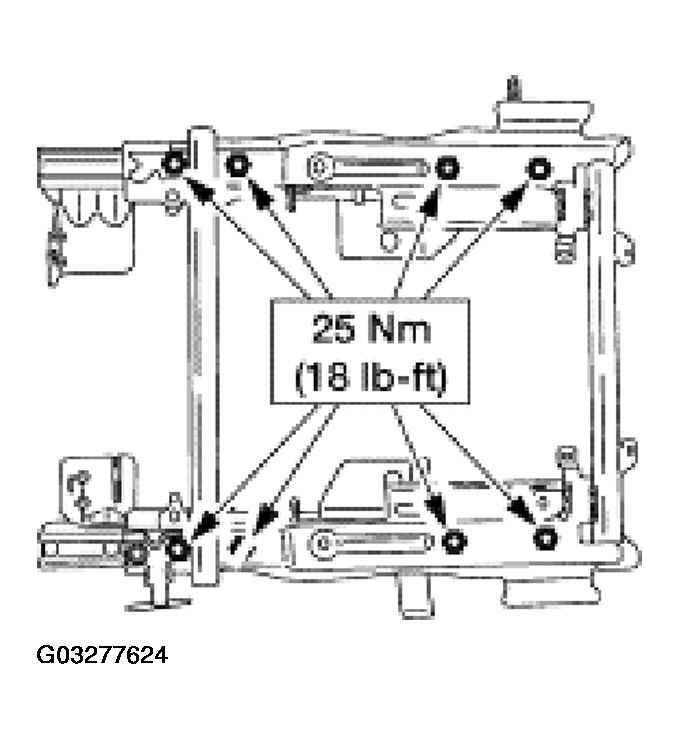

Install the seat cushion frame on the seat track and install the eight nuts.

Fig 1: Installing Seat Cushion Frame On Seat Track
Courtesy of FORD MOTOR CO.

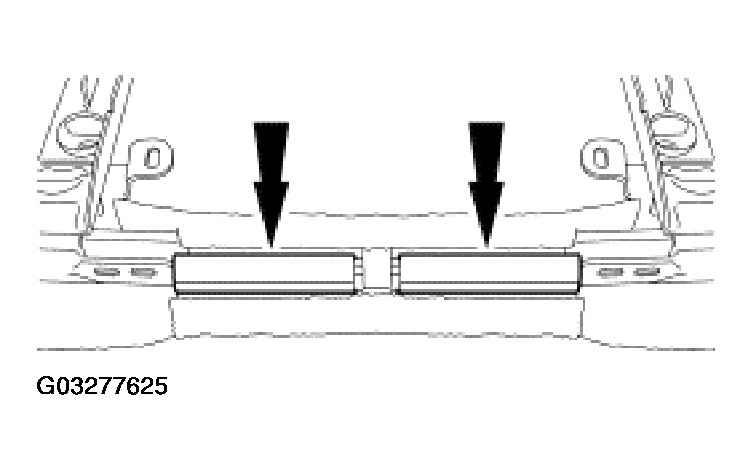

Install the rear seat frame material and attach the two J-clips.

Fig 2: Installing Rear Seat Frame Material & Attaching J-Clips
Courtesy of FORD MOTOR CO.

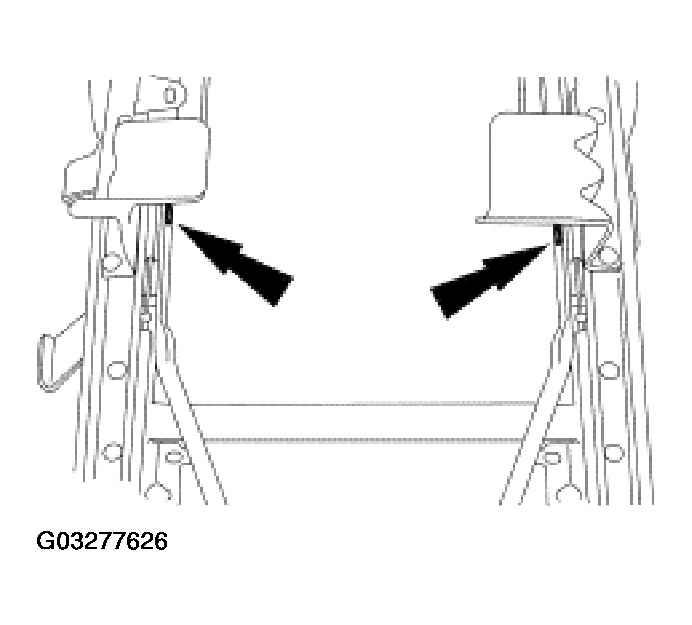

Install the seat track adjustment lever.
- Install one side of the seat track adjustment lever at a time.

  Fig 3: Installing Seat Track Adjustment Lever
  Courtesy of FORD MOTOR CO.

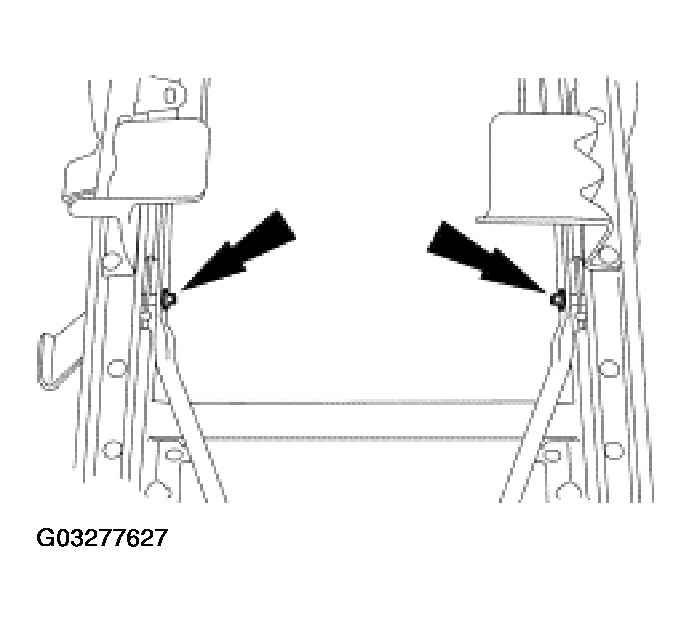

Install the push nuts.

Fig 4: Installing Push Nuts
Courtesy of FORD MOTOR CO.

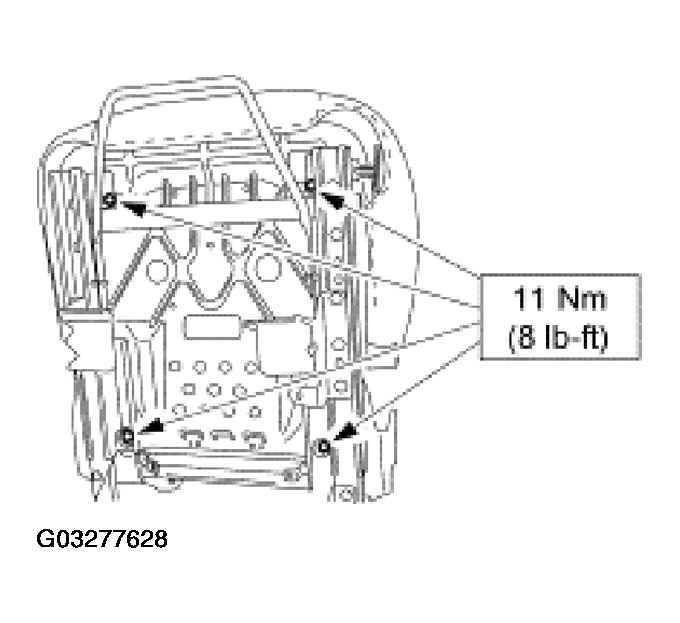

Install the cushion assembly and install the four bolts.

Fig 5: Installing Cushion Assembly
Courtesy of FORD MOTOR CO.

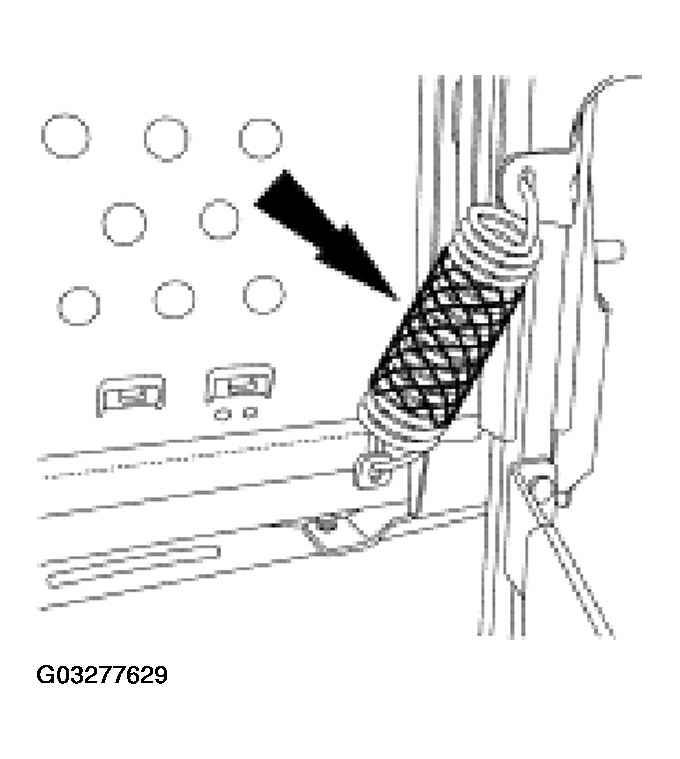

Install the seat track spring.

Fig 6: Installing Seat Track Spring
Courtesy of FORD MOTOR CO.
Install the affected seat backrest assembly. For additional information, refer to FRONT SEAT BACKREST - BUCKET AND 40 PERCENT .
Install the affected seat. For additional information, refer to FRONT SEAT .
Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
