Seat Track - 60 Percent Bench: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat track-to-cushion frame and install the eight nuts.

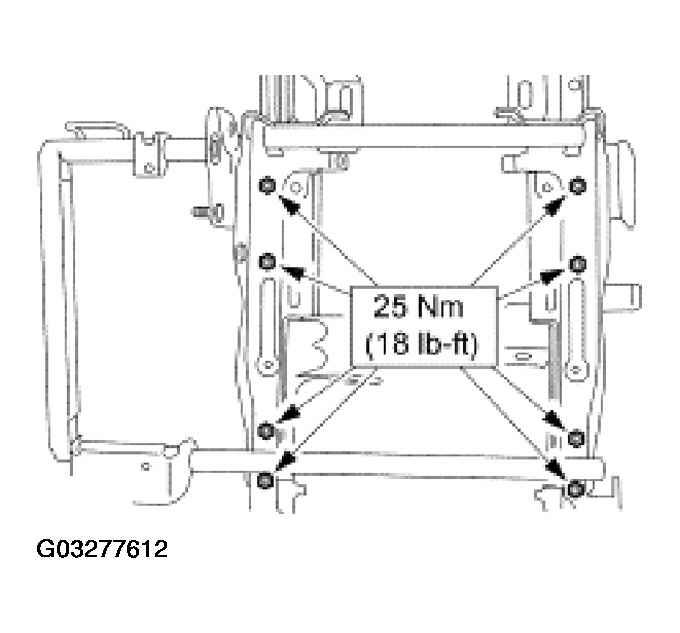

Fig 1: Installing Seat Track-To-Cushion Frame
Courtesy of FORD MOTOR CO.
Install the two front seat cushion-to-frame bolts.

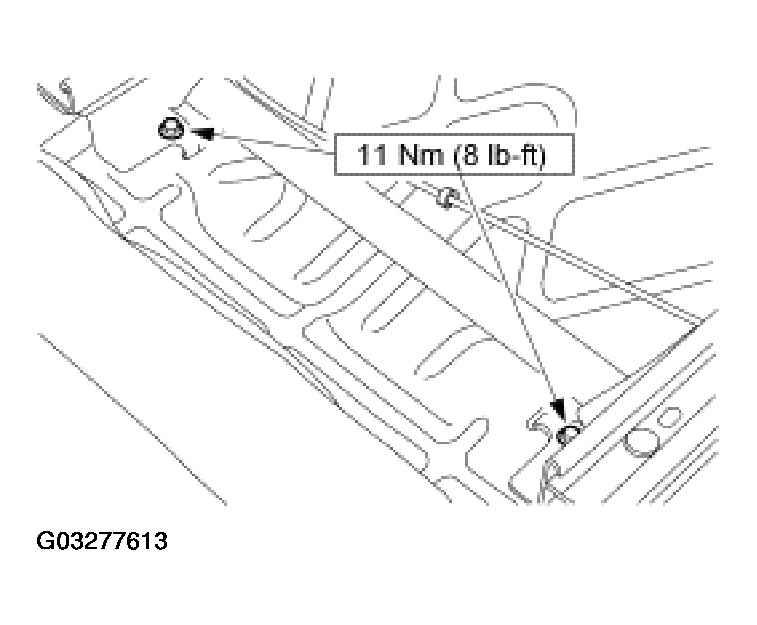

Fig 2: Installing Two Front Seat Cushion-To-Frame Bolts
Courtesy of FORD MOTOR CO.
Install the two rear seat cushion-to-frame bolts.

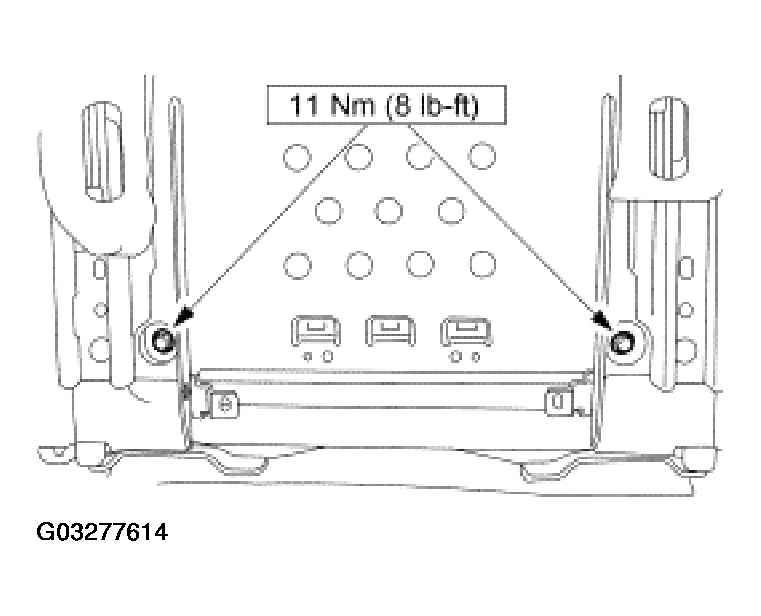

Fig 3: Installing Two Rear Seat Cushion-To-Frame Bolts
Courtesy of FORD MOTOR CO.
Install the seat track adjustment lever.
- Install one side of the seat track adjustment lever at a time.

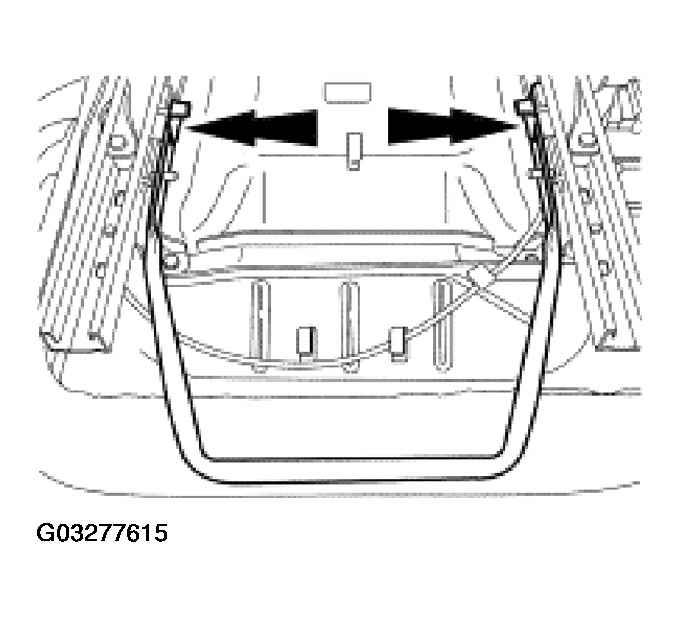

  Fig 4: Installing Seat Track Adjustment Lever
  Courtesy of FORD MOTOR CO.
Install the push nuts.

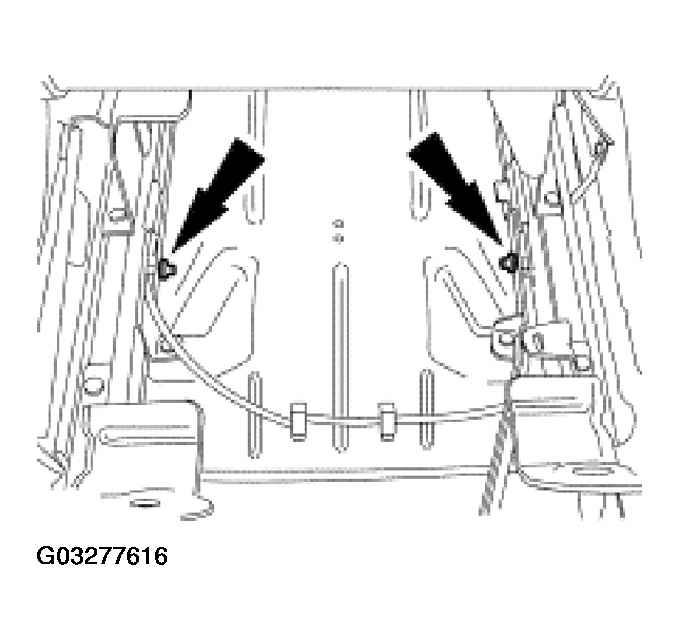

Fig 5: Installing Push Nuts
Courtesy of FORD MOTOR CO.
Install the seat track spring.

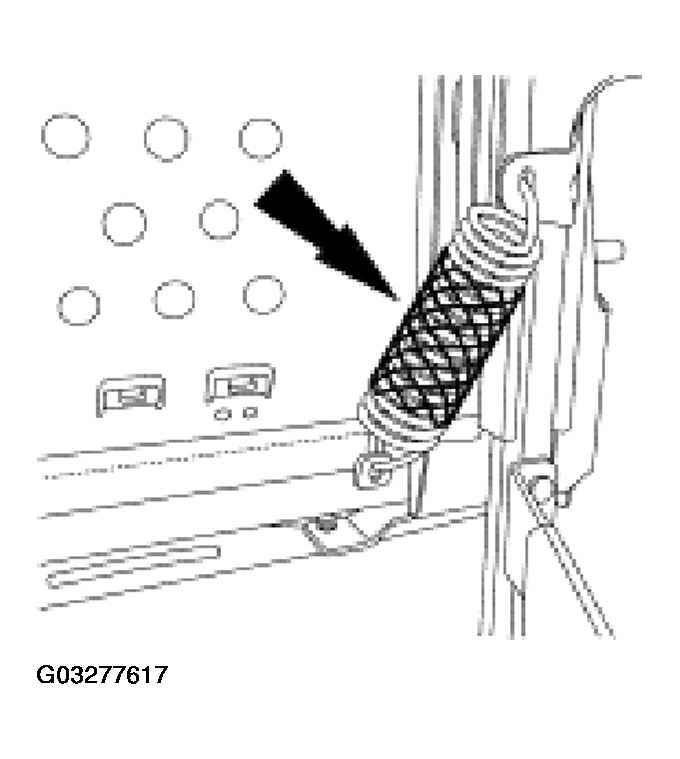

Fig 6: Installing Seat Track Spring
Courtesy of FORD MOTOR CO.
Install the 60 percent seat backrest assembly. For additional information, refer to FRONT SEAT BACKREST - 60 PERCENT BENCH .
Install the 60 percent bench armrest. For additional information, refer to SEAT ARMREST - 60 PERCENT BENCH .
Install the affected seat. For additional information, refer to FRONT SEAT .
Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
