Seat Armrest - 60 Percent Bench: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

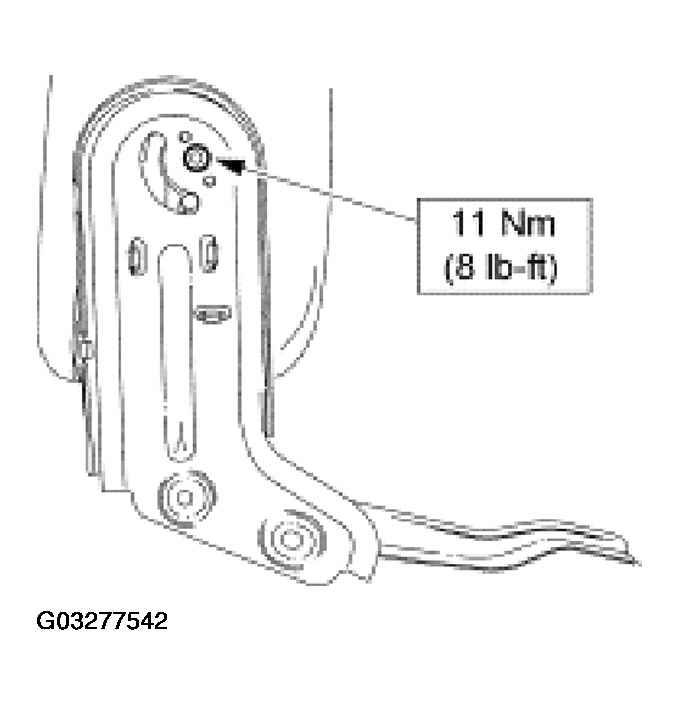

Install the armrest and install the two armrest bracket bolts (one shown).

Fig 1: Installing Armrest
Courtesy of FORD MOTOR CO.

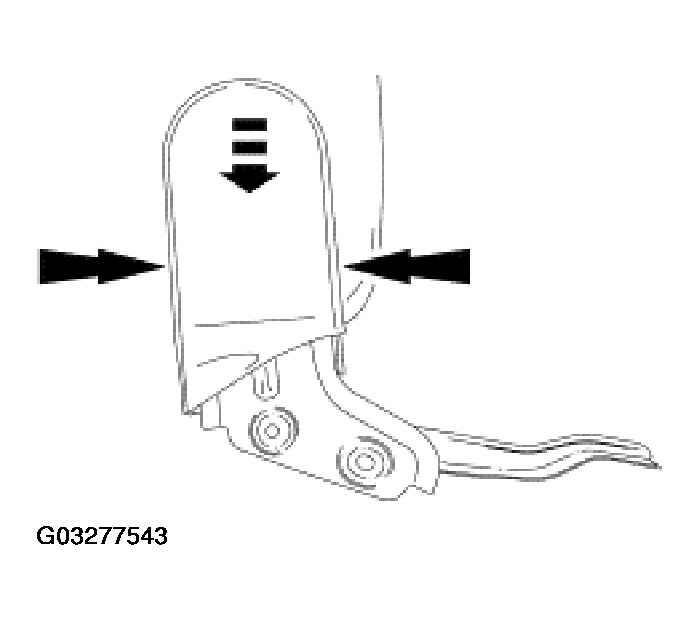

Slide the two armrest bracket covers on and clip in place.

Fig 2: Installing Armrest Bracket Cover
Courtesy of FORD MOTOR CO.

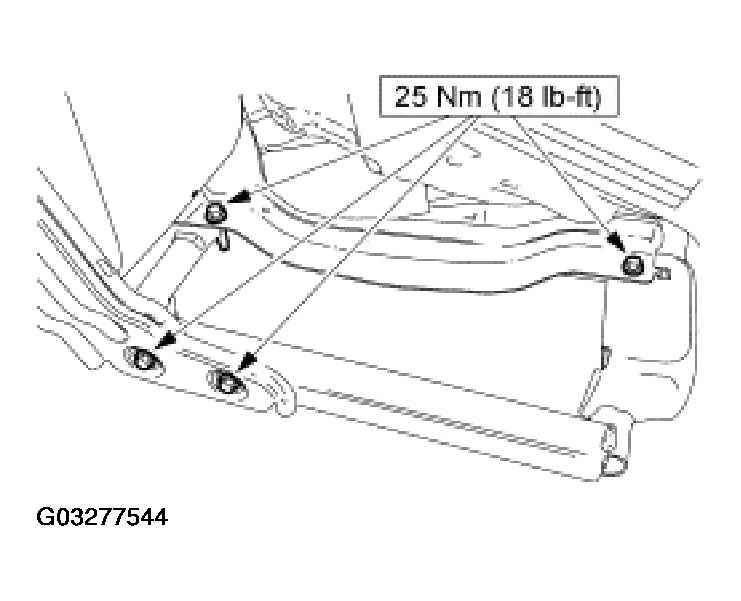

Install the armrest assembly and install the four bolts.

Fig 3: Installing Armrest Assembly
Courtesy of FORD MOTOR CO.
Position the seat cushion foam pad and seat cover down.

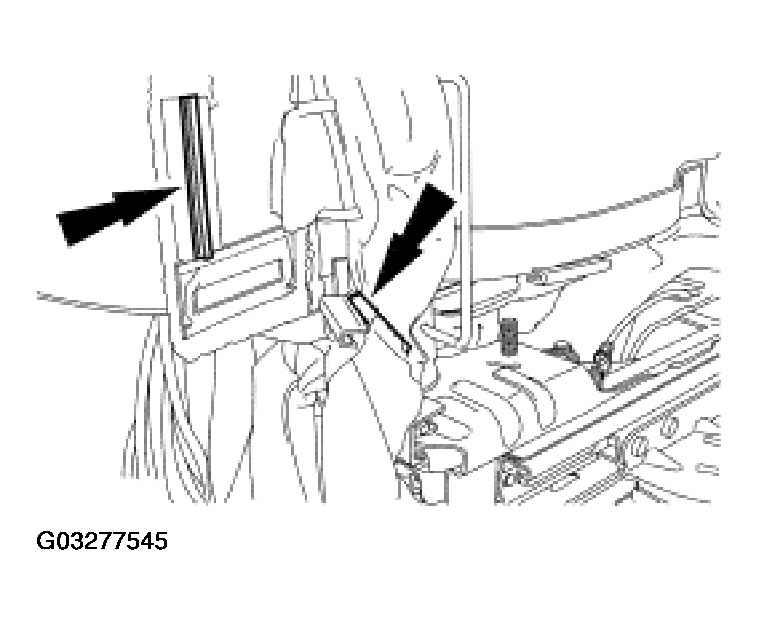

Position the material around the tether anchor and attach the hook and loop strip and attach the rear armrest J-clip.

Fig 4: Attaching Hook And Loop Strip And Attach Rear Armrest J-Clip
Courtesy of FORD MOTOR CO.

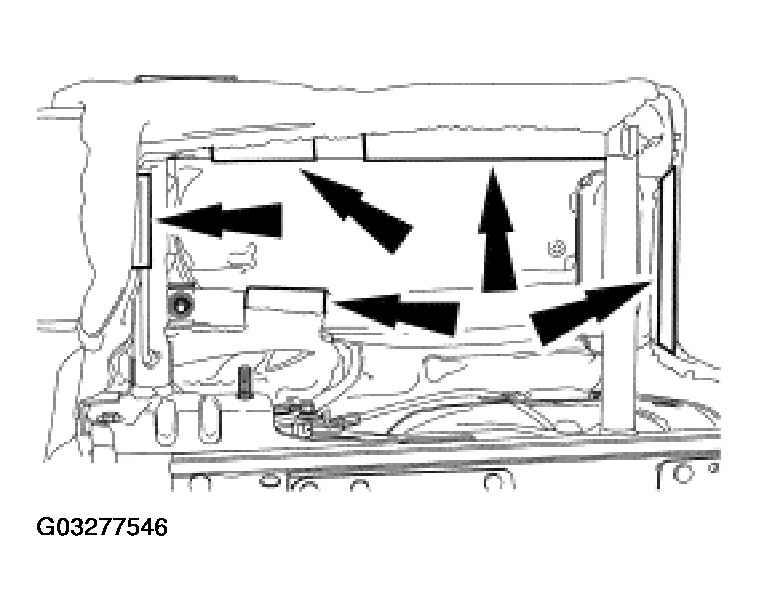

Attach the J-clips.

Fig 5: Attaching J-Clips
Courtesy of FORD MOTOR CO.

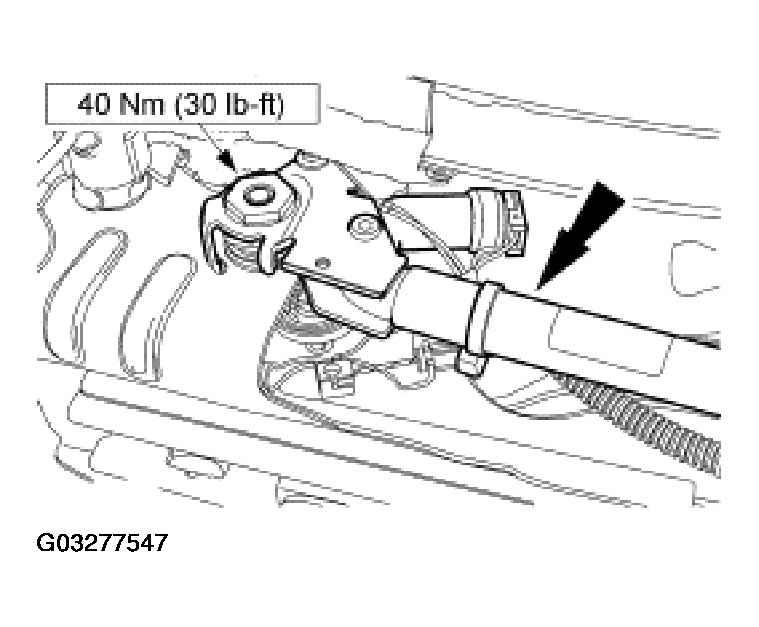

Install the safety belt buckle pretensioner and install the nut.

Fig 6: Installing Safety Belt Buckle Pretensioner
Courtesy of FORD MOTOR CO.

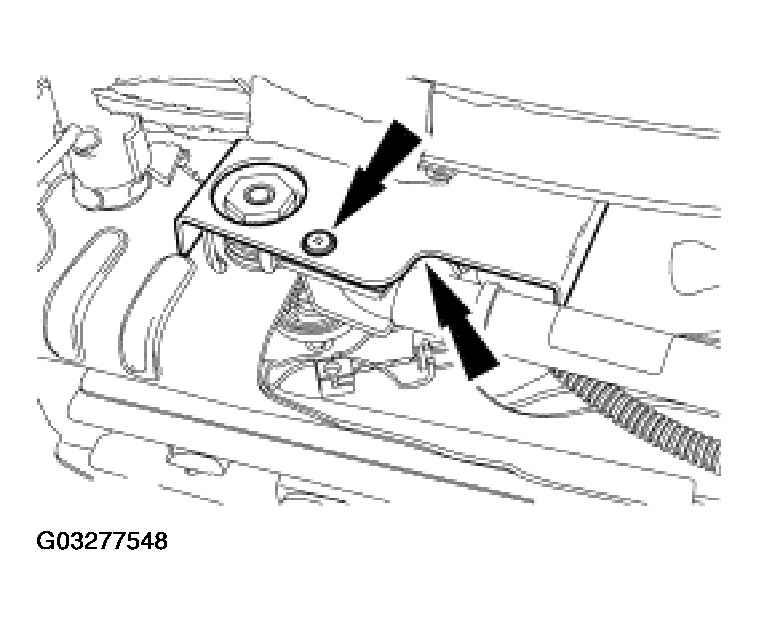

Install the safety belt buckle pretensioner cover and install the screw.

Fig 7: Installing Safety Belt Buckle Pretensioner Cover
Courtesy of FORD MOTOR CO.

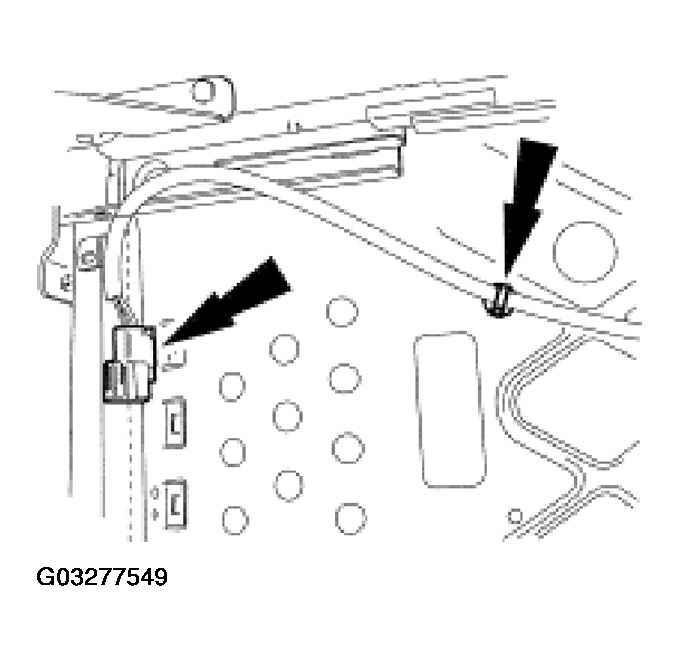

Route the safety belt buckle pretensioner wire harness through the seat and attach the harness clips and the electrical connector to the seat cushion pan.

Fig 8: Attaching Harness Clips And Electrical Connector To Seat Cushion Pan
Courtesy of FORD MOTOR CO.
Install the 60 percent bench seat. For additional information, refer to FRONT SEAT .
Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
