Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat covers.
1. Remove the jack cover.
2. Remove the pin-type retainer.
3. Remove the outboard trim cover.
4. Remove the inboard cover.

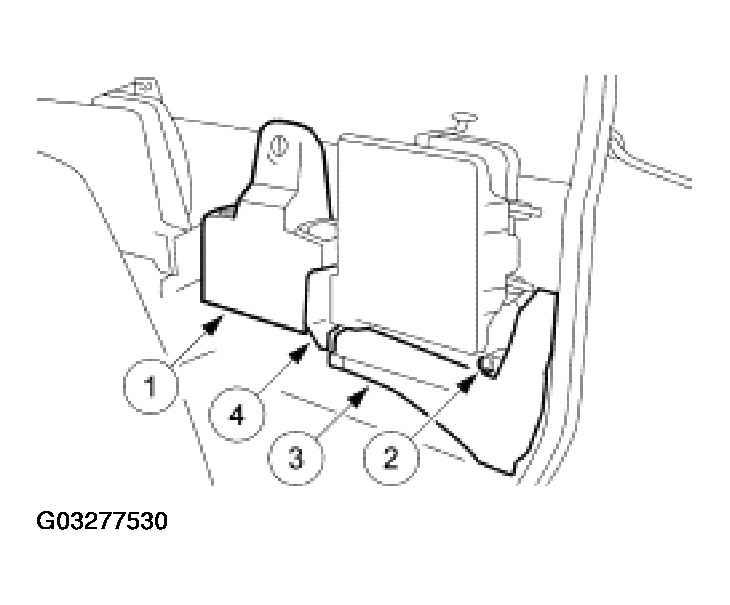

  Fig 1: Removing Rear Seat Covers
  Courtesy of FORD MOTOR CO.
Using special tool 501-010, remove the bolt and the safety belt retractor.

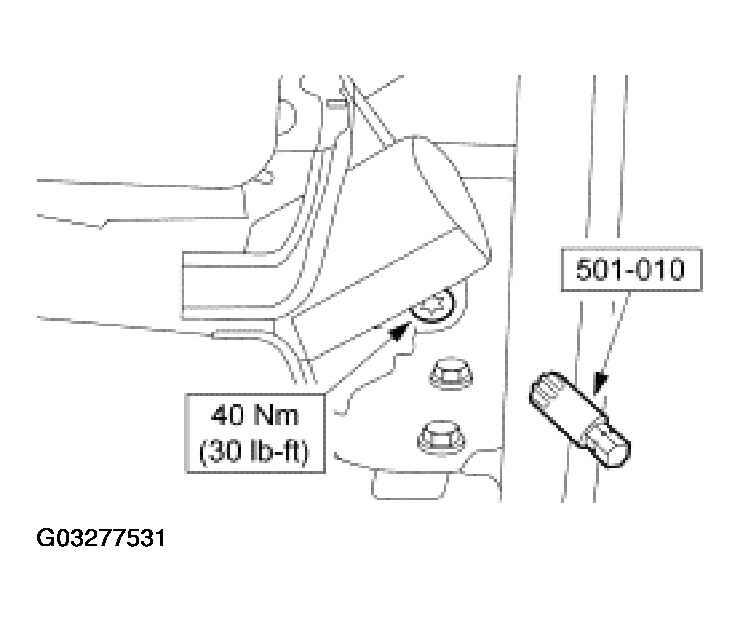

Fig 2: Removing Safety Belt Retractor
Courtesy of FORD MOTOR CO.
Remove the 5 bolts and remove the rear seat.

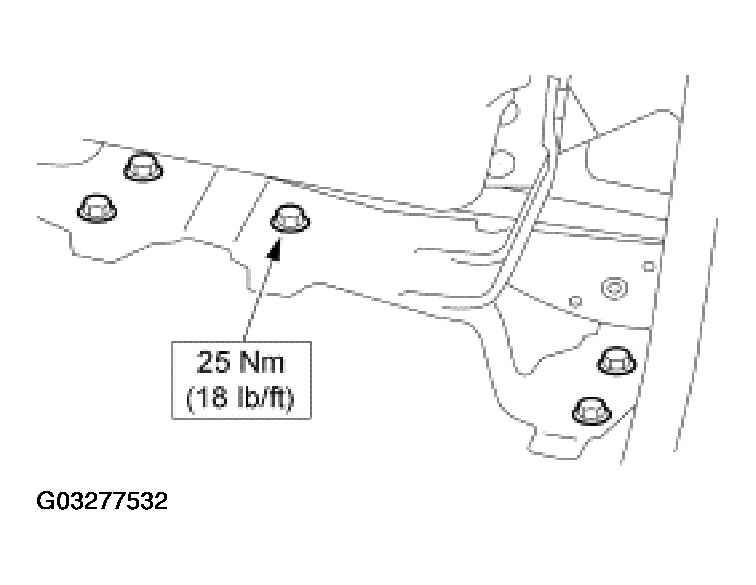

Fig 3: Removing Rear Seat
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
