Rear Seat - Center Facing: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower rear seat trim panel.
    1. Remove the pin-type retainers.
    2. Remove the lower rear seat trim panel.

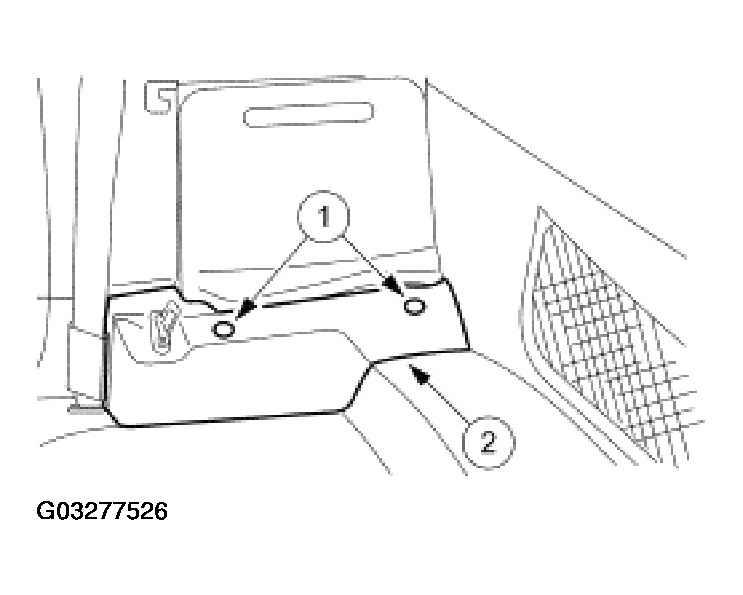

      Fig 1: Removing Lower Rear Seat Trim Panel
      G03277526Courtesy of FORD MOTOR CO.
  2. Remove the center facing rear seat.
    1. Remove the bolts.
    2. Using special tool 501-010, remove the safety belt bolt.
    3. Remove the center facing rear seat.

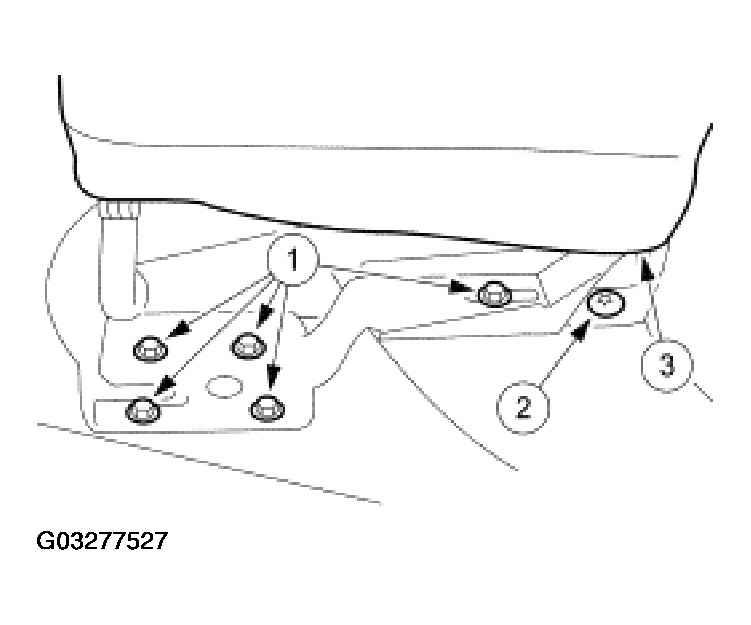

      Fig 2: Removing Center Facing Rear Seat
      G03277527Courtesy of FORD MOTOR CO.
