Front Seat Cushion - Bucket and 40 Percent: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion assembly and install the four bolts.

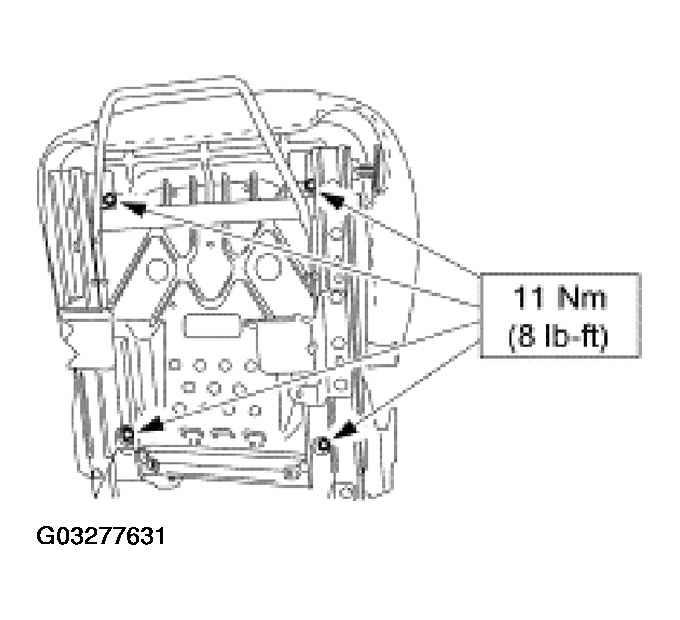

    Fig 1: Installing Seat Cushion Assembly
    G03277631Courtesy of FORD MOTOR CO.
  2. Install the affected seat backrest, for additional information, refer to FRONT SEAT BACKREST - BUCKET AND 40 PERCENT .
  3. Install the affected seat. For additional information, refer to FRONT SEAT .
  4. Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
