Front Seat Backrest - Bucket and 40 Percent: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

ALL SEATS

Install the backrest assembly.

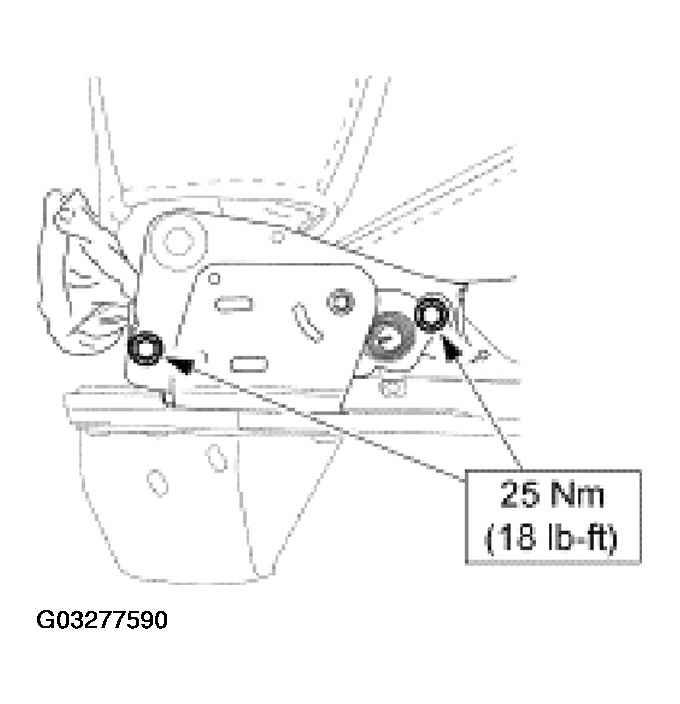

Install the two outboard backrest bolts.

Fig 1: Installing Two Outboard Backrest Bolts
Courtesy of FORD MOTOR CO.

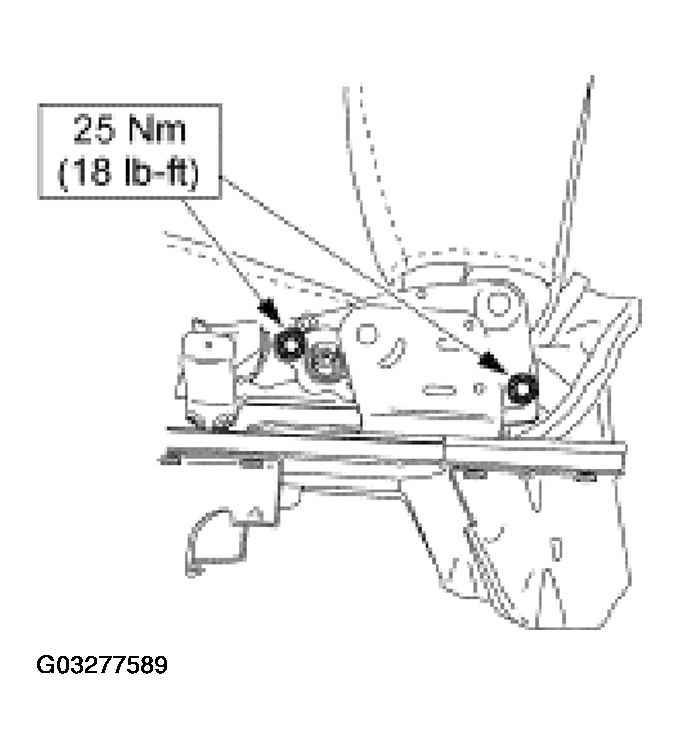

Install the two inboard backrest bolts.

Fig 2: Installing Two Inboard Backrest Bolts
Courtesy of FORD MOTOR CO.

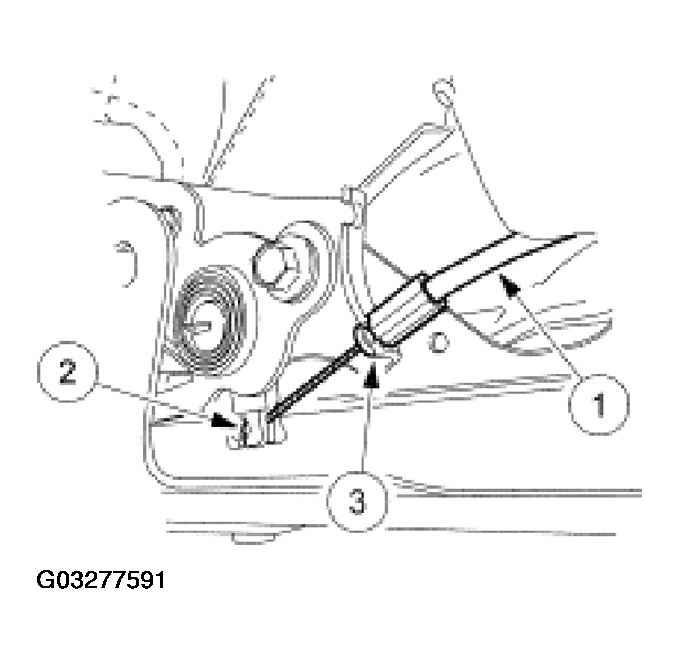

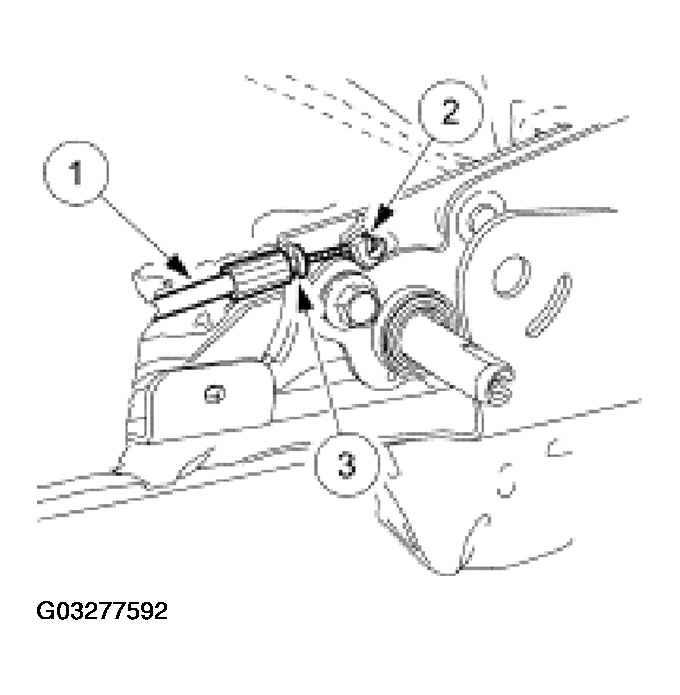

Install the inboard recliner cable.
1. Position the recliner cable.
2. Install the recliner cable end and swivel the cable.
3. Attach the recliner cable at its anchor point.

  Fig 3: Installing Inboard Recliner Cable
  Courtesy of FORD MOTOR CO.
Install the outboard recliner cable.
1. Position the recliner cable.
2. Install the recliner cable end and swivel the cable.
3. Attach the recliner cable to its anchor point.

  Fig 4: Installing Outboard Recliner Cable
  Courtesy of FORD MOTOR CO.

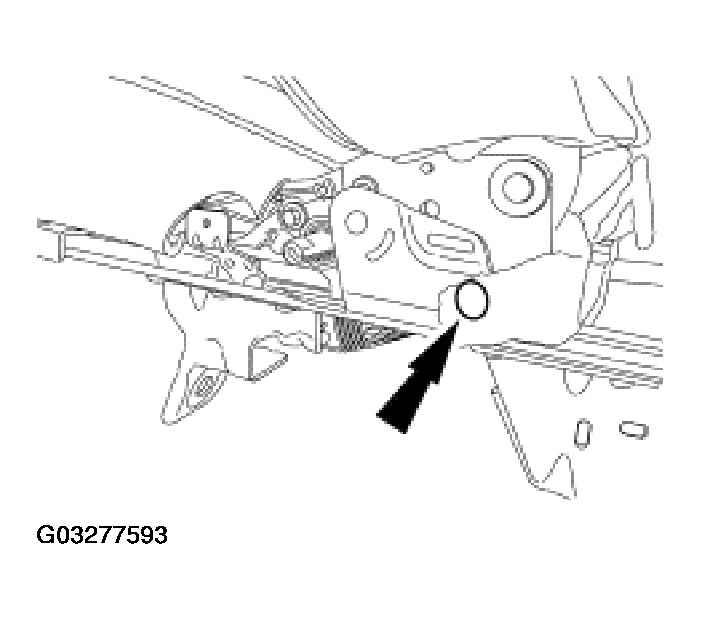

Position material and install the outboard pin-type retainer.

Fig 5: Installing Outboard Pin-Type Retainer
Courtesy of FORD MOTOR CO.

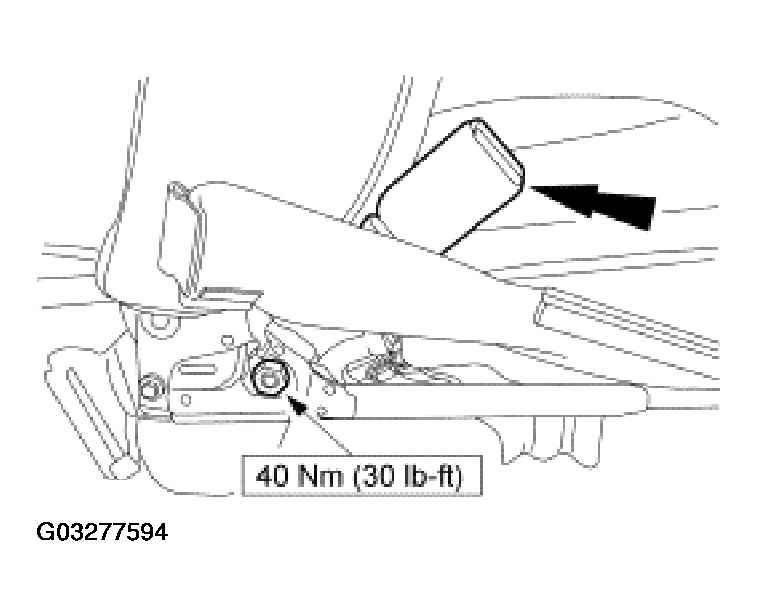

Install the safety belt buckle pretensioner and install the safety belt buckle pretensioner nut.

Fig 6: Installing Safety Belt Buckle Pretensioner
Courtesy of FORD MOTOR CO.

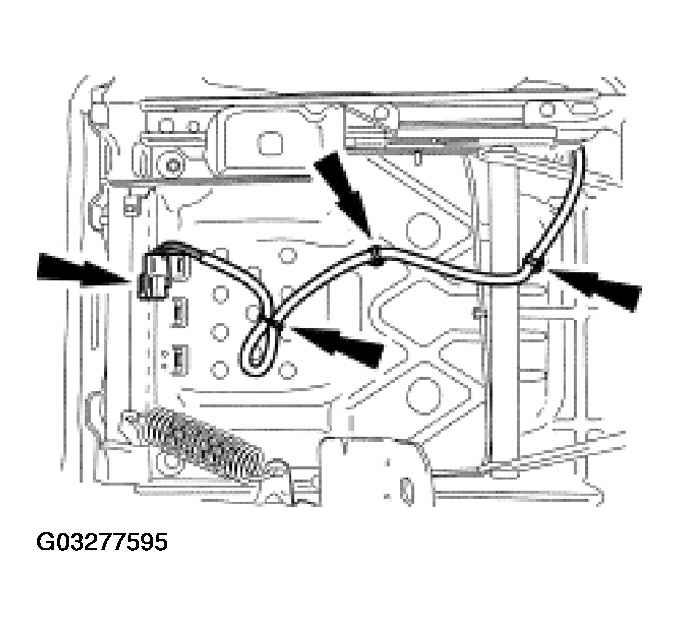

Route the safety belt buckle pretensioner wire harness through the seat frame and attach the safety belt buckle pretensioner wire harness to the seat cushion pan.

Fig 7: Attaching Safety Belt Buckle Pretensioner Wire Harness To Seat Cushion Pan
Courtesy of FORD MOTOR CO.

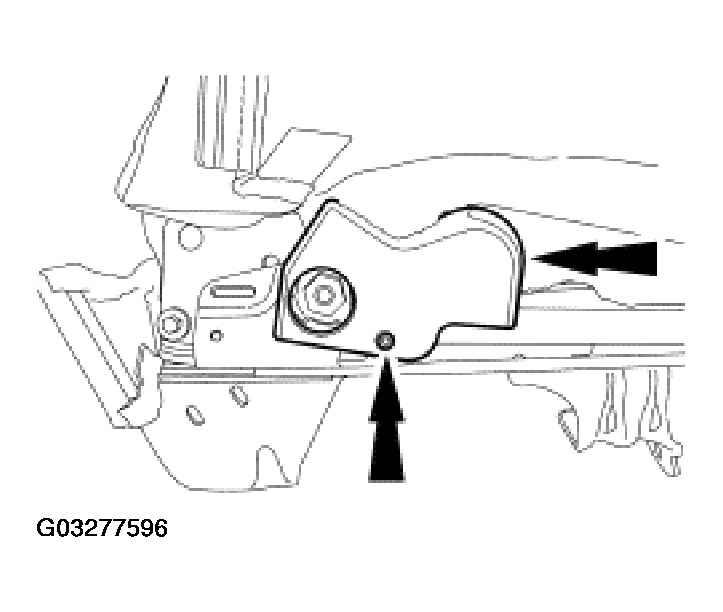

Install the safety belt buckle pretensioner cover and install the screw.

Fig 8: Installing Safety Belt Buckle Pretensioner Cover
Courtesy of FORD MOTOR CO.

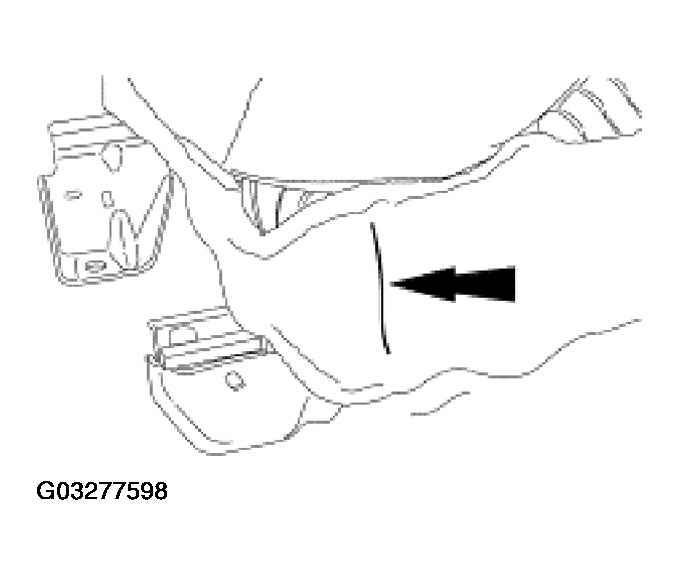

Attach the inboard side J-clip.

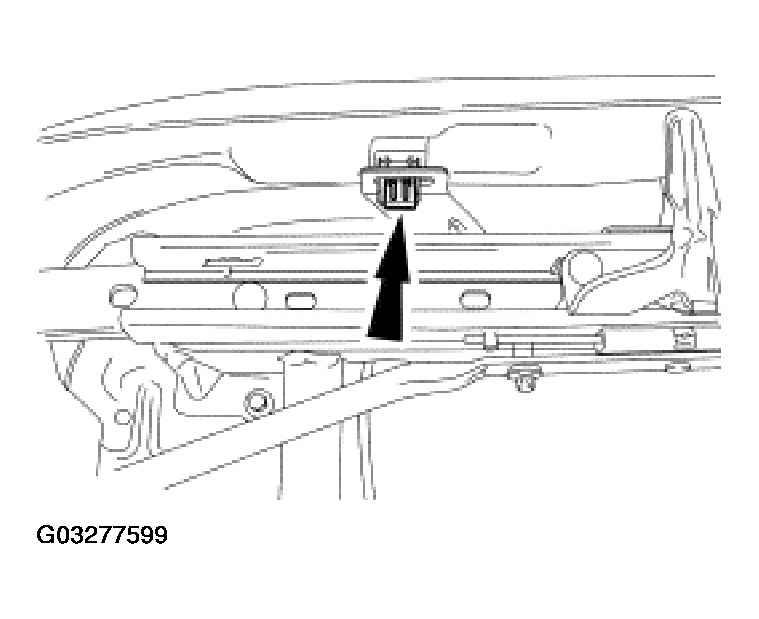

Fig 9: Attaching Inboard Side J-Clip
Courtesy of FORD MOTOR CO.

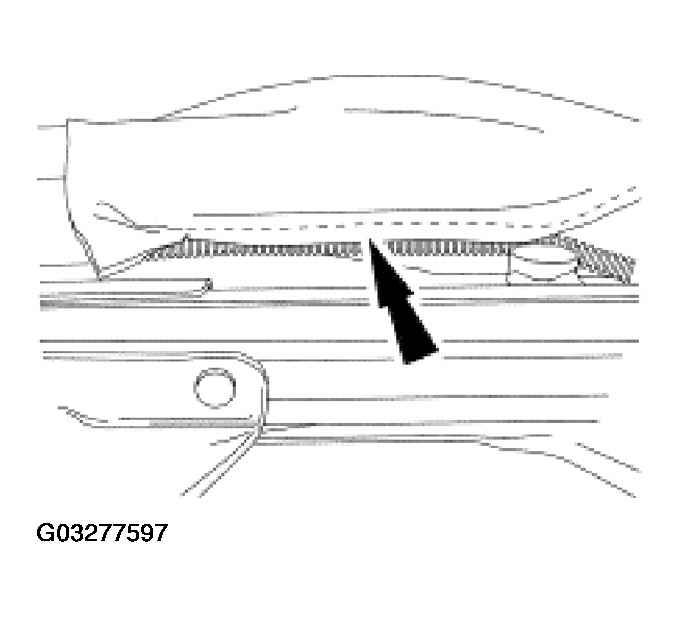

Attach the inboard side rear J-clip.

Fig 10: Attaching Inboard Side Rear J-Clip
Courtesy of FORD MOTOR CO.
Position the side shield and install the two clips (one shown).

Fig 11: Positioning Side Shield And Installing Clip
Courtesy of FORD MOTOR CO.

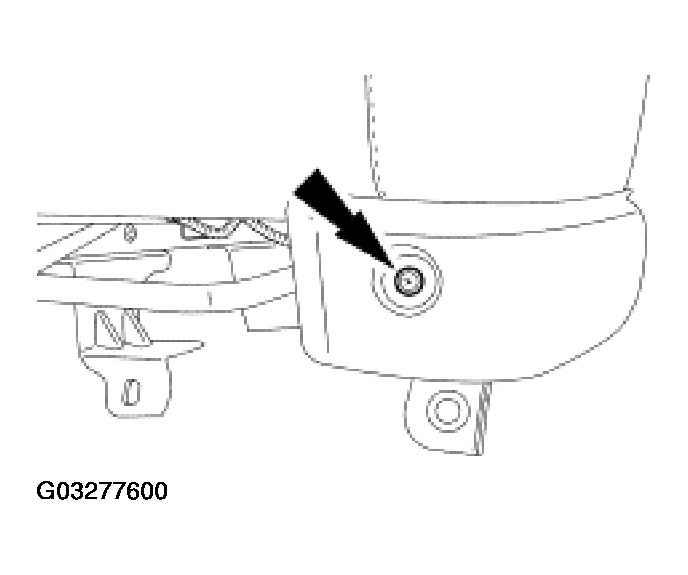

Install the front side shield screw.

Fig 12: Installing Front Side Shield Screw
Courtesy of FORD MOTOR CO.

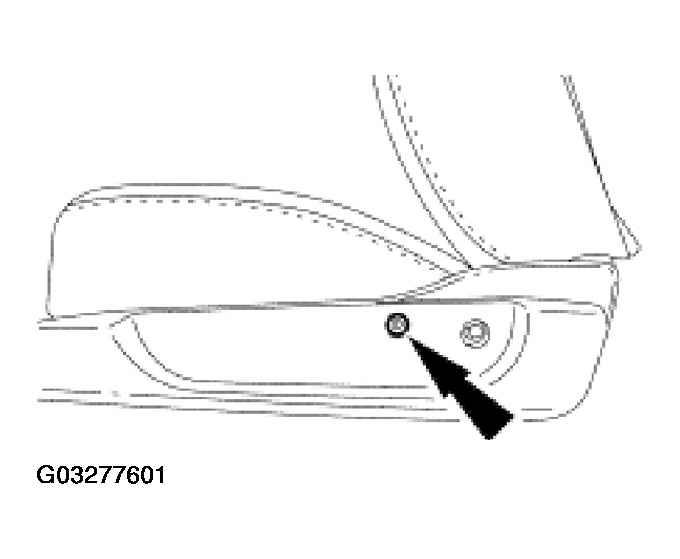

Install the screw on the side shield.

Fig 13: Installing Side Shield Screw
Courtesy of FORD MOTOR CO.

SEATS WITH MANUAL LUMBAR

Route the lumbar adjustment cable as noted during removal.

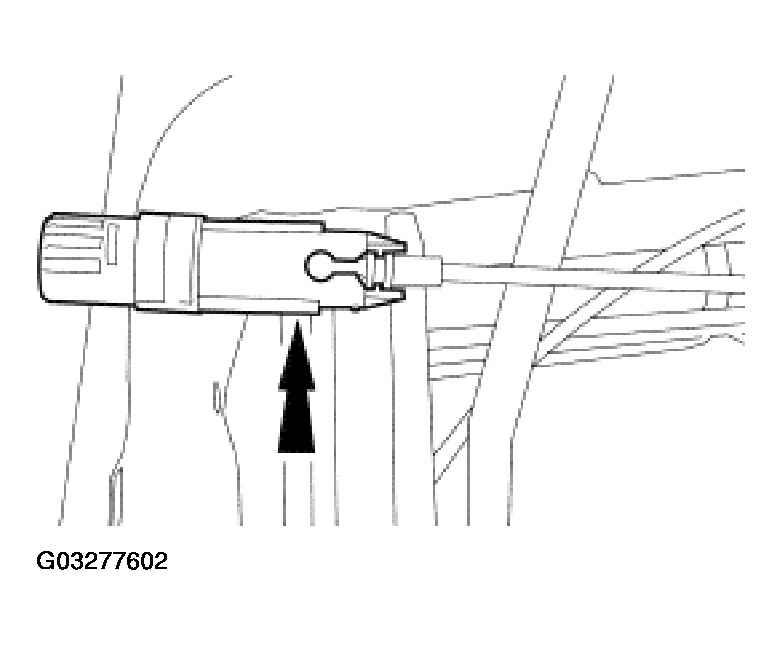

Connect the lumbar support adjuster and the lumbar adjustment cable.

Fig 14: Connecting Lumbar Support Adjuster And Lumbar Adjustment Cable
Courtesy of FORD MOTOR CO.

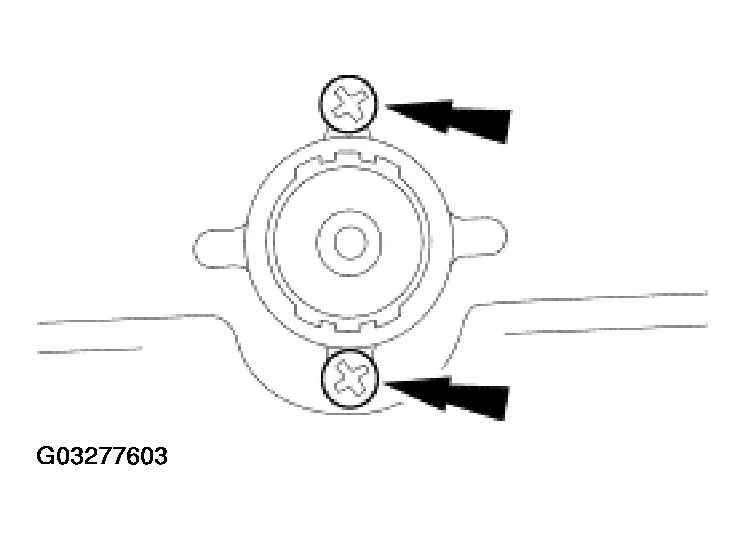

Install the lumbar support adjuster and the two screws.

Fig 15: Installing Lumbar Support Adjuster
Courtesy of FORD MOTOR CO.

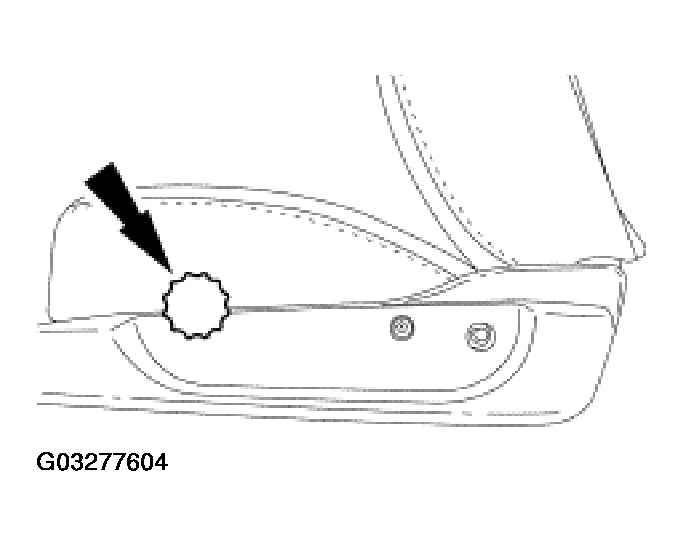

Install the lumbar knob.

Fig 16: Installing Lumbar Knob
Courtesy of FORD MOTOR CO.

ALL SEATS

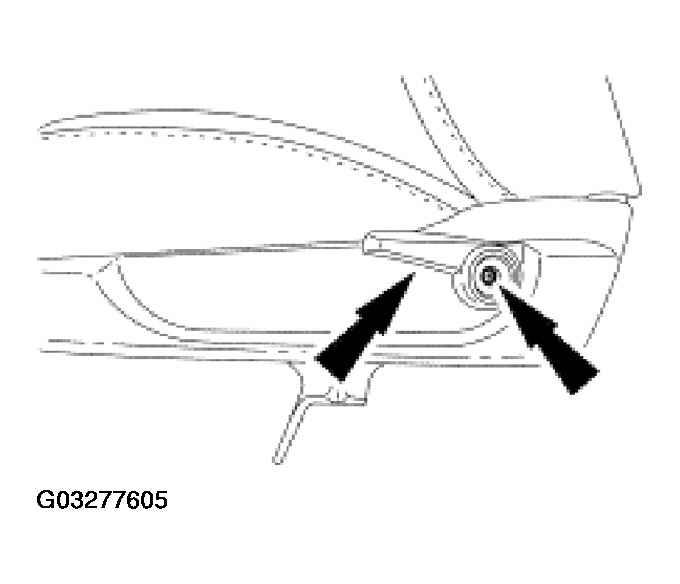

Install the recliner handle and install the screw.

Fig 17: Installing Recliner Handle
Courtesy of FORD MOTOR CO.
Install the affected seat. For additional information, refer to FRONT SEAT .
Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
