Front Seat Backrest - 60 Percent Bench: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Install the backrest assembly.

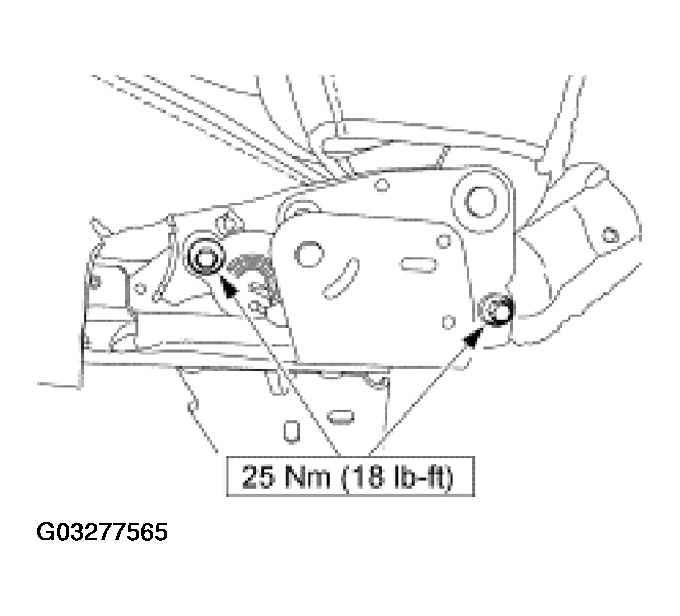

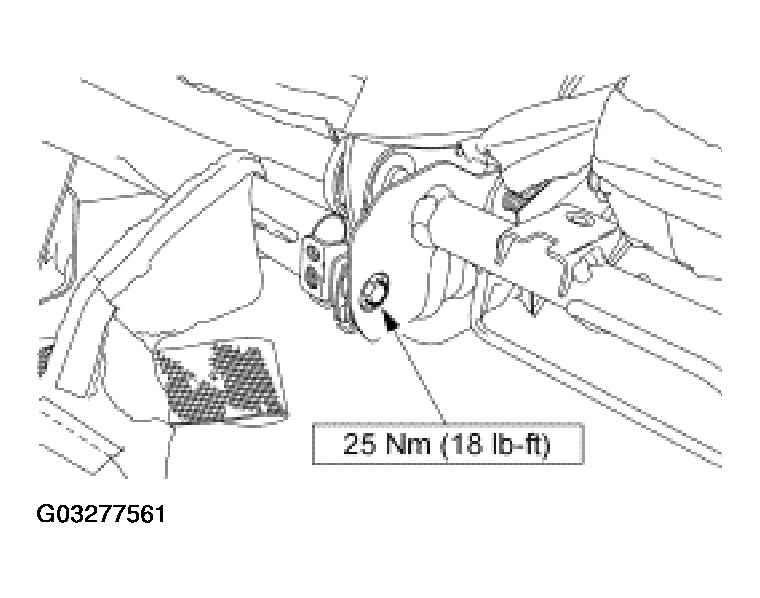

Install inboard rear backrest recliner bolt.

Fig 1: Installing Inboard Rear Backrest Recliner Bolt
Courtesy of FORD MOTOR CO.

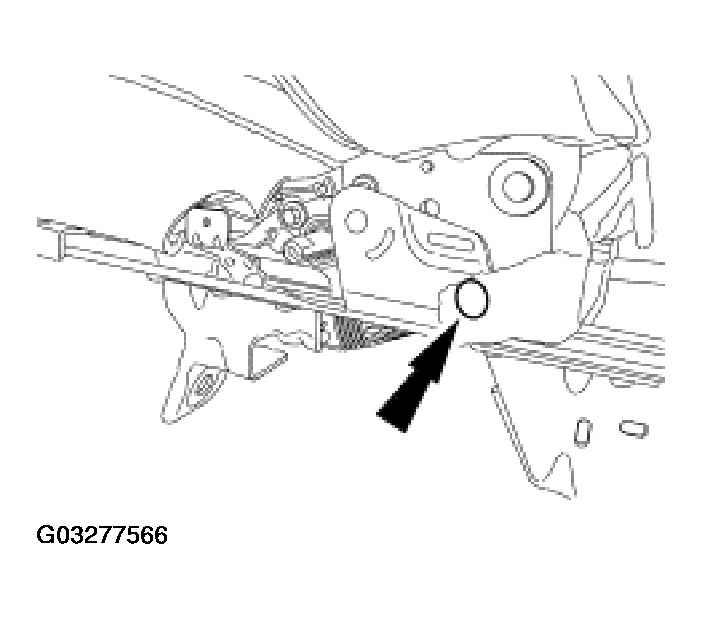

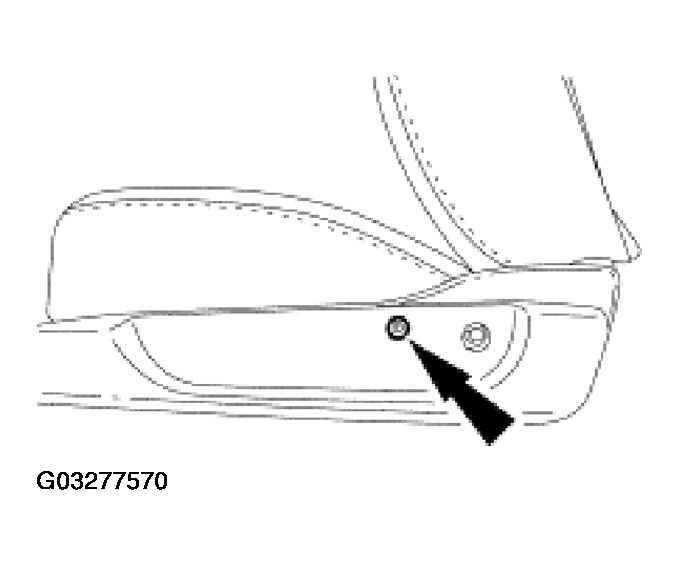

Install the inboard rear bolt cover.

Fig 2: Installing Inboard Rear Bolt Cover
Courtesy of FORD MOTOR CO.
Install the inboard front backrest recliner bolt.

Fig 3: Installing Inboard Front Backrest Recliner Bolt
Courtesy of FORD MOTOR CO.

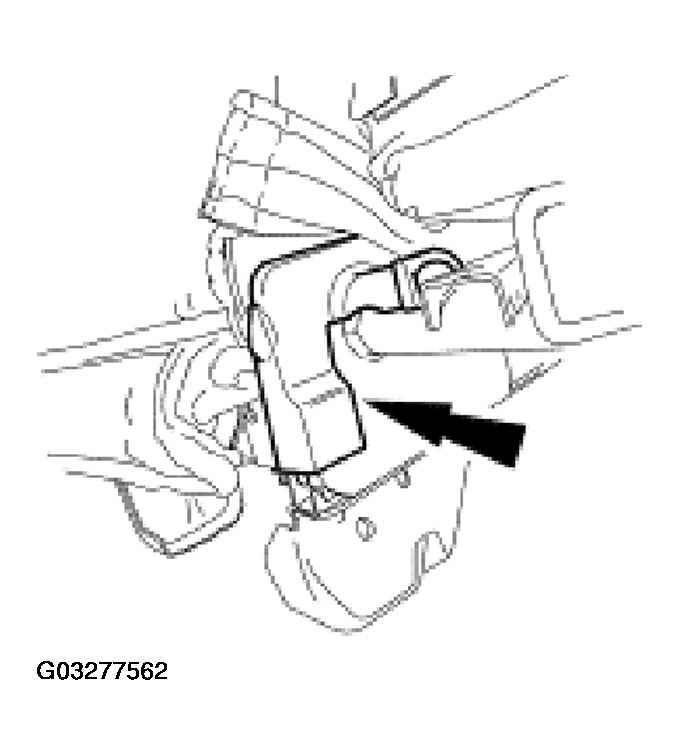

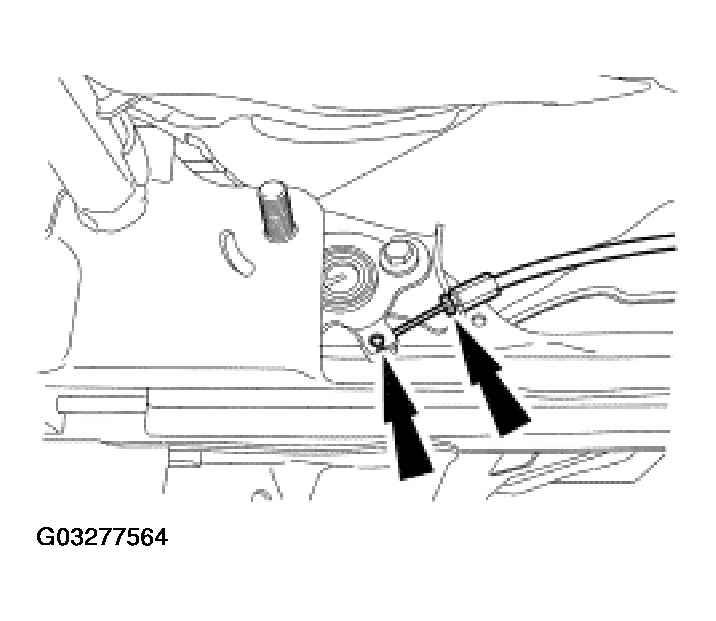

Install the inboard recliner cable end and swivel and install the recliner cable anchor.

Fig 4: Installing Inboard Recliner Cable
Courtesy of FORD MOTOR CO.
Install the two outboard backrest recliner bolts.

Fig 5: Installing Two Outboard Backrest Recliner Bolts
Courtesy of FORD MOTOR CO.

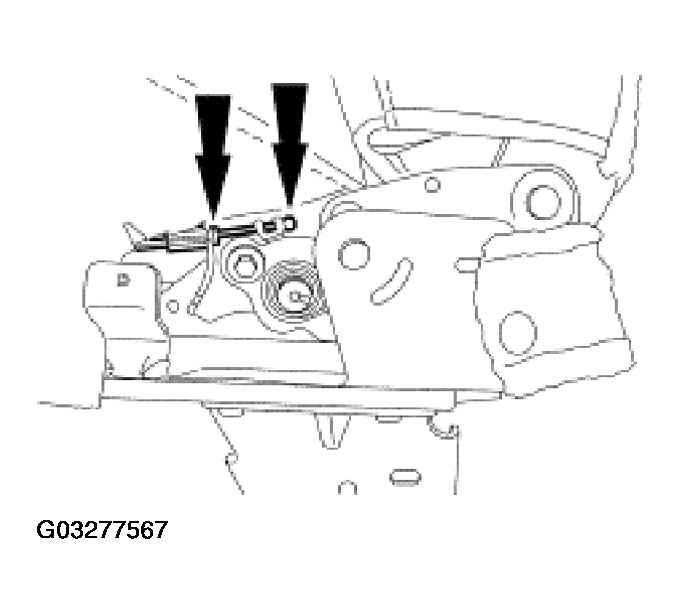

Position material and install the outboard pin-type retainer.

Fig 6: Installing Outboard Pin-Type Retainer
Courtesy of FORD MOTOR CO.

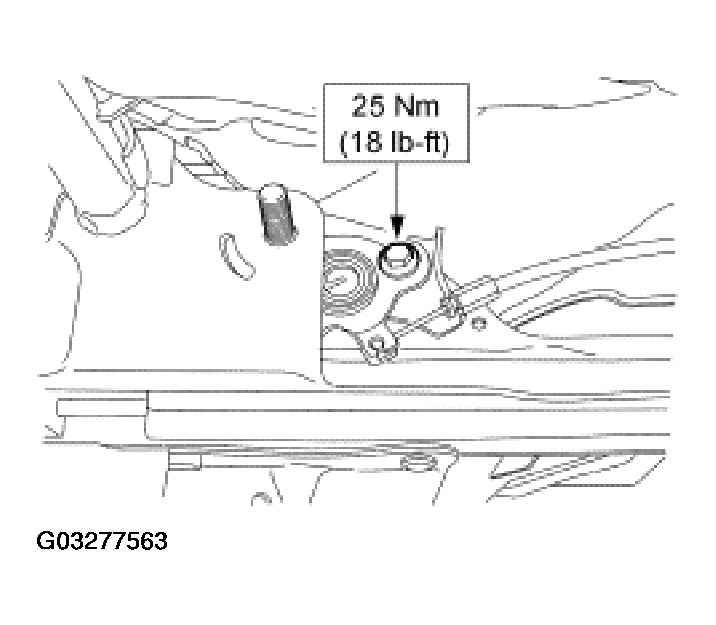

Install the outboard recliner cable end and swivel and install the recliner cable anchor.

Fig 7: Installing Outboard Recliner Cable
Courtesy of FORD MOTOR CO.

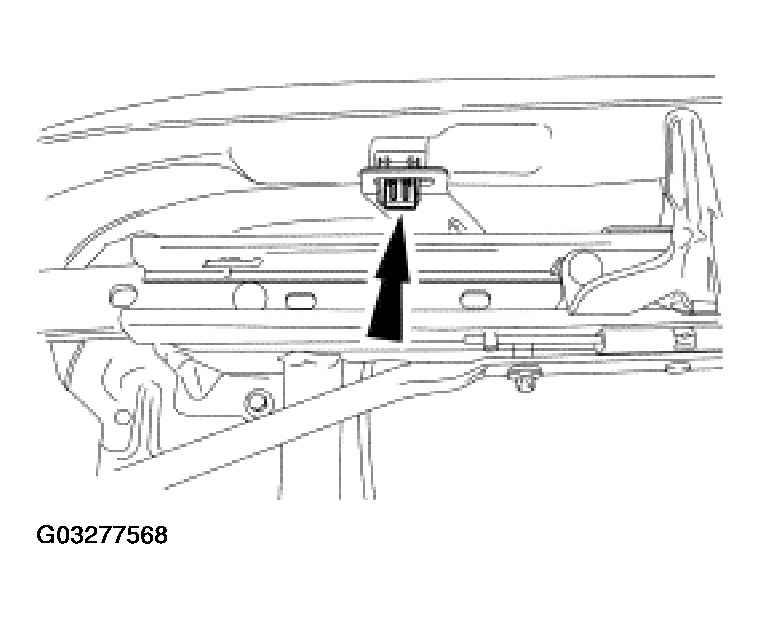

Position the side shield and install the two clips (one shown).

Fig 8: Positioning Side Shield & Installing Two Clips
Courtesy of FORD MOTOR CO.

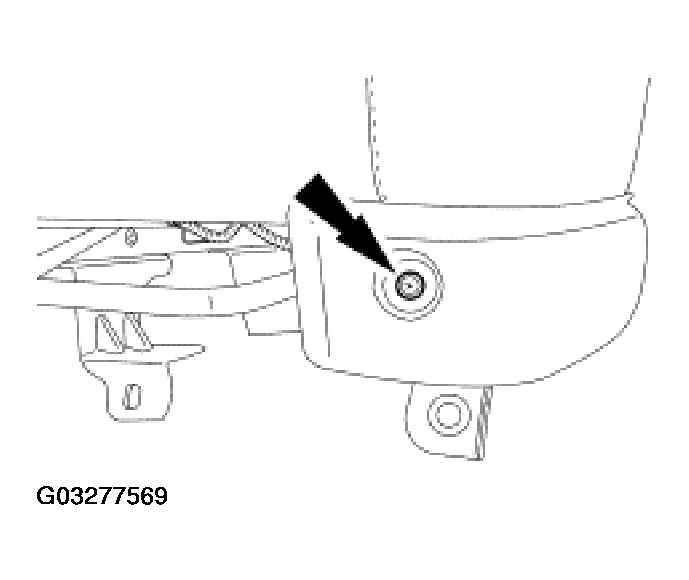

Install the front side shield screw.

Fig 9: Installing Front Side Shield
Courtesy of FORD MOTOR CO.
Install the screw on the side shield.

Fig 10: Installing Side Shield
Courtesy of FORD MOTOR CO.

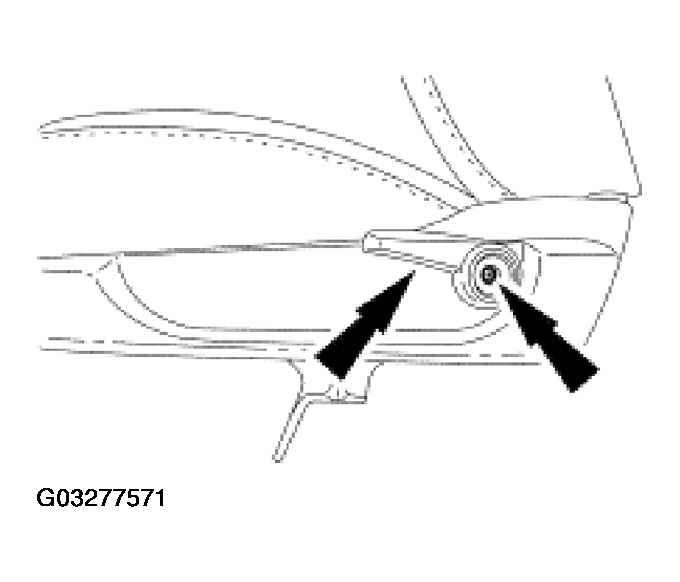

Install the recliner handle and install the screw.

Fig 11: Installing Recliner Handle
Courtesy of FORD MOTOR CO.
Install the 60 percent bench armrest. For additional information, refer to SEAT ARMREST - 60 PERCENT BENCH .
Install the 60 percent bench seat. For additional information, refer to FRONT SEAT .
Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
