Rear Seat Cushion - Center Facing Rear: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw covers.
    Fig 1: Removing Assist Handle Screw Covers
    G03277652Courtesy of FORD MOTOR CO.
  2. Remove the assist handle.
    1. Remove the screws.
    2. Remove the assist handle.

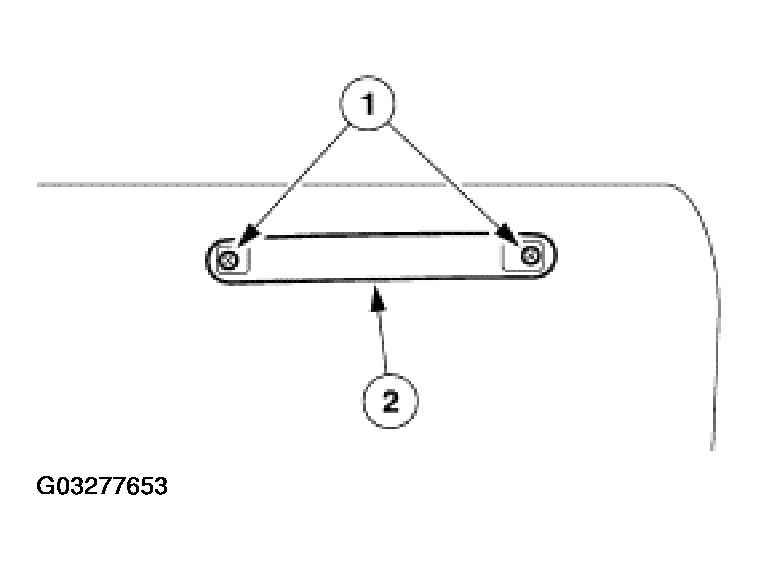

      Fig 2: Removing Assist Handle
      G03277653Courtesy of FORD MOTOR CO.
  3. Remove the rear seat door trim cover screw.
    1. Unhook the rear seat door trim cover retainers.
    2. Remove the rear seat door trim cover screw.

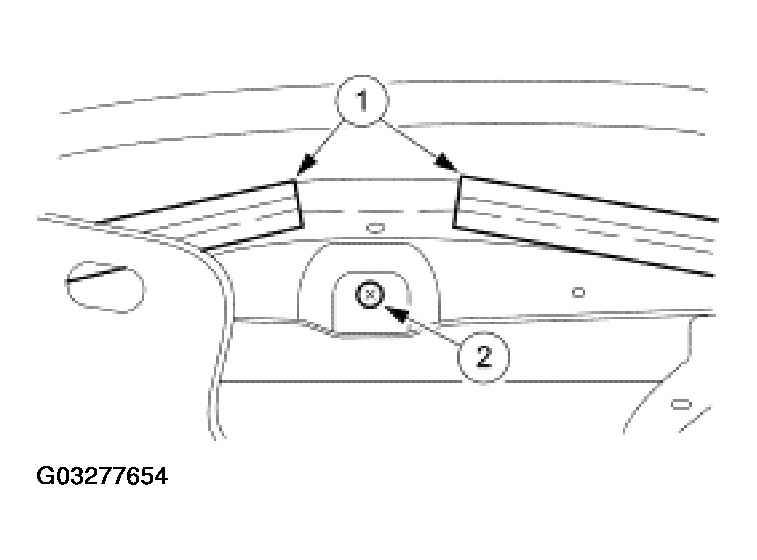

      Fig 3: Removing Rear Seat Door Trim Cover Screw
      G03277654Courtesy of FORD MOTOR CO.
  4. Remove the seat door trim cover.
    • Disengage the push-pins.

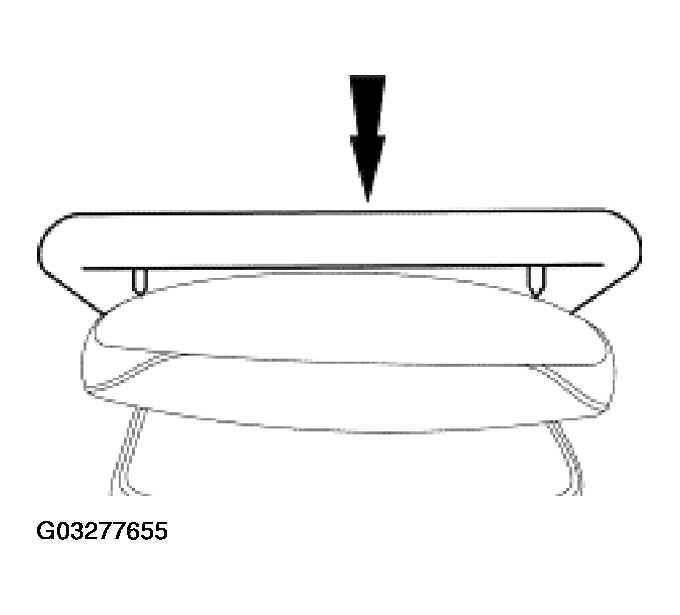

      Fig 4: Removing Seat Door Trim Cover
      G03277655Courtesy of FORD MOTOR CO.
  5. Remove the hog rings.

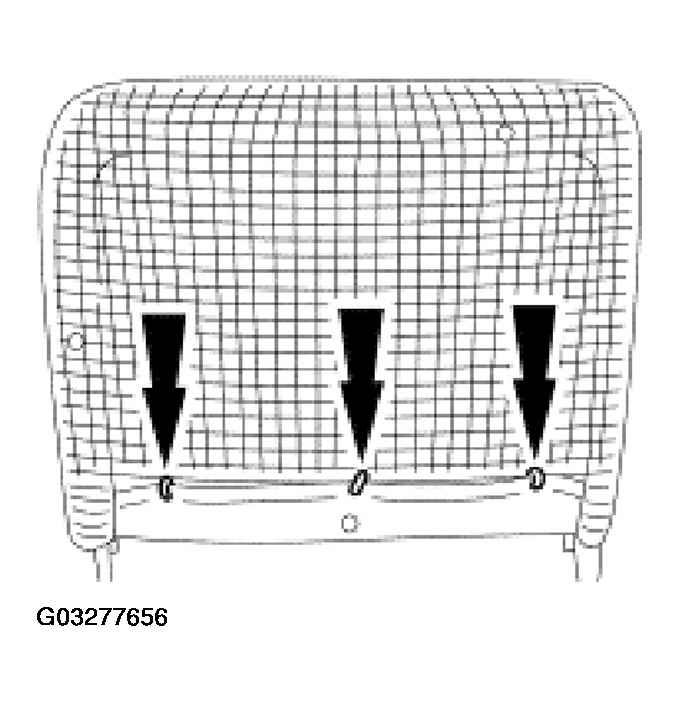

    Fig 5: Removing Hog Rings
    G03277656Courtesy of FORD MOTOR CO.
  6. Remove the seat base from the seat frame.

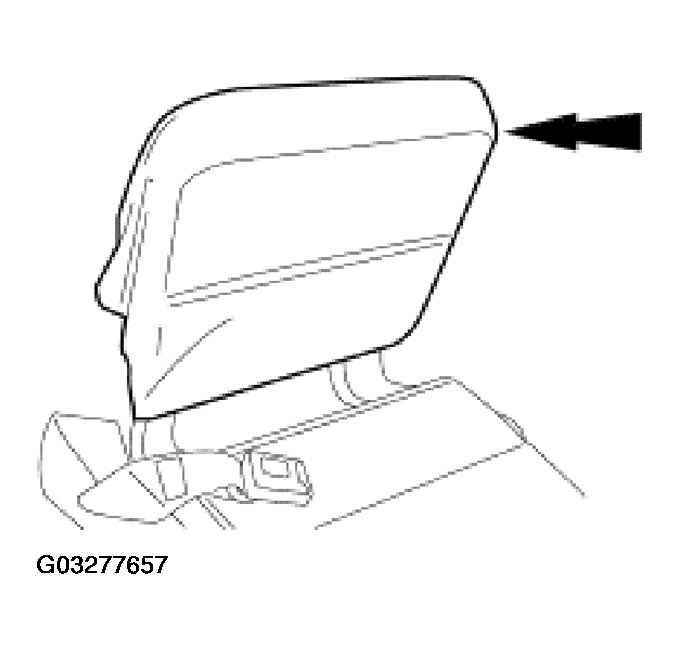

    Fig 6: Removing Seat Base From Seat Frame
    G03277657Courtesy of FORD MOTOR CO.
  7. Remove the seat base trim cover.

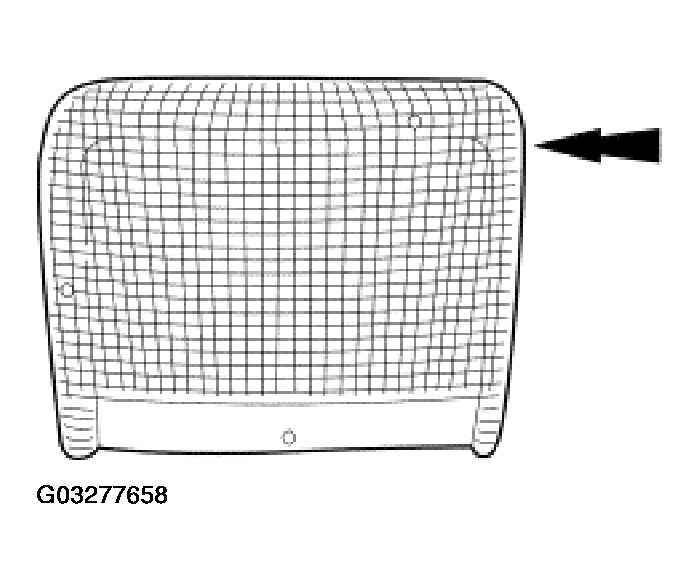

    Fig 7: Removing Seat Base Trim Cover
    G03277658Courtesy of FORD MOTOR CO.
