Rear Seat Backrest - Center Facing Rear: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unhook the trim cover retainer.

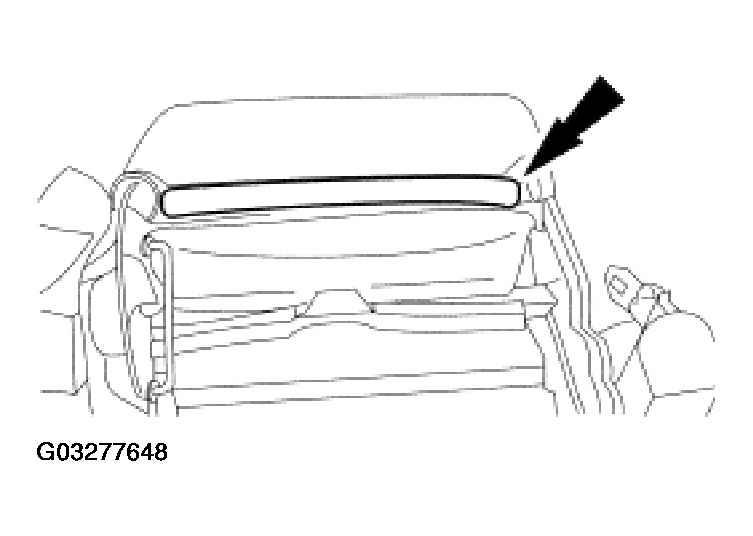

    Fig 1: Unhooking Trim Cover Retainer
    G03277648Courtesy of FORD MOTOR CO.
  2. Reposition the seat back trim cover.

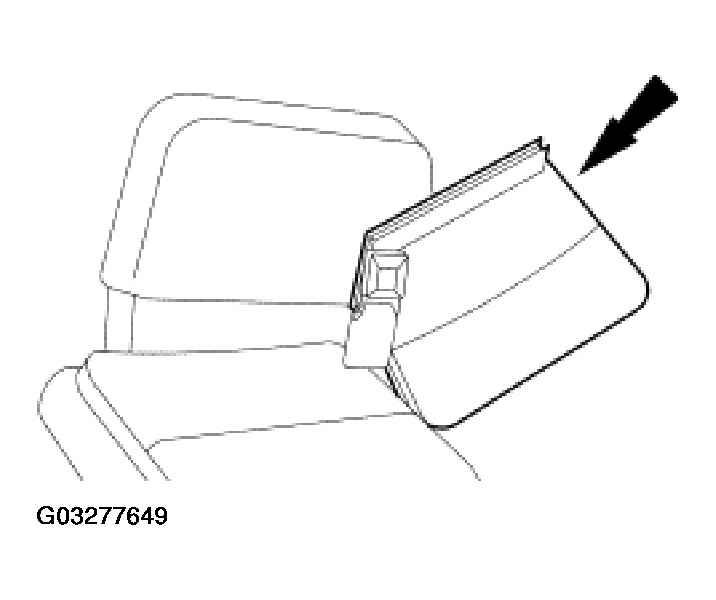

    Fig 2: Positioning Seat Back Trim Cover
    G03277649Courtesy of FORD MOTOR CO.
  3. Remove the seat back trim cover and the safety belt buckle.
    1. Drill out the rivets.
    2. Remove the seat back trim cover and the safety belt buckle.

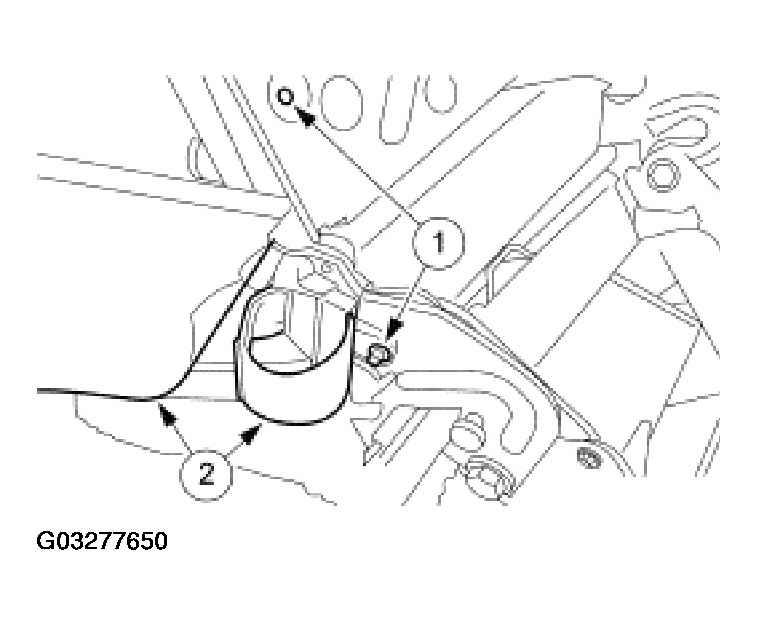

      Fig 3: Removing Seat Back Trim Cover And Safety Belt Buckle
      G03277650Courtesy of FORD MOTOR CO.
    4. CAUTION: Use care when removing the seat back padding because it may be attached to the seat back frame with adhesive.

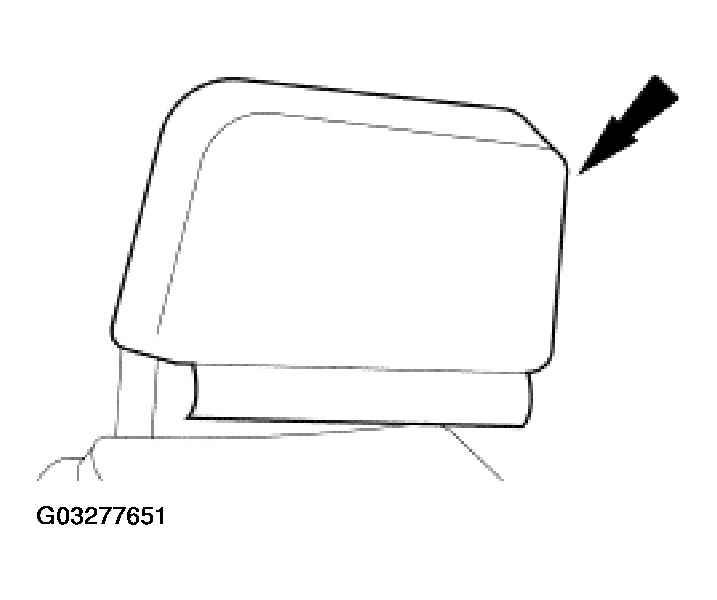

    Fig 4: Removing Seat Back Cushion
    G03277651Courtesy of FORD MOTOR CO.
  4. Remove the seat back cushion.
