Front Seat Cushion - Bucket and 40 Percent: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion trim cover and install the hog rings.

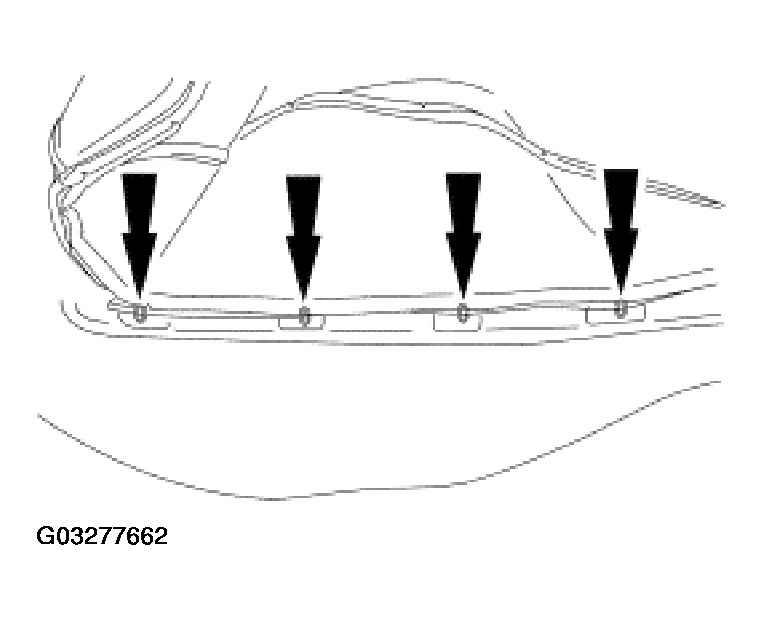

    Fig 1: Installing Seat Cushion Trim Cover
    G03277662Courtesy of FORD MOTOR CO.
  2. Install the seat cushion pan into the foam pad.
  3. Install the J-clips.

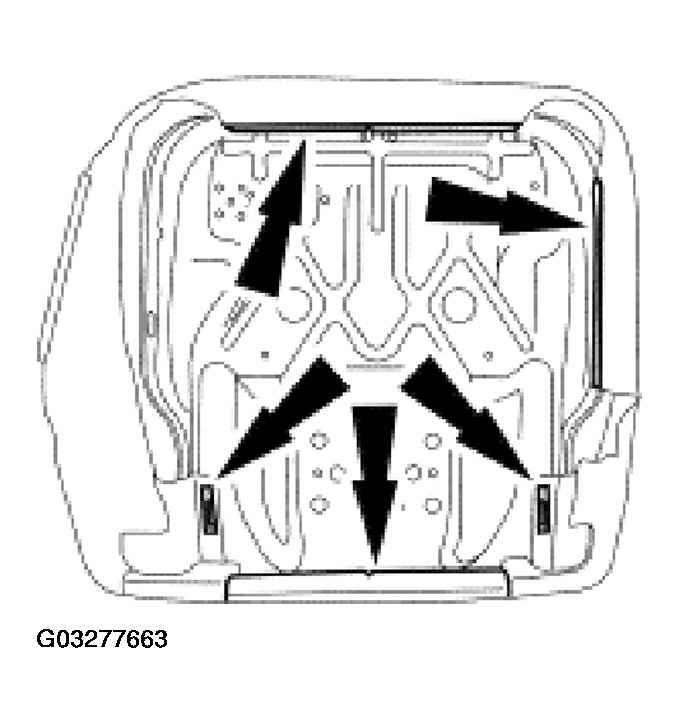

    Fig 2: Installing J-Clips
    G03277663Courtesy of FORD MOTOR CO.
  4. Install the recliner cable through the seat cushion frame and attach the cable retainer.

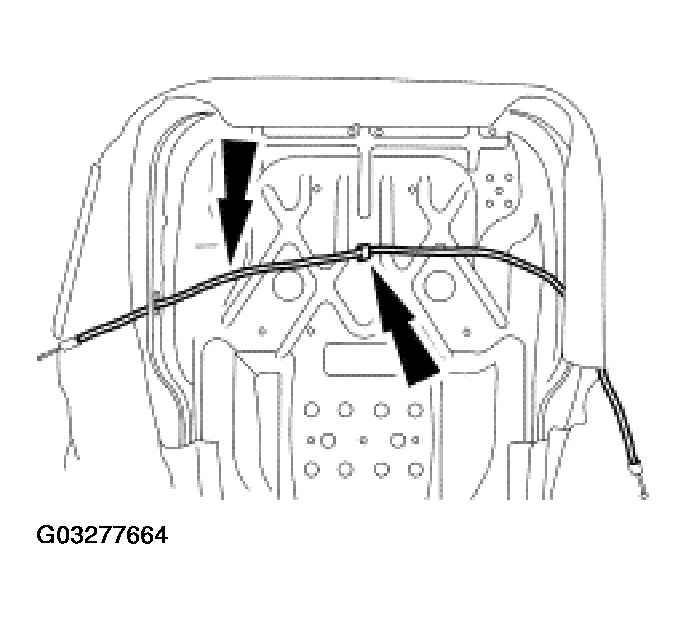

    Fig 3: Installing Recliner Cable
    G03277664Courtesy of FORD MOTOR CO.
  5. Install the seat cushion assembly. For additional information, refer to FRONT SEAT CUSHION - BUCKET AND 40 PERCENT .
  6. Install the affected seat. For additional information, refer to FRONT SEAT .
  7. Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
