Front Seat Cushion - 60 Percent Bench: Disassembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered  .
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: Driver seat is shown, passenger seat is similar.
  1. Depower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the affected seat. For additional information, refer to FRONT SEAT .
  3. Remove the 60 percent bench armrest. For additional information, refer to SEAT ARMREST - 60 PERCENT BENCH .
  4. Remove the 60 percent bench seat backrest assembly. For additional information, refer to FRONT SEAT BACKREST - 60 PERCENT BENCH .
  5. Remove the seat track spring.

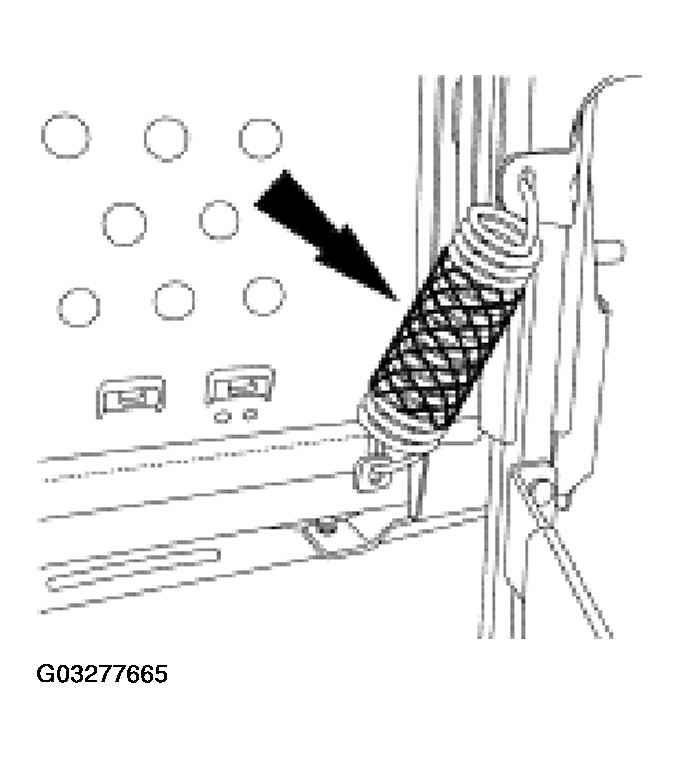

    Fig 1: Removing Seat Track Spring
    G03277665Courtesy of FORD MOTOR CO.
  6. Remove the two rear seat cushion-to-frame bolts.

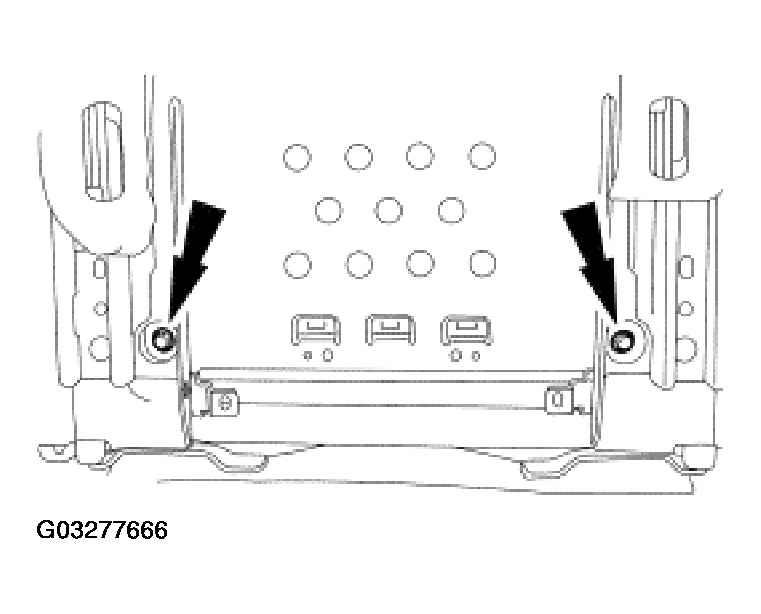

    Fig 2: Removing Rear Seat Cushion-To-Frame Bolts
    G03277666Courtesy of FORD MOTOR CO.
  7. Remove the two front seat cushion-to-frame bolts and remove the seat track from the seat cushion frame.

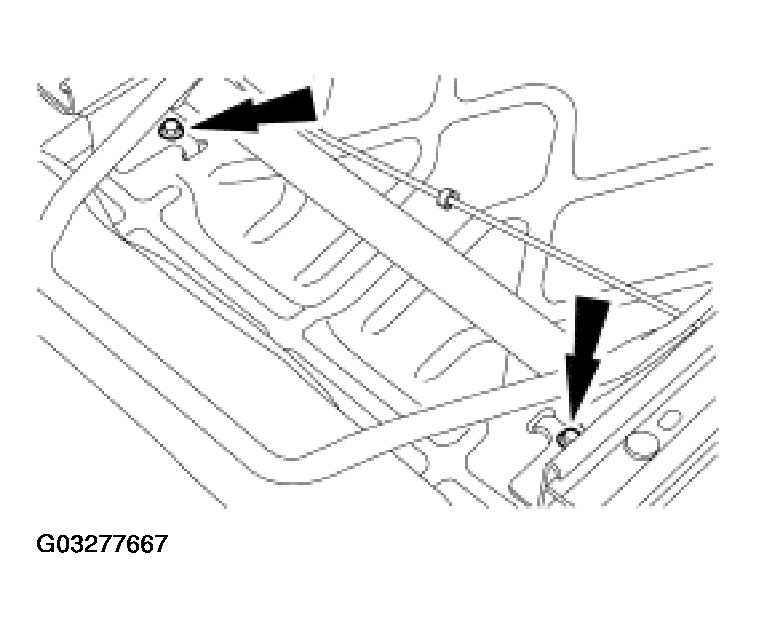

    Fig 3: Removing Front Seat Cushion-To-Frame Bolts
    G03277667Courtesy of FORD MOTOR CO.
  8. Release the J-clips and the side foam pad retainer strap.

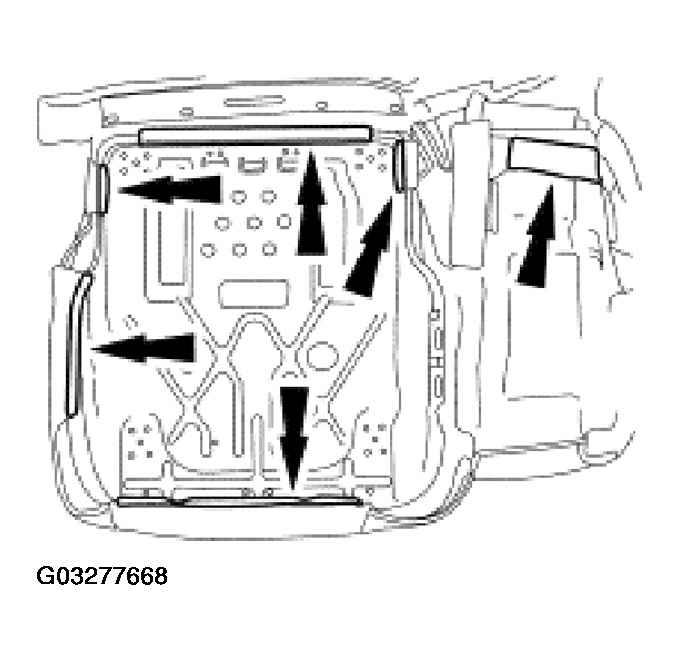

    Fig 4: Releasing J-Clips And Side Foam Pad Retainer Strap
    G03277668Courtesy of FORD MOTOR CO.
    9. NOTE: Note the routing of the recliner cable through the seat cushion pan.

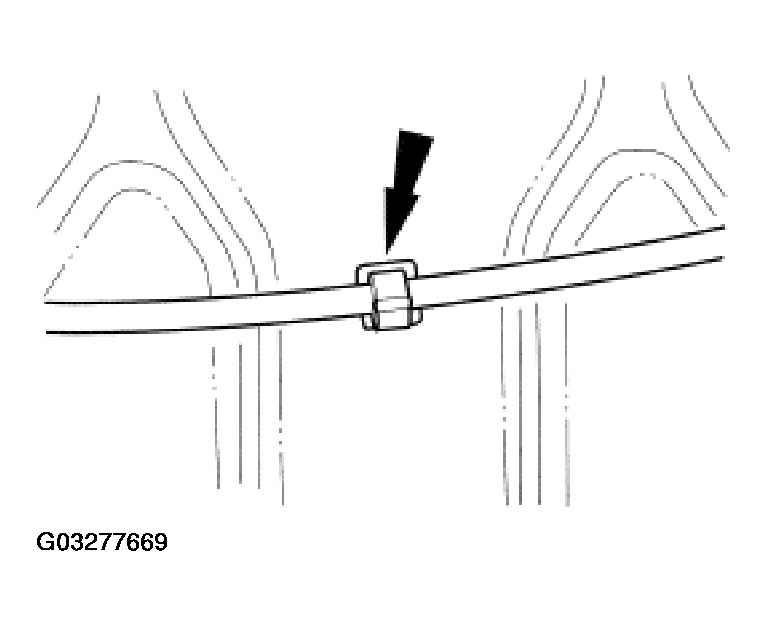

    Fig 5: Removing Recliner Cable
    G03277669Courtesy of FORD MOTOR CO.
  9. Release the recliner cable retainer and remove the recliner cable.
  10. Lift and remove the seat cushion pan from the seat cushion foam pad.

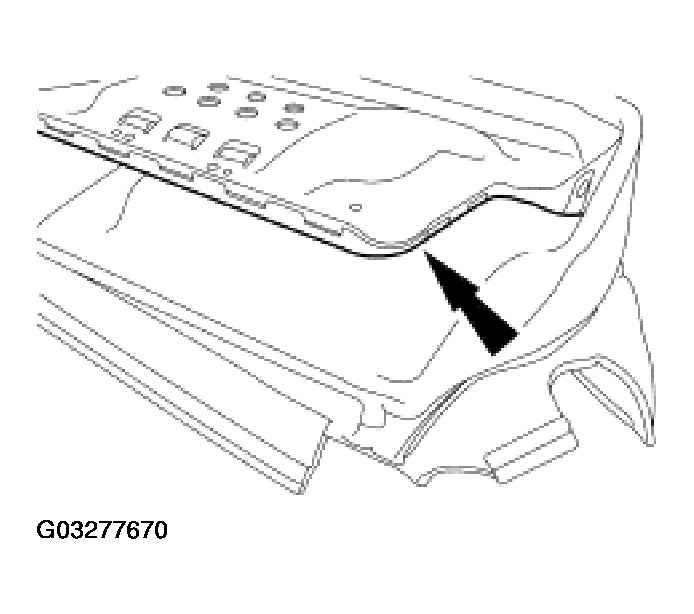

    Fig 6: Removing Seat Cushion Pan From Seat Cushion Foam Pad
    G03277670Courtesy of FORD MOTOR CO.
  11. Remove all the hog rings and remove the seat cushion trim cover.

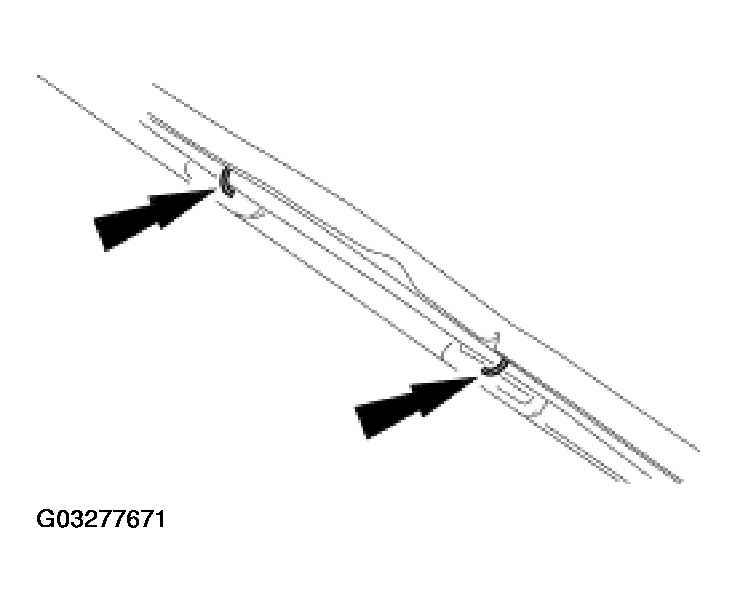

    Fig 7: Removing Seat Cushion Trim Cover Hog Rings
    G03277671Courtesy of FORD MOTOR CO.
