Front Seat Cushion - 60 Percent Bench: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

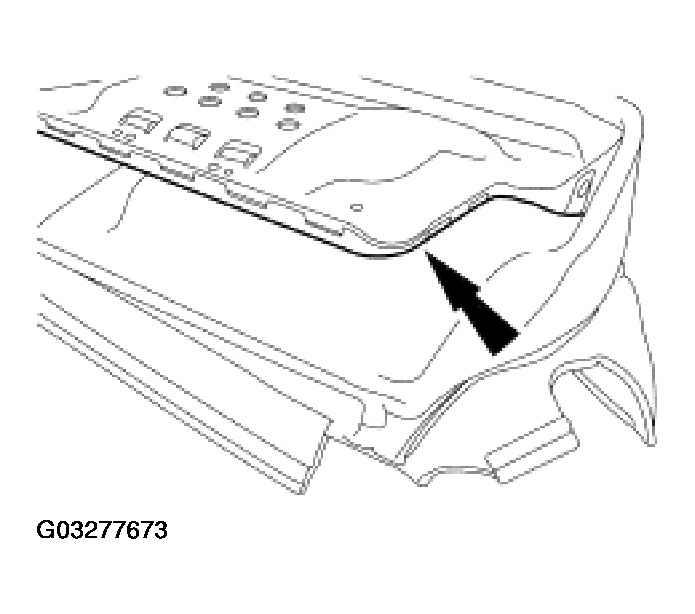

Install the seat cushion trim cover and install the hog rings

Fig 1: Installing Seat Cushion Trim Cover
Courtesy of FORD MOTOR CO.

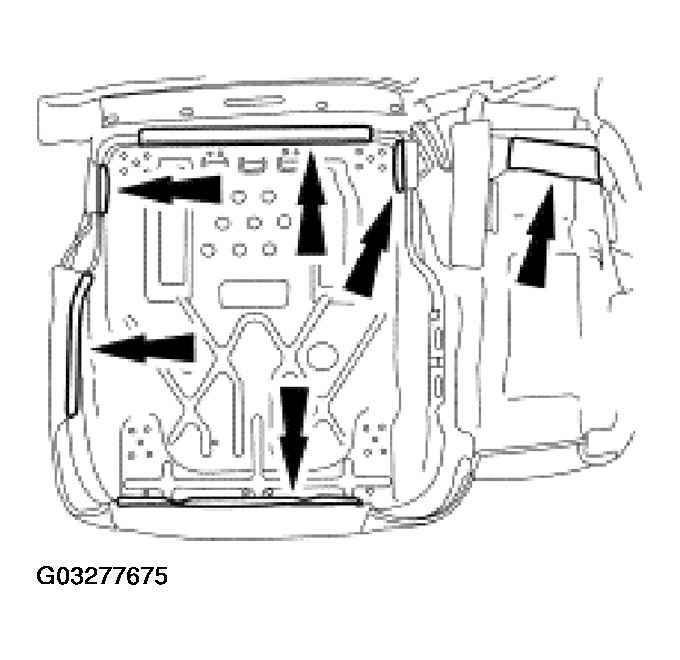

Install the seat cushion pan into the seat cushion foam pad.

Fig 2: Installing Seat Cushion Pan Into Seat Cushion Foam Pad
Courtesy of FORD MOTOR CO.

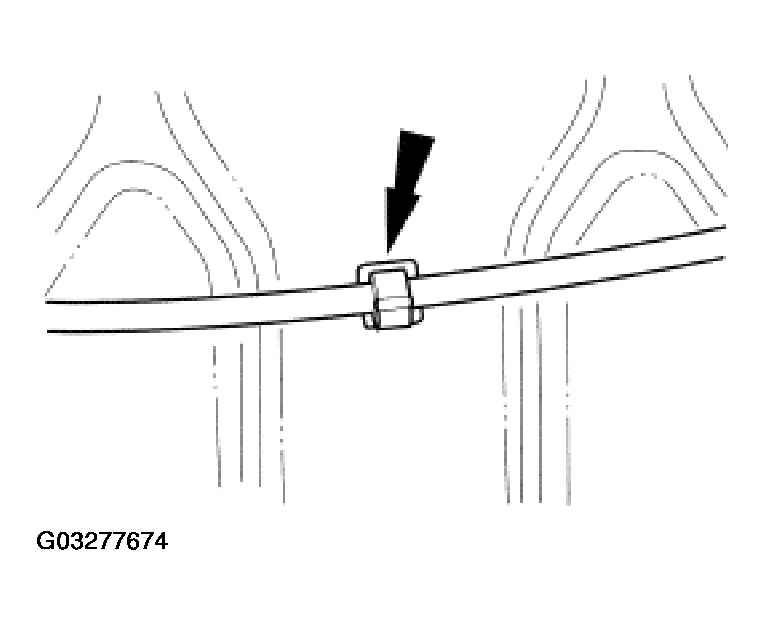

Route the recliner cable through the seat pan and install the retaining clip into the seat cushion pan.

Fig 3: Installing Recliner Cable
Courtesy of FORD MOTOR CO.

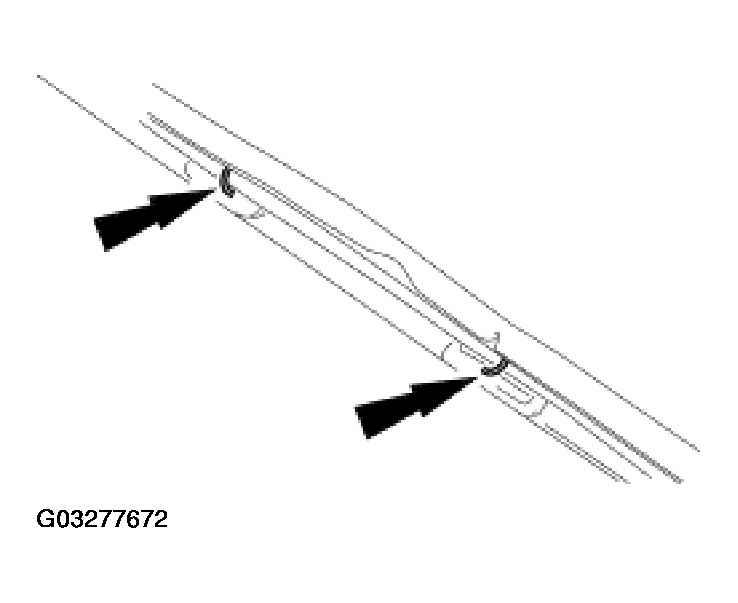

Attach the J-clips and the attach the side foam pad retainer strap.

Fig 4: Attaching J-Clips And Side Foam Pad Retainer Strap
Courtesy of FORD MOTOR CO.

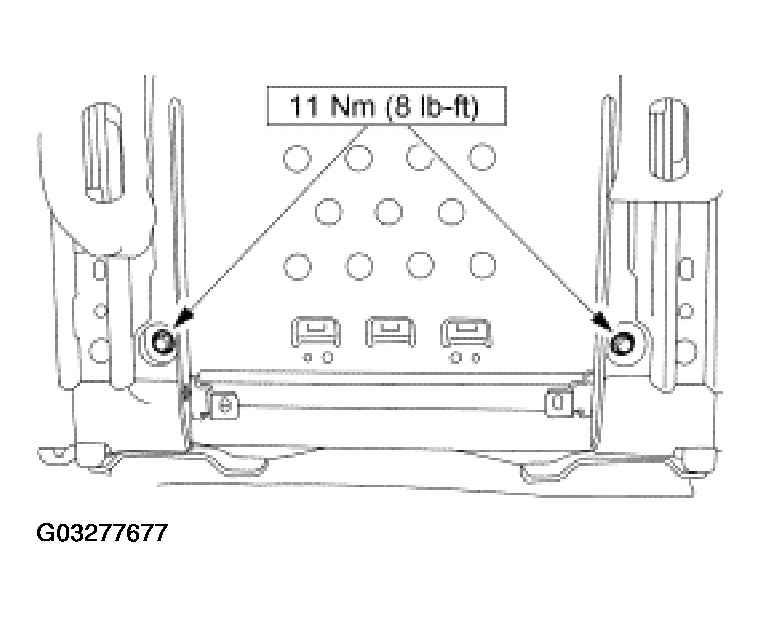

Install the seat track assembly and install the seat cushion-to-frame front bolts.

Fig 5: Install The Seat Track Assembly
Courtesy of FORD MOTOR CO.

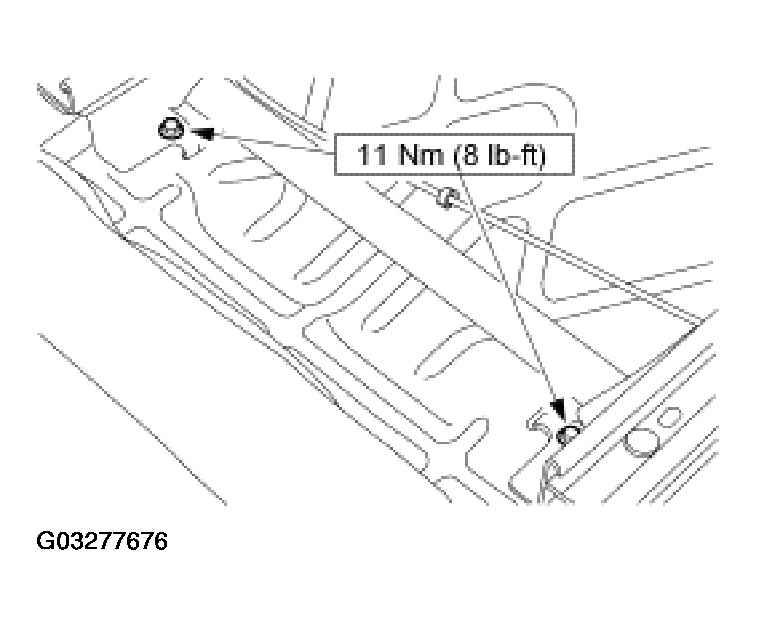

Install the two rear seat cushion-to-frame bolts.

Fig 6: Installing Two Rear Seat Cushion-To-Frame Bolts
Courtesy of FORD MOTOR CO.

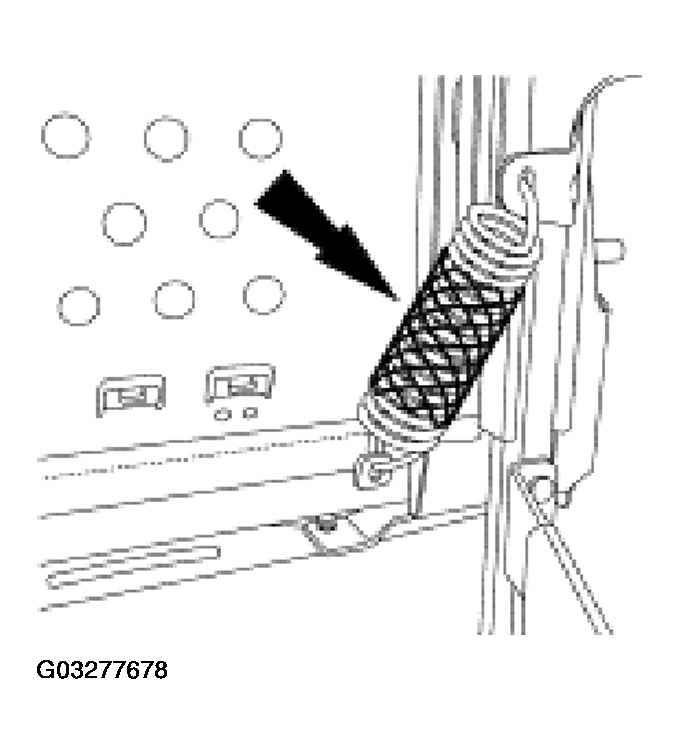

Install the seat track spring.

Fig 7: Installing Seat Track Spring
Courtesy of FORD MOTOR CO.
Install the 60 percent seat backrest assembly. For additional information, refer to FRONT SEAT BACKREST - 60 PERCENT BENCH .
Install the 60 percent armrest. For additional information, refer to SEAT ARMREST - 60 PERCENT BENCH .
Install the affected seat. For additional information, refer to FRONT SEAT .
Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
