Front Seat Backrest - Bucket and 40 Percent: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

    SEATS WITH MANUAL LUMBAR

  1. Install the lumbar support assembly.
    1. Install the lumbar support. Attach the lumbar to the guide wires.
    2. Install and hook the lumbar adjusting cable.
    3. Flex the lumbar support.
    4. Hook the lumbar support cable.
    5. Install the tie strap.

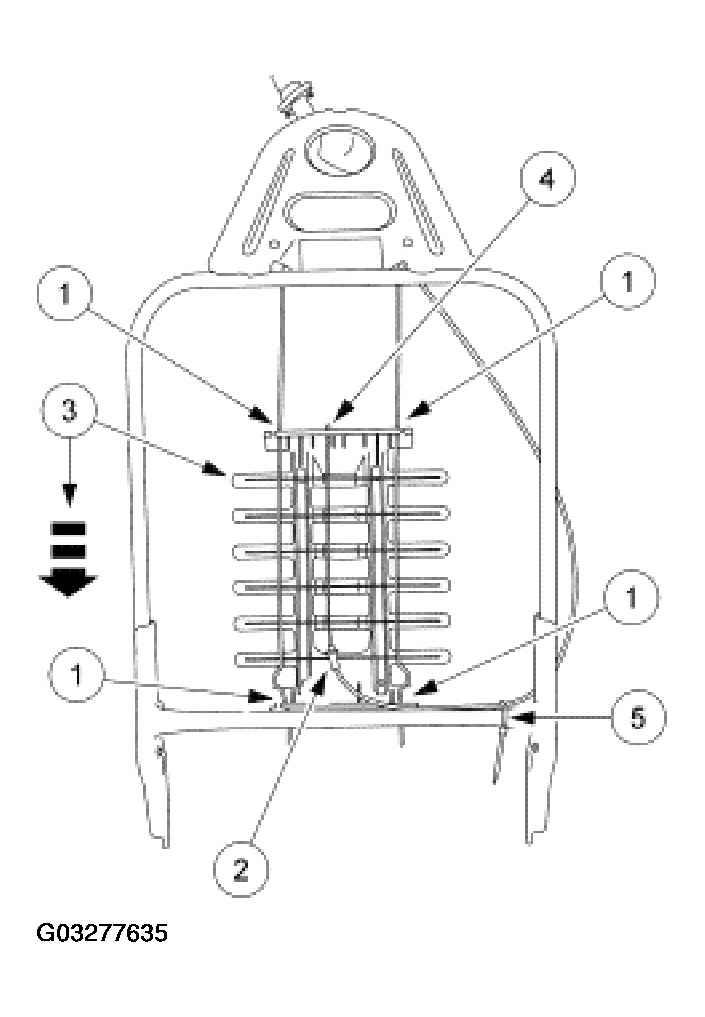

      Fig 1: Installing Lumbar Support Assembly
      G03277635Courtesy of FORD MOTOR CO.

    2. ALL SEATS

  2. Install the backrest trim cover on the backrest foam pad.
  3. Install the hog rings and secure the hook and loop strips.

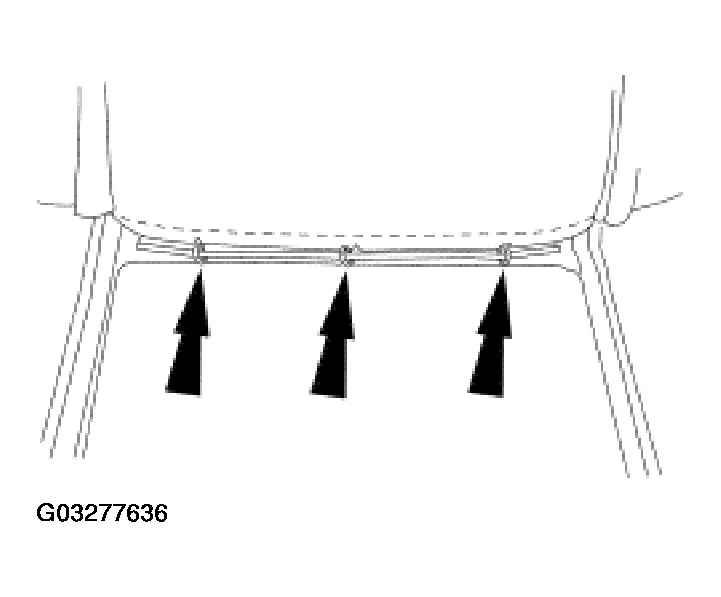

    Fig 2: Installing Hog Rings
    G03277636Courtesy of FORD MOTOR CO.
  4. Attach the backrest J-clip.

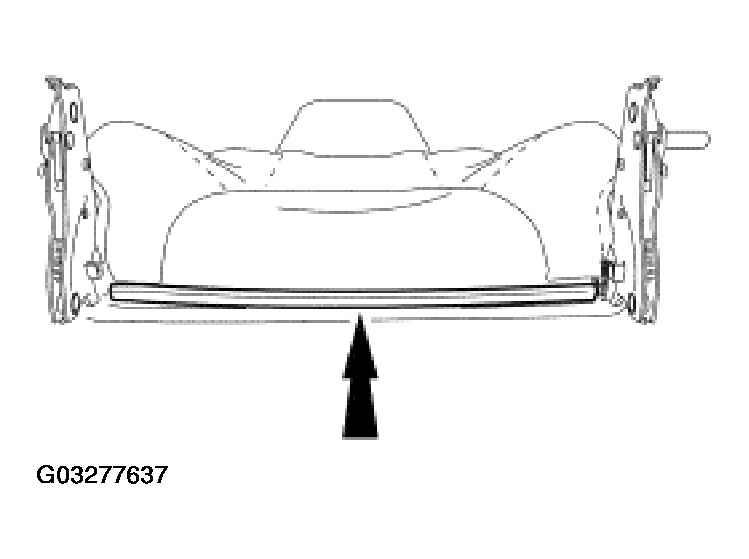

    Fig 3: Attaching Backrest J-Clips
    G03277637Courtesy of FORD MOTOR CO.
  5. Install the affected seat backrest. For additional information, refer to FRONT SEAT BACKREST - BUCKET AND 40 PERCENT .
  6. Install the affected seat. For additional information, refer to FRONT SEAT .
  7. Repower the SRS. For additional information, refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
