Trim Panel - Quarter, SuperCab Without Center -Facing Rear Seat: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the scuff plate.
1. Remove the screws.
2. Remove the scuff plate.

  Fig 1: Removing Scuff Plate
  Courtesy of FORD MOTOR CO.
If equipped, remove the windshield side garnish moulding passenger and driver assist handle bolt covers.

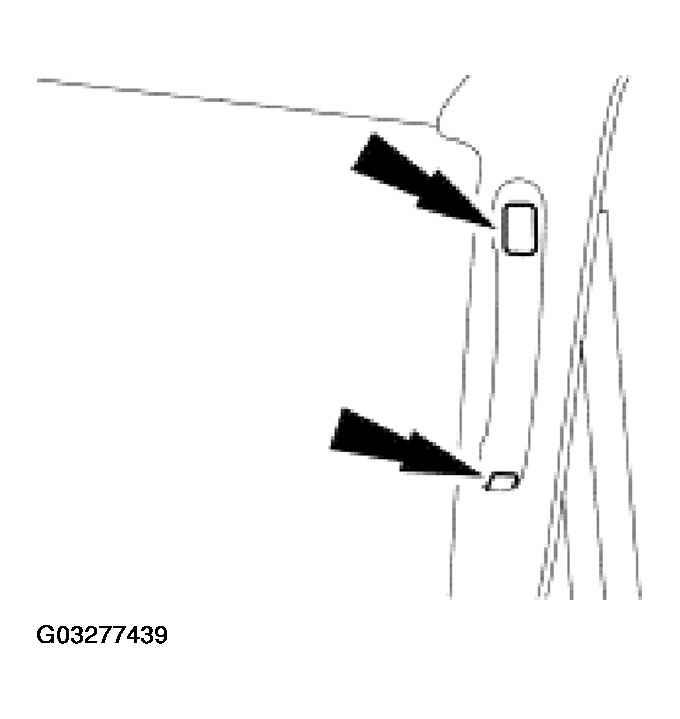

Fig 2: Removing Windshield Side Garnish Moulding Assist Handle Bolt Covers
Courtesy of FORD MOTOR CO.
If equipped, remove the windshield side garnish moulding passenger and driver assist handles.
1. Remove the bolts.
2. Remove the passenger and driver assist handles.

  Fig 3: Removing Windshield Side Garnish Moulding Assist Handles
  Courtesy of FORD MOTOR CO.
Remove the windshield side garnish moulding.

Fig 4: Removing Windshield Side Garnish Moulding
Courtesy of FORD MOTOR CO.
Remove the rear window garnish moulding.
1. Remove the screws.
2. Remove the rear window garnish moulding.

  Fig 5: Removing Rear Window Garnish Moulding
  Courtesy of FORD MOTOR CO.

NOTE: If the safety belt guide cover is damaged or if it does not remain closed, install a new cover.

NOTE: Safety belt guide cover shown removed for clarity.

Fig 6: Releasing Front Safety Belt Guide Cover

Courtesy of FORD MOTOR CO.

From behind the front safety belt guide cover, release the retaining tab and open the cover.
Remove the nut and safety belt guide.

Fig 7: Removing Nut And Safety Belt Guide
Courtesy of FORD MOTOR CO.
Remove the safety belt anchor.
1. Use Safety Belt Bolt Bit to remove the bolt.
2. Remove the safety belt anchor.

  Fig 8: Removing Safety Belt Anchor
  Courtesy of FORD MOTOR CO.

NOTE: The quarter window glass must be open to carry out this step.

Fig 9: Removing Quarter Window Latch Screws

Courtesy of FORD MOTOR CO.

If equipped with moveable quarter window glass, remove the two screws attaching the quarter window latch.
Remove the quarter trim panel to floor screws.

Fig 10: Removing Quarter Trim Panel To Floor Screws
Courtesy of FORD MOTOR CO.
Open the storage compartment.

Fig 11: Opening Storage Compartment
Courtesy of FORD MOTOR CO.
Remove the quarter trim panel pin-type retainers.

Fig 12: Removing Quarter Trim Panel Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Disconnect the radio speaker electrical connector.

Fig 13: Disconnecting Radio Speaker Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the quarter trim panel.
- Feed the safety belt webbing through the quarter trim panel.

  Fig 14: Removing Quarter Trim Panel
  Courtesy of FORD MOTOR CO.
