Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assemblies. For additional information, refer to EXTERIOR LIGHTING .

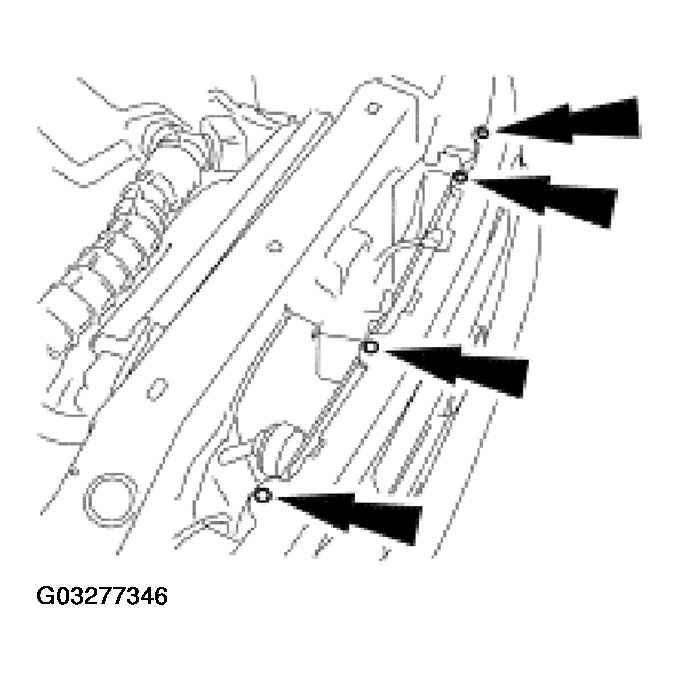

  2. Remove the four screws.
    Fig 1: Removing Headlamp Assemblies
    G03277346Courtesy of FORD MOTOR CO.

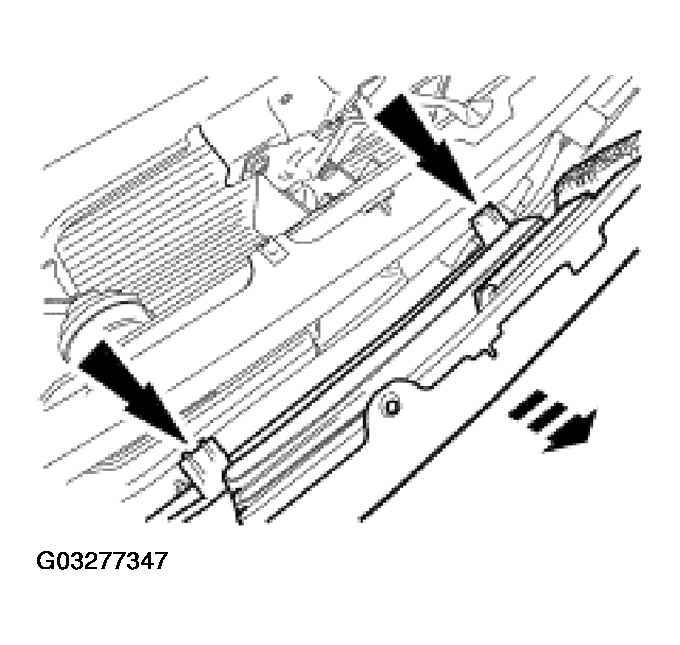

  3. Remove the radiator grille opening panel.
    • Position the opening panel outward and release the retaining clips.
      Fig 2: Removing Radiator Grille Opening Panel
      G03277347Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
