Passive Anti-Theft System (PATS) Transceiver: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the ignition switch lock cylinder.
1. Insert the ignition key into the ignition switch lock cylinder and turn to the ON position.
2. Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.

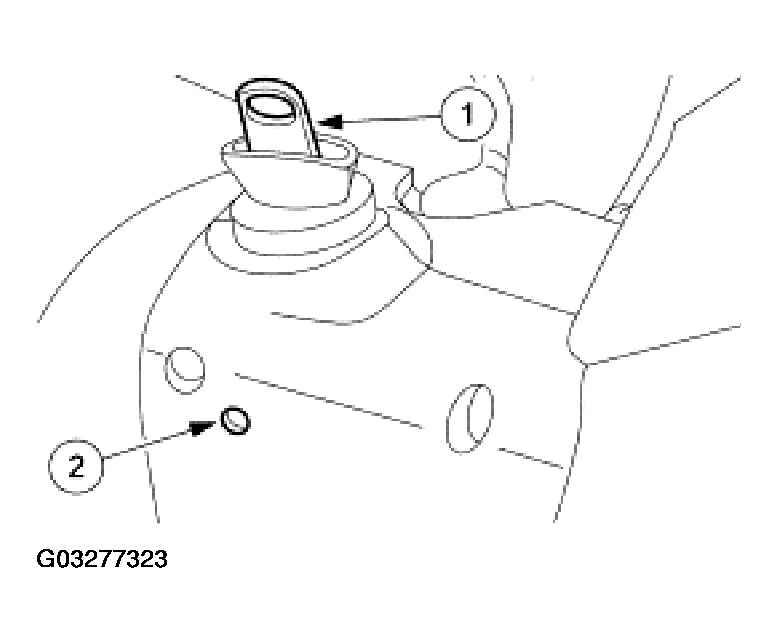

  Fig 1: Removing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
If equipped, remove the tilt wheel handle.

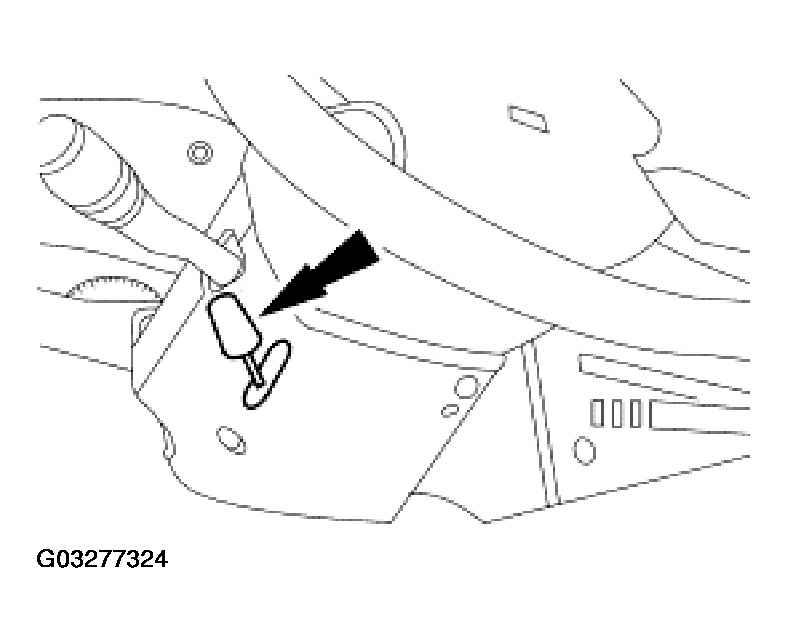

Fig 2: Removing Tilt Wheel Handle
Courtesy of FORD MOTOR CO.
Remove the upper and lower steering column shrouds.
1. Remove the screws.
2. Remove the upper and lower steering column shroud.

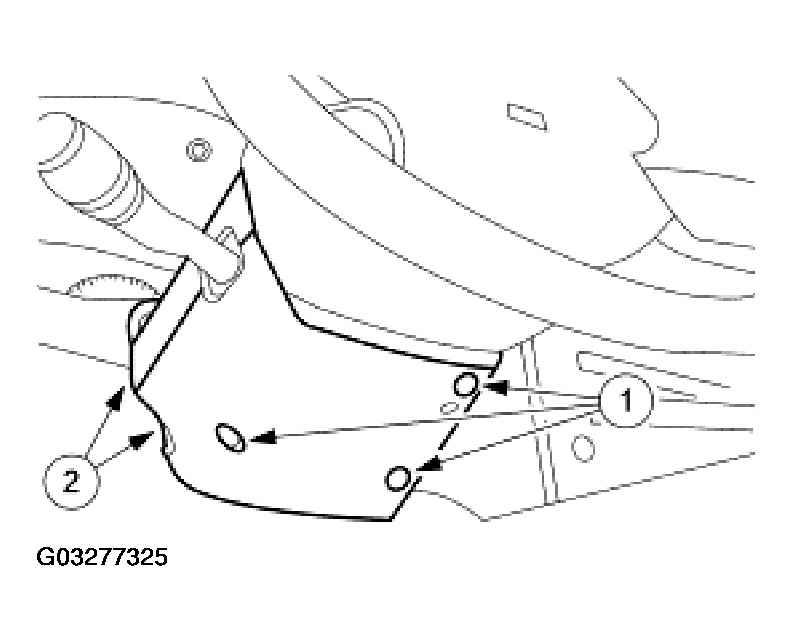

  Fig 3: Removing Upper And Lower Steering Column Shrouds
  Courtesy of FORD MOTOR CO.
Remove the lower instrument panel steering column cover.
1. Remove the screws.
2. Remove the lower instrument panel steering column cover.

  Fig 4: Removing Lower Instrument Panel Steering Column Cover
  Courtesy of FORD MOTOR CO.
Remove the instrument panel steering column opening cover reinforcement.
1. Remove the bolts.
2. Remove the instrument panel steering column opening cover reinforcement.

  Fig 5: Removing Instrument Panel Steering Column Opening Cover Reinforcement
  Courtesy of FORD MOTOR CO.

NOTE: The steering wheel has been removed for clarity.

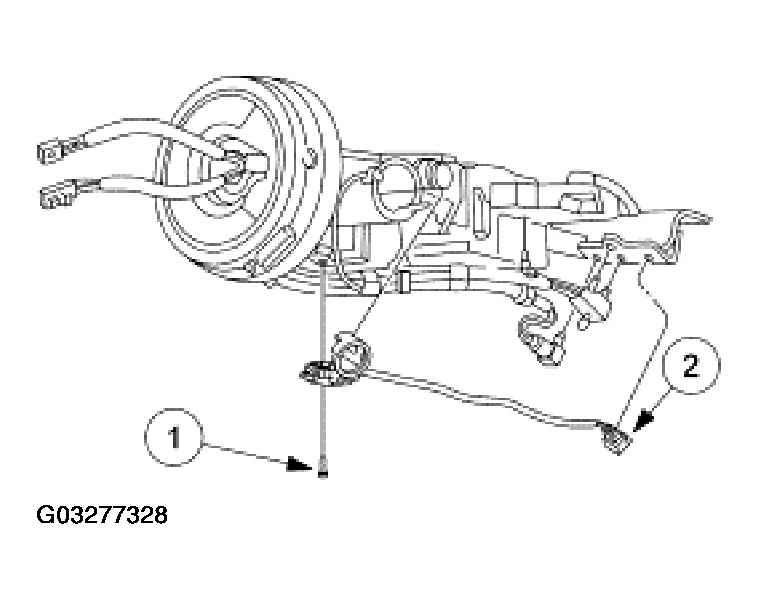

Remove the anti-theft transceiver module.
1. Remove the screw from the bottom of the transceiver module.
2. Disconnect the electrical connector and remove the module.
To install, reverse the removal procedure.
