Lamp Switch - Headlamp: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

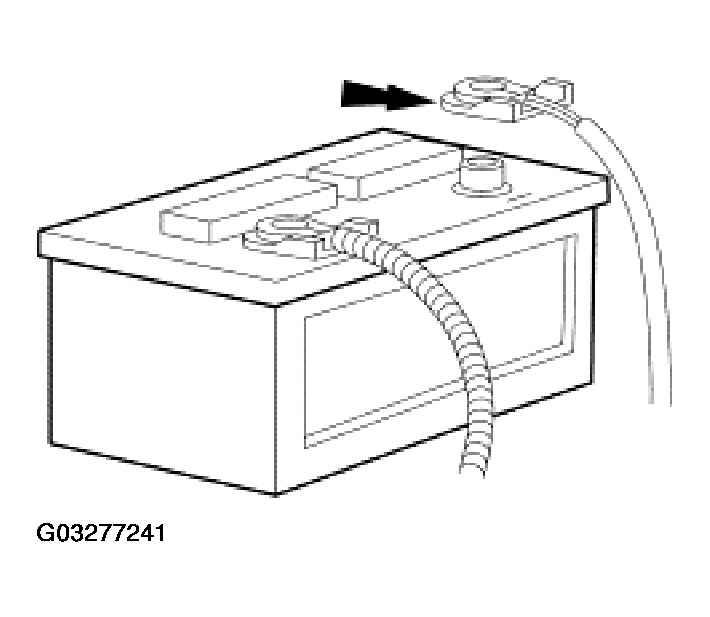

Disconnect the battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of FORD MOTOR CO.

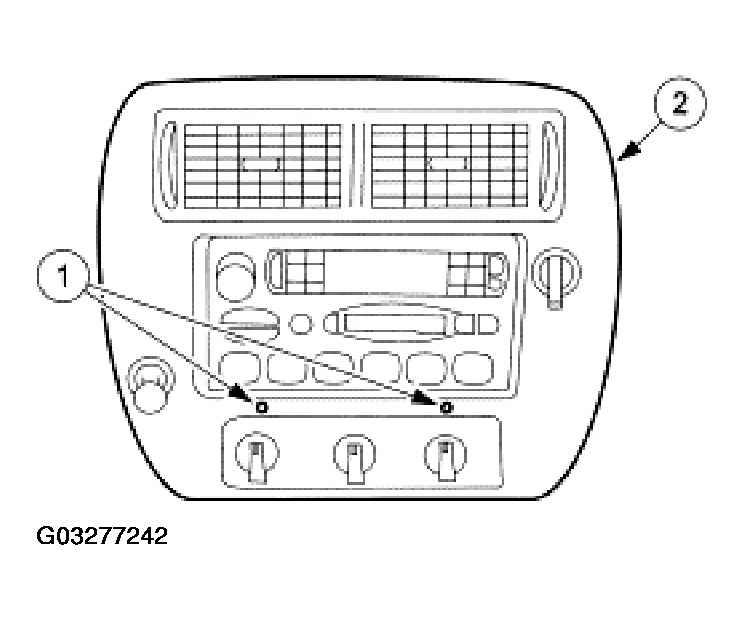

Pull out the radio finish panel assembly.
1. Remove the bolts.
2. Pull out the radio finish panel assembly.

  Fig 2: Pulling Out Radio Finish Panel Assembly
  Courtesy of FORD MOTOR CO.

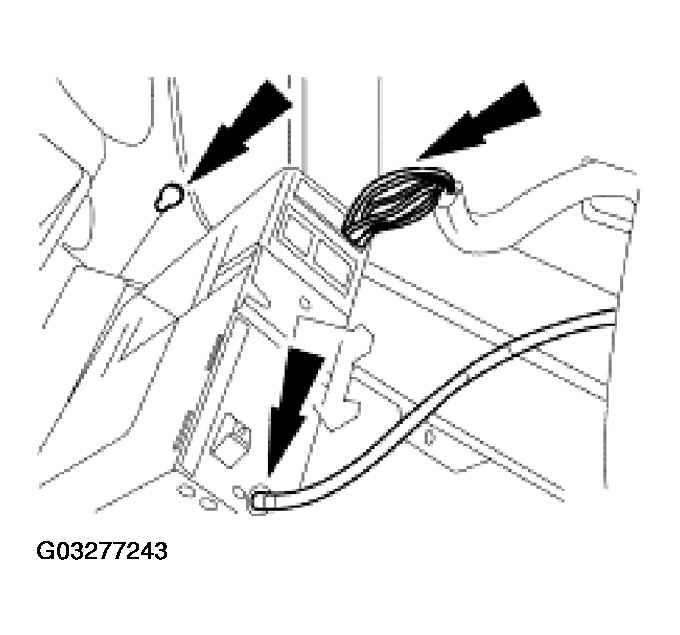

Disconnect and remove the radio bezel assembly.

Fig 3: Disconnecting Radio Bezel Assembly
Courtesy of FORD MOTOR CO.

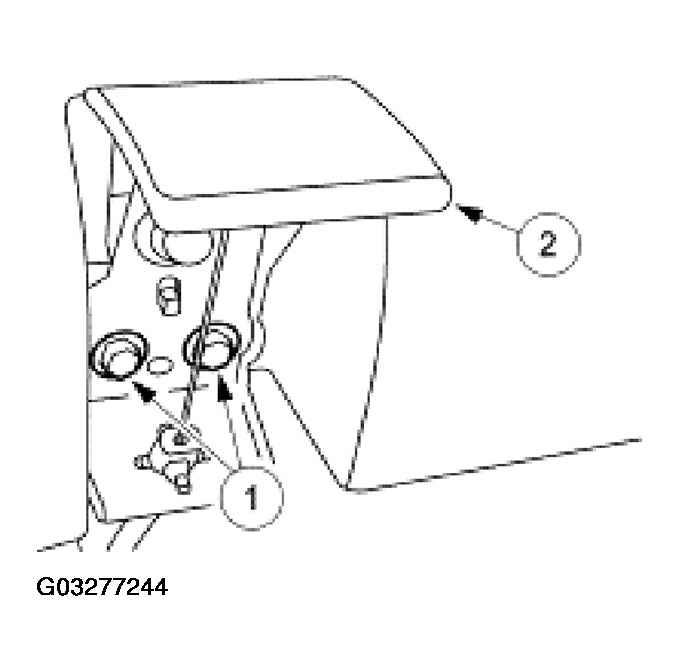

Remove the hood latch release handle.
1. Remove the screws.
2. Remove the hood latch release handle.

  Fig 4: Removing Hood Latch Release Handle
  Courtesy of FORD MOTOR CO.

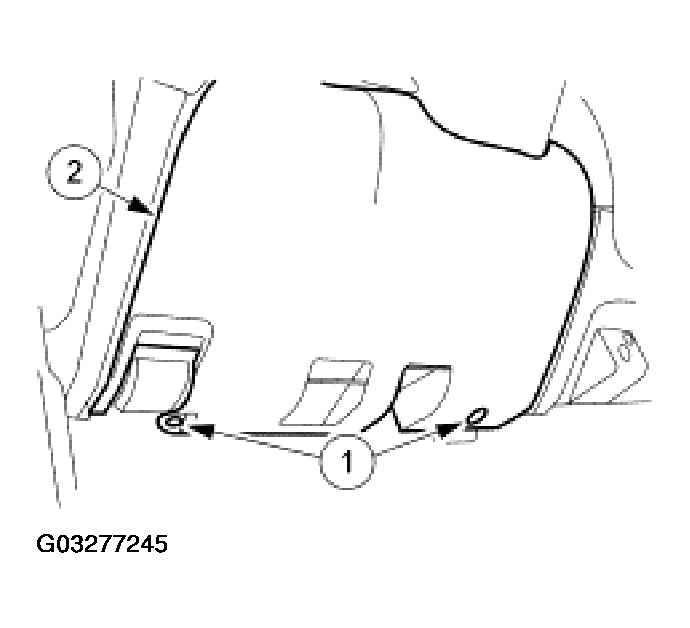

Remove the lower instrument panel cover.
1. Remove the screws.
2. Remove the lower instrument panel cover.

  Fig 5: Removing Lower Instrument Panel Cover
  Courtesy of FORD MOTOR CO.

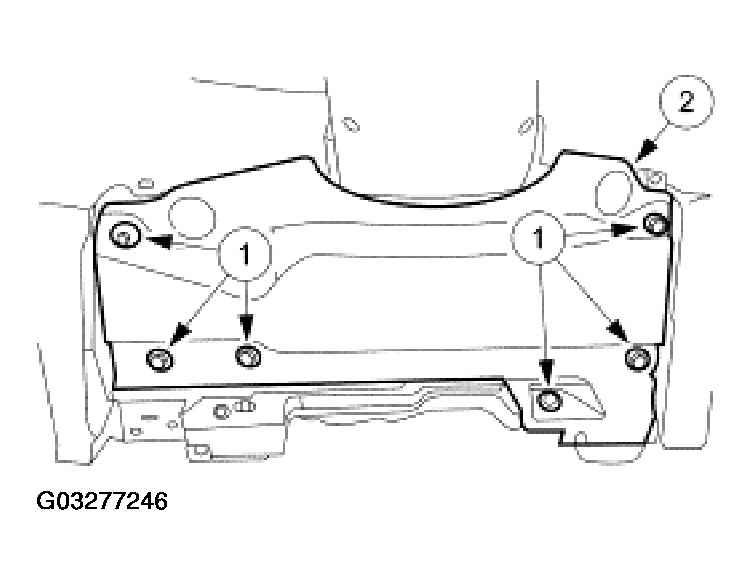

Remove the lower instrument panel reinforcement.
1. Remove the bolts.
2. Remove the lower instrument panel reinforcement.

  Fig 6: Removing Lower Instrument Panel Reinforcement
  Courtesy of FORD MOTOR CO.
If equipped, position the column gear shift lever out of the way.

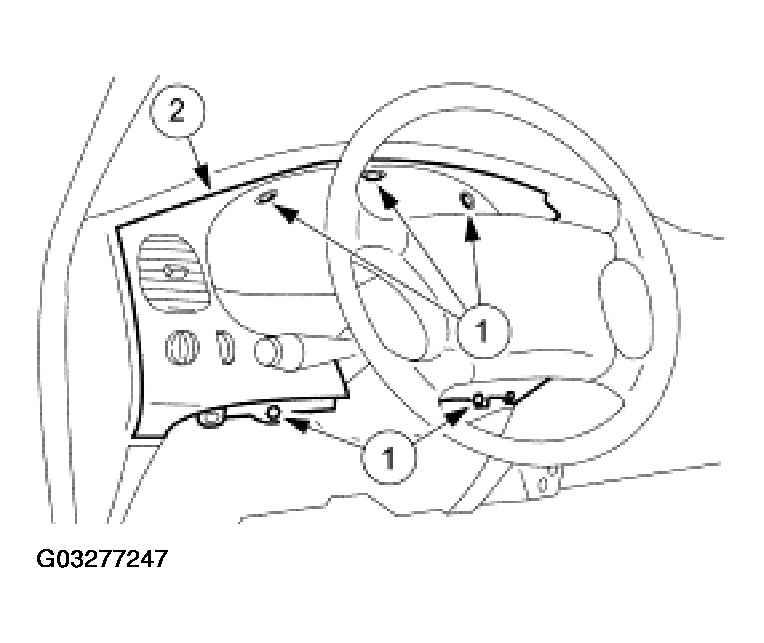

Pull out the cluster finish panel.
1. Remove the screws.
2. Pull out the cluster finish panel.

  Fig 7: Pulling Out Cluster Finish Panel
  Courtesy of FORD MOTOR CO.

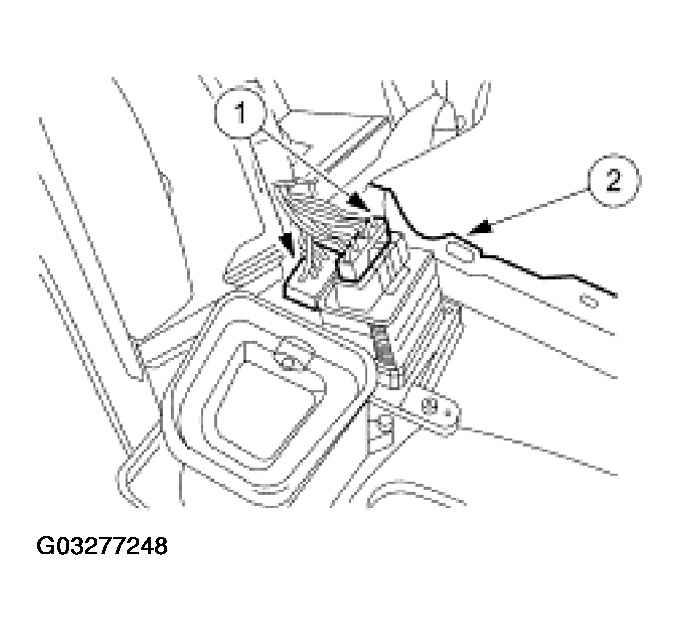

Remove the cluster finish panel.
1. Disconnect the connectors.
2. Remove the cluster finish panel.

  Fig 8: Removing Cluster Finish Panel
  Courtesy of FORD MOTOR CO.

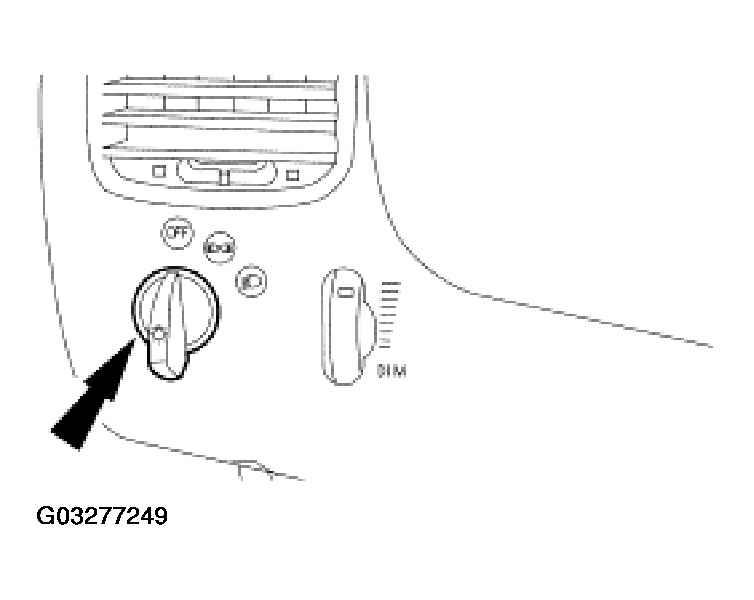

Pull off and remove the headlamp switch knob.

Fig 9: Removing Headlamp Switch Knob
Courtesy of FORD MOTOR CO.

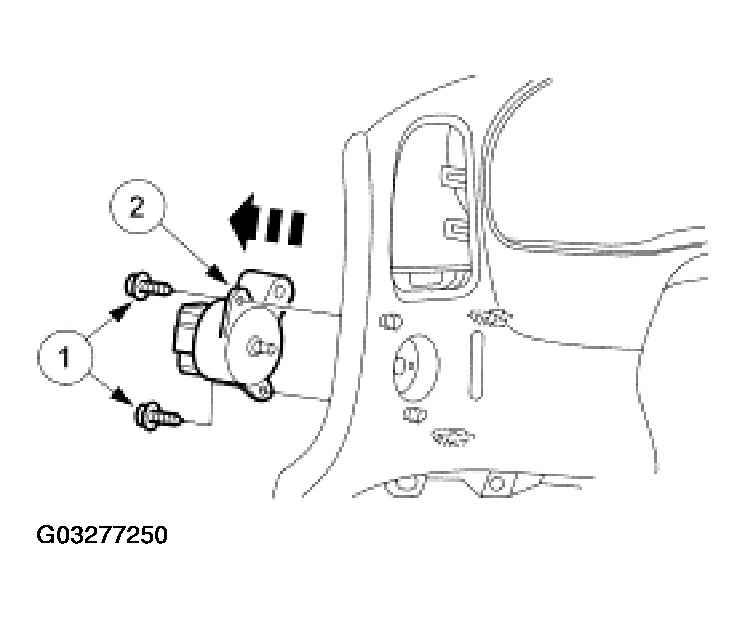

Remove the headlamp switch.
1. Remove the screws.
2. Remove the headlamp switch.

  Fig 10: Removing Headlamp Switch
  Courtesy of FORD MOTOR CO.
