Lamp Switch - Headlamp: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

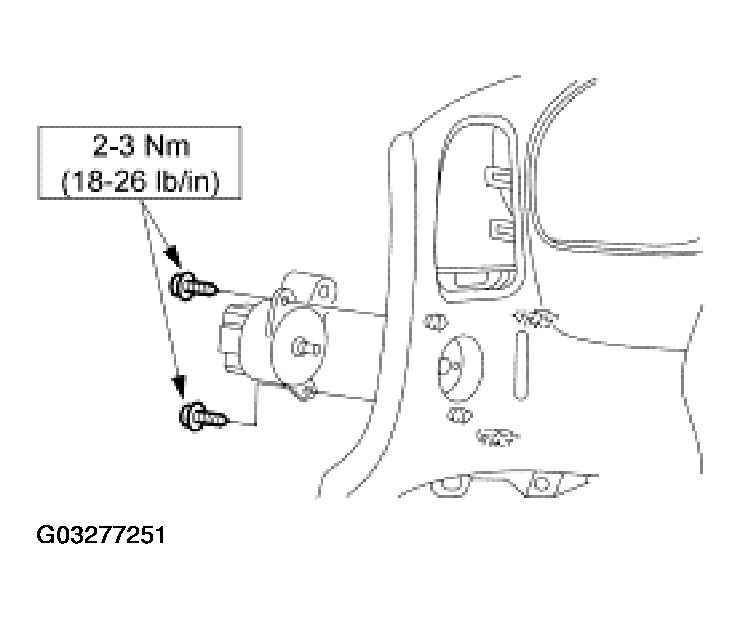

Fig 1: Installing Headlamp Switch

Courtesy of FORD MOTOR CO.

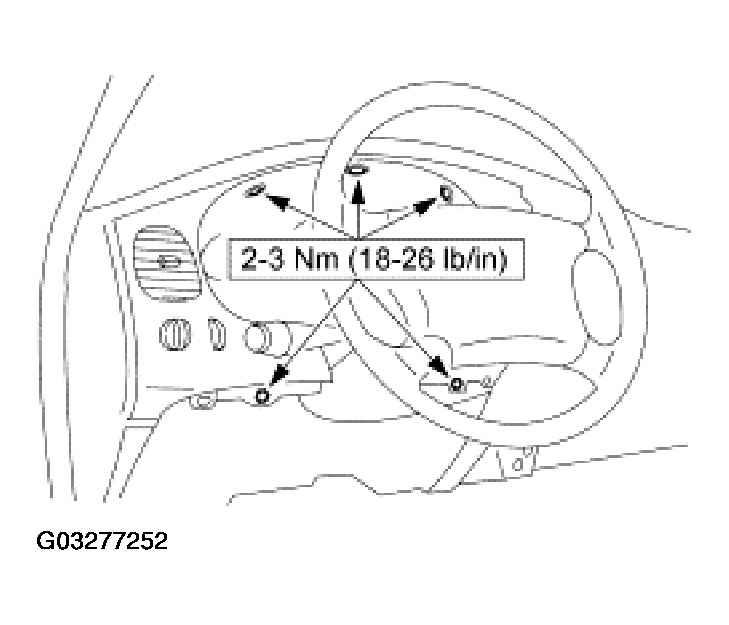

Fig 2: Installing Cluster Finish Panel

Courtesy of FORD MOTOR CO.

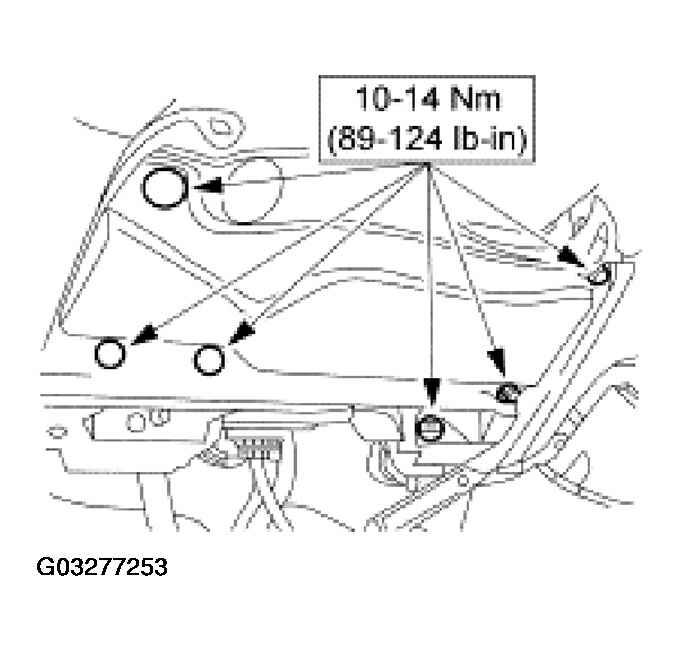

Fig 3: Installing Lower Instrument Panel Reinforcement

Courtesy of FORD MOTOR CO.

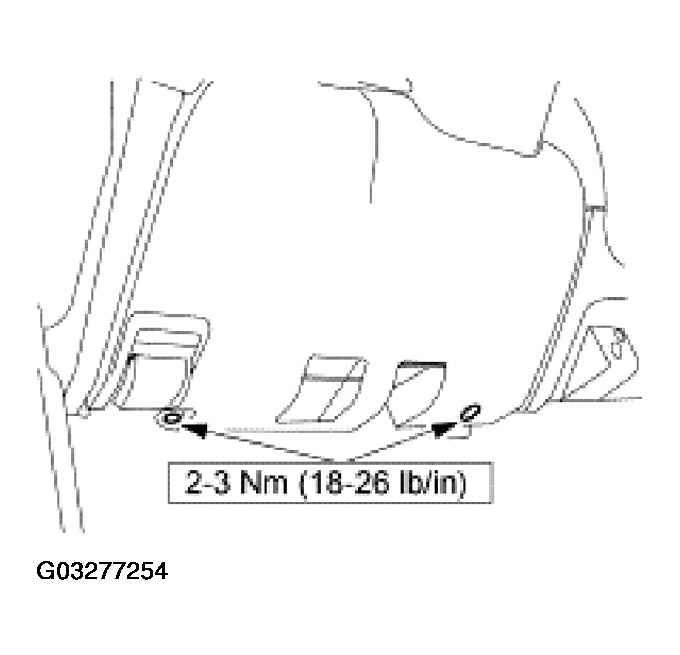

Fig 4: Installing Lower Instrument Panel Cover

Courtesy of FORD MOTOR CO.

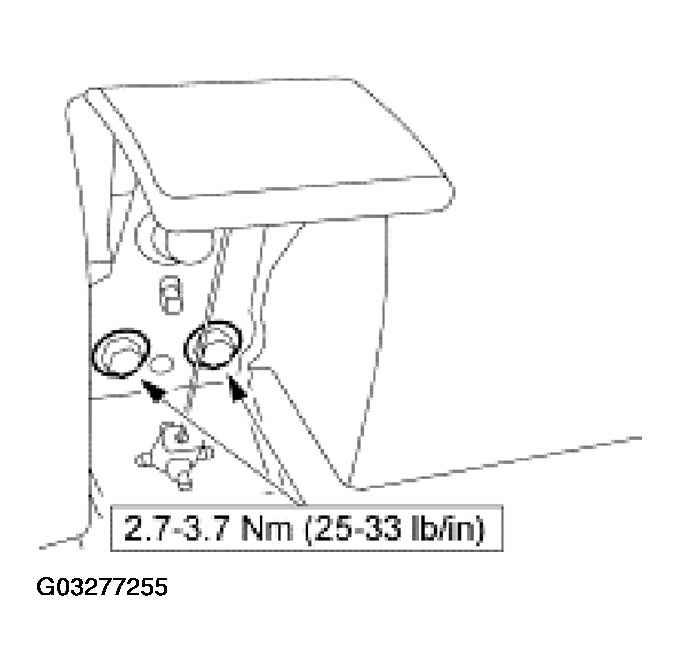

Fig 5: Installing Hood Latch Release Handle

Courtesy of FORD MOTOR CO.

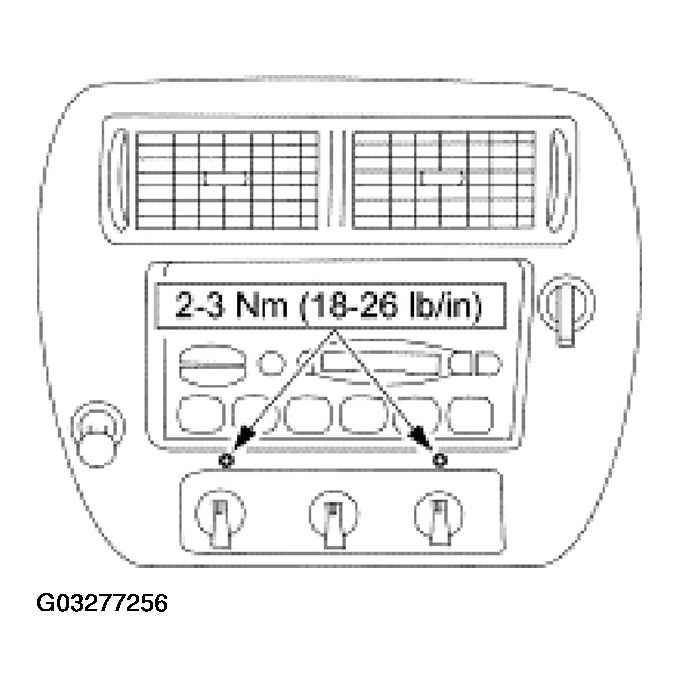

Fig 6: Installing Radio Finish Panel Assembly

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
