Lamp Switch - Fog: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

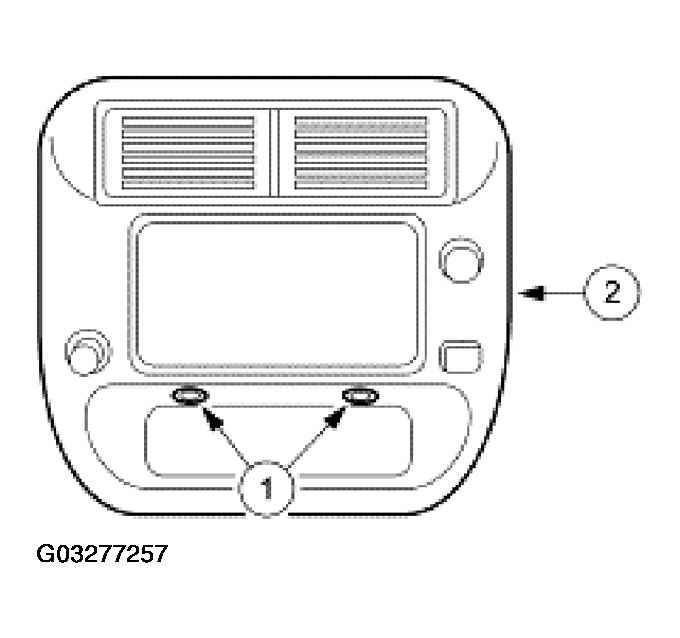

Pull out the radio finish panel assembly.
1. Remove the bolts.
2. Pull out the radio finish panel assembly.

  Fig 1: Pulling Out Radio Finish Panel Assembly
  Courtesy of FORD MOTOR CO.

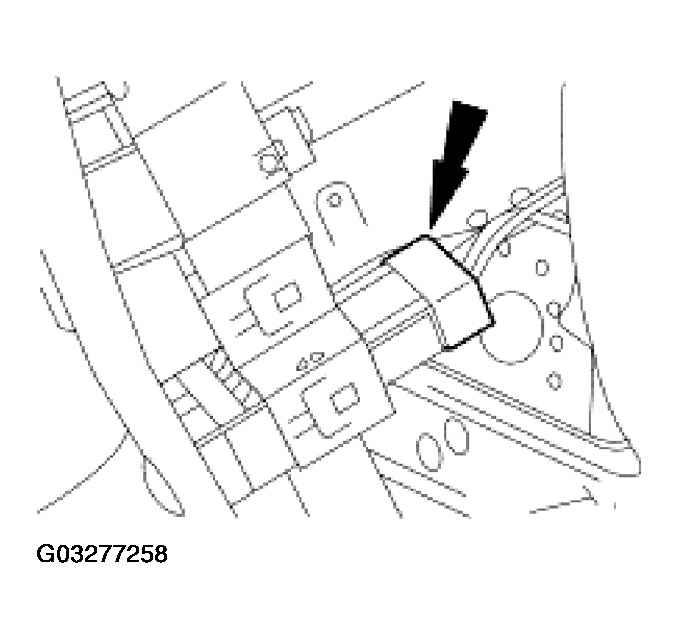

Disconnect the radio finish panel connectors.

Fig 2: Disconnecting Radio Finish Panel Connectors
Courtesy of FORD MOTOR CO.

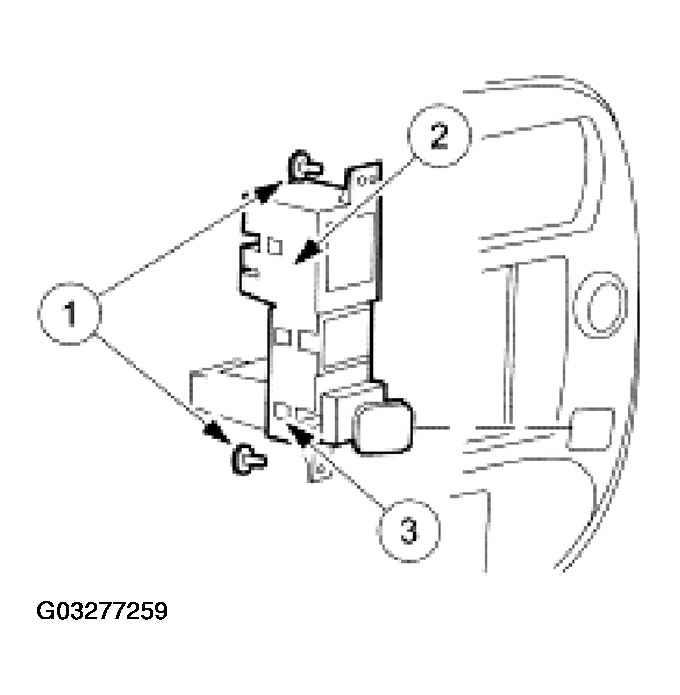

Remove the fog lamp switch.
1. Remove the screws.
2. Remove the switch bracket.
3. Release the tabs and remove the fog lamp switch.

  Fig 3: Removing Fog Lamp Switch
  Courtesy of FORD MOTOR CO.
