Sable & Taurus (Station Wagon)
WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1999 Mercury Tracer, 1999 Mercury Sable, 1999 Mercury Mystique, 1999 Mercury Grand Marquis, and 1999 Mercury Cougar. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Rear camber adjustment bolt kit is necessary for Sable and Taurus (if not previously installed).
- Raise vehicle, allowing suspension to hang free. Remove stabilizer bar bracket from outboard ends of lower control arm and bushing. Remove parking brake cable retaining bracket.
- Place floor jack with wood block under lower control arm and bushing stamping (midway between lower control arm inner pivot bushing and rear spring). Remove and discard lower control arm and bushing inner pivot retaining nut.
- Using floor jack, preload underside of lower control arm. Remove and discard lower control arm inner pivot bolt. Slowly lower control arm and bushing out of crossmember bracket until spring is completely relaxed.

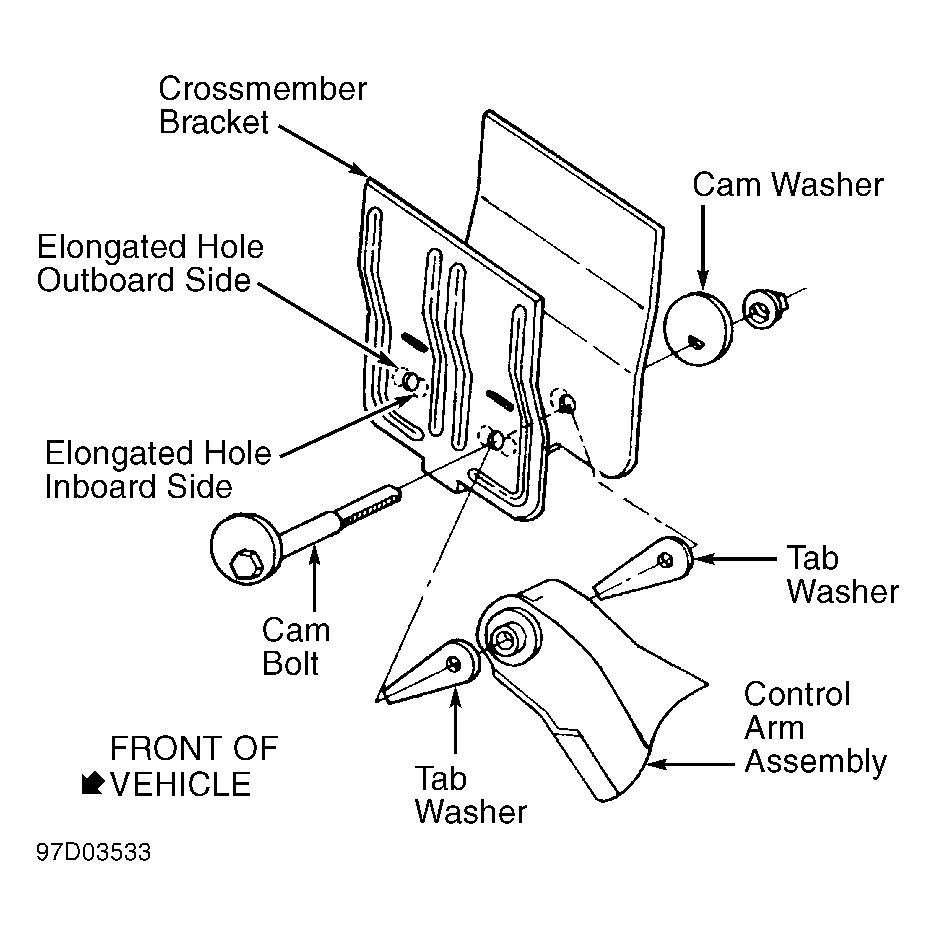

- Using a 1/2" diameter rotary file, elongate both crossmember bracket holes. See Fig 1 . If camber measured out of specification in the positive direction, go to next step. If camber measured out of specification in the negative direction, elongate crossmember bracket hole horizontally on inboard side, until slot length measures 0.94" (24 mm). Go to step 6 .
- If camber measured out of specification in the positive direction, elongate crossmember bracket hole horizontally on outboard side, until slot length measures 0.63" (16 mm). Go to next step.
- Using floor jack, raise lower rear control arm and bushing back up into crossmember bracket. Using Rear Camber Adjustment Kit (E7DZ-5K751-A), install new inner pivot cam bolt from front side of crossmember.
- Install cam bolt with 2 new tab washers between crossmember bracket and control arm inner pivot bushing. Install new cam washer and nut. Tighten cam bolt nut to 40-55 ft. lbs. (54-74 N.m). Repeat procedure for opposite side.
- Reinstall stabilizer bar brackets and parking brake cable bracket. Tighten stabilizer bar bracket-to-lower control arm bolts to 14-19 ft. lbs. (19-26 N.m)
