Continental, Sable & Taurus
WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1999 Mercury Tracer, 1999 Mercury Sable, 1999 Mercury Mystique, 1999 Mercury Grand Marquis, and 1999 Mercury Cougar. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
During adjustment procedure, DO NOT drill deeper than 3/8" (9.6 mm) into strut tower.

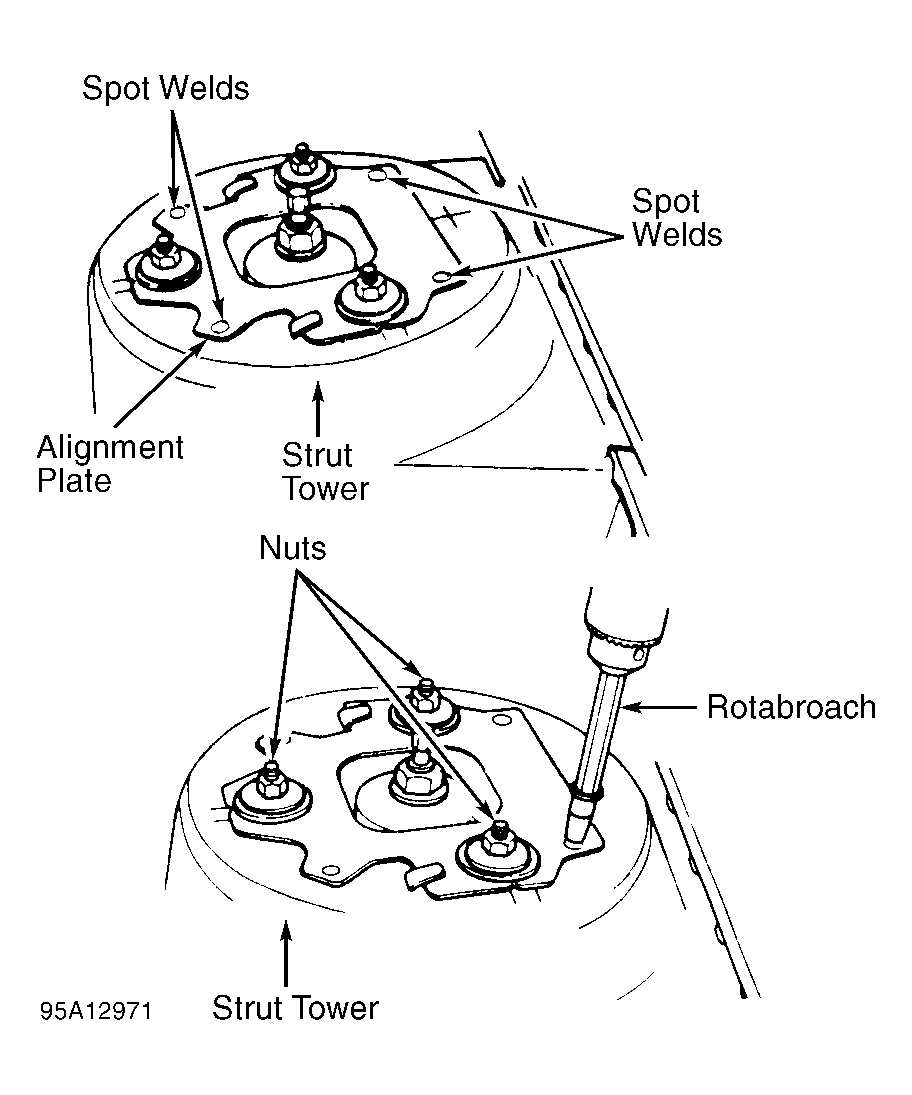

- For minor adjustments to camber and caster, loosen subframe mount bolts, and shift subframe. If this does not allow enough adjustment, loosen 3 upper strut mounting bracket-to-strut tower attaching nuts. Drill out 4 or 5 spot welds at upper strut alignment plate. See Fig 1 .
- DO NOT drill deeper than necessary to move alignment plate. Remove 3 upper strut mounting bracket-to-strut tower attaching nuts and alignment plate. Clean burrs from strut tower and alignment plate. Paint exposed metal surfaces.
- Position strut and alignment plate. Loosely install attaching nuts. Adjust camber/caster by moving top of strut. Tighten attaching nuts to specification. Drill 3 holes for rivets in perimeter of alignment plate. See Fig 2 or Fig 3 . Install 3 rivets.
