Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    2. VEHICLES EQUIPPED WITH CDX6 AUDIOPHILE

  2. Remove the front center floor console.
    3. NOTE: Left side is shown, right side is similar.
  3. Remove the subwoofer enclosure.
    1. Remove the two bolts.
    2. Remove the two screws.
    3. Disconnect the main harness connector.

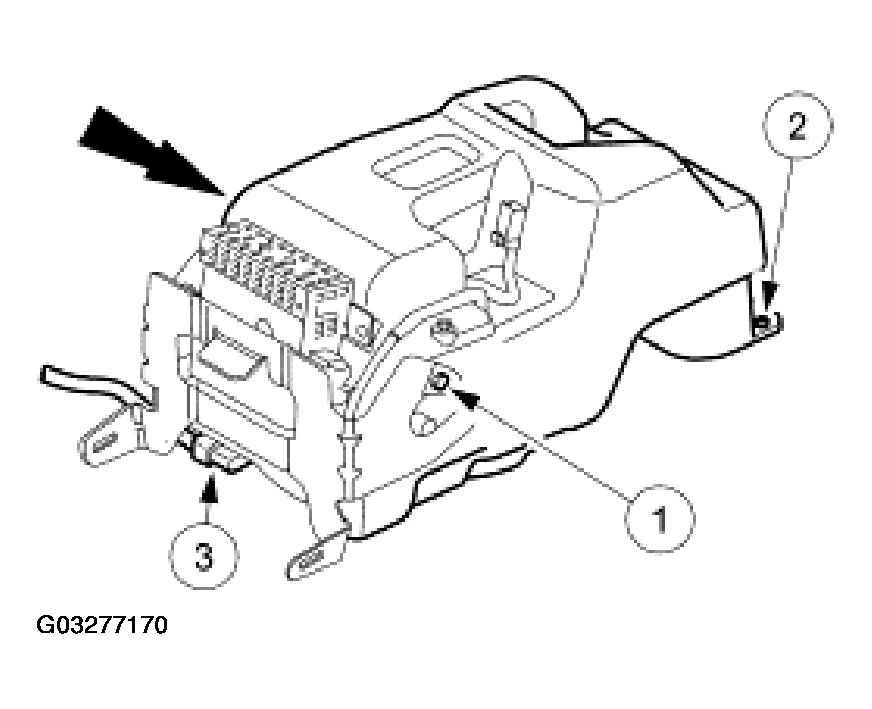

      Fig 1: Removing Subwoofer Enclosure
      G03277170Courtesy of FORD MOTOR CO.

    4. VEHICLES EQUIPPED WITH TREMOR AUDIO PACKAGE

  4. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
    5. NOTE: Left side is shown, right side is similar.

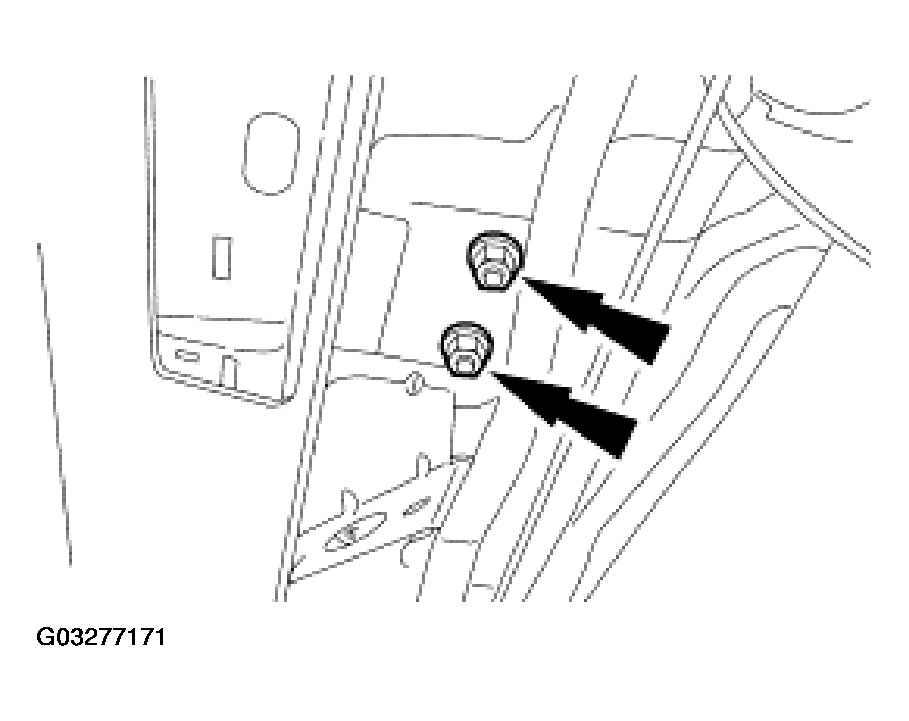

    Fig 2: Removing Enclosure Assembly Nuts
    G03277171Courtesy of FORD MOTOR CO.
  5. Remove the four enclosure assembly nuts.
  6. Pull back the carpet covering the subwoofer assembly and remove the foam substrate.

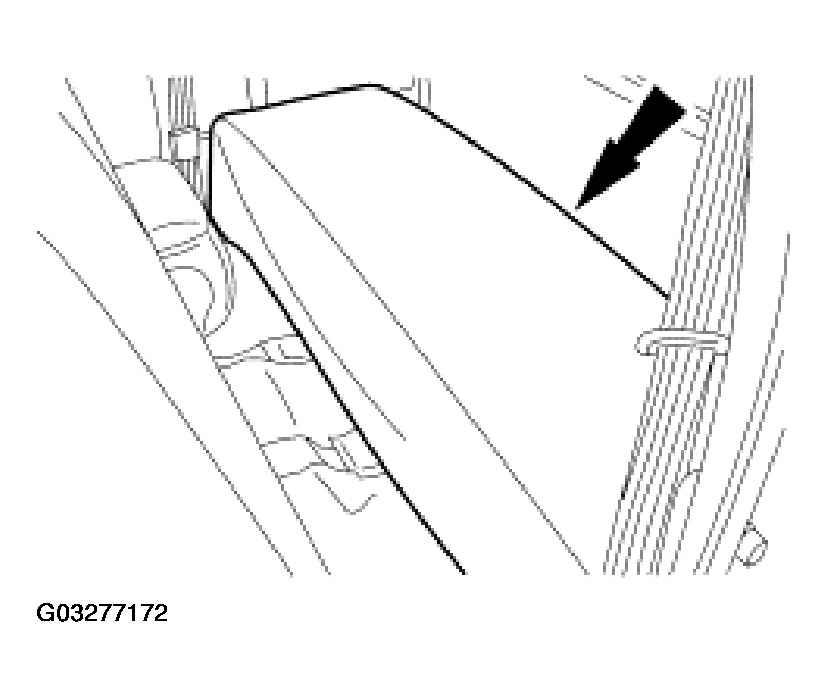

    Fig 3: Removing Foam Substrate
    G03277172Courtesy of FORD MOTOR CO.
  7. Disconnect the main harness connector.

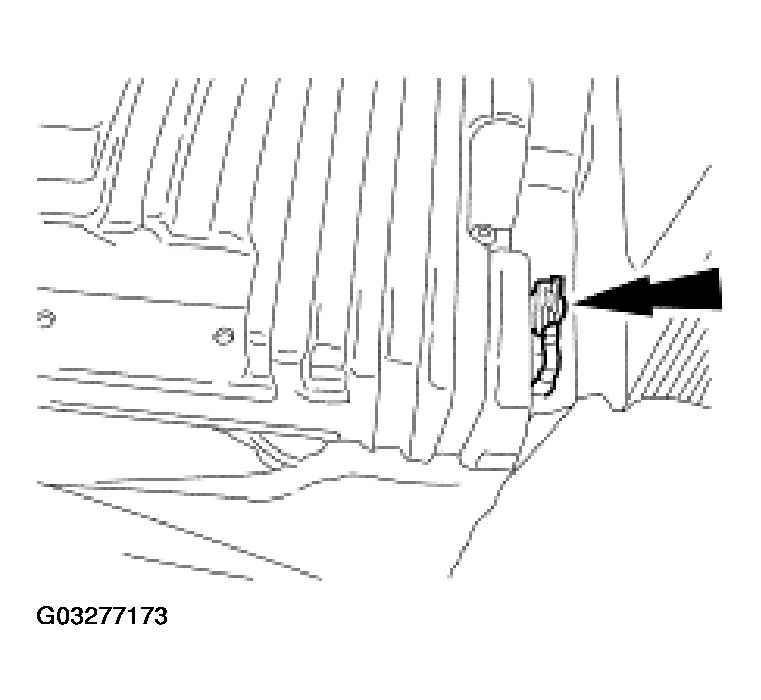

    Fig 4: Disconnecting Main Harness Connector
    G03277173Courtesy of FORD MOTOR CO.
  8. Raise the enclosure and disconnect the main harness connector.

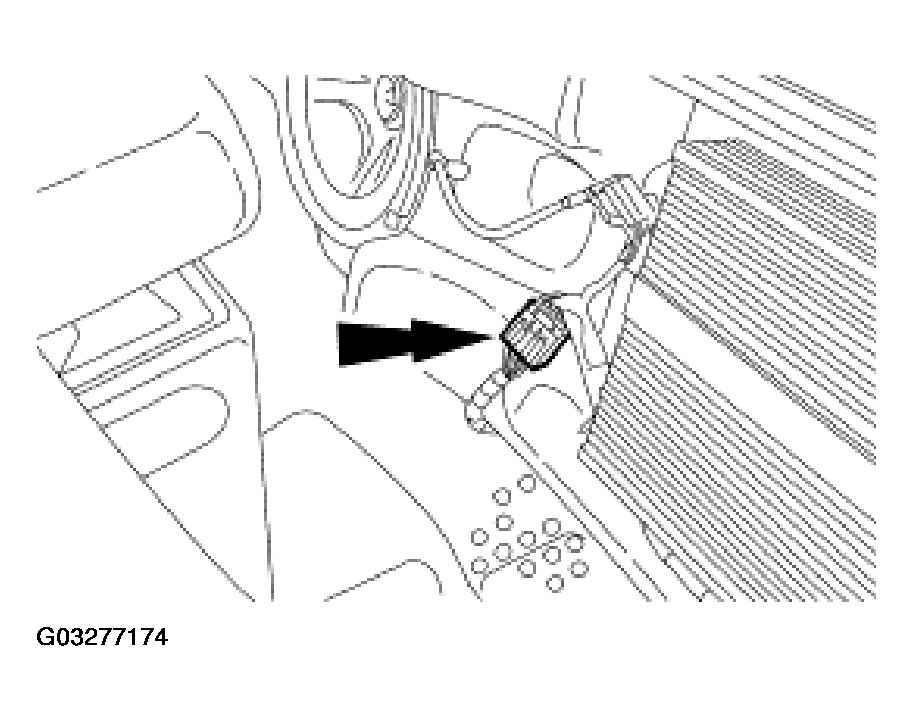

    Fig 5: Disconnecting Main Harness Connector
    G03277174Courtesy of FORD MOTOR CO.
  9. Remove the subwoofer enclosure

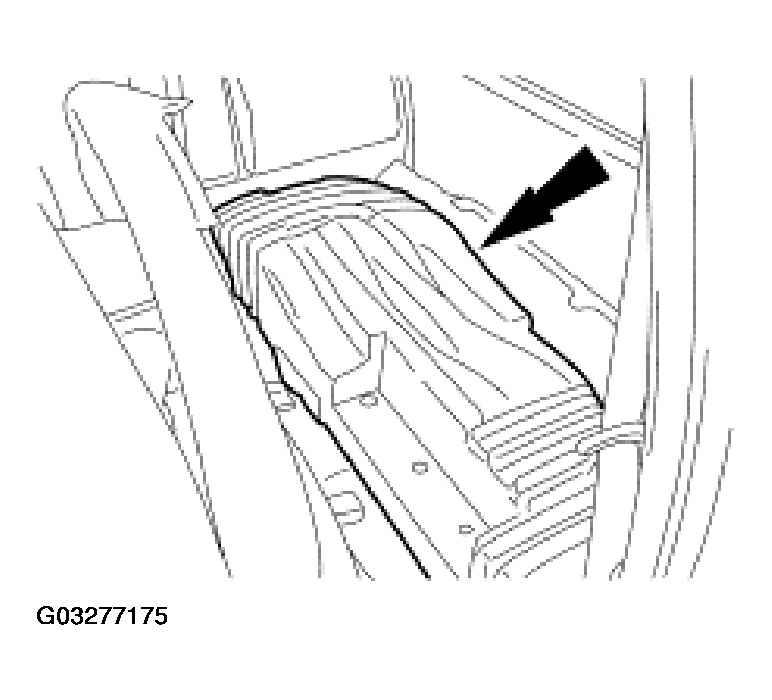

    Fig 6: Removing Subwoofer Enclosure
    G03277175Courtesy of FORD MOTOR CO.

    10. ALL VEHICLES

  10. To install, reverse the removal procedure.
