Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel; refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the speaker.
    1. Remove the screws.
    2. Disconnect the electrical connector.
    3. Remove the speaker.

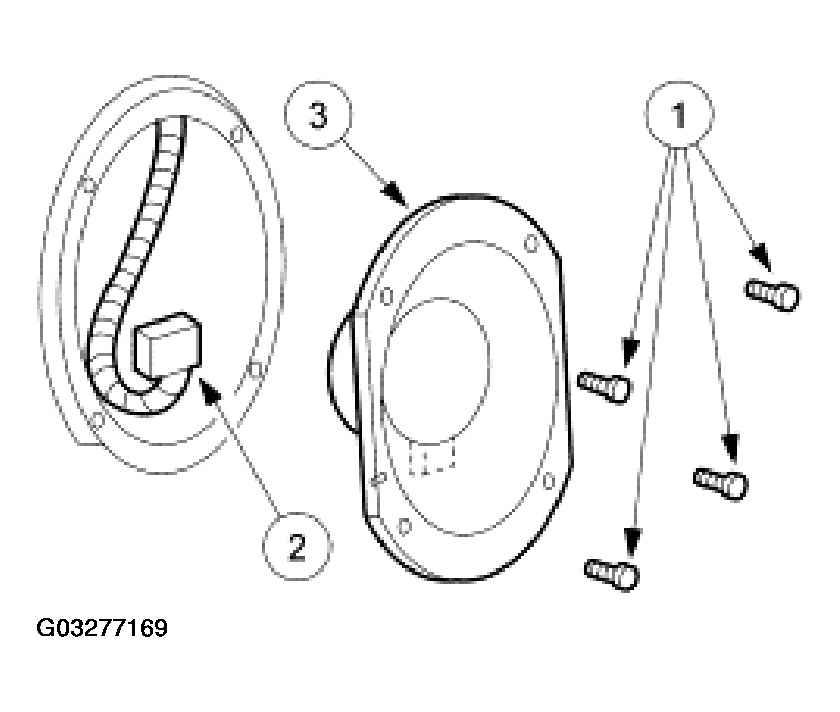

      Fig 1: Removing Speaker
      G03277169Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
