Cable - Two Piece: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radio antenna mast.
- Remove the radio antenna mast by turning it counterclockwise.

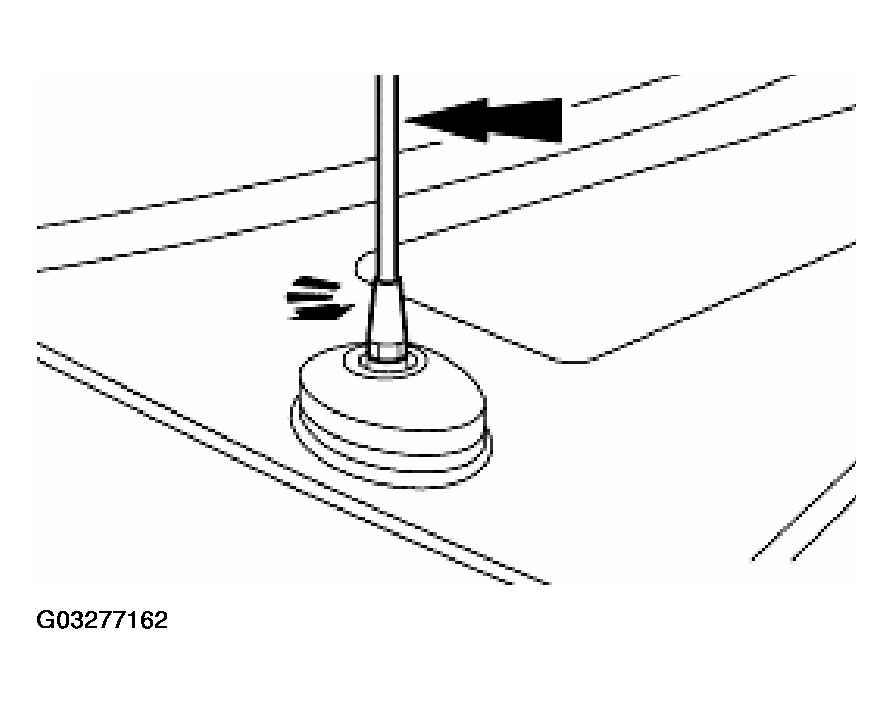

  Fig 1: Removing Radio Antenna Mast
  Courtesy of FORD MOTOR CO.
Unsnap and remove the radio antenna base cap.

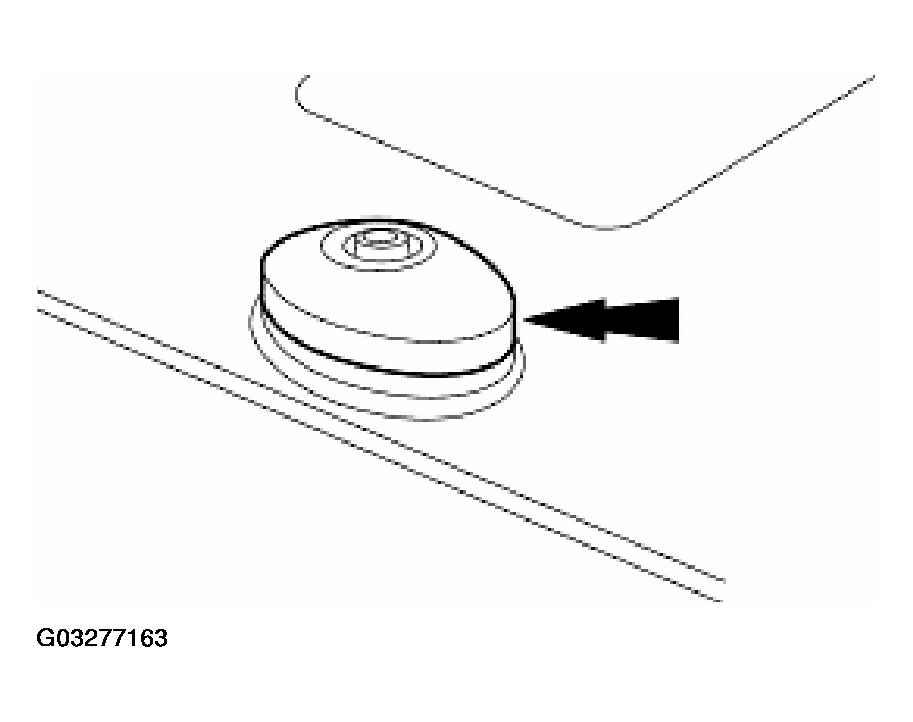

Fig 2: Removing Radio Antenna Base Cap
Courtesy of FORD MOTOR CO.
Remove the screws.

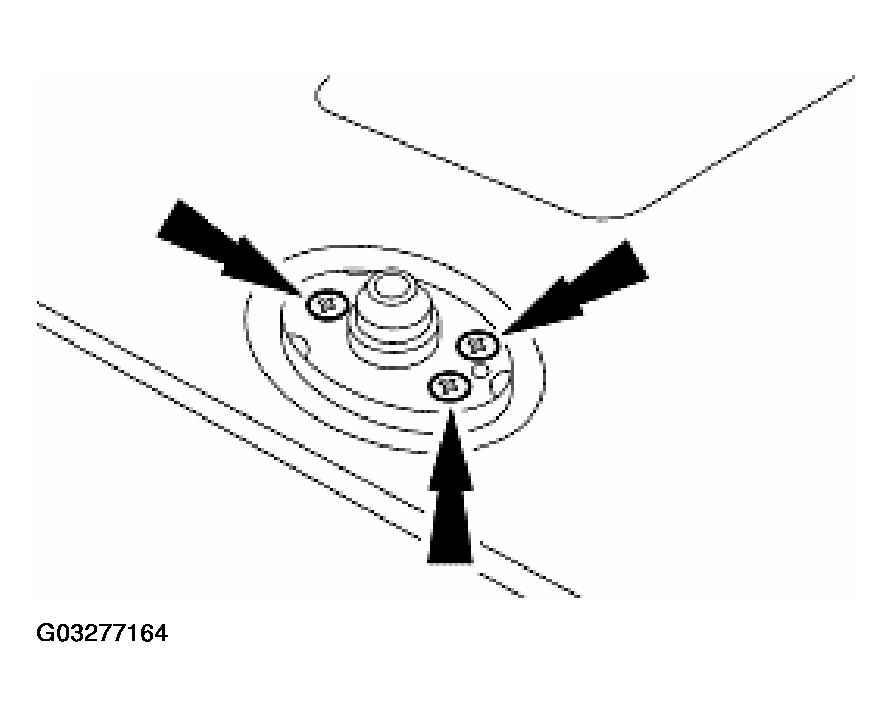

Fig 3: Removing Antenna Base
Courtesy of FORD MOTOR CO.
Remove the right hand wheel splash guard.

CAUTION: Remove the electrical connector locators from the splash shield prior to removal.

CAUTION: Disconnect the vacuum lines from the vacuum storage reservoir.

Remove the splash shield.
1. Remove the screws.
2. Remove the push-pin
3. Remove the bolts.

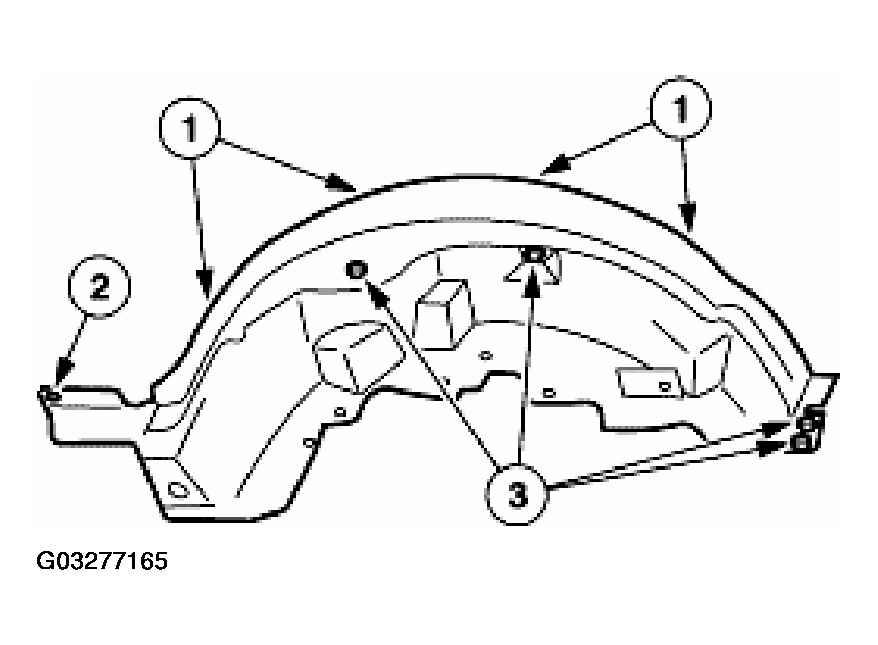

  Fig 4: Removing Splash Shield
  Courtesy of FORD MOTOR CO.
Remove the antenna lead-in cable.
1. Open the glove box door.
2. Release the tabs and lower the glove box to the full open position.
3. Unclip the antenna lead-in cable wire clips.
4. Disconnect the antenna lead-in cable.
5. Pull the antenna lead-in cable through the hole and remove the remove the antenna lead-in cable.

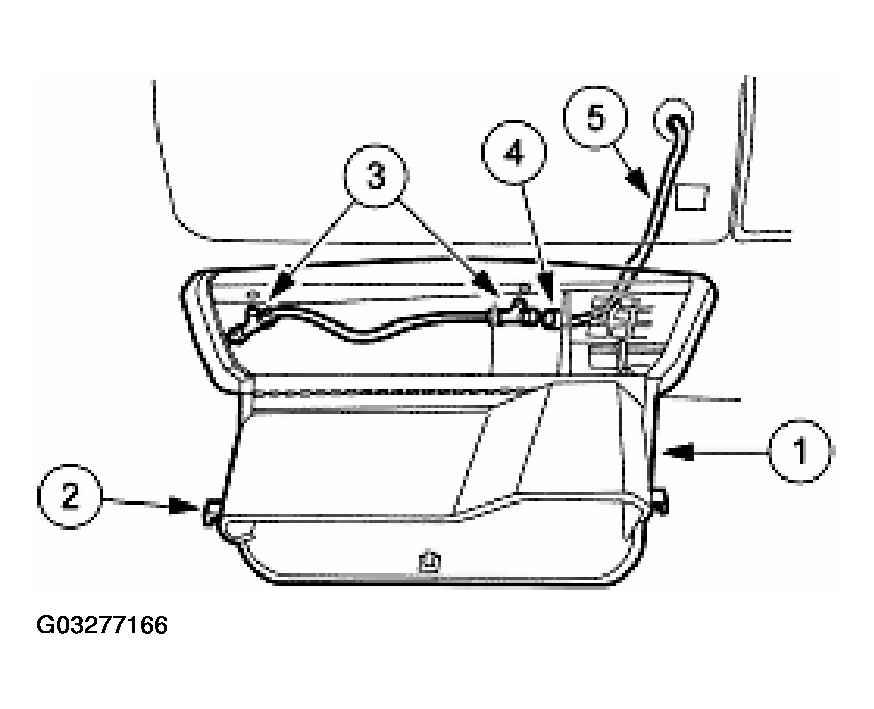

  Fig 5: Removing Antenna Lead-In Cable
  Courtesy of FORD MOTOR CO.
Remove the antenna assembly (18A984) through the wheel well.
