Cable - One Piece: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio chassis. For additional information, refer to AUDIO UNIT .
  2. Position the antenna lead-in cable.
    1. Open the glove box door.
    2. Release the tabs and lower the glove box to the full open position.
    3. Disconnect the antenna lead-in cable wire clip.
    4. Push the rubber grommet through the sheet metal and feed the antenna lead-in cable through the hole.

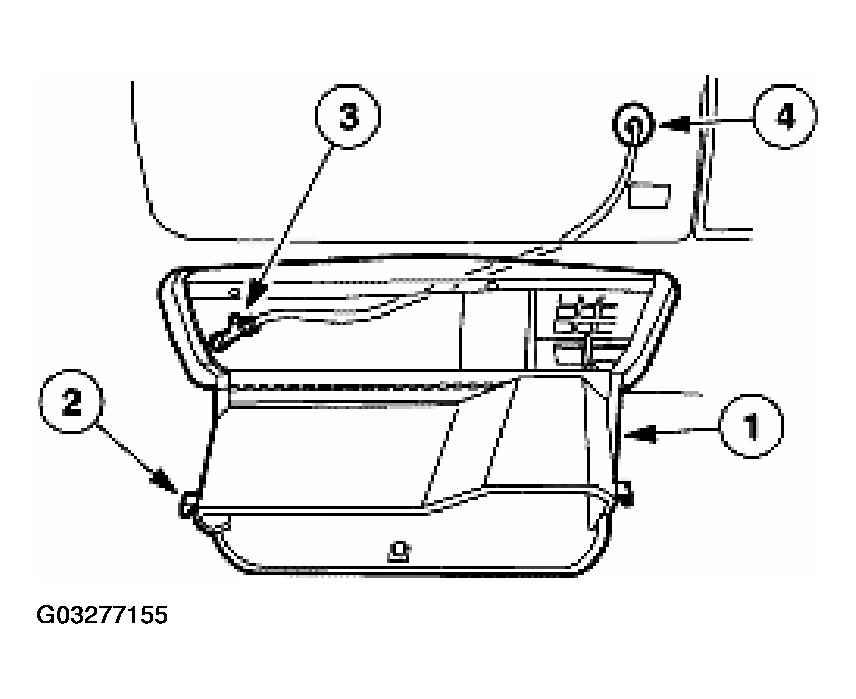

      Fig 1: Positioning Antenna Lead-In Cable
      G03277155Courtesy of FORD MOTOR CO.
  3. Remove the radio antenna mast.
    • Remove the radio antenna mast by turning it counterclockwise.

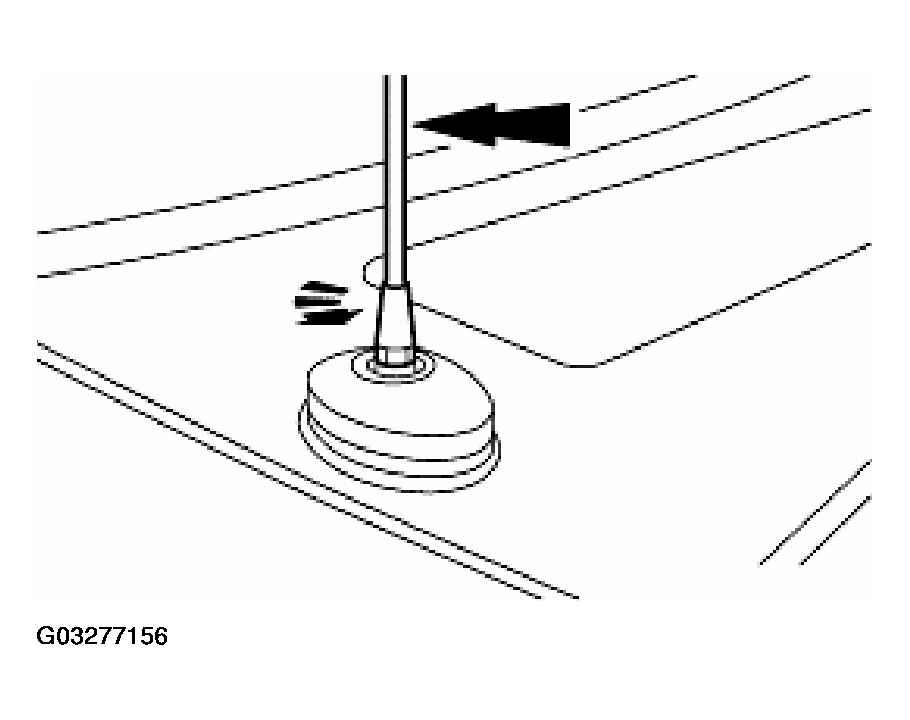

      Fig 2: Removing Radio Antenna Mast
      G03277156Courtesy of FORD MOTOR CO.
  4. Unsnap and remove the radio antenna base cap.

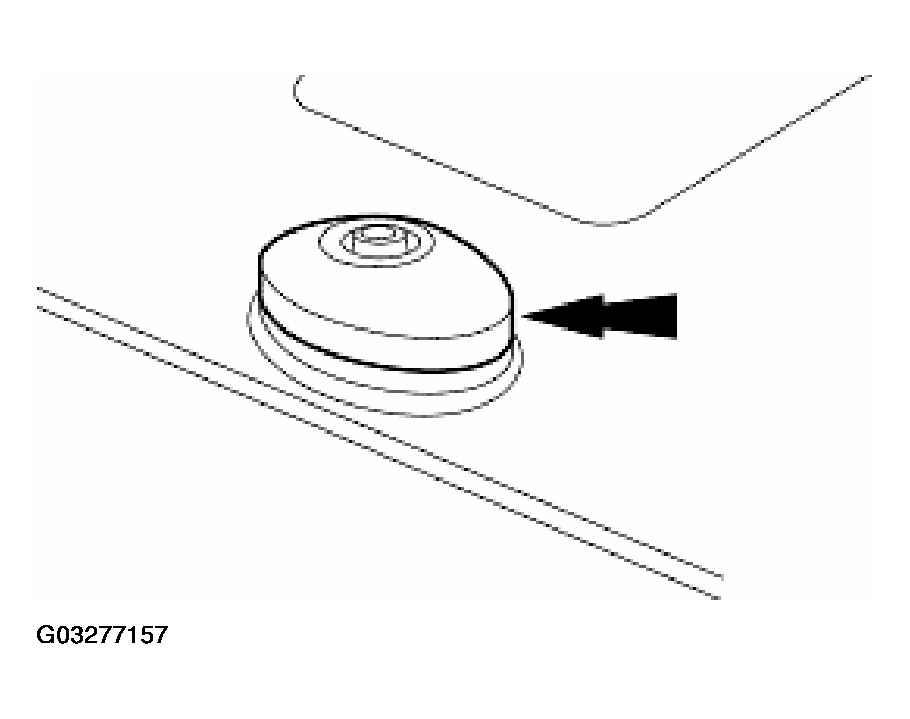

    Fig 3: Removing Radio Antenna Base Cap
    G03277157Courtesy of FORD MOTOR CO.
  5. Remove the antenna base and lead-in cable assembly.
    1. Remove the screws.
    2. Remove the antenna base and lead-in cable assembly.

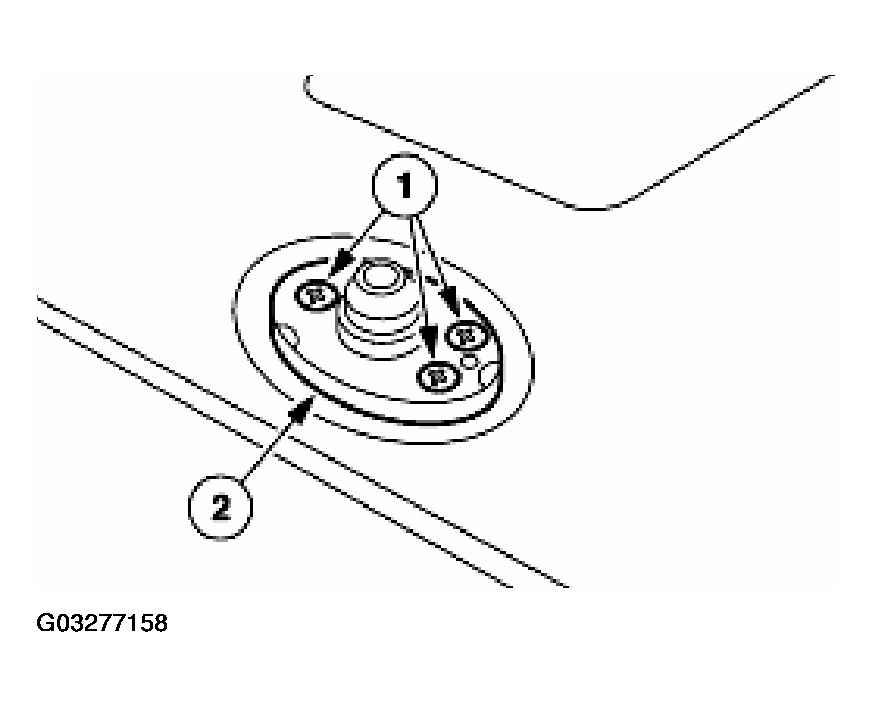

      Fig 4: Removing Antenna Base And Lead-In Cable Assembly
      G03277158Courtesy of FORD MOTOR CO.
  6. Position aside the antenna lead-in cable.
    1. Lift out the antenna base.
    2. Disconnect the lead-in cable.
    3. Push the rubber grommet through the sheet metal and feed the antenna lead-in cable through the hole.

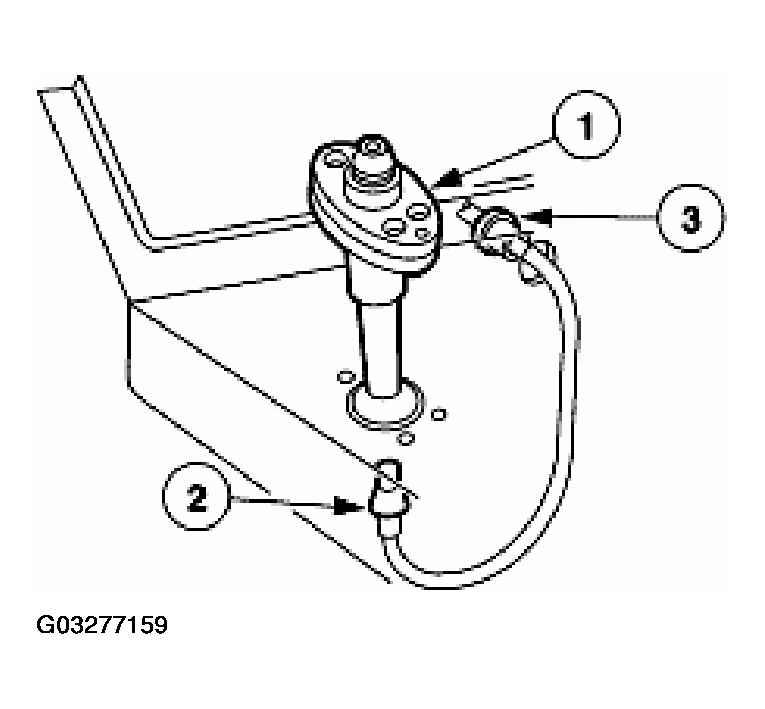

      Fig 5: Removing Antenna Base
      G03277159Courtesy of FORD MOTOR CO.
