Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

ALL VEHICLES

Remove the subwoofer speaker enclosure. Refer to SPEAKERS .

VEHICLES EQUIPPED WITH CDX6 AUDIOPHILE

Remove the subwoofer amplifier.
1. Disconnect the electrical connectors.
2. Remove the 4 screws.

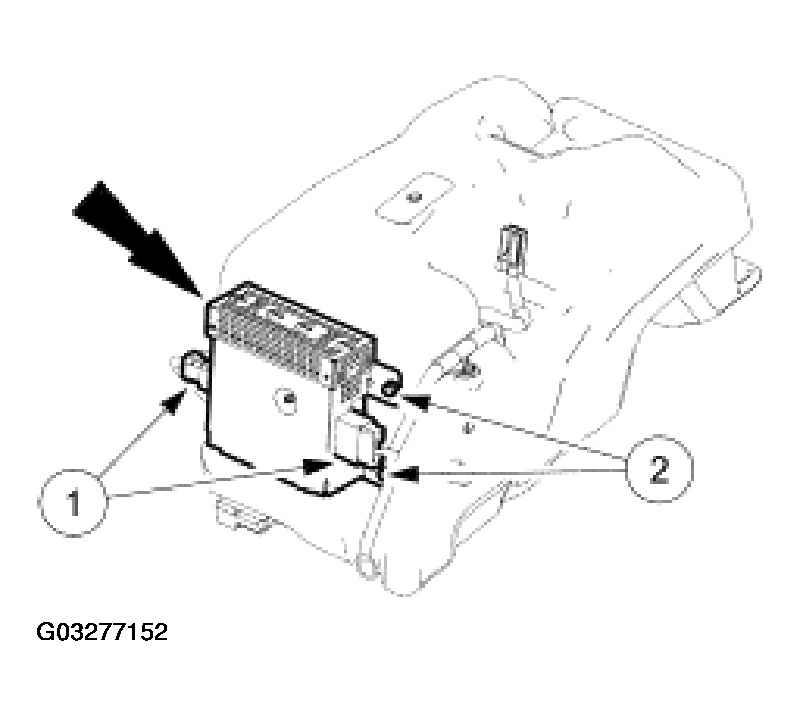

  Fig 1: Removing Subwoofer Amplifier - Vehicles With CDX6 Audiophile
  Courtesy of FORD MOTOR CO.

VEHICLES EQUIPPED WITH TREMOR AUDIO PACKAGE

Remove the subwoofer amplifier.
1. Disconnect the electrical connectors.
2. Remove the four bolts.

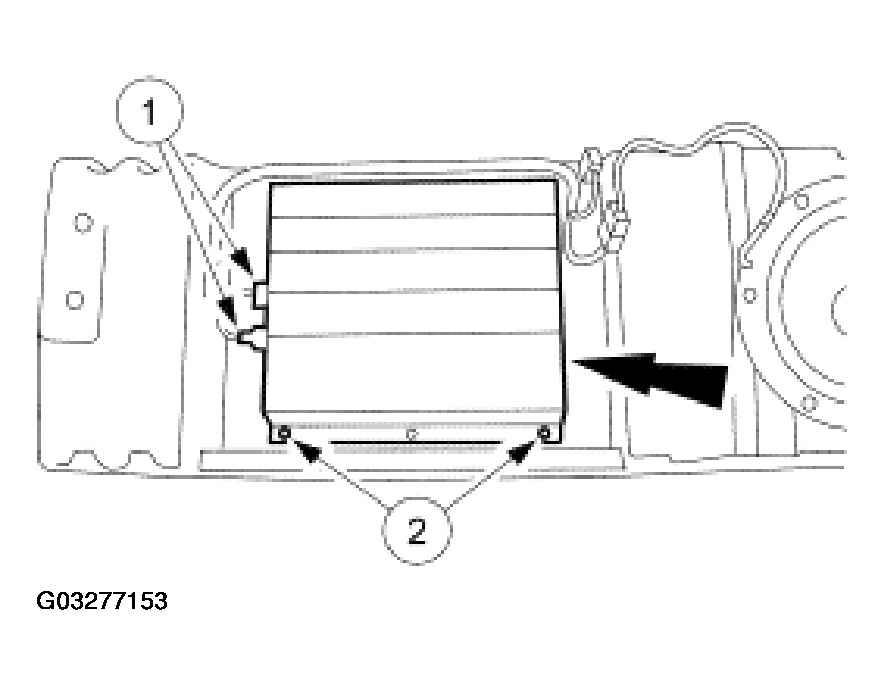

  Fig 2: Removing Subwoofer Amplifier - Vehicles With TREMOR Audio Package
  Courtesy of FORD MOTOR CO.

ALL VEHICLES

To install, reverse the removal procedure.
