Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  2. Unclip the lens from the instrument cluster.

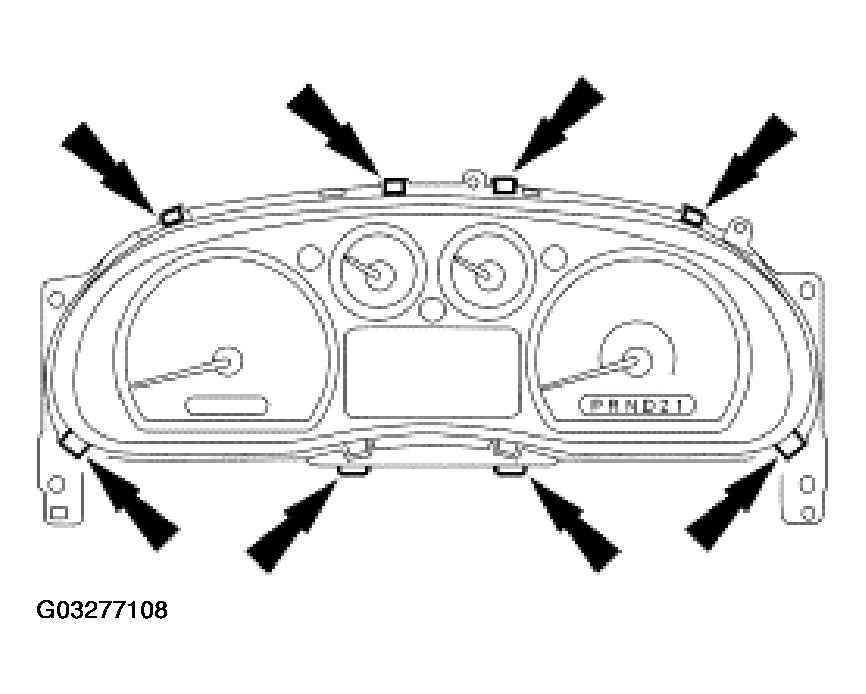

    Fig 1: Unclipping Lens From Instrument Cluster
    G03277108Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
