Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine air cleaner (ACL) (9600). For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Remove the RH front fender splash shield. For additional information, refer to FRONT END BODY PANELS .

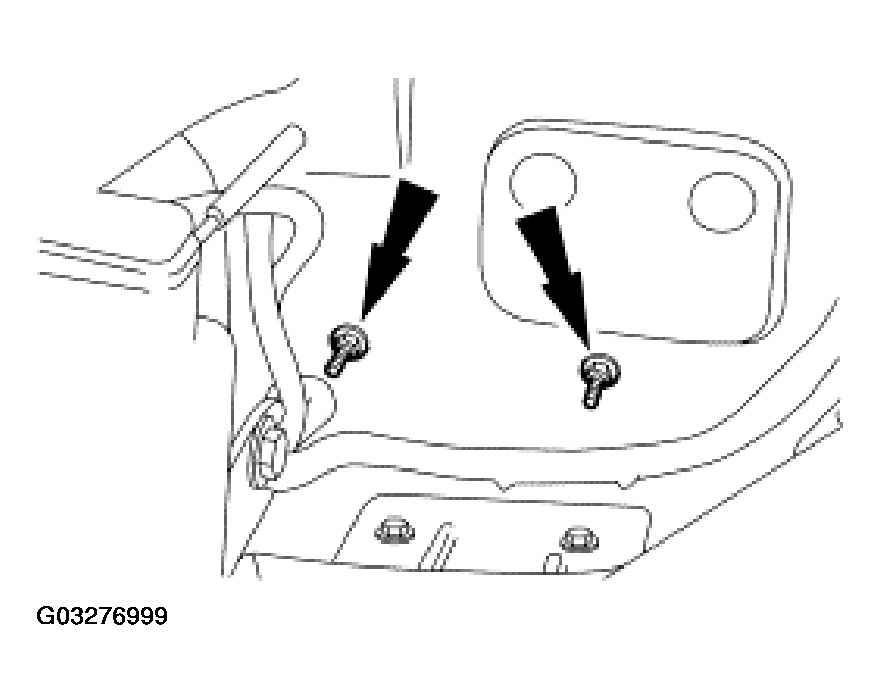

Remove the nuts and remove the A/C vacuum reservoir tank and bracket.

Fig 1: Removing A/C Vacuum Reservoir Tank And Bracket
Courtesy of FORD MOTOR CO.

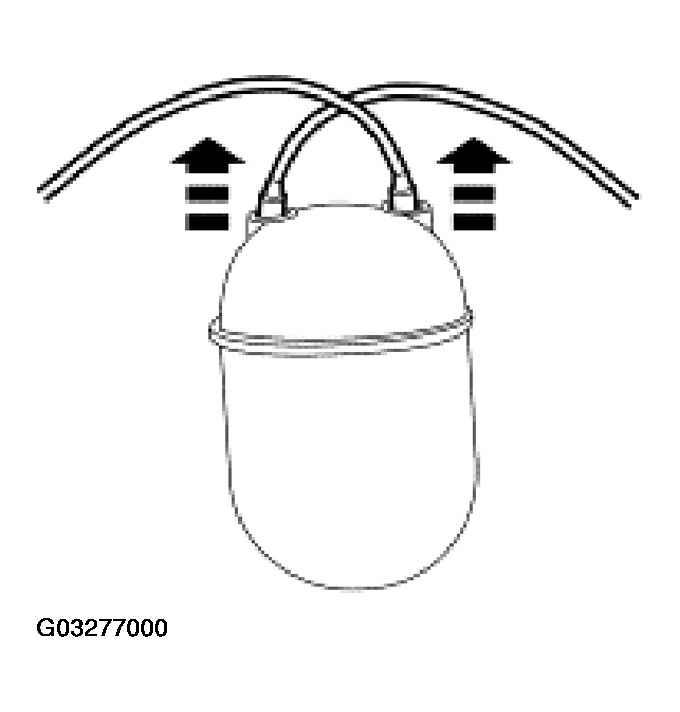

Disconnect the vacuum supply and outlet hoses.

Fig 2: Disconnecting Vacuum Supply And Outlet Hoses
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
