Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the climate control assembly. For additional information refer to CLIMATE CONTROL ASSEMBLY .
  2. Gently pull and remove the blower motor knob.

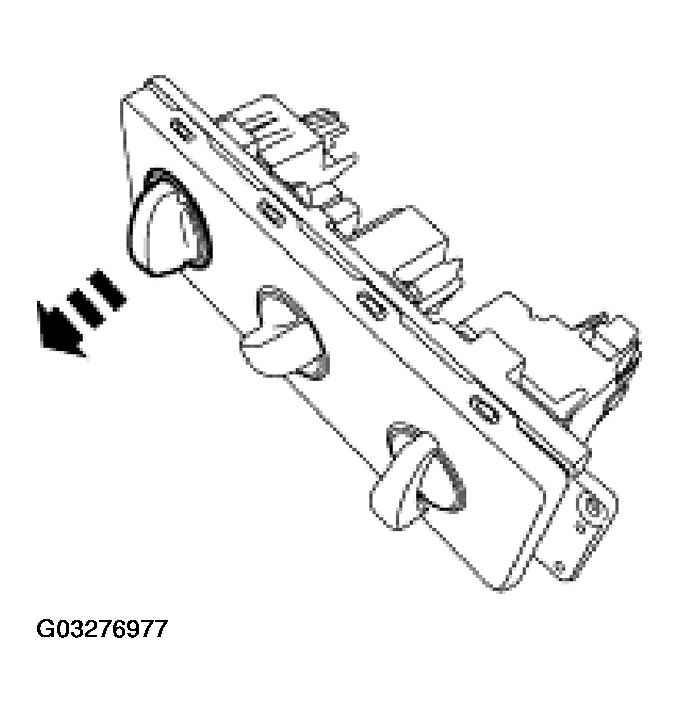

    Fig 1: Removing Blower Motor Knob
    G03276977Courtesy of FORD MOTOR CO.
  3. Release the three clips and remove the switch.

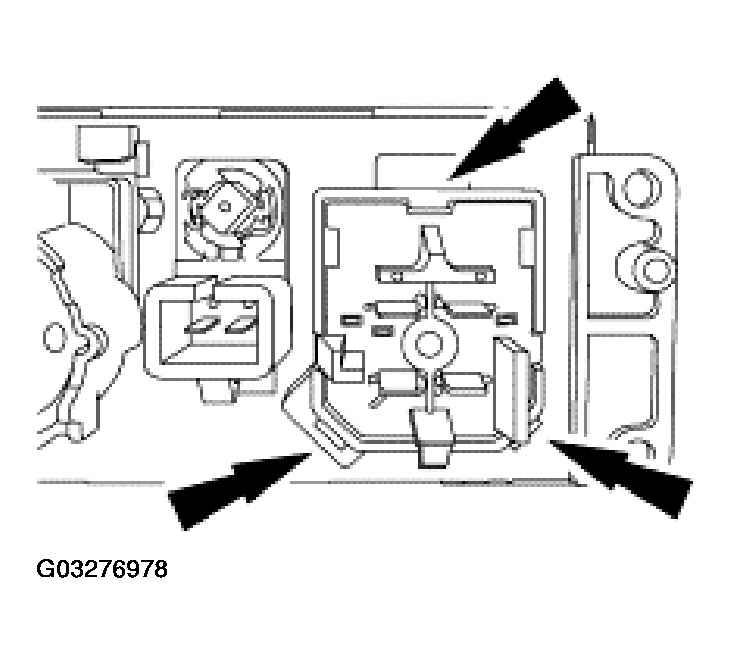

    Fig 2: Removing Blower Motor Switch
    G03276978Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
