Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refrigerant compressor oil (mineral oil) F73Z-19577-AA (Motorcraft YN -9-A) should be used to lubricate R-134a refrigerant system O-ring seals only and should not be added to the R-134a refrigerant system as an A/C compressor lubricant. PAG refrigerant compressor oil F7AZ-19D589-DA (Motorcraft YN -12-C) or equivalent meeting Ford specification WSH-M1C231-B only should be used as an A/C compressor lubricant.
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system, except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.
  1. Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  2. Disconnect the compressor manifold and tube assembly (19D734) spring lock coupling from the suction accumulator (19C836).
    • Discard the O-ring seals.

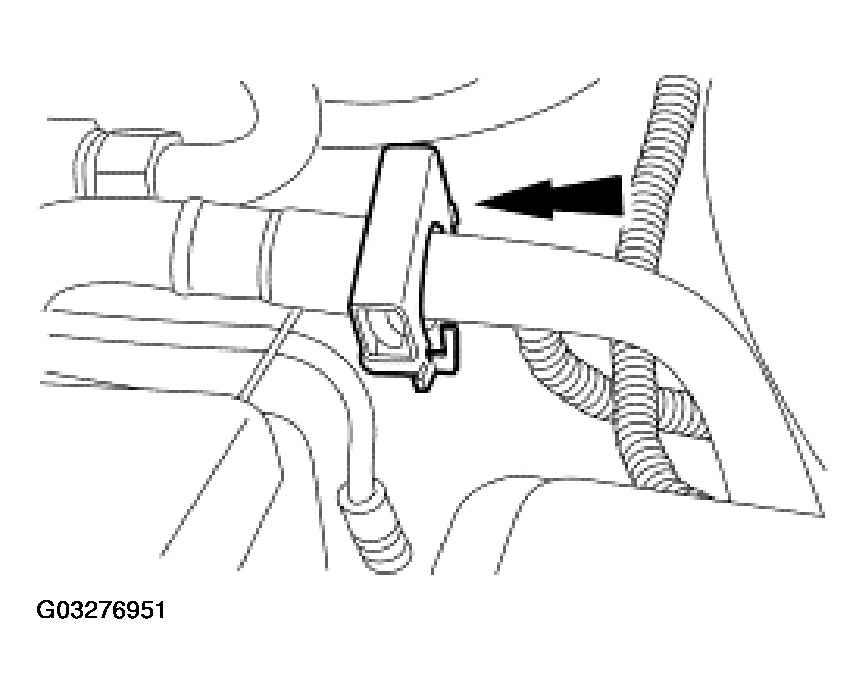

      Fig 1: Disconnecting Compressor Manifold And Tube Assembly From Suction Accumulator
      G03276951Courtesy of FORD MOTOR CO.
  3. Disconnect the compressor manifold and tube assembly from the condenser core (19712).
    • Discard the O-ring seal.

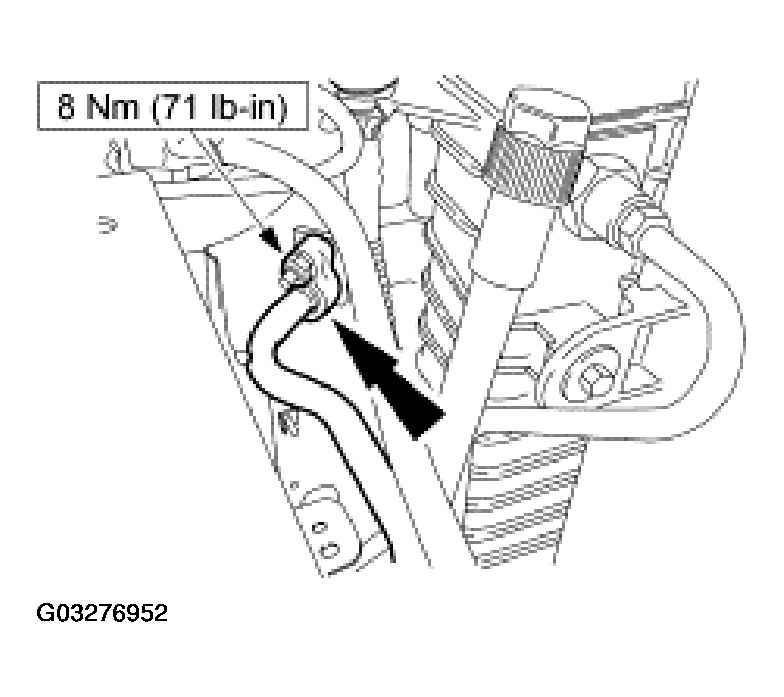

      Fig 2: Disconnecting Compressor Manifold And Tube Assembly From Condenser Core
      G03276952Courtesy of FORD MOTOR CO.
  4. Disconnect the pressure cutoff switch electrical connector.

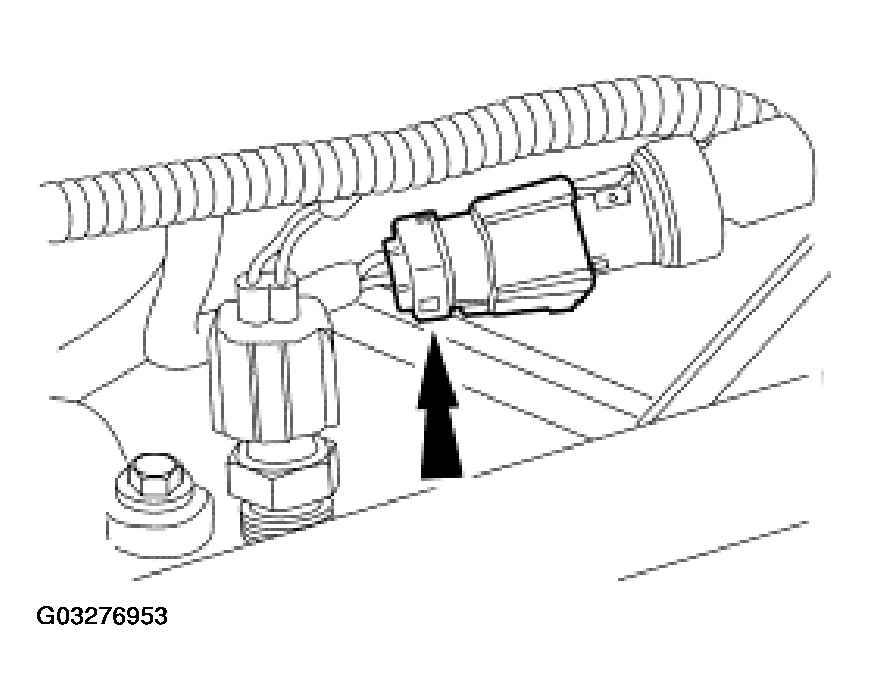

    Fig 3: Disconnecting Pressure Cutoff Switch Electrical Connector
    G03276953Courtesy of FORD MOTOR CO.
  5. Disconnect the fuel line spring lock coupling. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

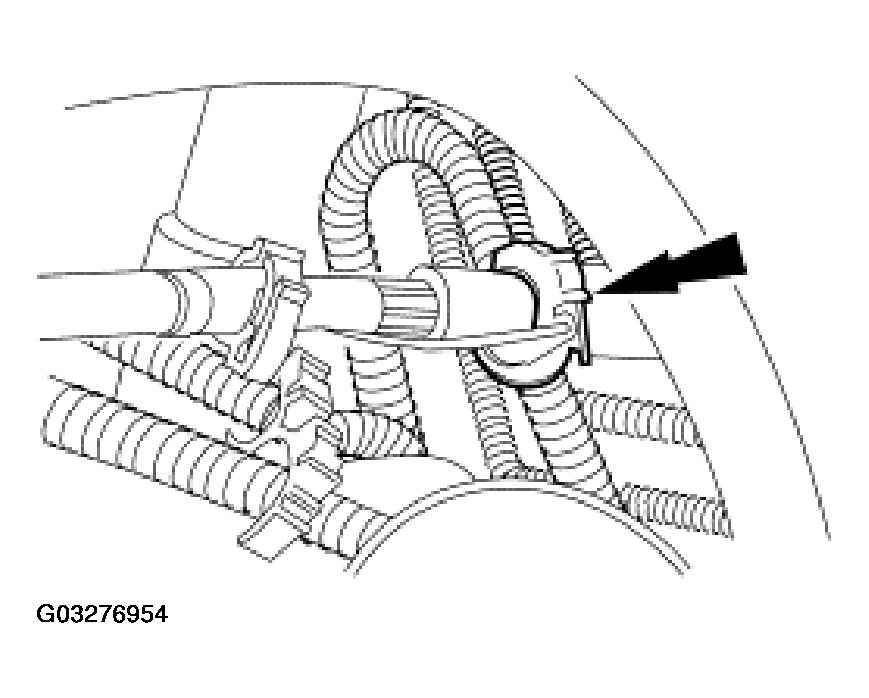

    Fig 4: Disconnecting Fuel Line Spring Lock Coupling
    G03276954Courtesy of FORD MOTOR CO.
  6. Remove the nut and position the bracket aside.

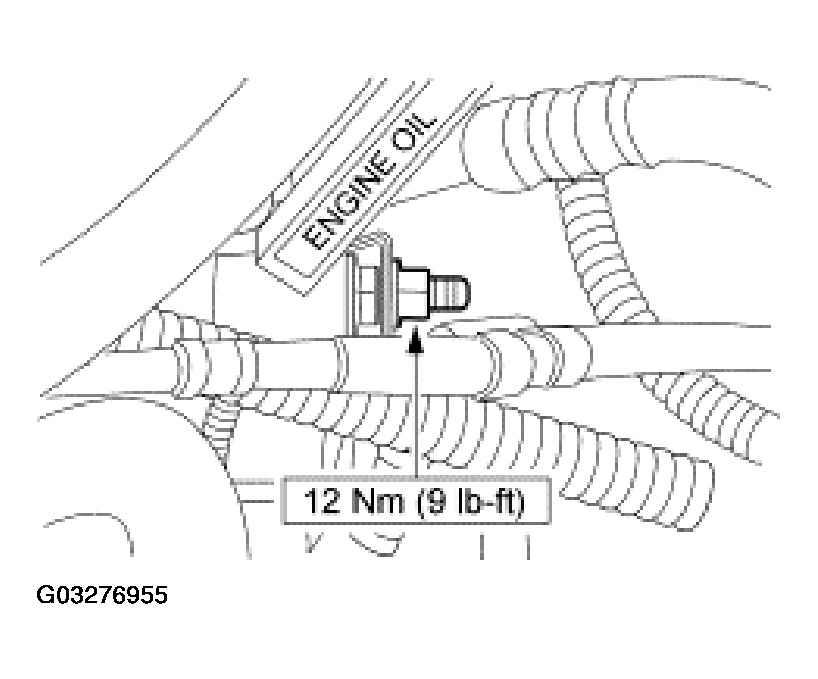

    Fig 5: Removing Nut And Position Bracket Aside
    G03276955Courtesy of FORD MOTOR CO.
  7. Loosen the bolt and remove the compressor manifold and tube assembly.
    • Discard the O-ring seals.

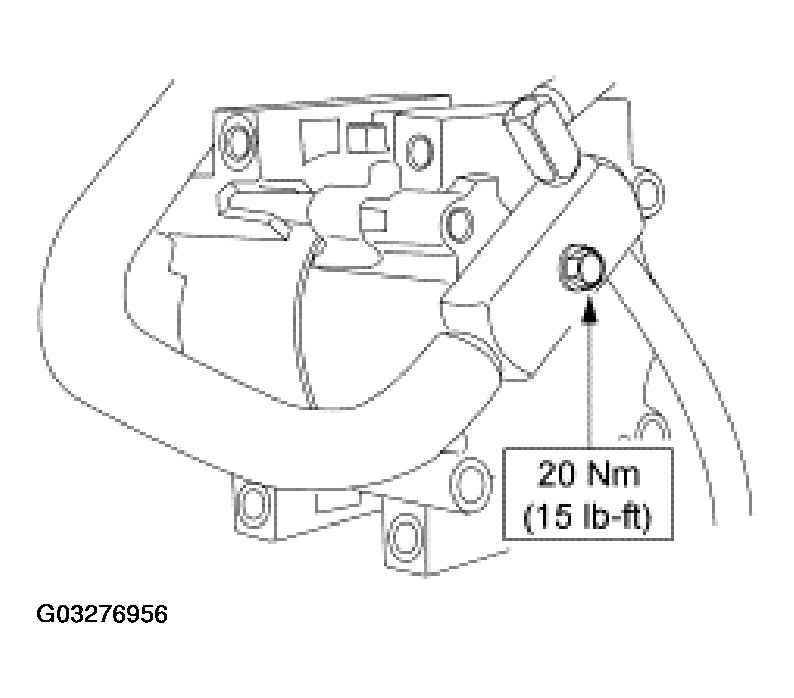

      Fig 6: Removing Compressor Manifold And Tube Assembly
      G03276956Courtesy of FORD MOTOR CO.
  8. To install, reverse the removal procedure.
    • If a new compressor manifold and tube assembly is to be installed, transfer the pressure cutoff switch to the new compressor manifold and tube assembly.
    • Install new O-ring seals lubricated in clean mineral oil.
    • Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

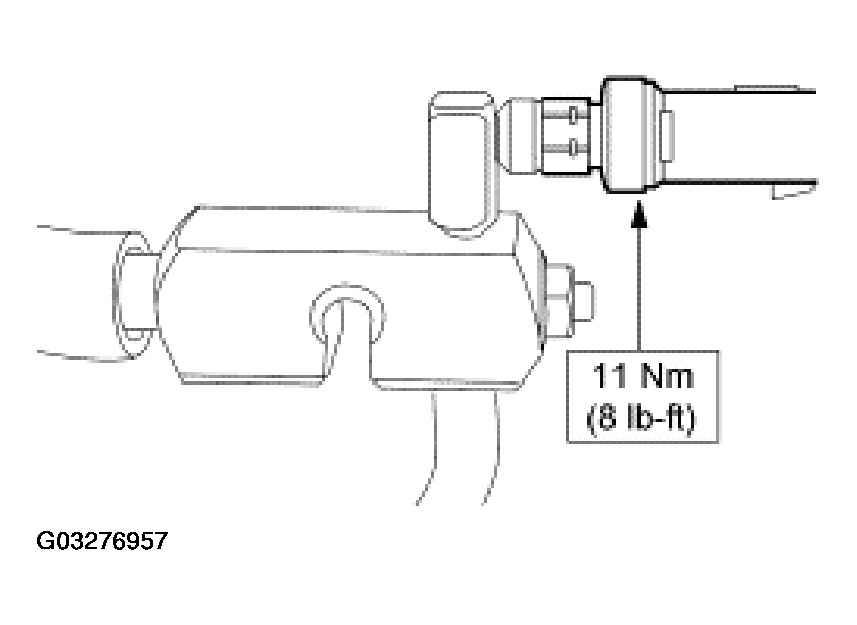

      Fig 7: Installing Pressure Cutoff Switch Electrical Connector
      G03276957Courtesy of FORD MOTOR CO.
  9. Evacuate, leak test and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
