Clutch and Clutch Field Coil: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

    ALL VEHICLES

    NOTE: If installing a new A/C compressor, the A/C clutch components should be reused unless obvious signs of damage are found. If excessive grooving is found, a new A/C clutch disc and hub and A/C compressor pulley must be installed together. Otherwise, each component can be installed individually where needed.
  1. Visually inspect the A/C clutch disc and hub, A/C compressor pulley and A/C clutch field coil for damage.
    • Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
    • Inspect for excessive wear, including grooving in the A/C clutch disc and hub or A/C compressor pulley that is more than fingernail depth.
    • Inspect for roughness in the A/C compressor pulley bearing.
  2. Clean the A/C compressor clutch field coil and bearing mounting surfaces.
    3. CAUTION: Do not use air tools. The A/C compressor clutch field coil can be easily damaged.
  3. Install the A/C compressor clutch field coil.
    1. Place the A/C compressor clutch field coil on the A/C compressor with the A/C compressor clutch field coil electrical connector correctly positioned.
    2. Place the special tool on the A/C clutch field coil.
    3. Place the special tool on the special tool.
    4. Use the special tool to install the A/C compressor clutch field coil until bottomed completely against the A/C compressor.

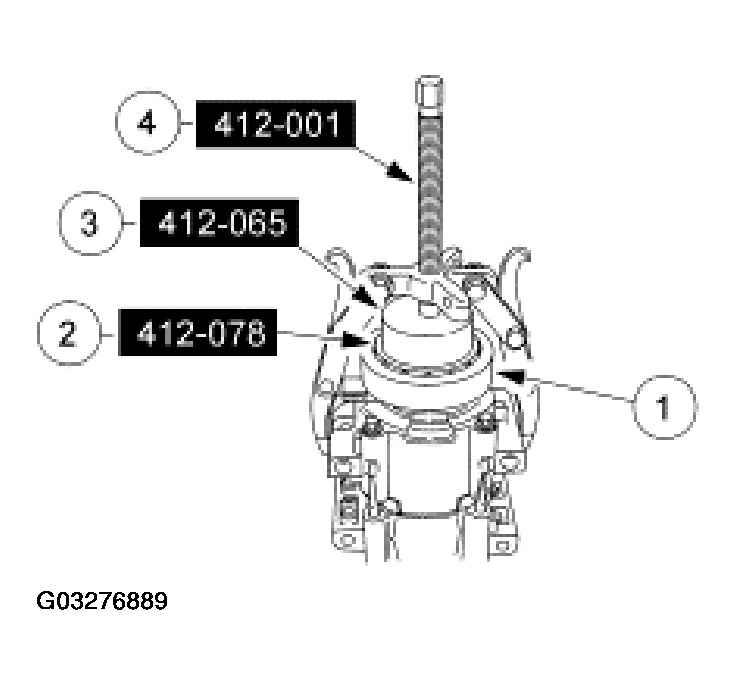

      Fig 1: Installing A/C Compressor Clutch Field Coil
      G03276889Courtesy of FORD MOTOR CO.
    4. NOTE: The A/C clutch pulley is a tight fit on the A/C compressor head; it must be correctly aligned during installation.

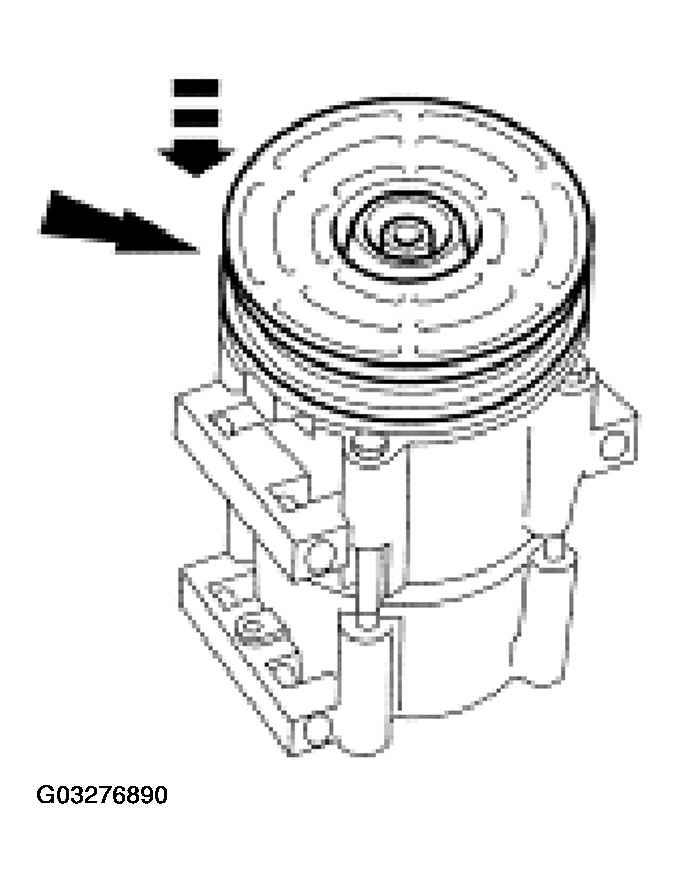

    Fig 2: Installing A/C Clutch Pulley
    G03276890Courtesy of FORD MOTOR CO.
  4. Install the A/C clutch pulley.
  5. Install the A/C clutch pulley snap ring with the bevel side out.

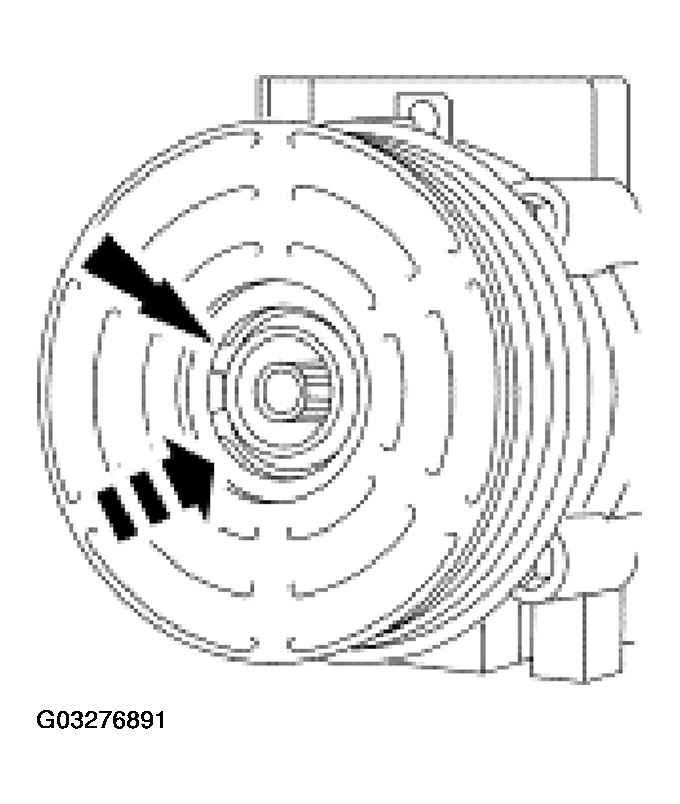

    Fig 3: Installing A/C Clutch Pulley Snap Ring With Bevel Side Out
    G03276891Courtesy of FORD MOTOR CO.
  6. Place one nominal thickness A/C clutch hub spacer inside the clutch hub spline opening.

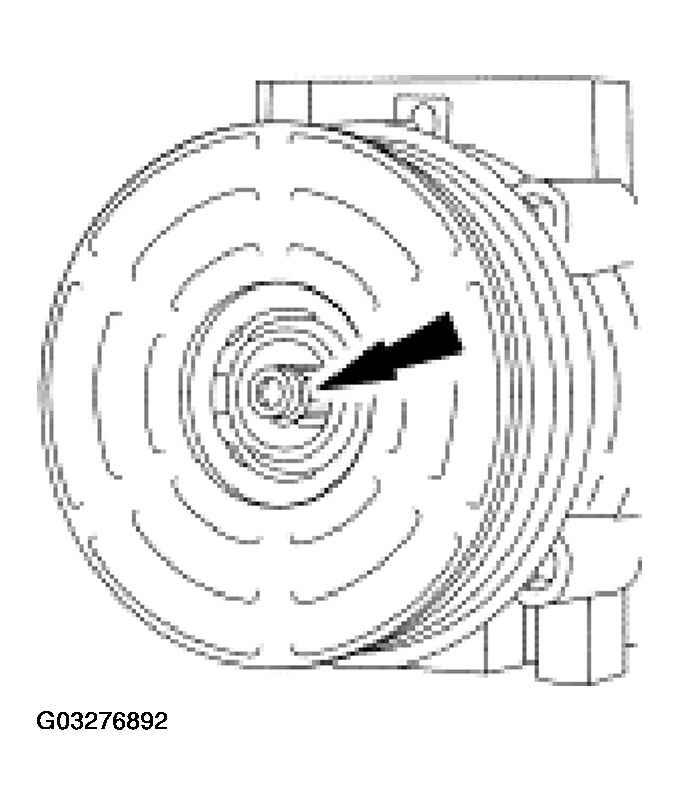

    Fig 4: Placing One Nominal Thickness A/C Clutch Hub Spacer Inside Clutch Hub Spline Opening
    G03276892Courtesy of FORD MOTOR CO.

    7. VEHICLES WITH LEAF SPRING A/C CLUTCH

  7. Install the A/C clutch disc and hub.

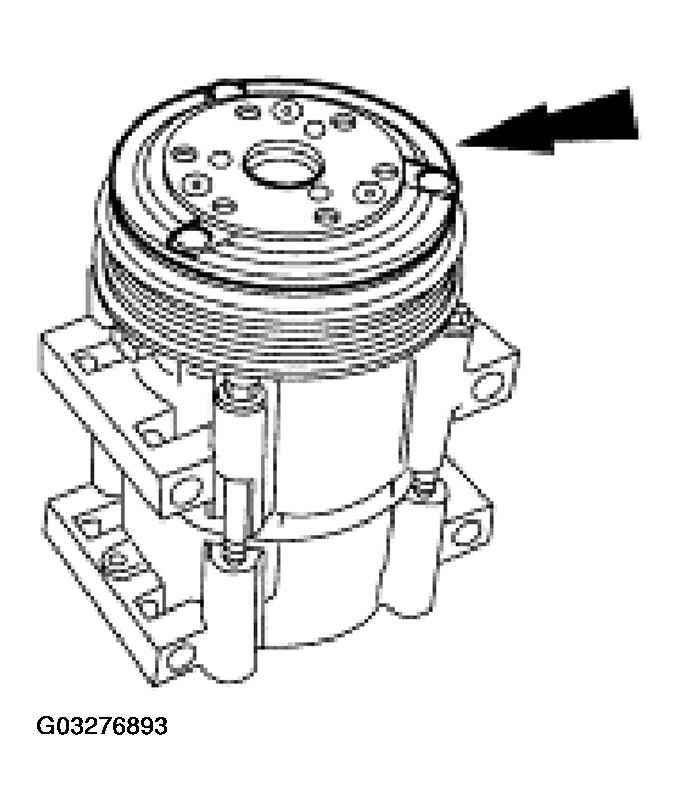

    Fig 5: Installing A/C Clutch Disc And Hub
    G03276893Courtesy of FORD MOTOR CO.
  8. Install the A/C clutch disc and hub retaining bolt.
    1. Hold the A/C clutch disc and hub with the special tool.
    2. Tighten the bolt.

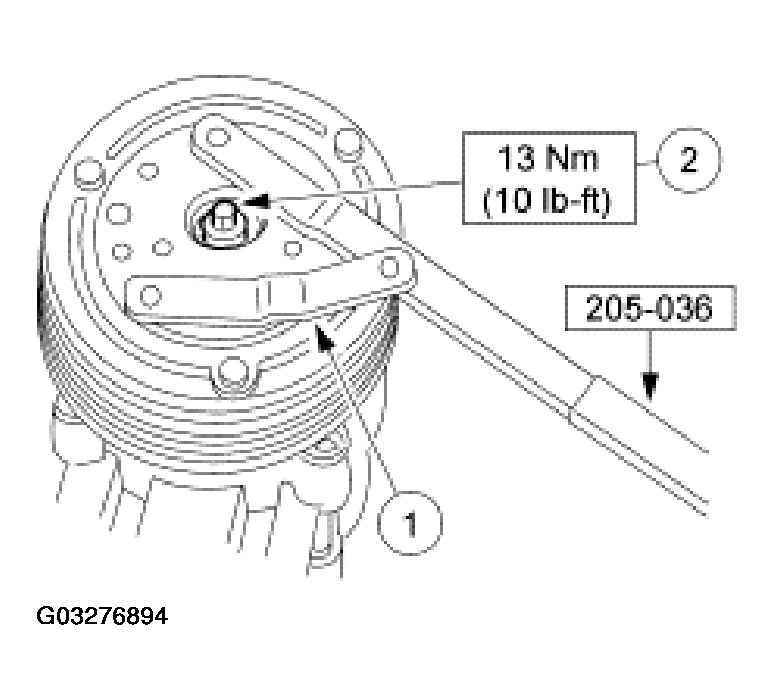

      Fig 6: Installing A/C Clutch Disc And Hub Retaining Bolt
      G03276894Courtesy of FORD MOTOR CO.

    9. VEHICLES WITH 3-EYE A/C CLUTCH

  9. Install the A/C clutch disc and hub.

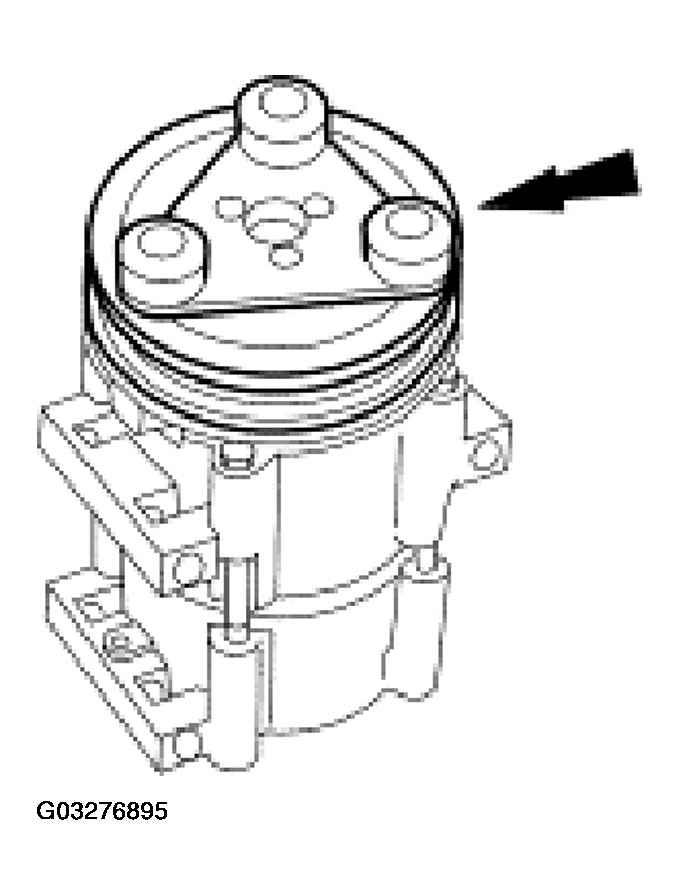

    Fig 7: Installing A/C Clutch Disc And Hub
    G03276895Courtesy of FORD MOTOR CO.
  10. Install the bolt.
    1. Hold the A/C clutch disc and hub with the special tool.
    2. Tighten the bolt.

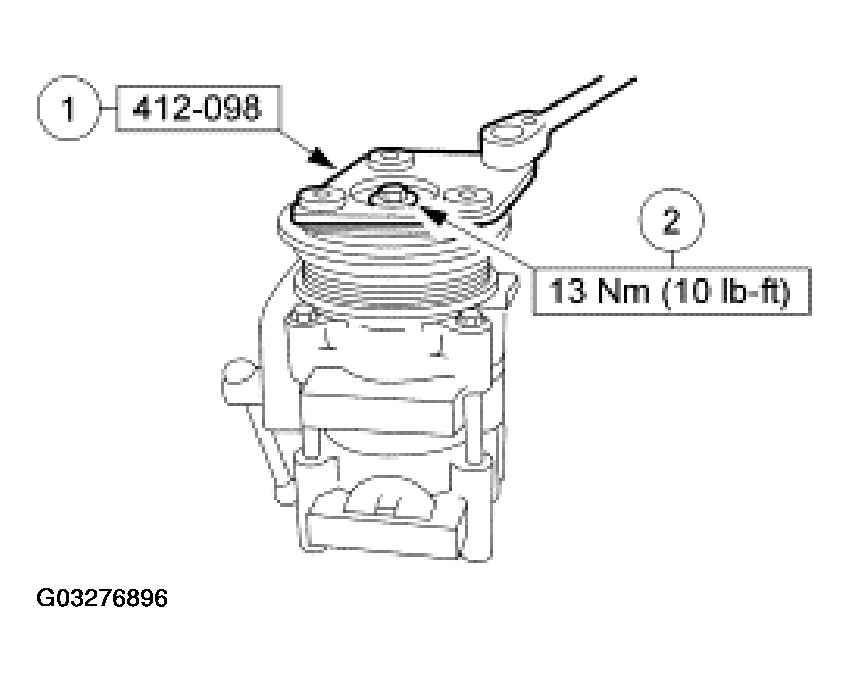

      Fig 8: Installing A/C Clutch Disc And Hub Bolt
      G03276896Courtesy of FORD MOTOR CO.

    11. ALL VEHICLES

  11. Measure and adjust the clutch air gap by removing or adding A/C clutch hub spacers.
    Fig 9: Measuring Clutch Air Gap
    G03276897Courtesy of FORD MOTOR CO.
  12. Install the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR - 2.3L , AIR CONDITIONING (A/C) COMPRESSOR - 3.0L  or AIR CONDITIONING (A/C) COMPRESSOR - 4.0L .
