Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1 and Fig 2 .

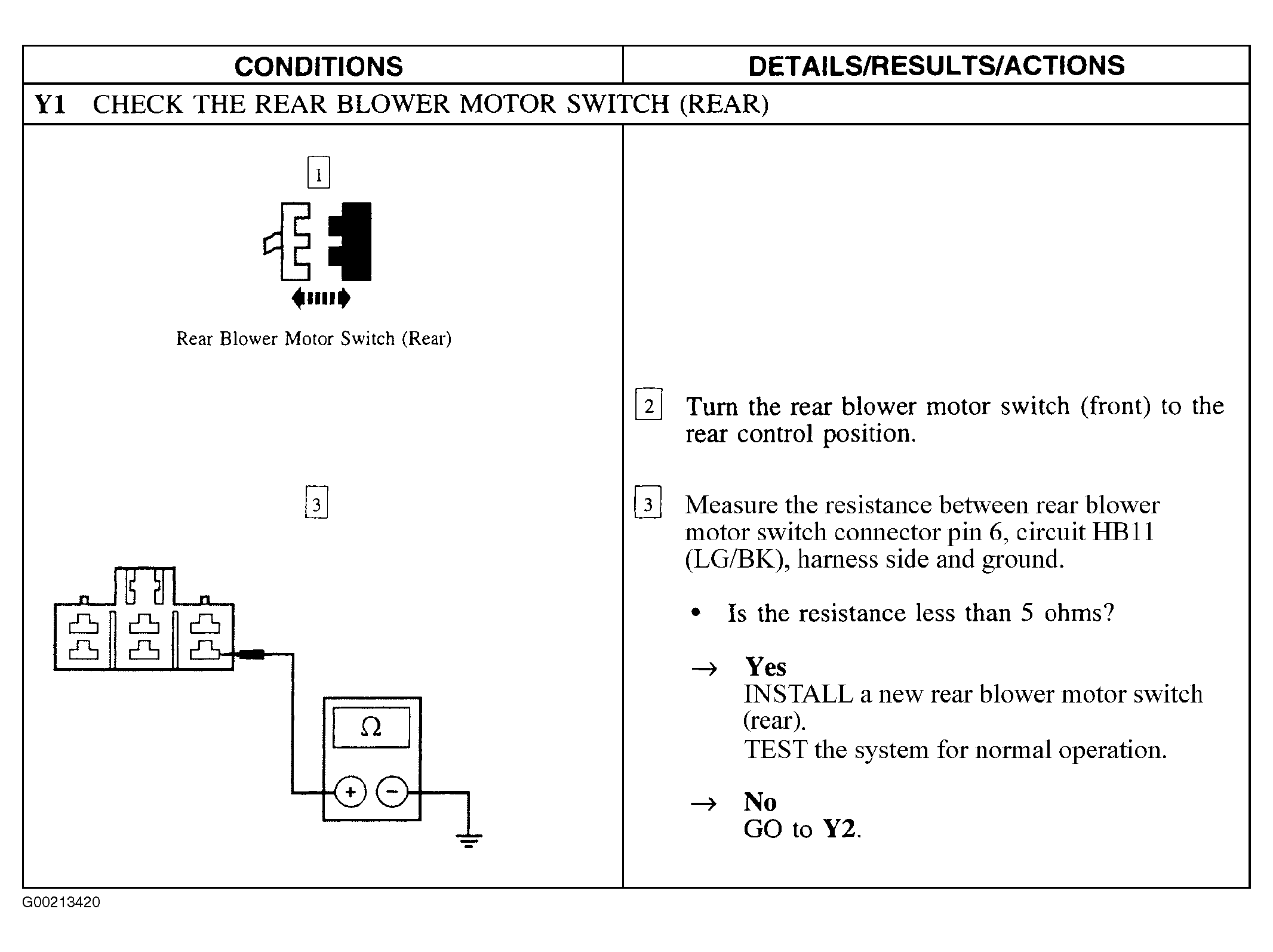

Fig 1: Test Y (1 Of 2 - Step Y1)
G00213420Courtesy of FORD MOTOR CO.

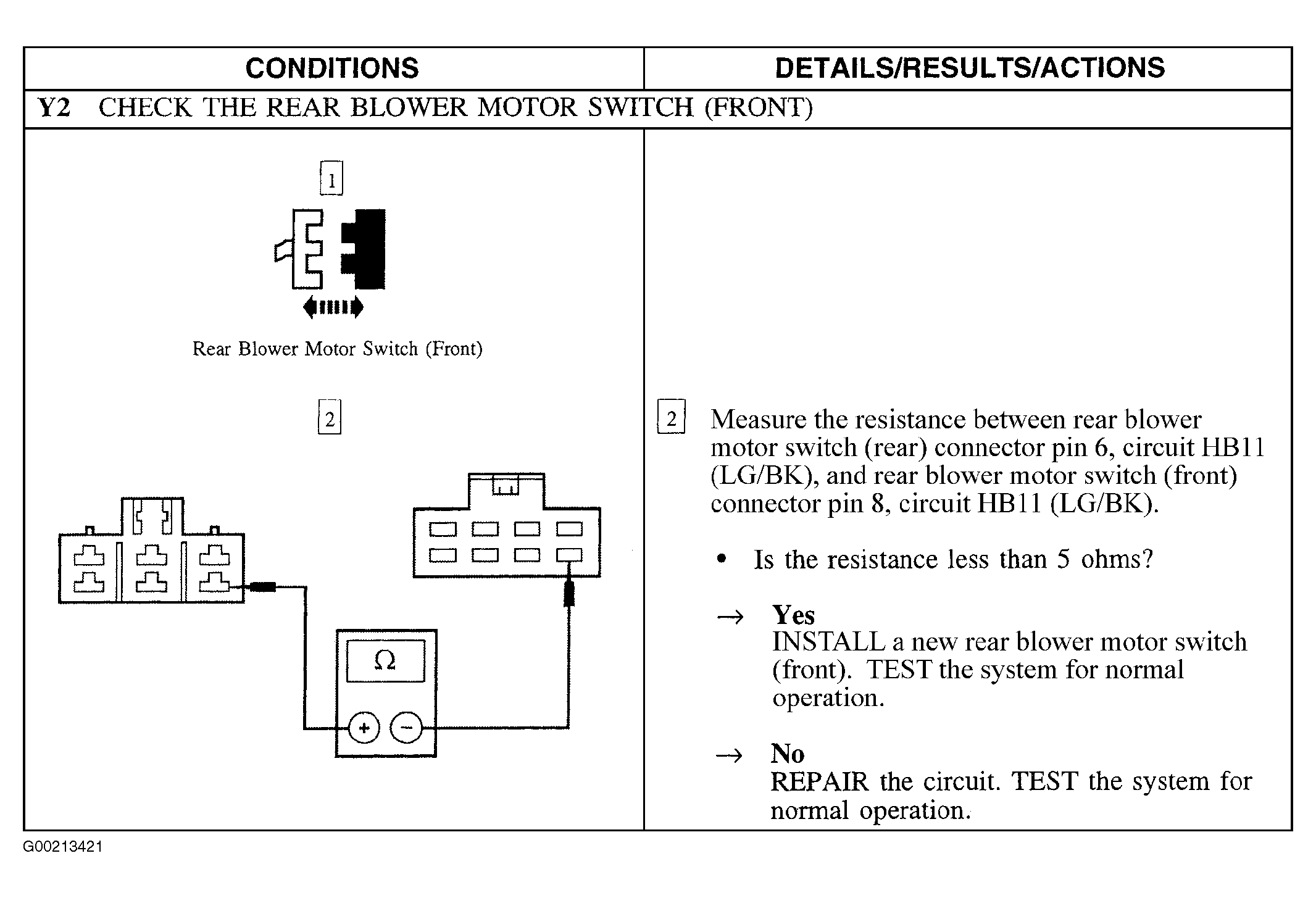

Fig 2: Test Y (2 Of 2 - Step Y2)
G00213421Courtesy of FORD MOTOR CO.
