Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 4 .

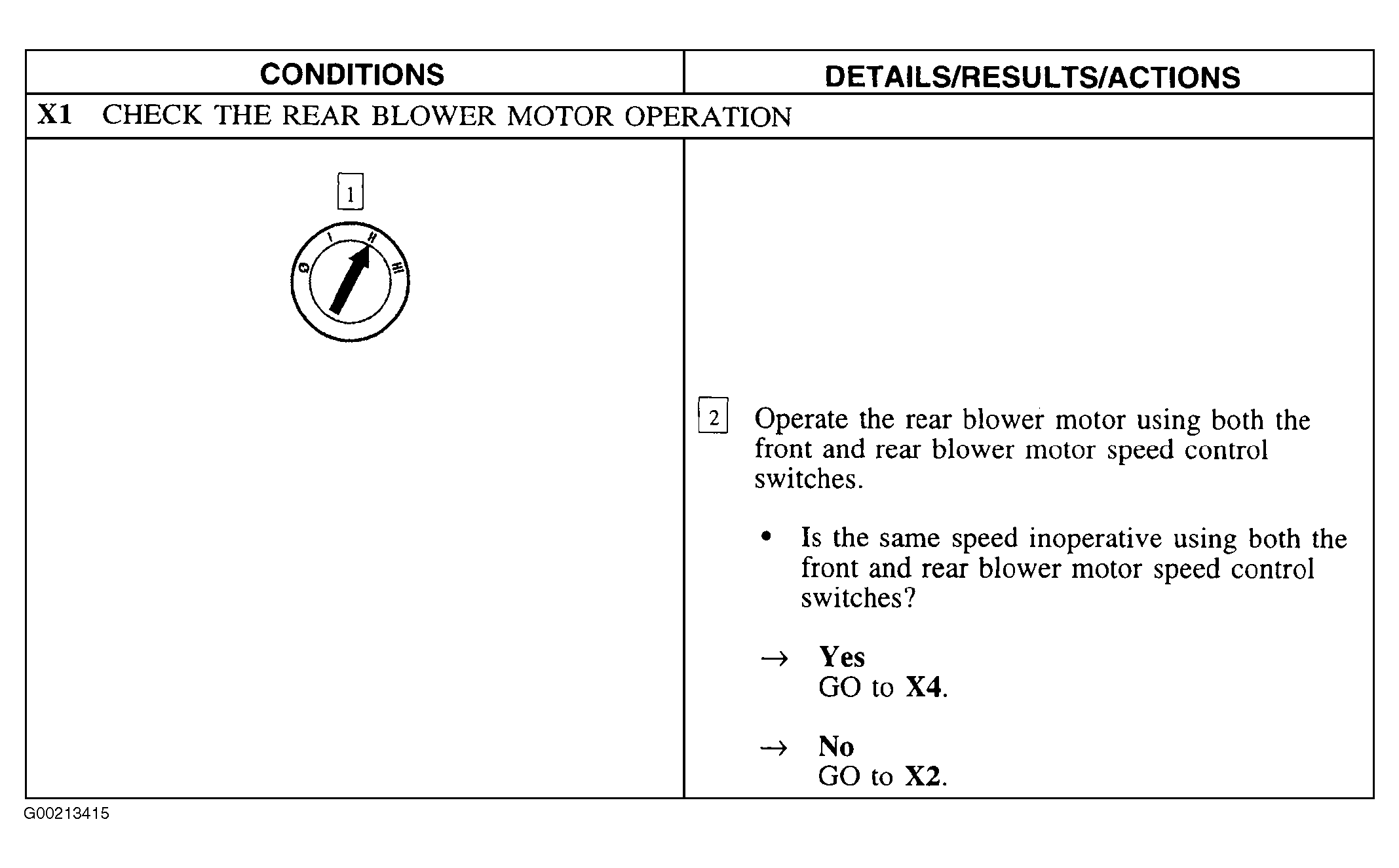

Fig 1: Test X (1 Of 4 - Step X1)

Courtesy of FORD MOTOR CO.

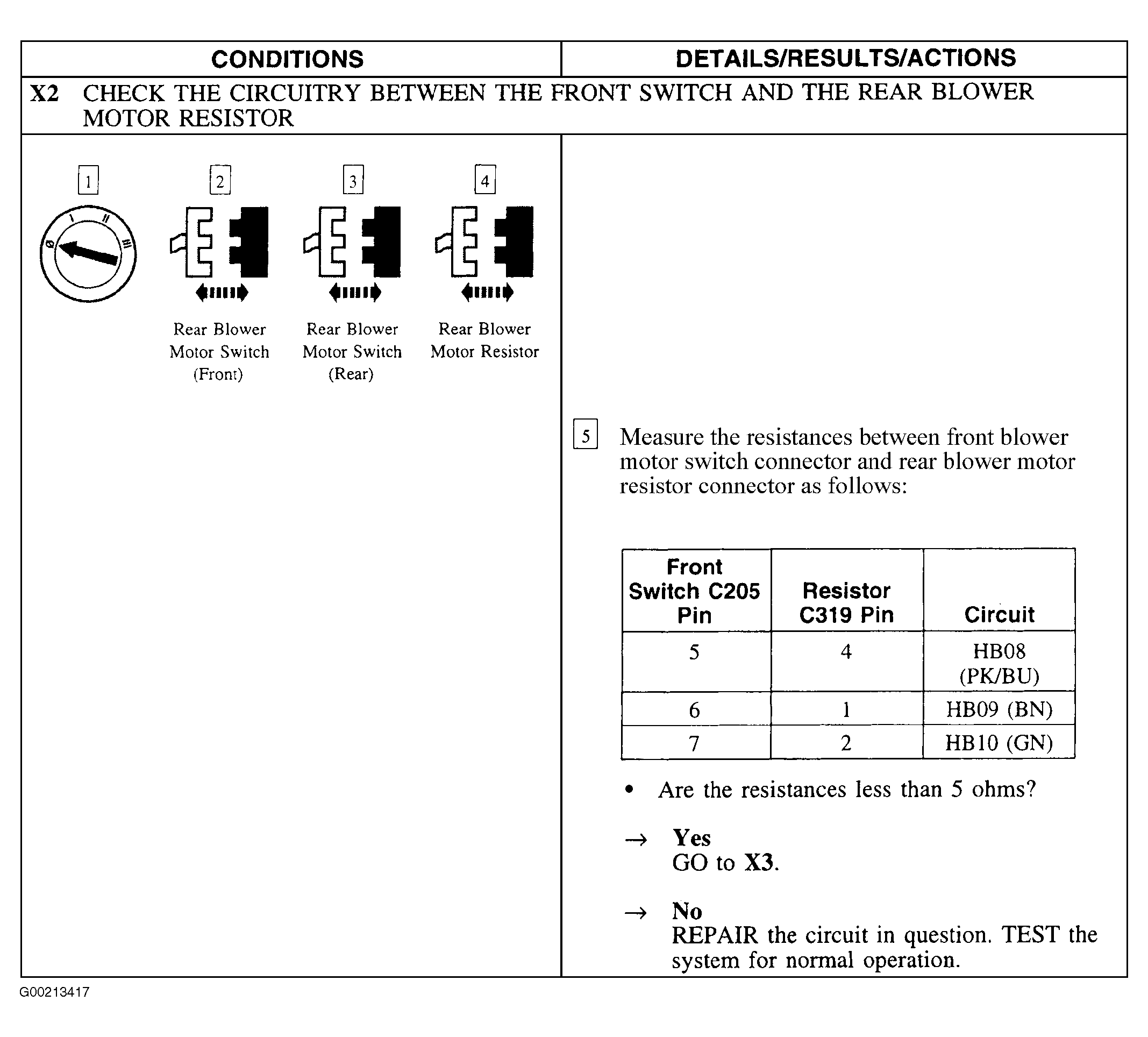

Fig 2: Test X (2 Of 4 - Step X2)

Courtesy of FORD MOTOR CO.

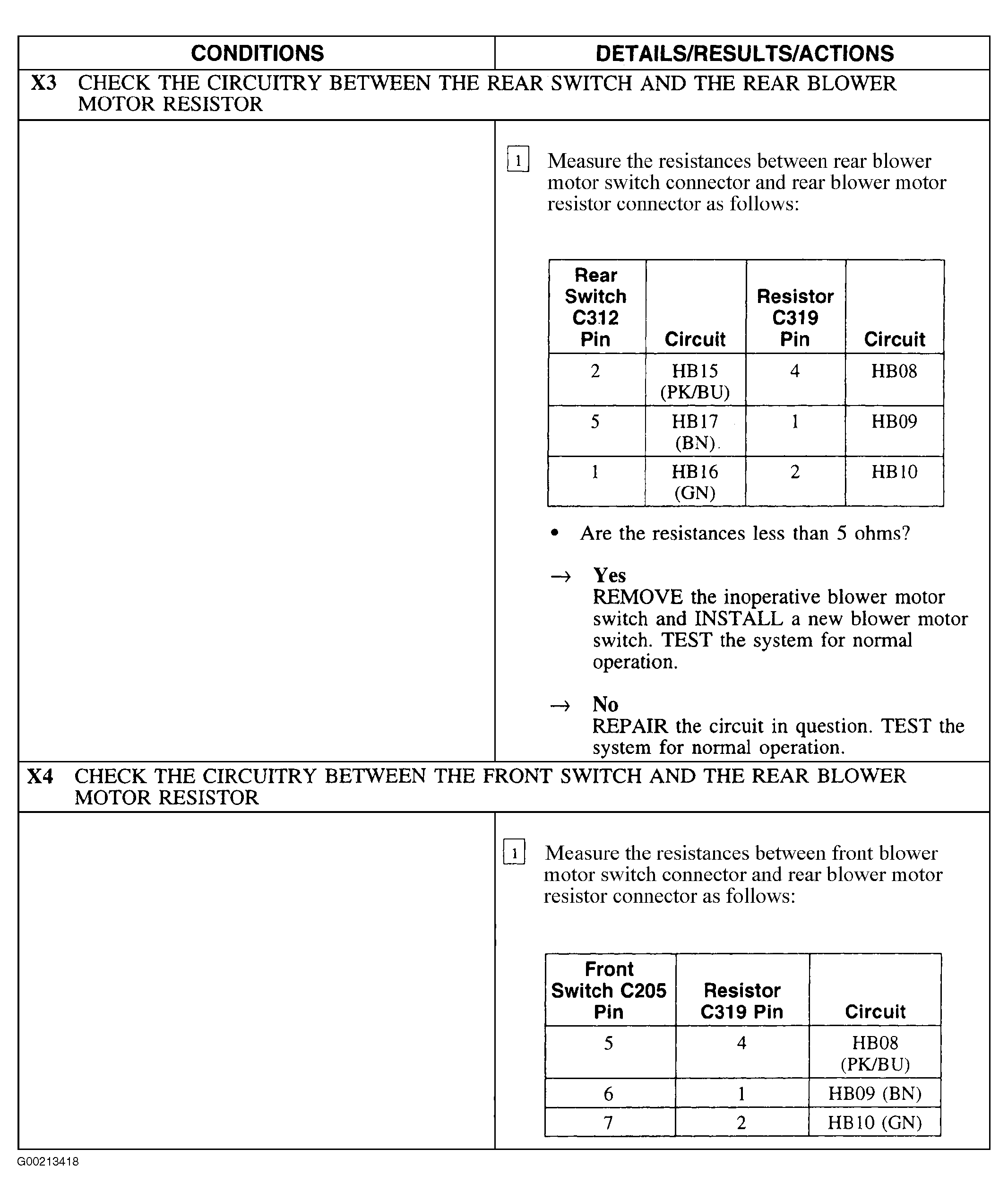

Fig 3: Test X (3 Of 4 - Steps X3-X4)

Courtesy of FORD MOTOR CO.

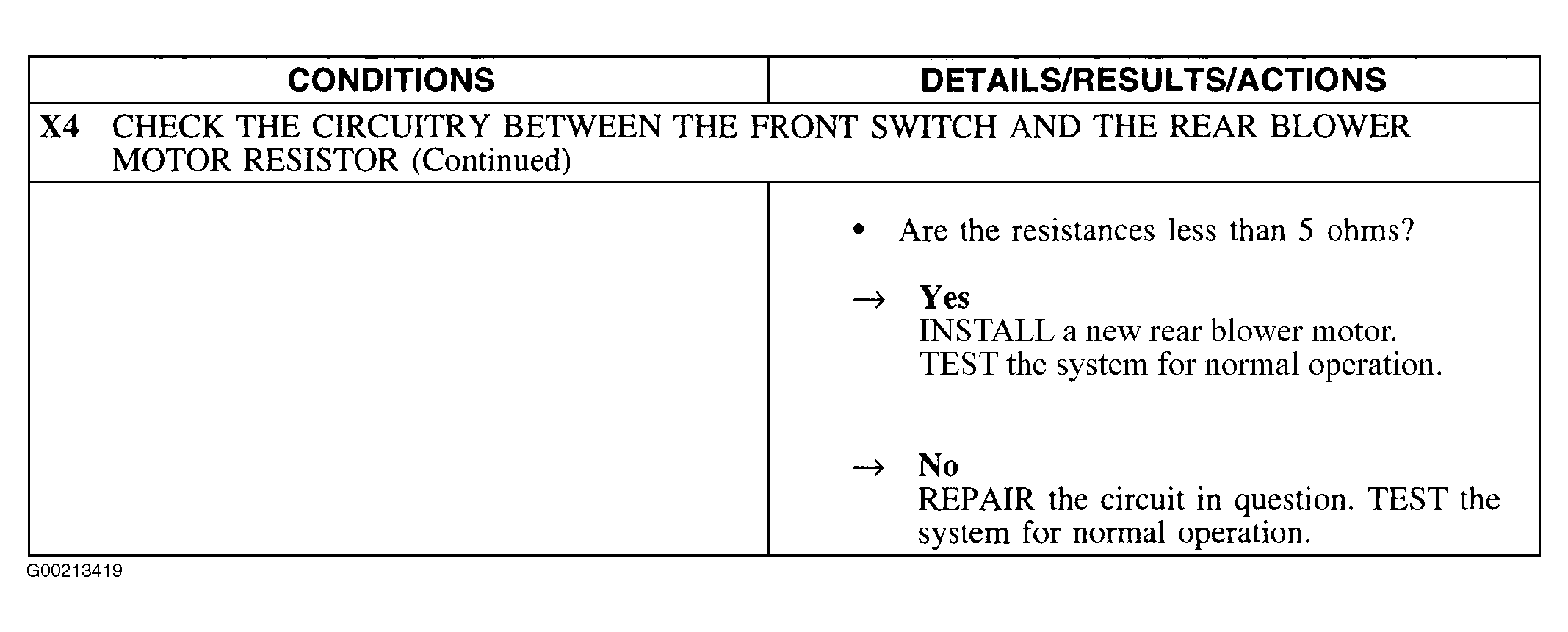

Fig 4: Test X (4 Of 4 - Step X4)

Courtesy of FORD MOTOR CO.
