Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 5 .

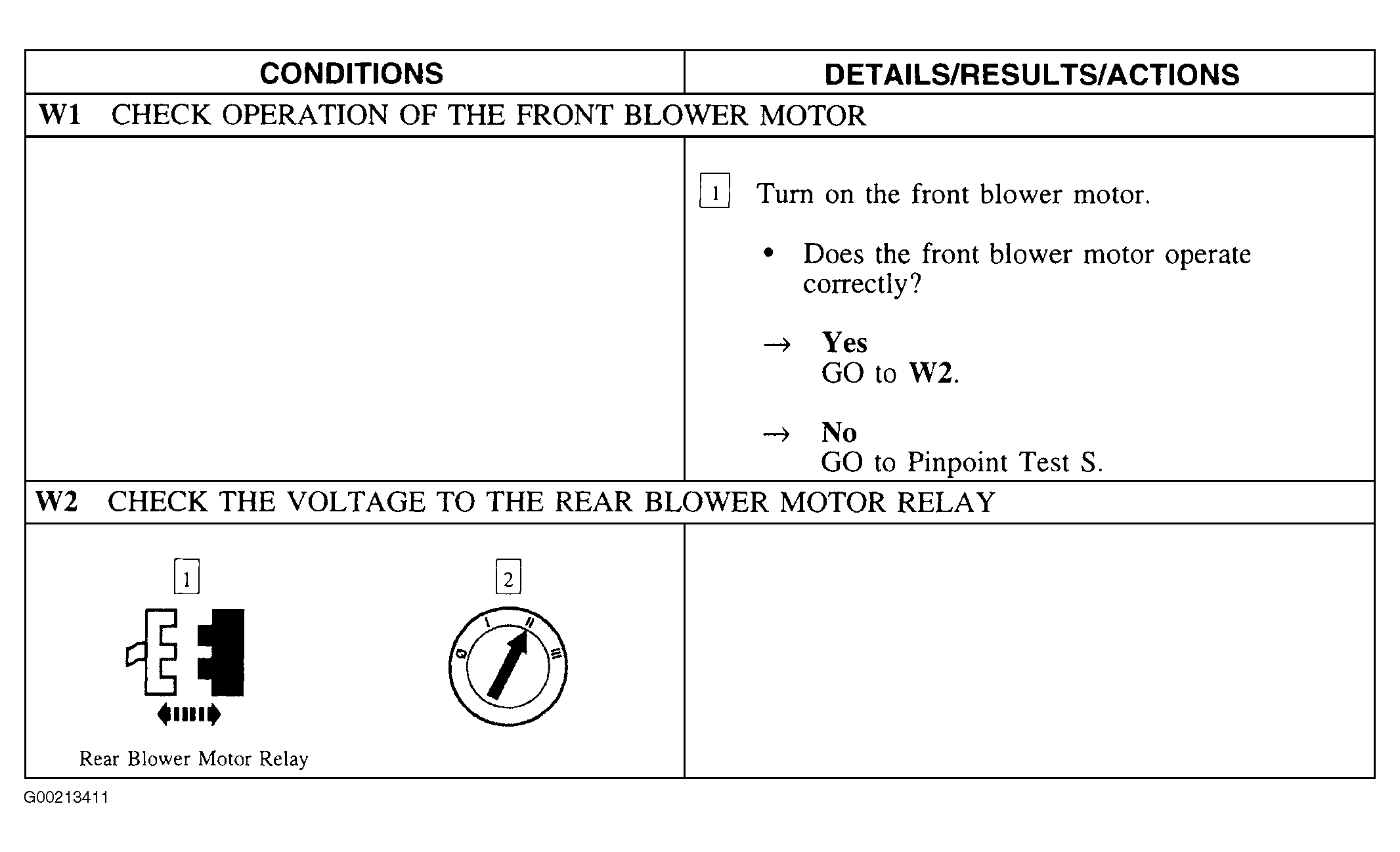

Fig 1: Test W (1 Of 5 - Steps W1-W2)

Courtesy of FORD MOTOR CO.

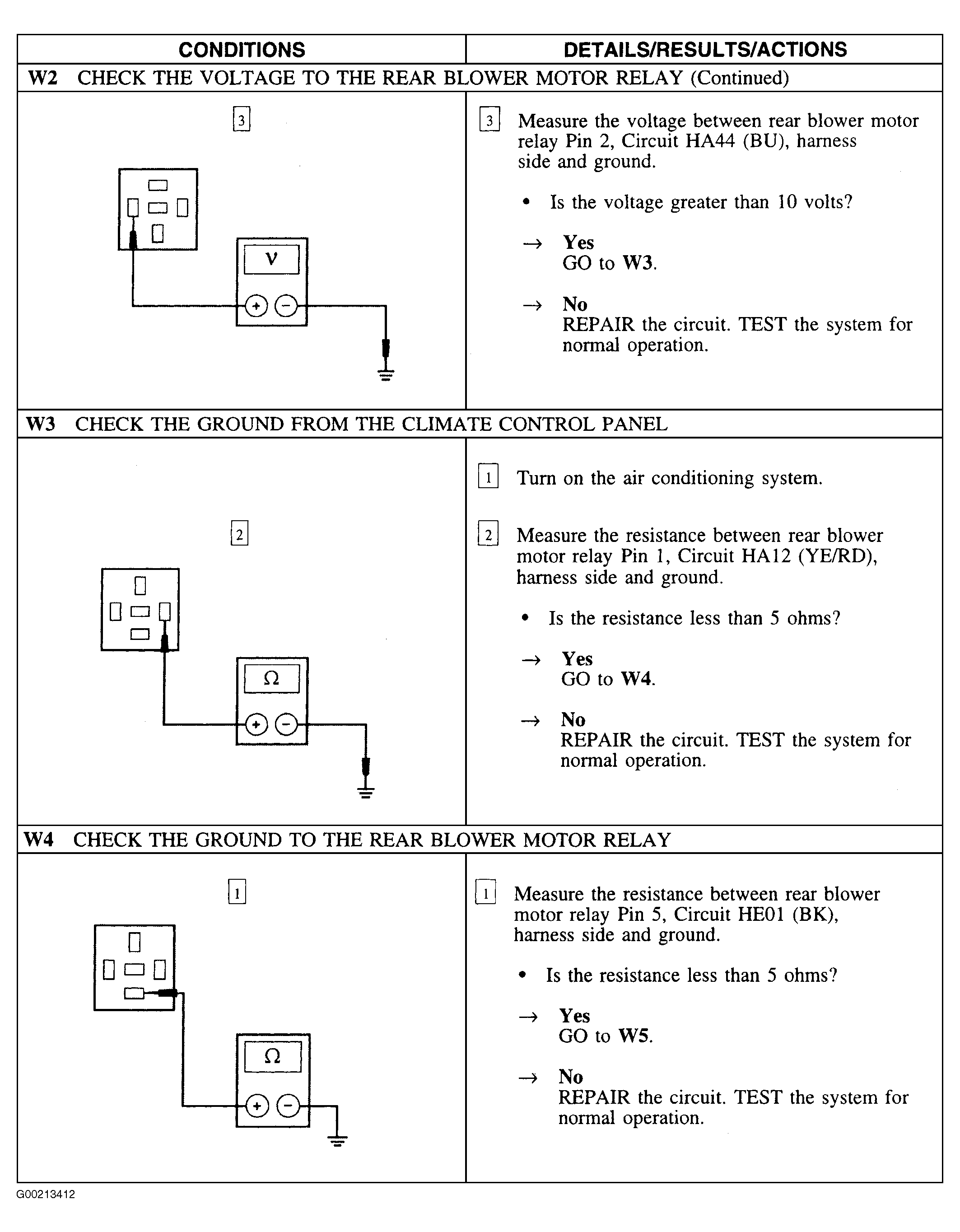

Fig 2: Test W (2 Of 5 - Steps W2 Cont.-W4)

Courtesy of FORD MOTOR CO.

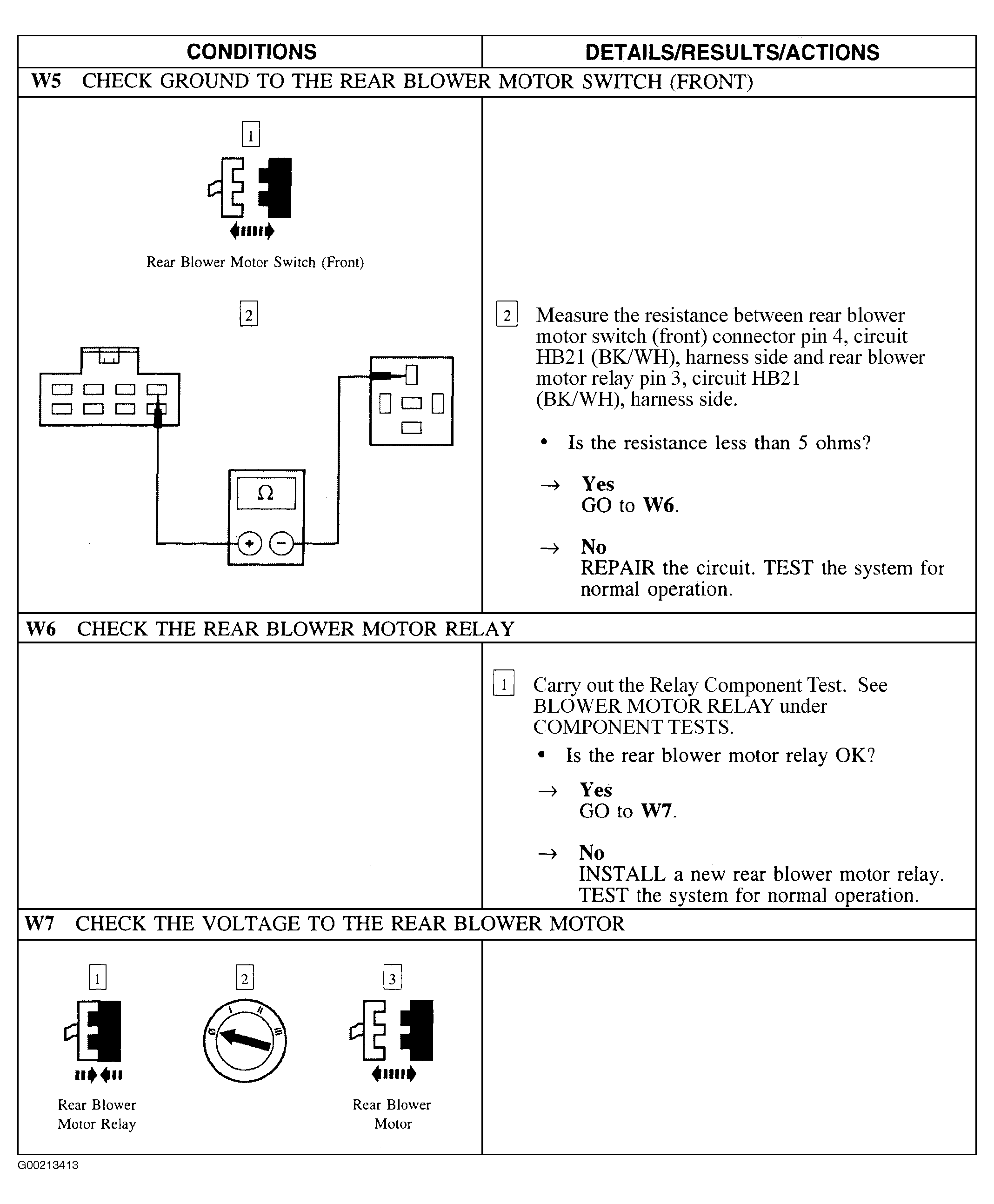

Fig 3: Test W (3 Of 5 - Steps W5-W7)

Courtesy of FORD MOTOR CO.

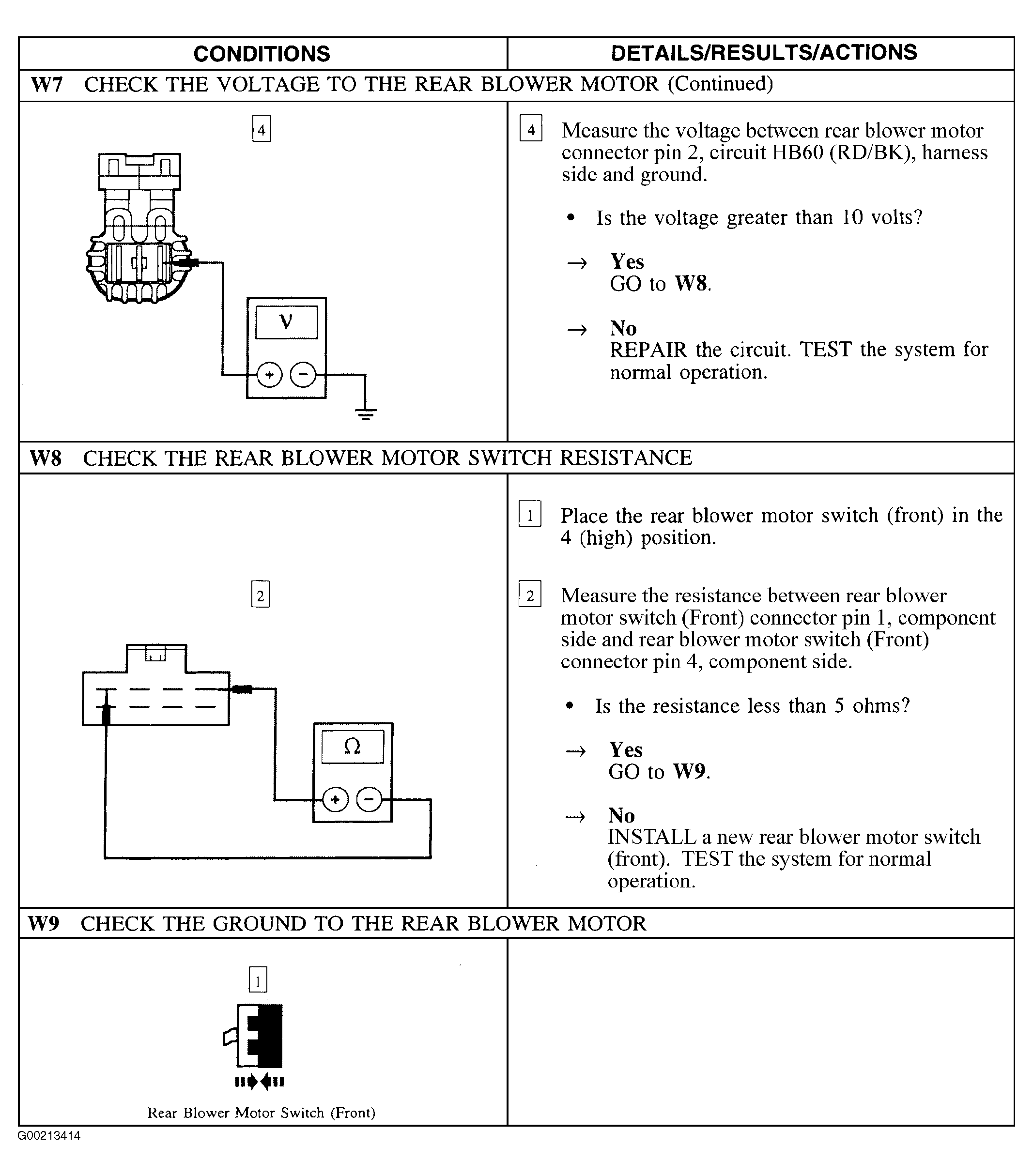

Fig 4: Test W (4 Of 5 - Steps W7 Cont.-W9)

Courtesy of FORD MOTOR CO.

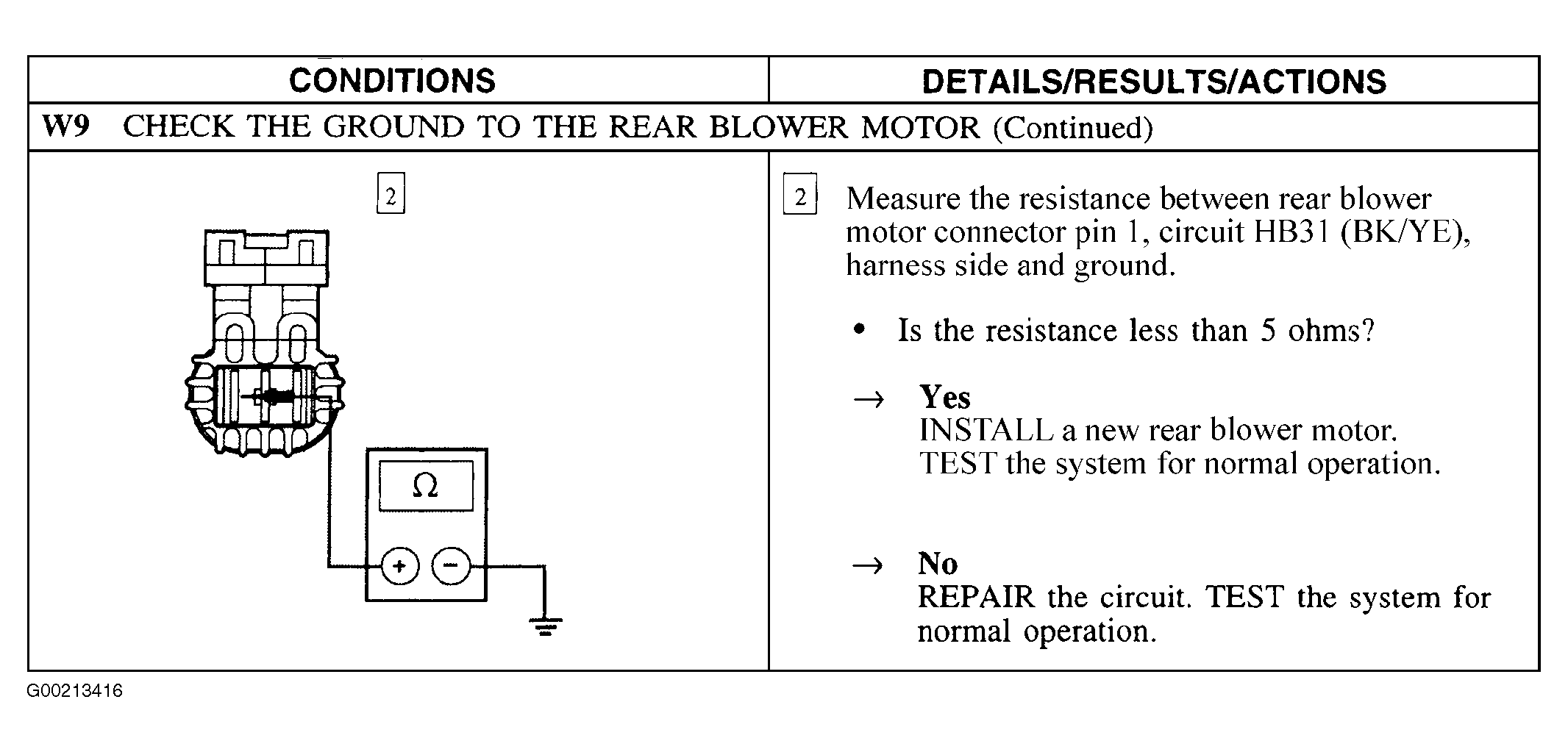

Fig 5: Test W (5 Of 5 - Step W9 Cont.)

Courtesy of FORD MOTOR CO.
