Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 4 .

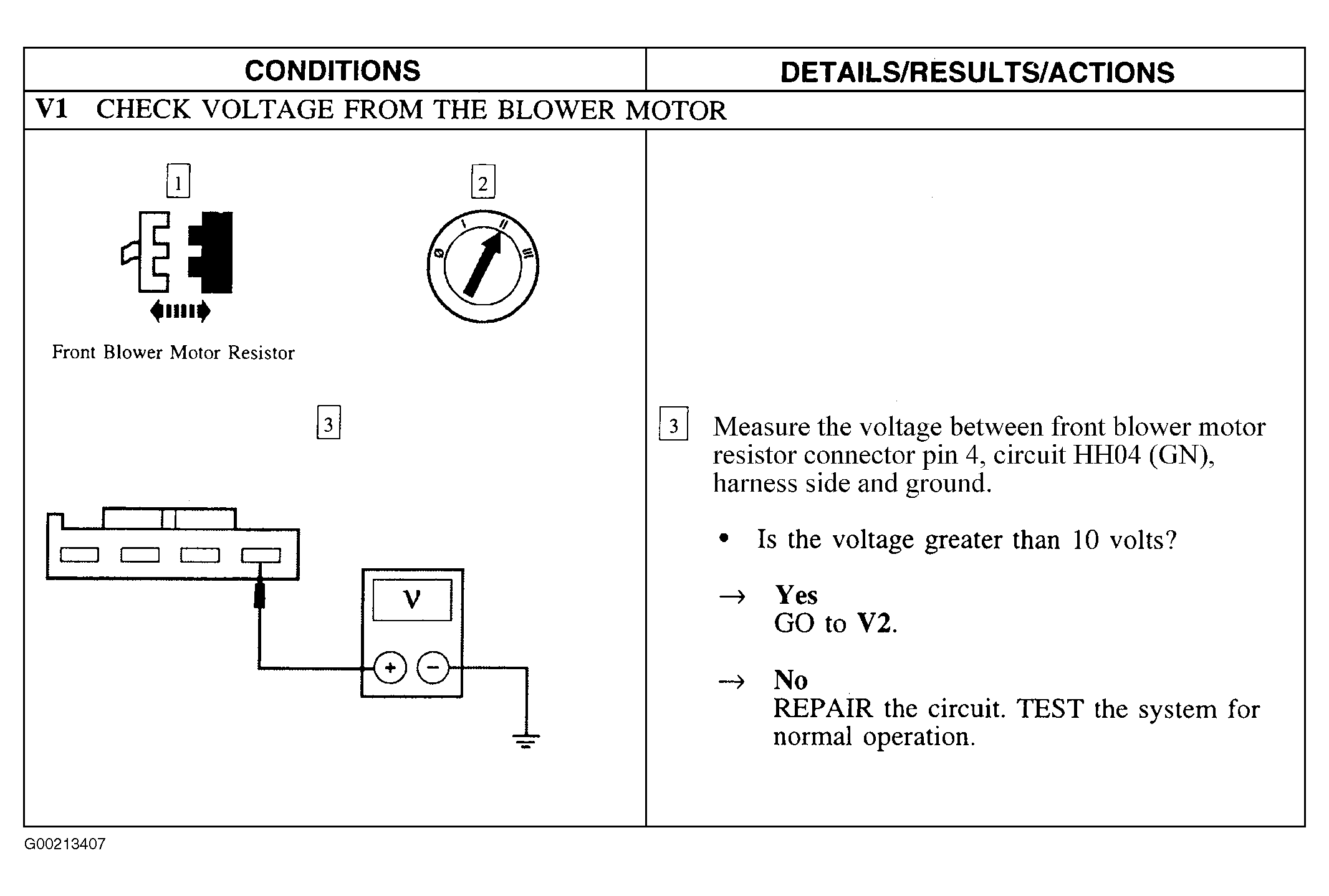

Fig 1: Test V (1 Of 4 - Step V1)

Courtesy of FORD MOTOR CO.

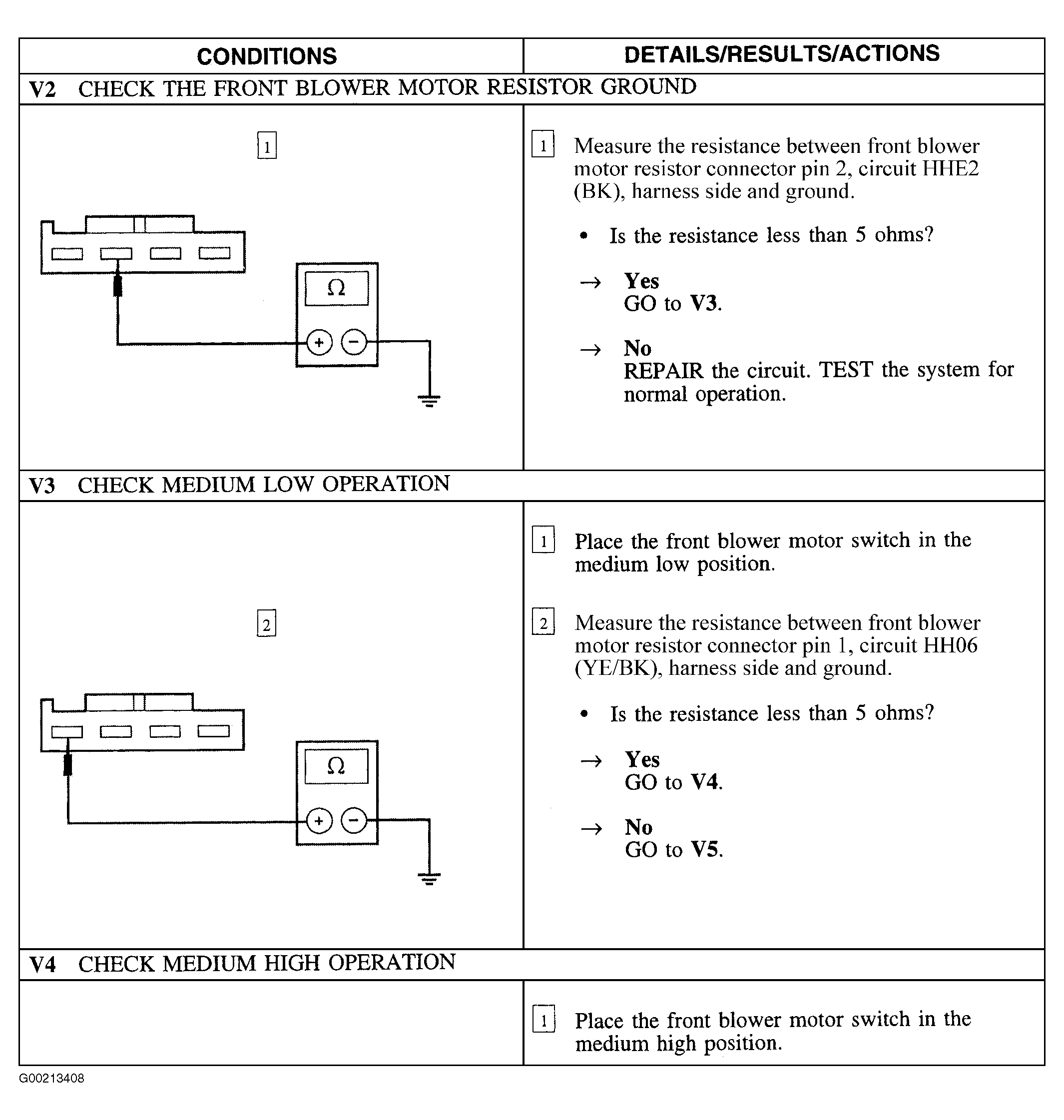

Fig 2: Test V (2 Of 4 - Steps V2-V4)

Courtesy of FORD MOTOR CO.

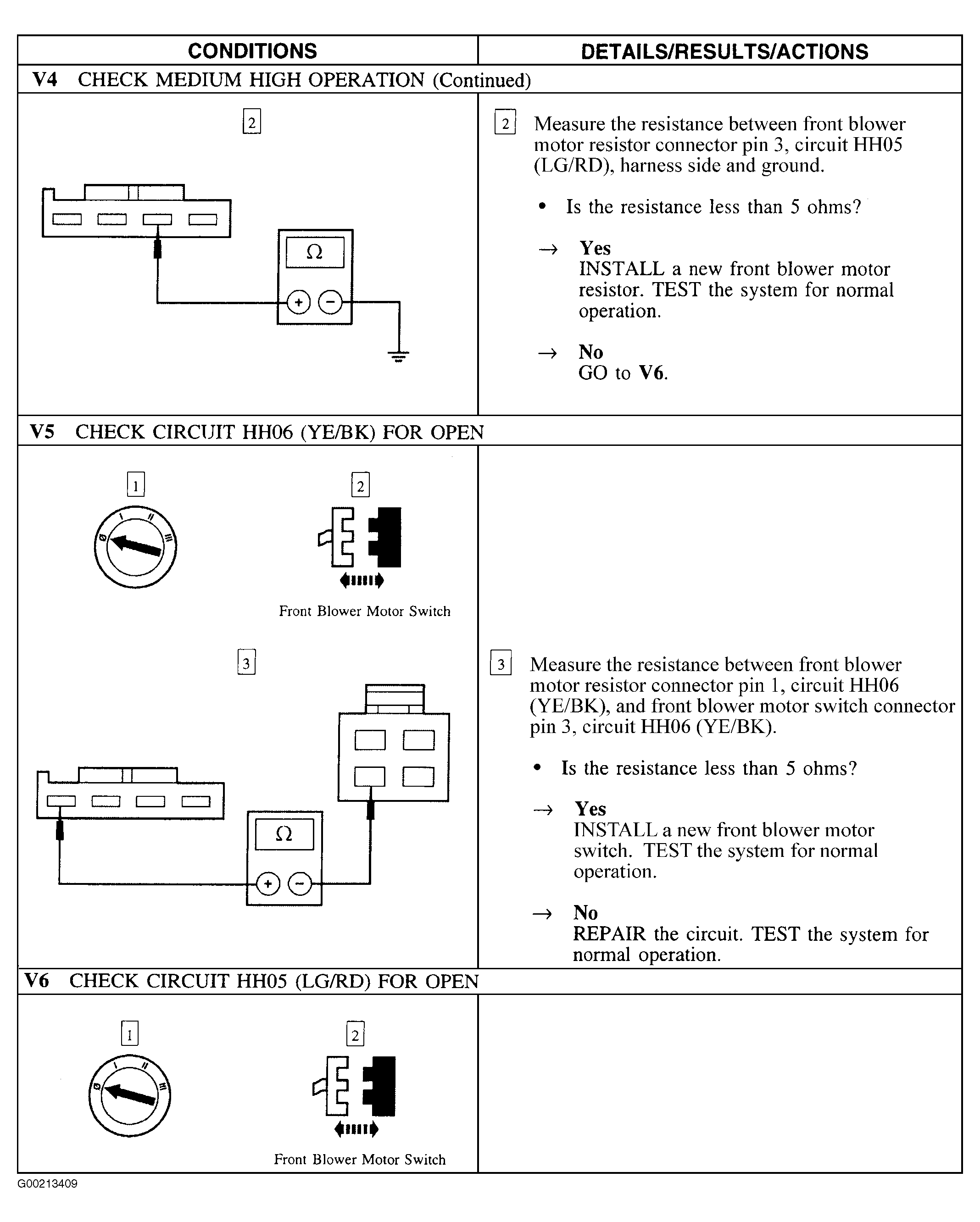

Fig 3: Test V (3 Of 4 - Steps V4 Cont.-V6)

Courtesy of FORD MOTOR CO.

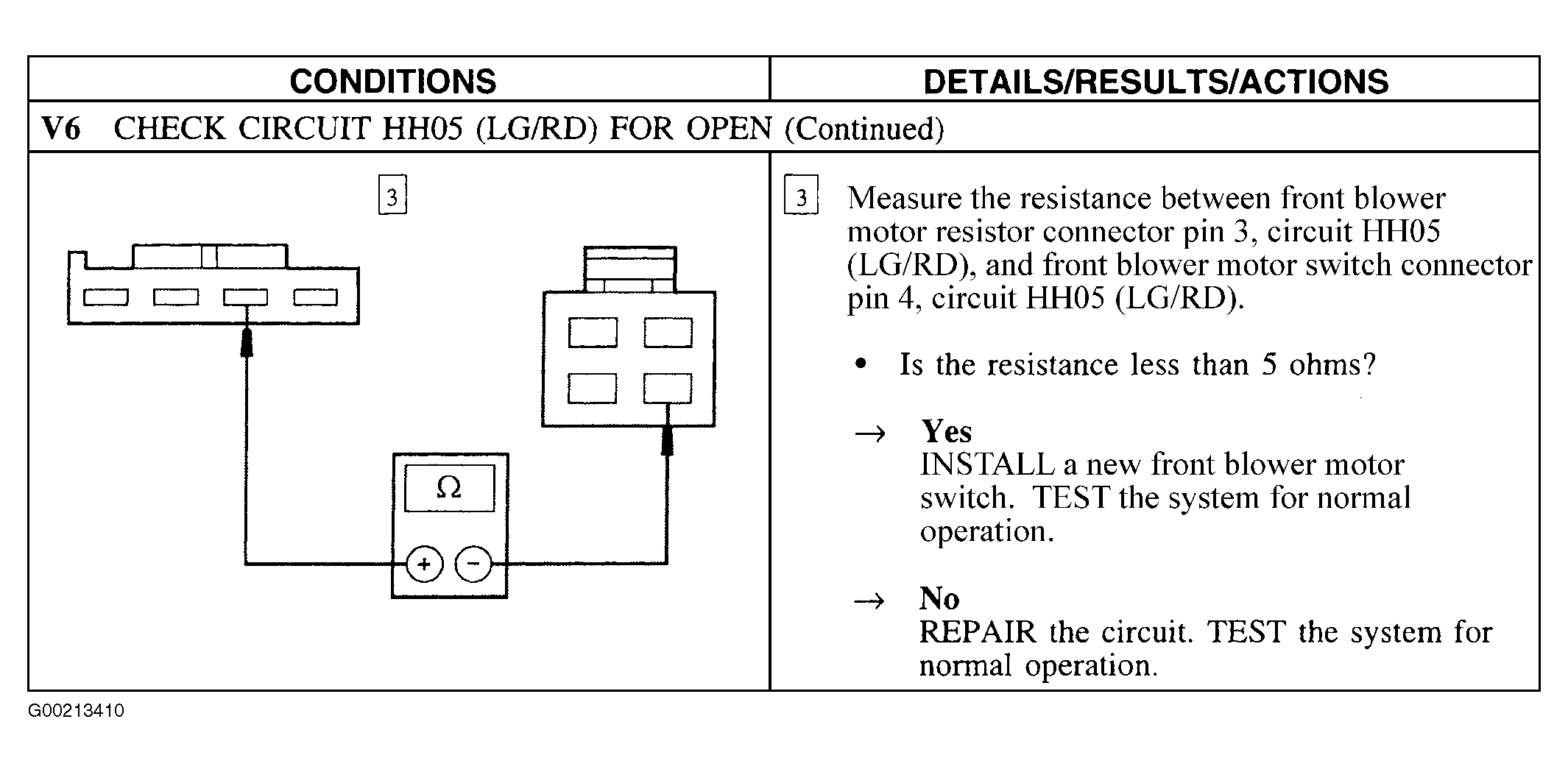

Fig 4: Test V (4 Of 4 - Step V6 Cont.)

Courtesy of FORD MOTOR CO.
