Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 6 .

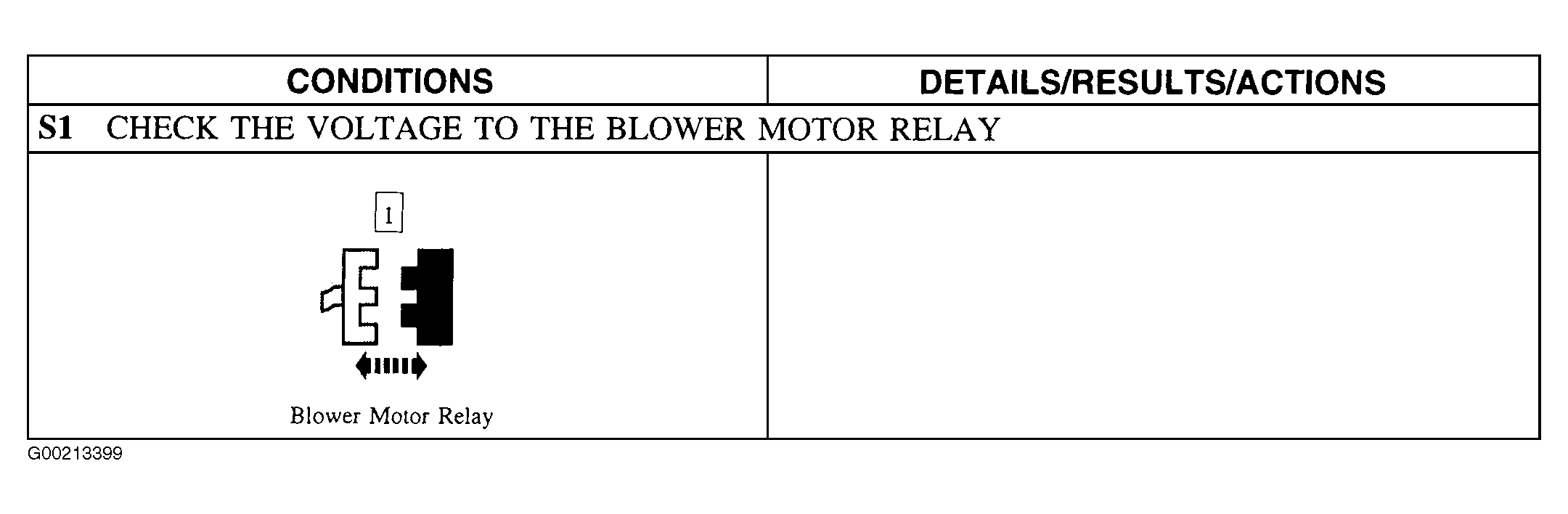

Fig 1: Test S (1 Of 6 - Step S1)

Courtesy of FORD MOTOR CO.

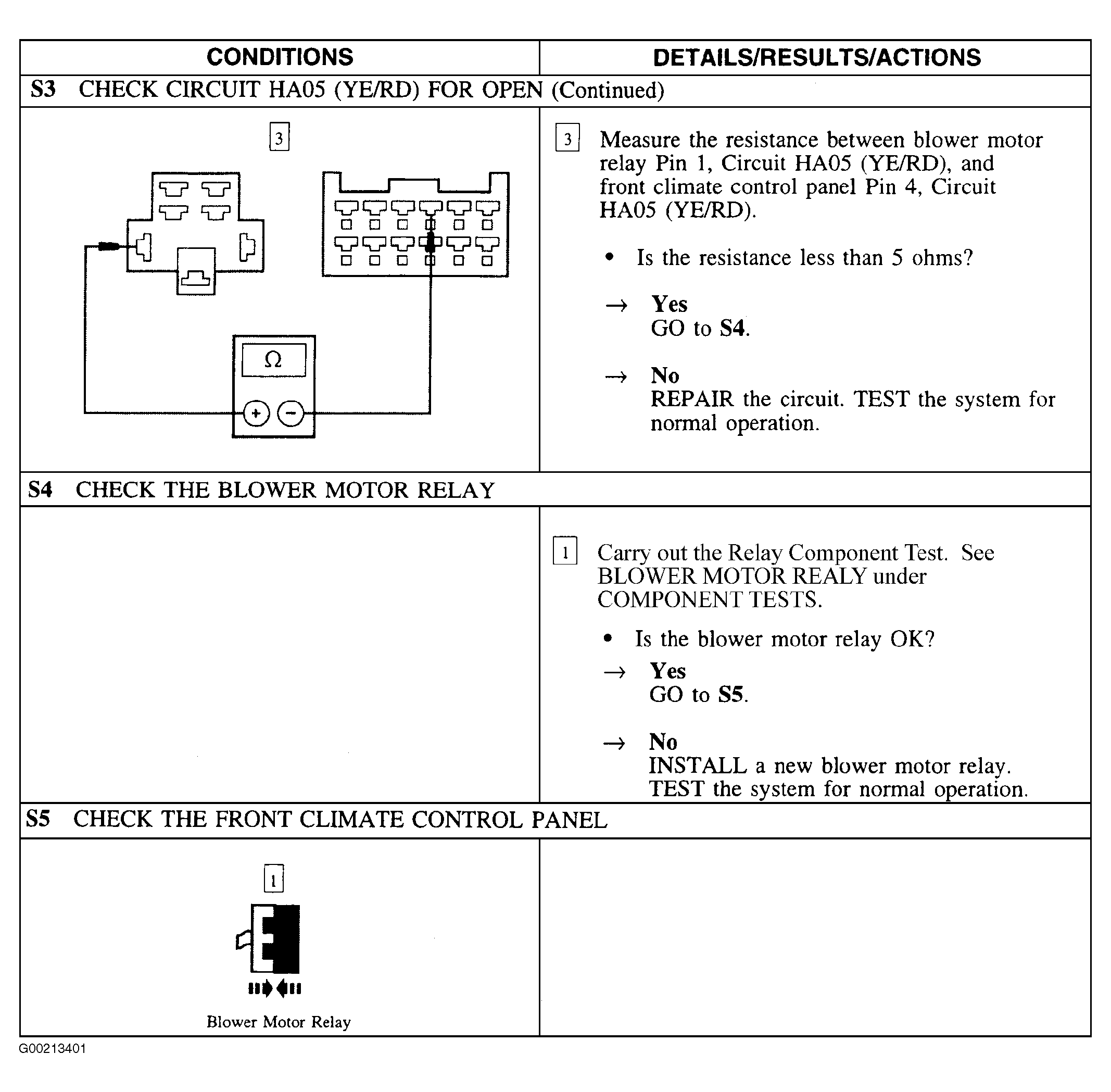

Fig 2: Test S (2 Of 6 - Steps S1 Cont.-S3)

Courtesy of FORD MOTOR CO.

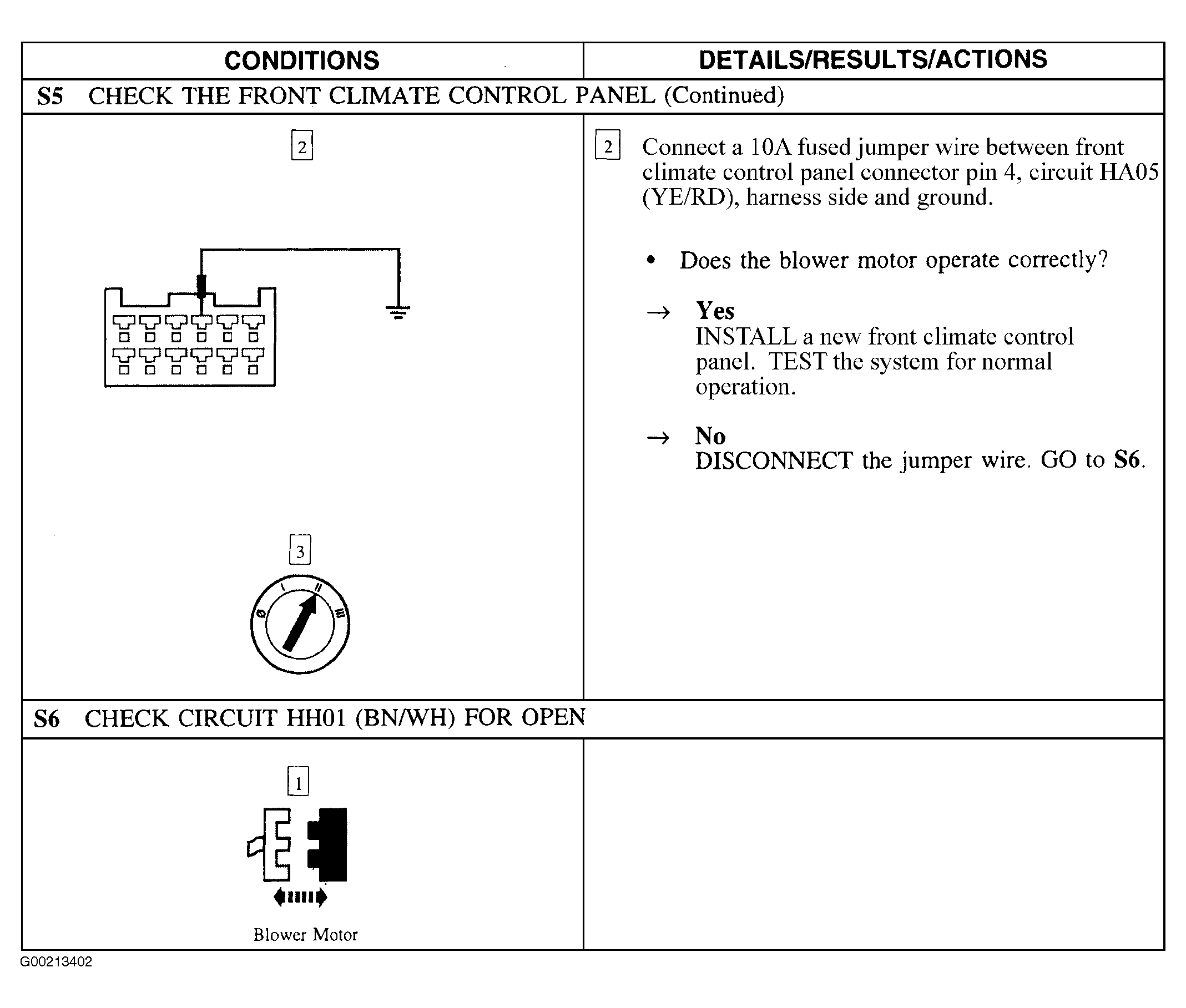

Fig 3: Test S (3 Of 6 - Steps S3 Cont.-S5)

Courtesy of FORD MOTOR CO.

Fig 4: Test S (4 Of 6 - Steps S5 Cont.-S6)

Courtesy of FORD MOTOR CO.

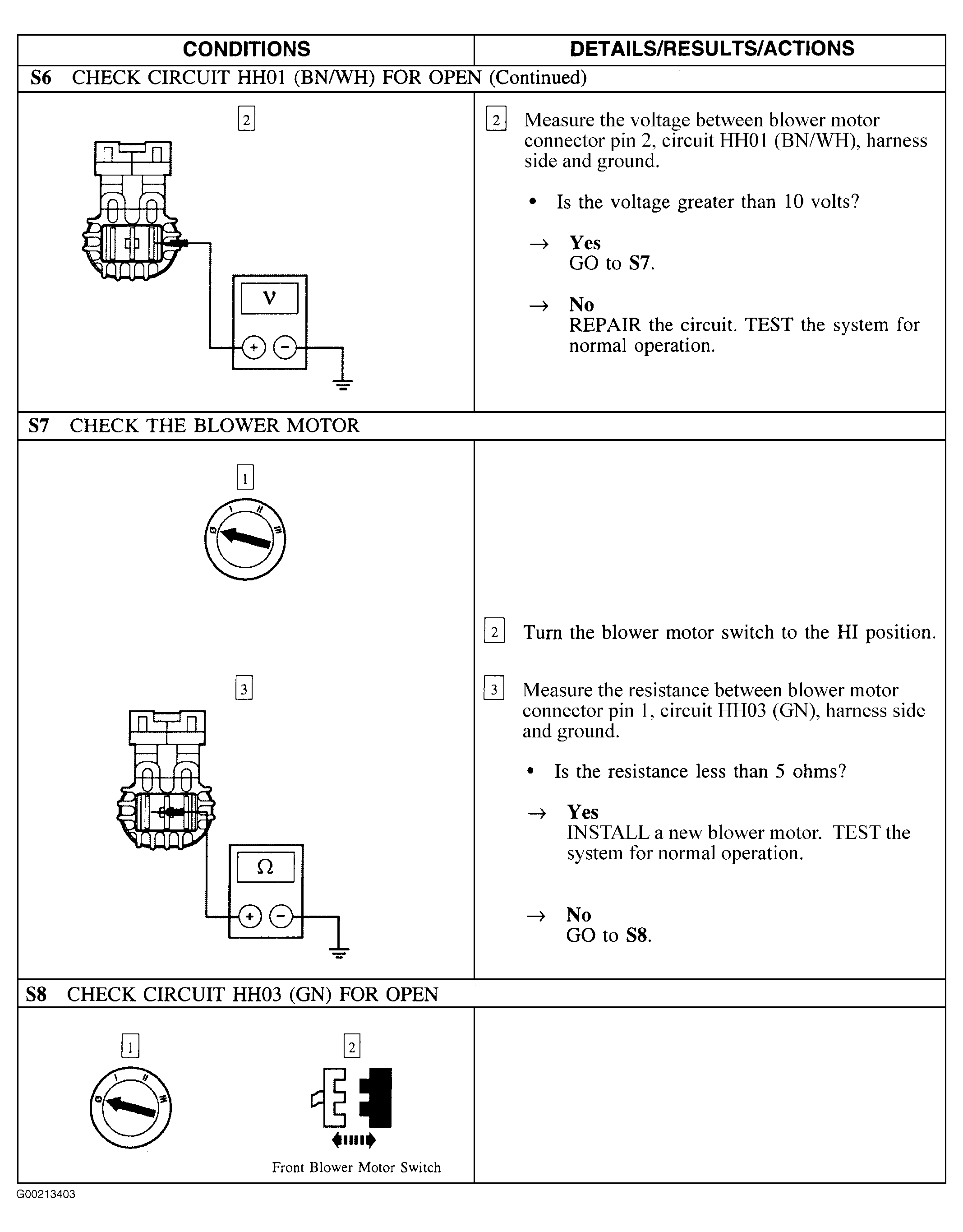

Fig 5: Test S (5 Of 6 - Steps S6 Cont.-S8)

Courtesy of FORD MOTOR CO.

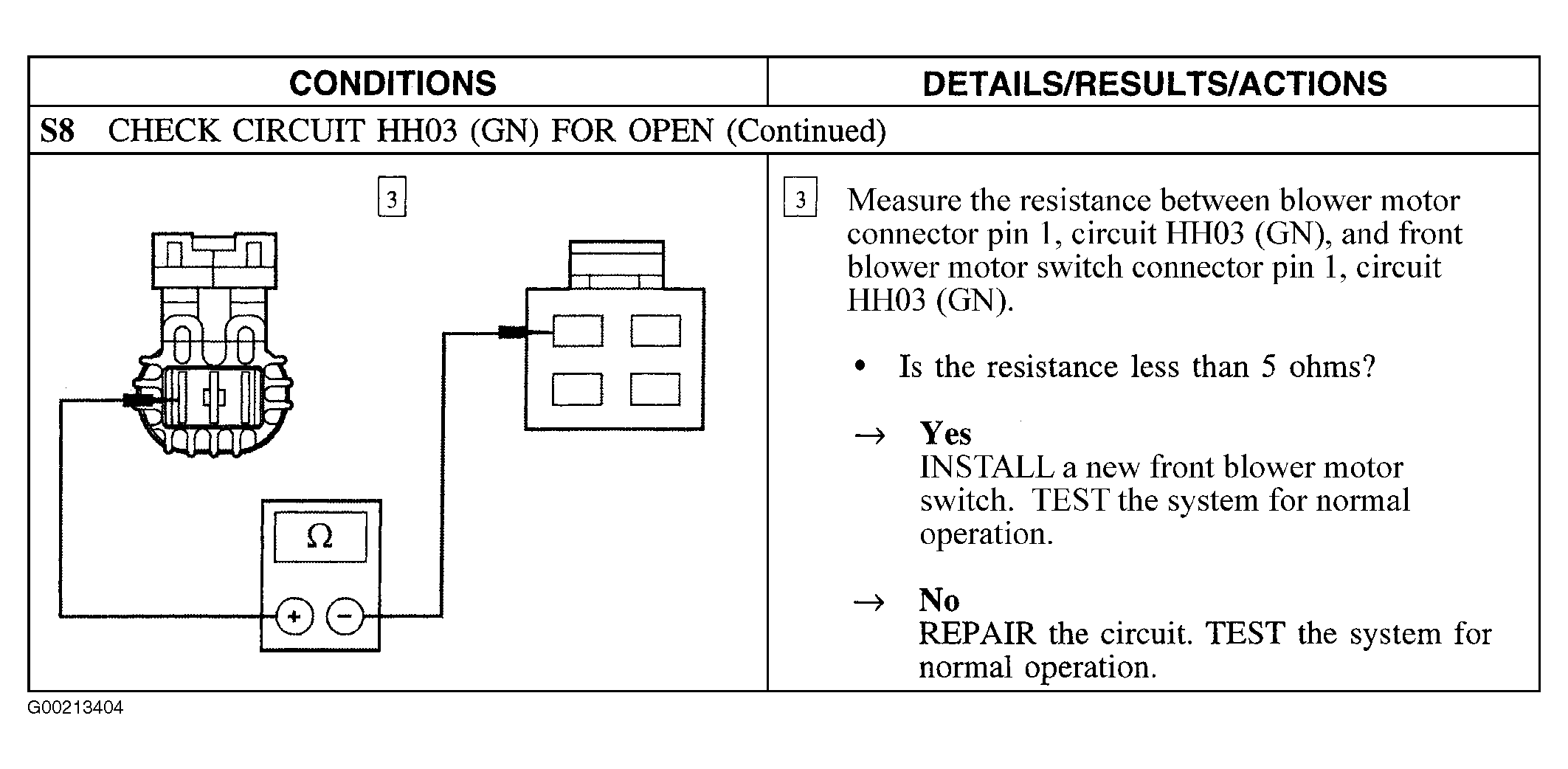

Fig 6: Test S (6 Of 6 - Step S8 Cont.)

Courtesy of FORD MOTOR CO.
