Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 10 .

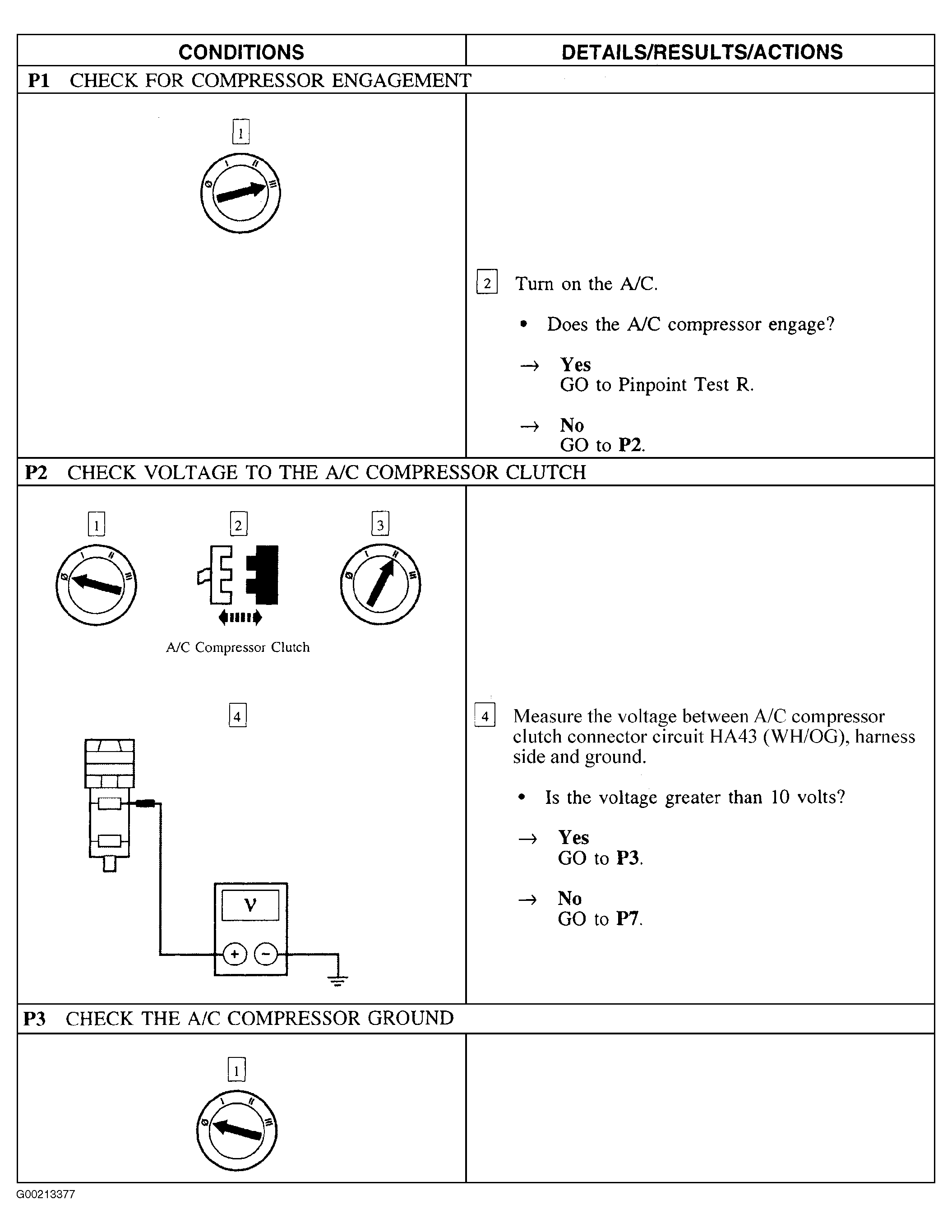

Fig 1: Test P (1 Of 10 - Steps P1-P3)

Courtesy of FORD MOTOR CO.

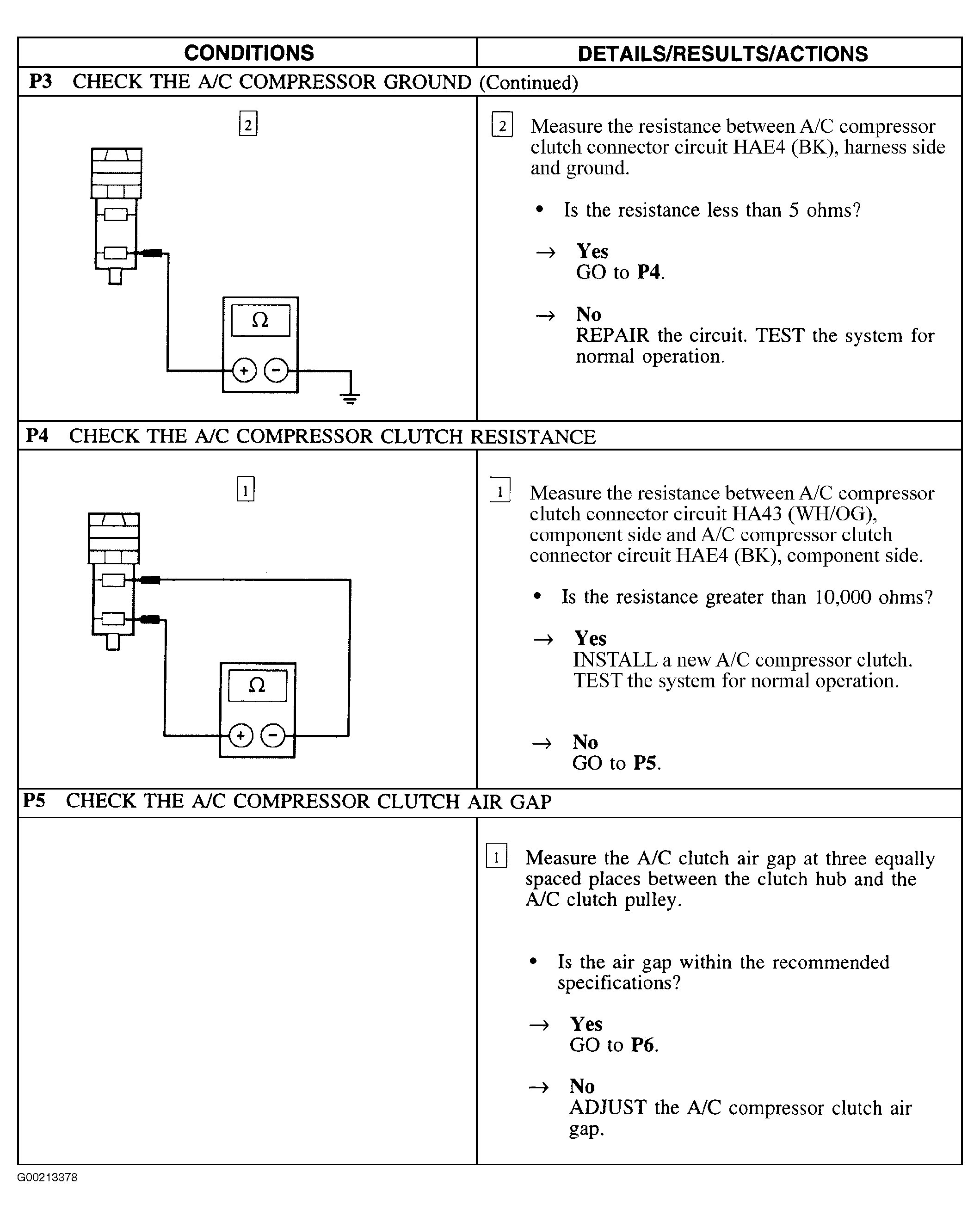

Fig 2: Test P (2 Of 10 - Steps P3 Cont.-P5)

Courtesy of FORD MOTOR CO.

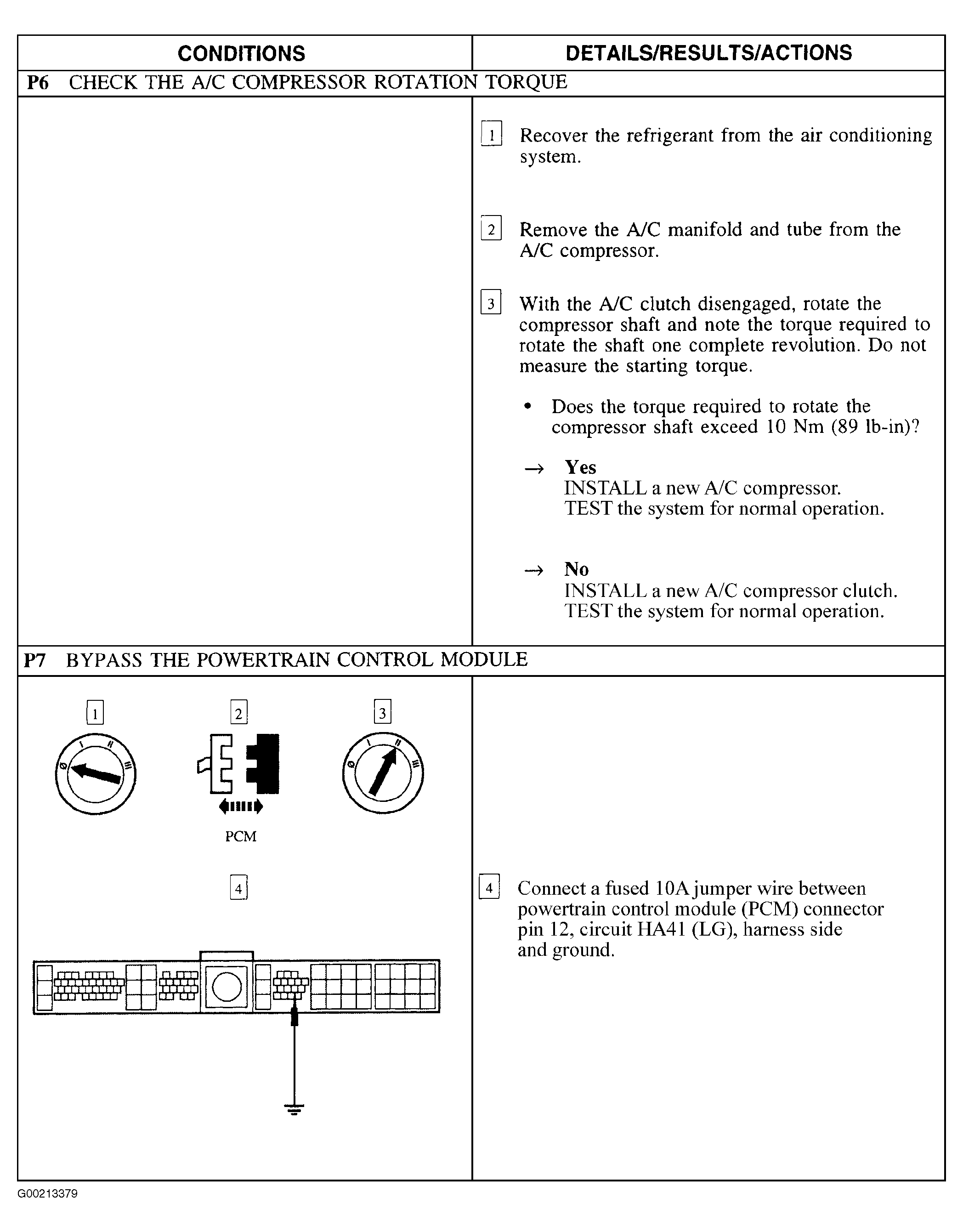

Fig 3: Test P (3 Of 10 - Steps P6-P7)

Courtesy of FORD MOTOR CO.

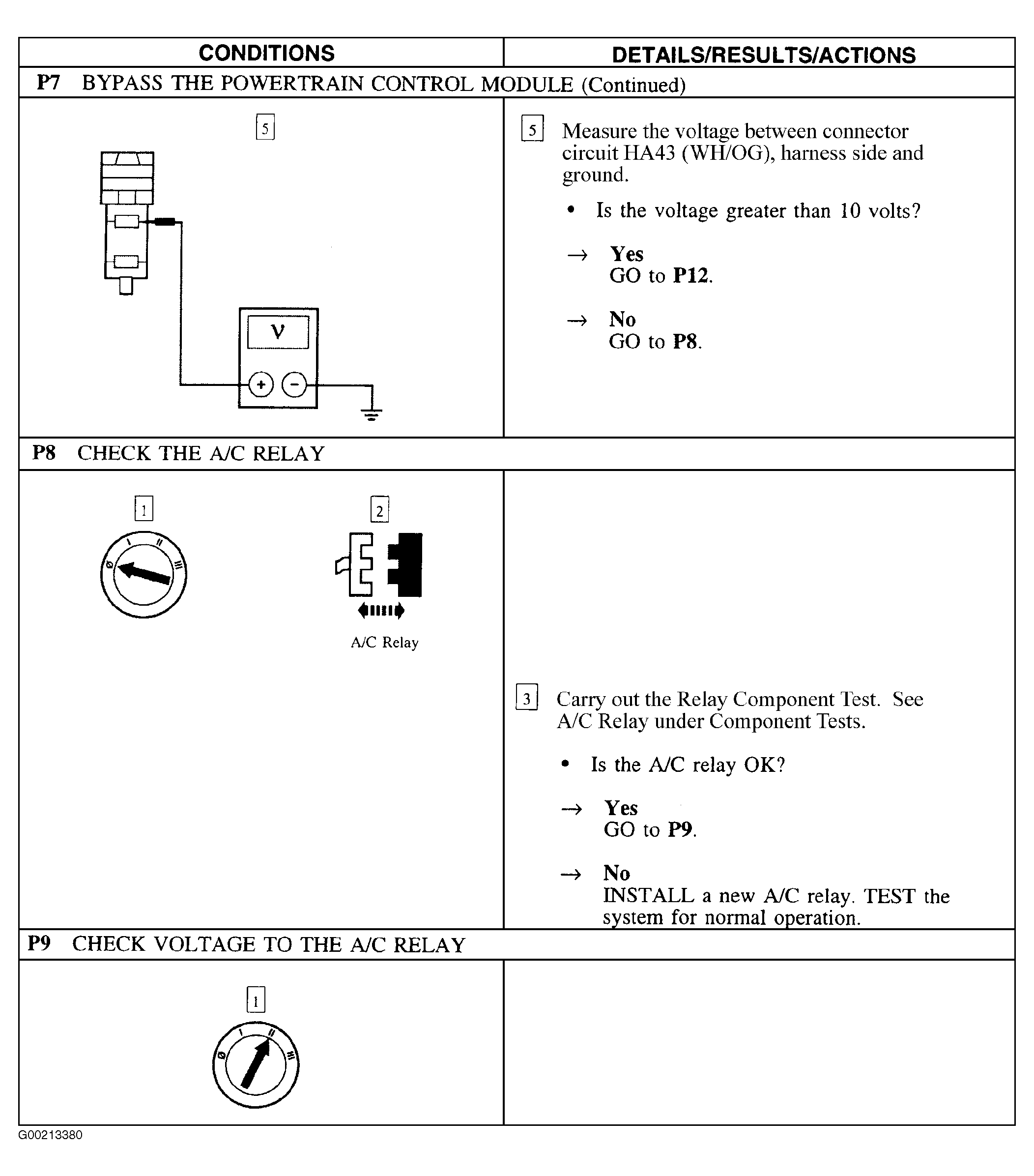

Fig 4: Test P (4 Of 10 - Steps P7 Cont.-P9)

Courtesy of FORD MOTOR CO.

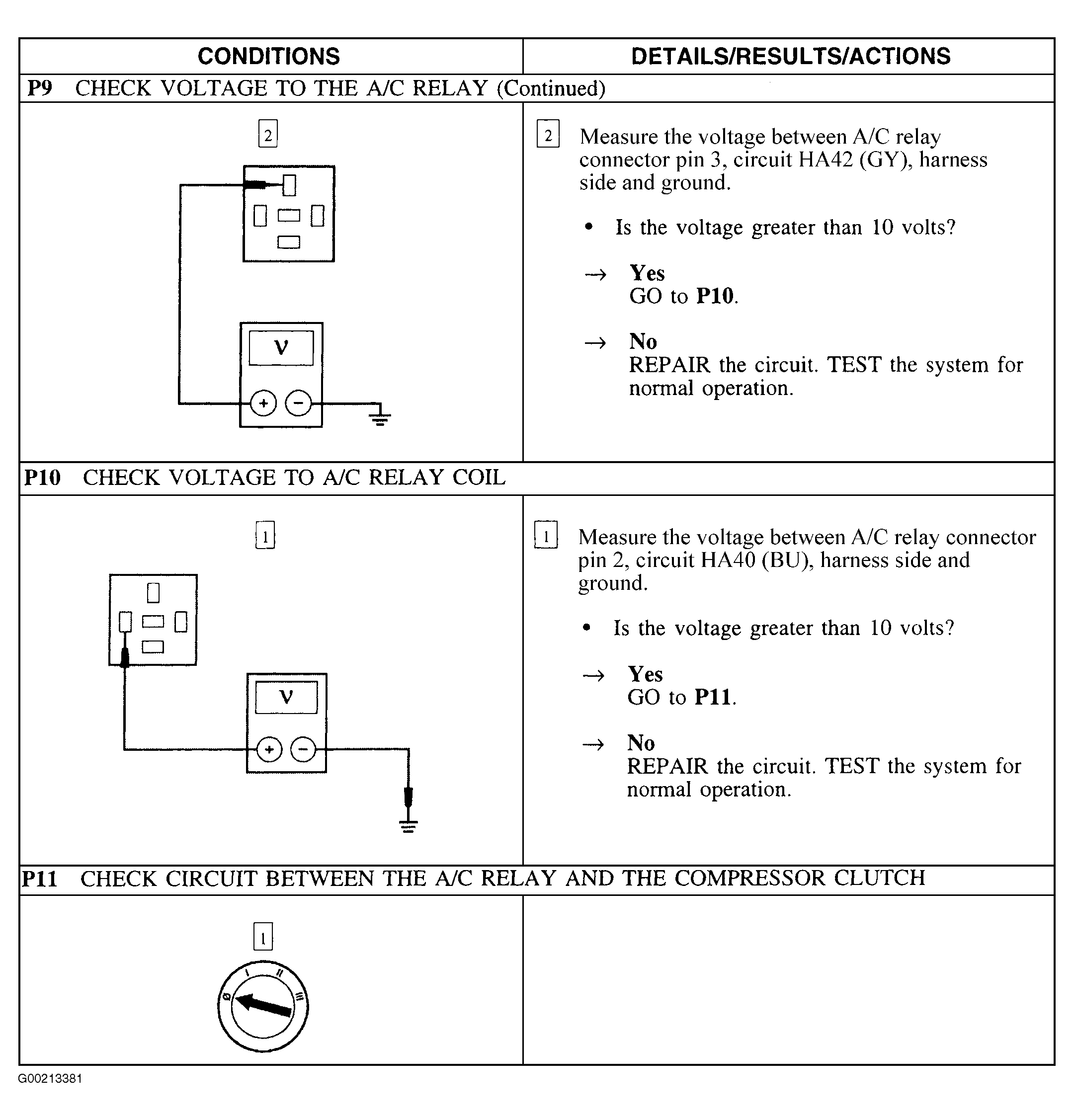

Fig 5: Test P (5 Of 10 - Steps P9 Cont.-P11)

Courtesy of FORD MOTOR CO.

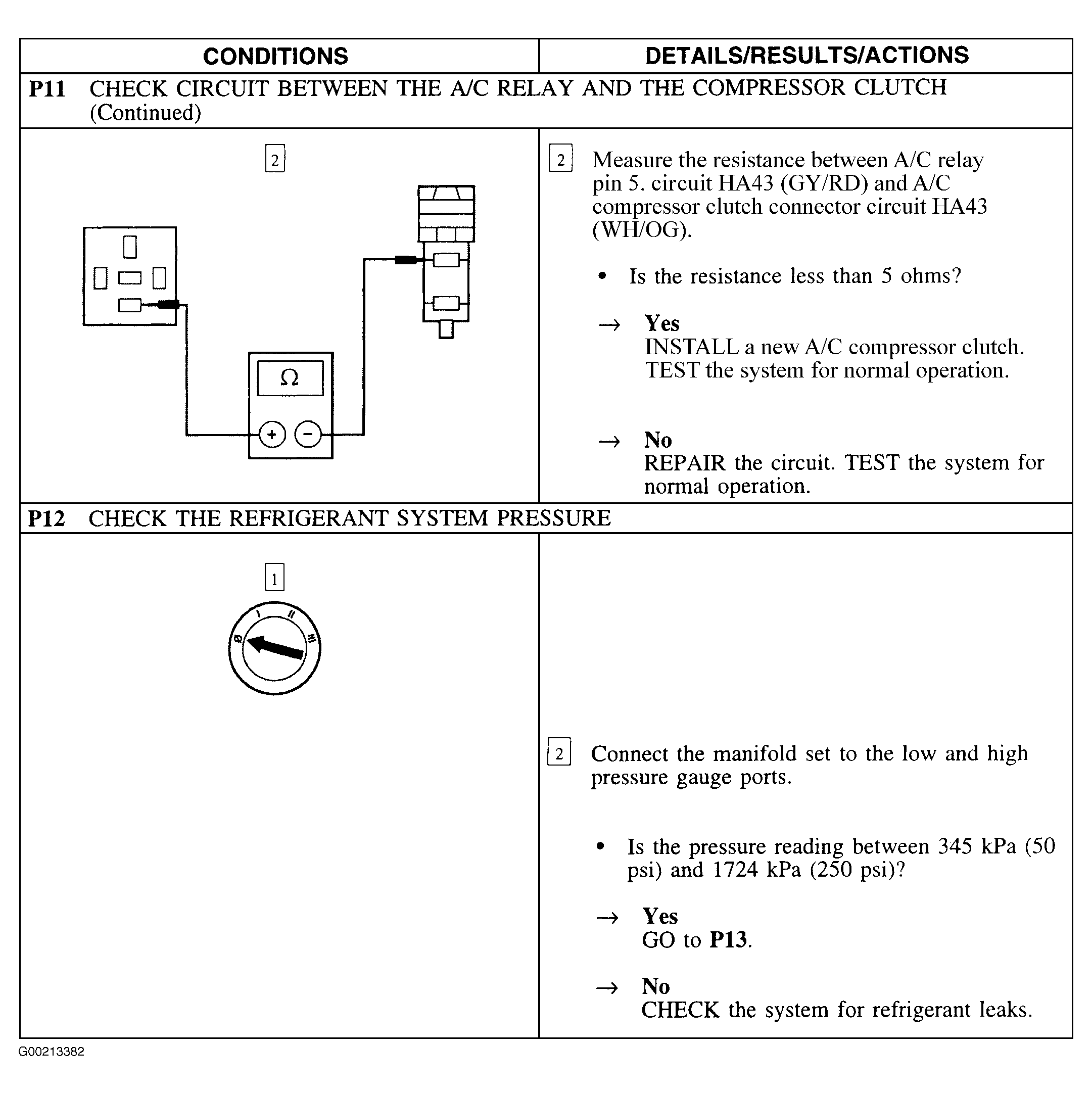

Fig 6: Test P (6 Of 10 - Steps P11 Cont.-P12)

Courtesy of FORD MOTOR CO.

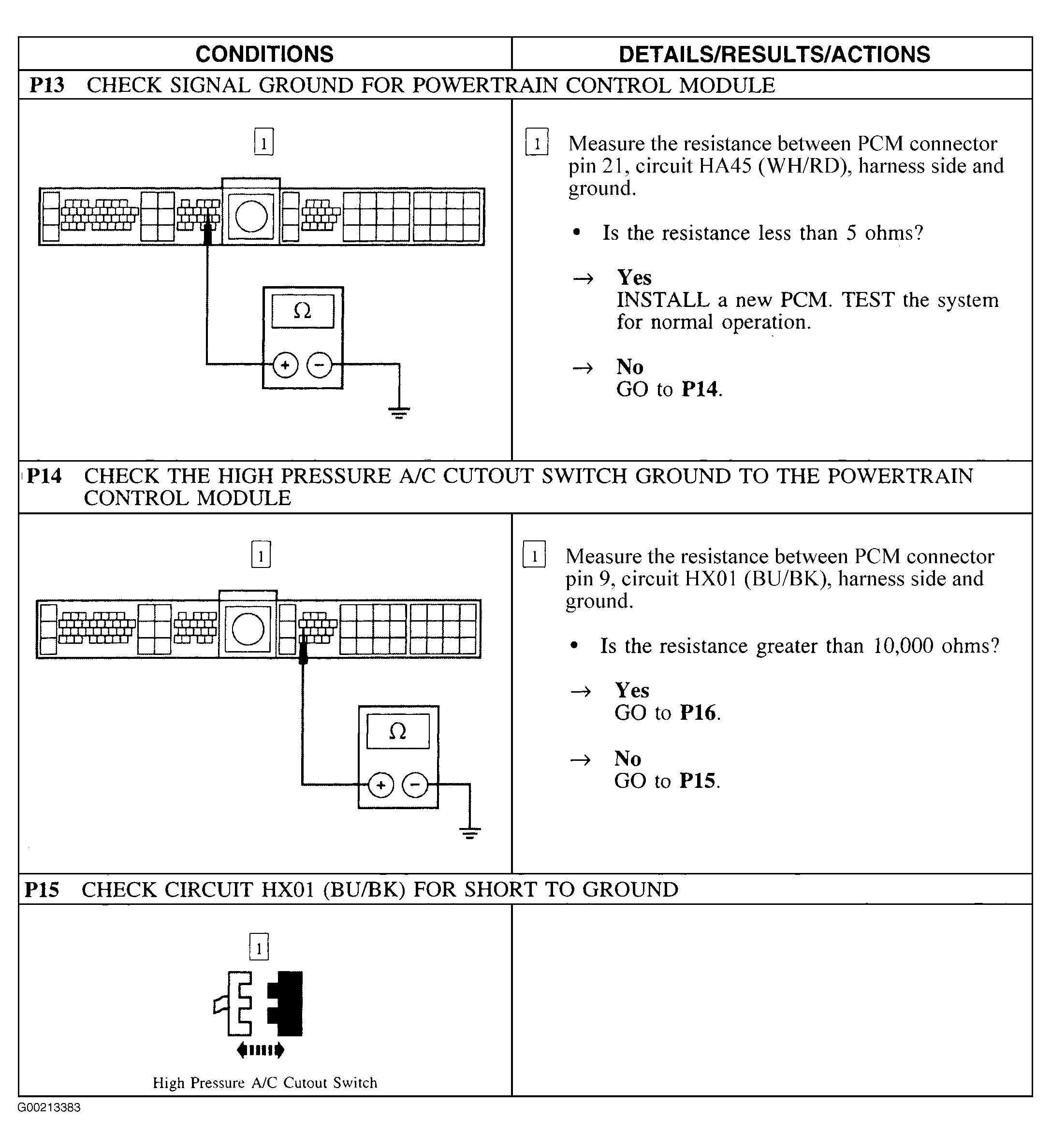

Fig 7: Test P (7 Of 10 - Steps P13-P15)

Courtesy of FORD MOTOR CO.

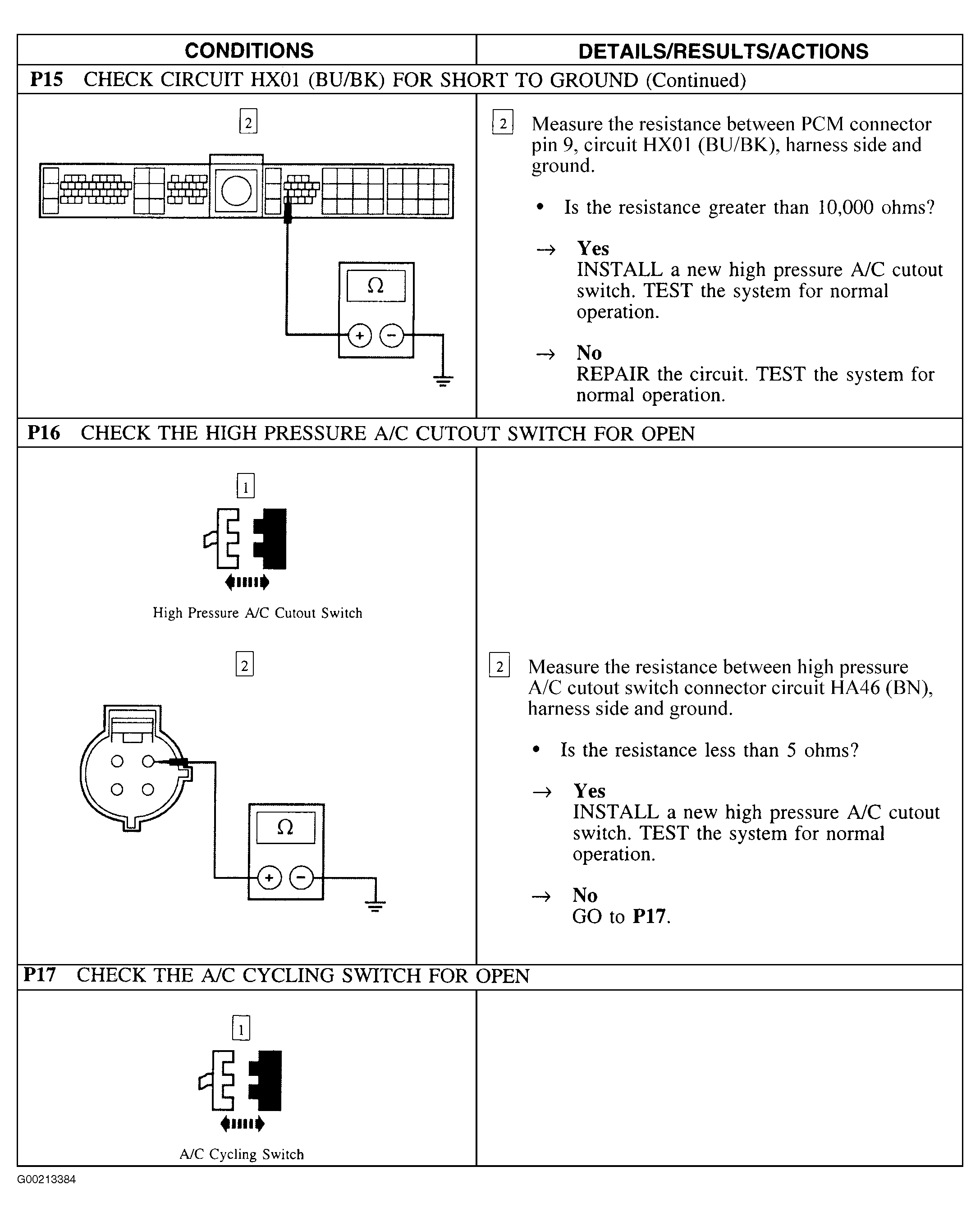

Fig 8: Test P (8 Of 10 - Steps P15 Cont.-P17)

Courtesy of FORD MOTOR CO.

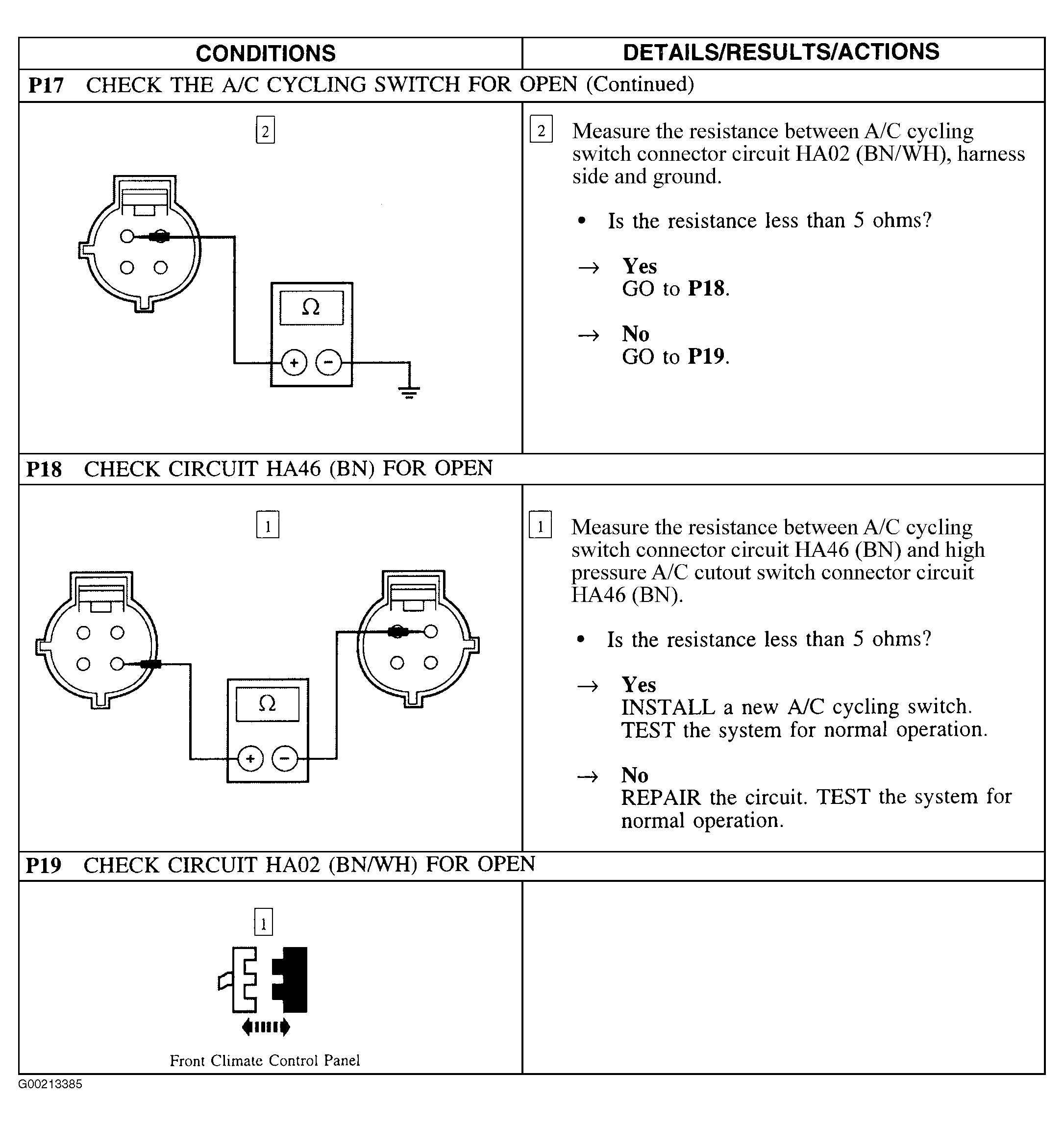

Fig 9: Test P (9 Of 10 - Steps P17 Cont.-P19)

Courtesy of FORD MOTOR CO.

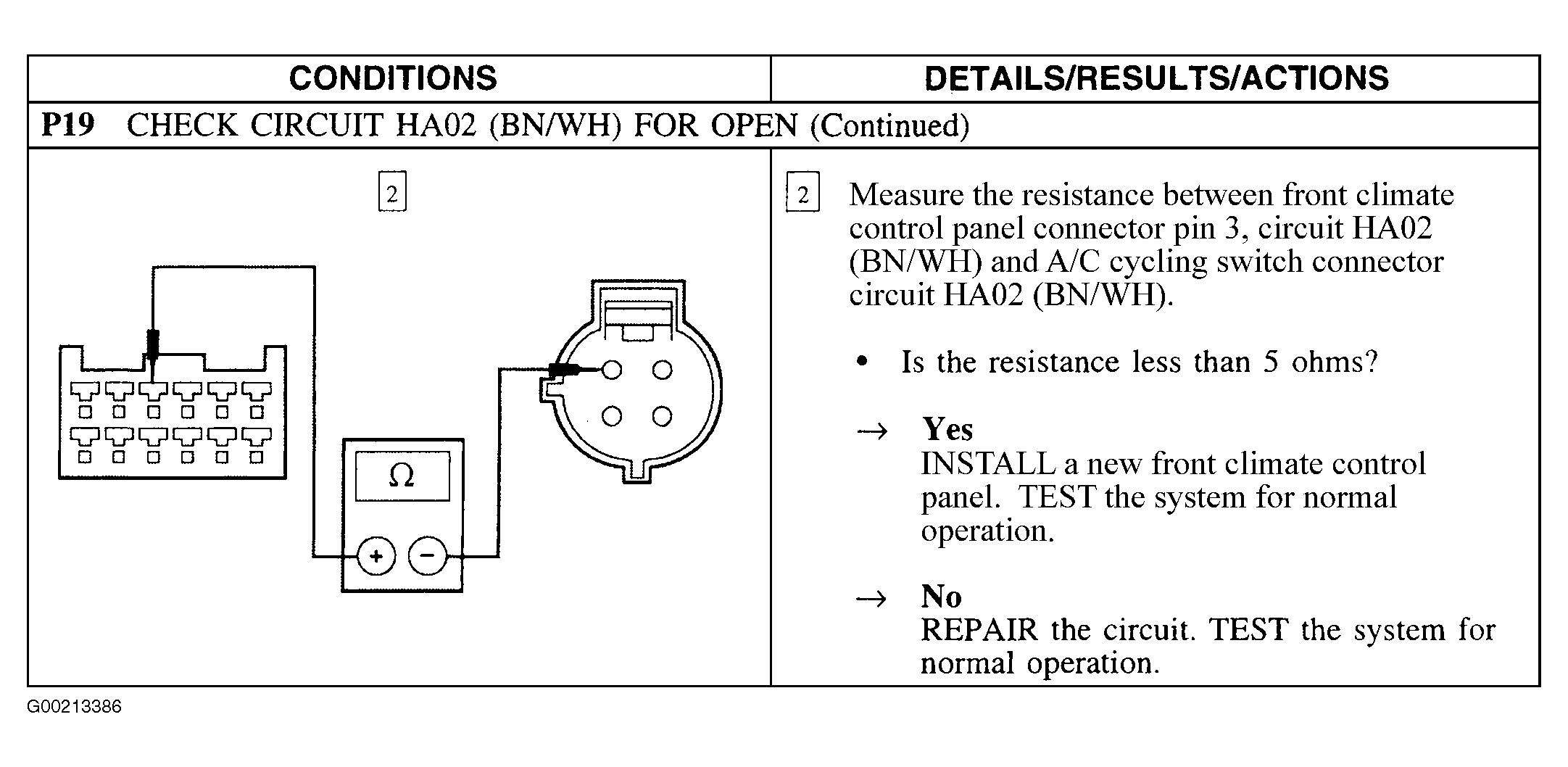

Fig 10: Test P (10 Of 10 - Step P19 Cont.)

Courtesy of FORD MOTOR CO.
