Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 6 .

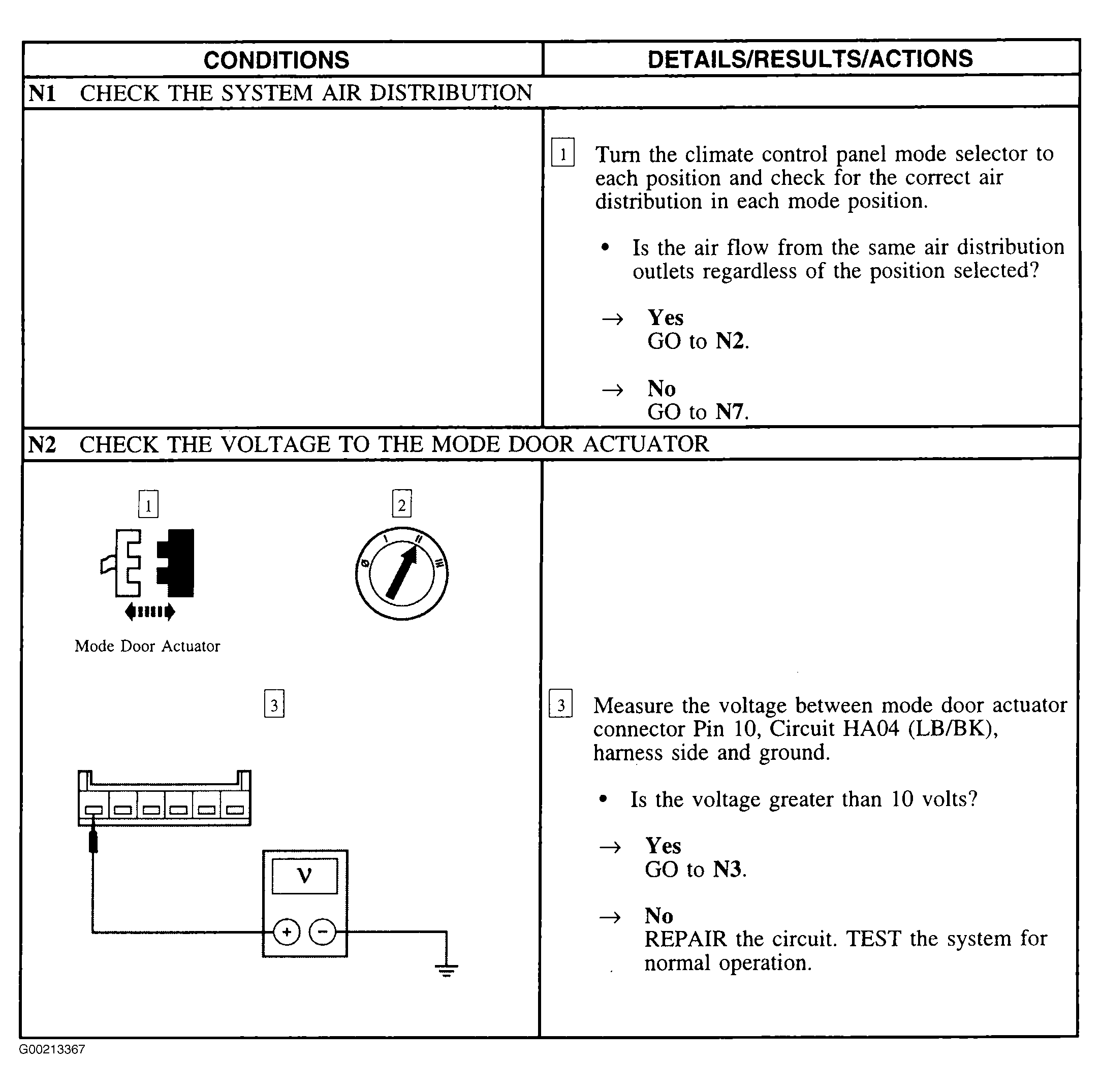

Fig 1: Test N (1 Of 6 - Steps N1-N2)

Courtesy of FORD MOTOR CO.

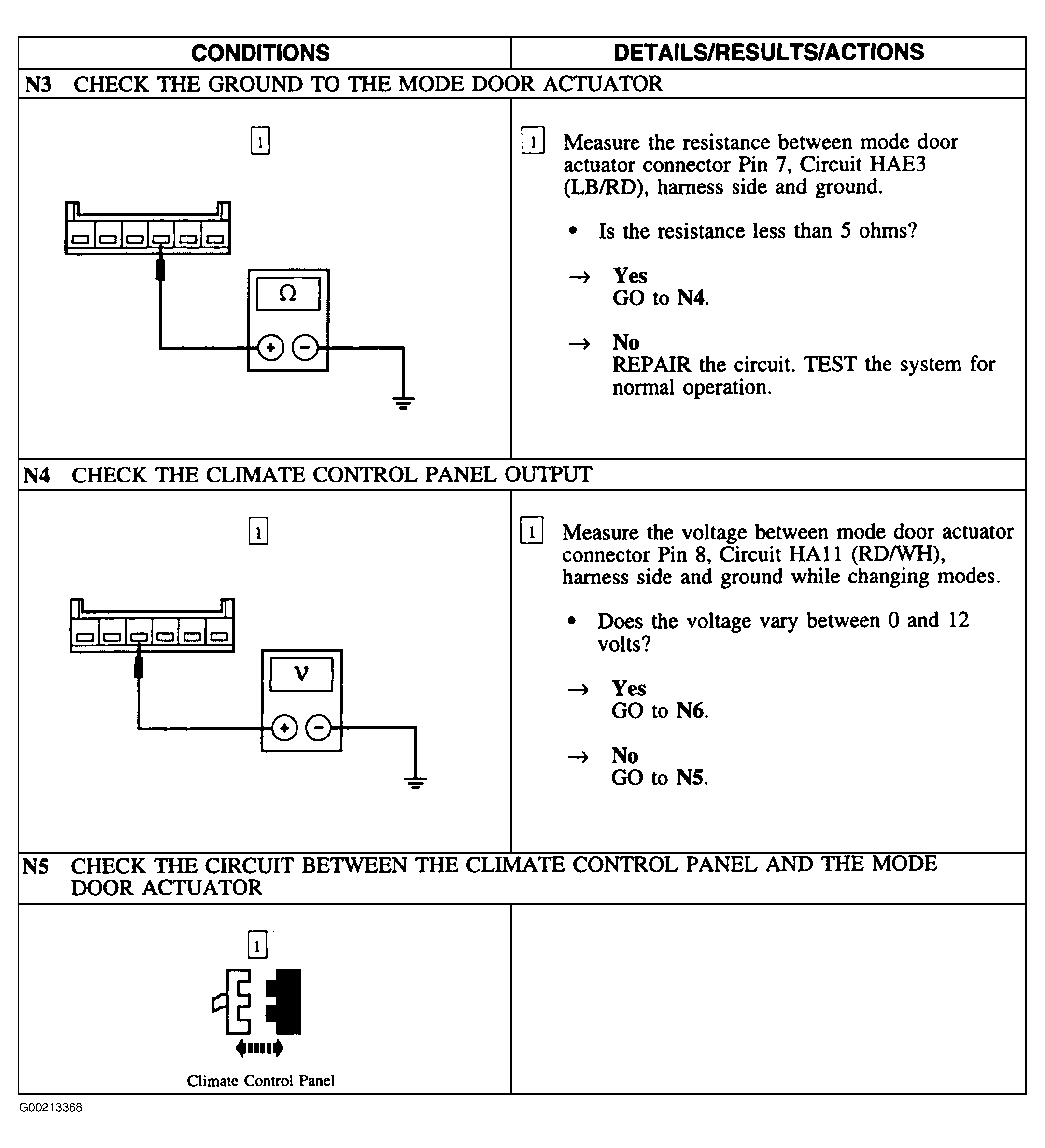

Fig 2: Test N (2 Of 6 - Steps N3-N5)

Courtesy of FORD MOTOR CO.

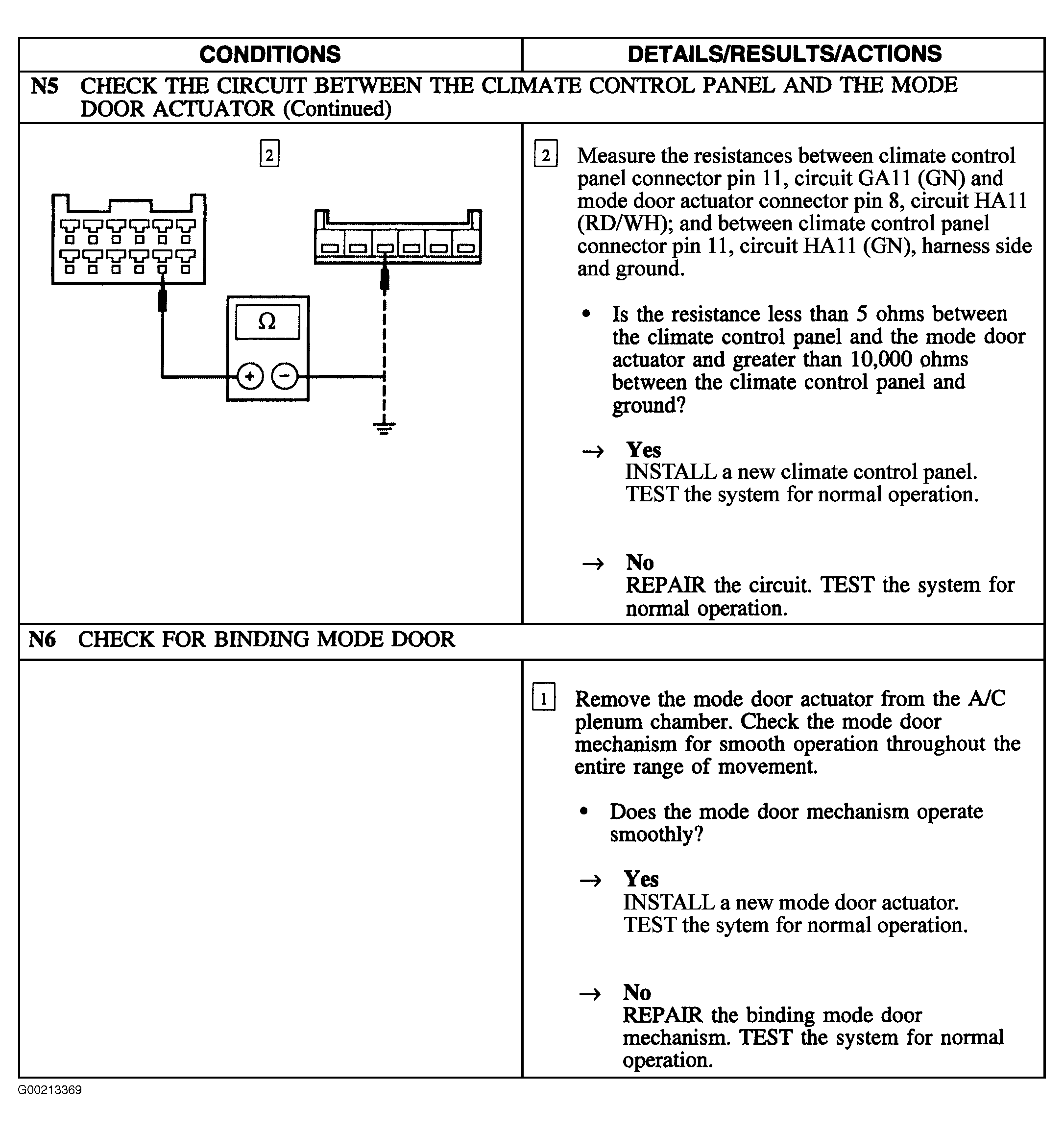

Fig 3: Test N (3 Of 6 - Steps N5 Cont.-N6)

Courtesy of FORD MOTOR CO.

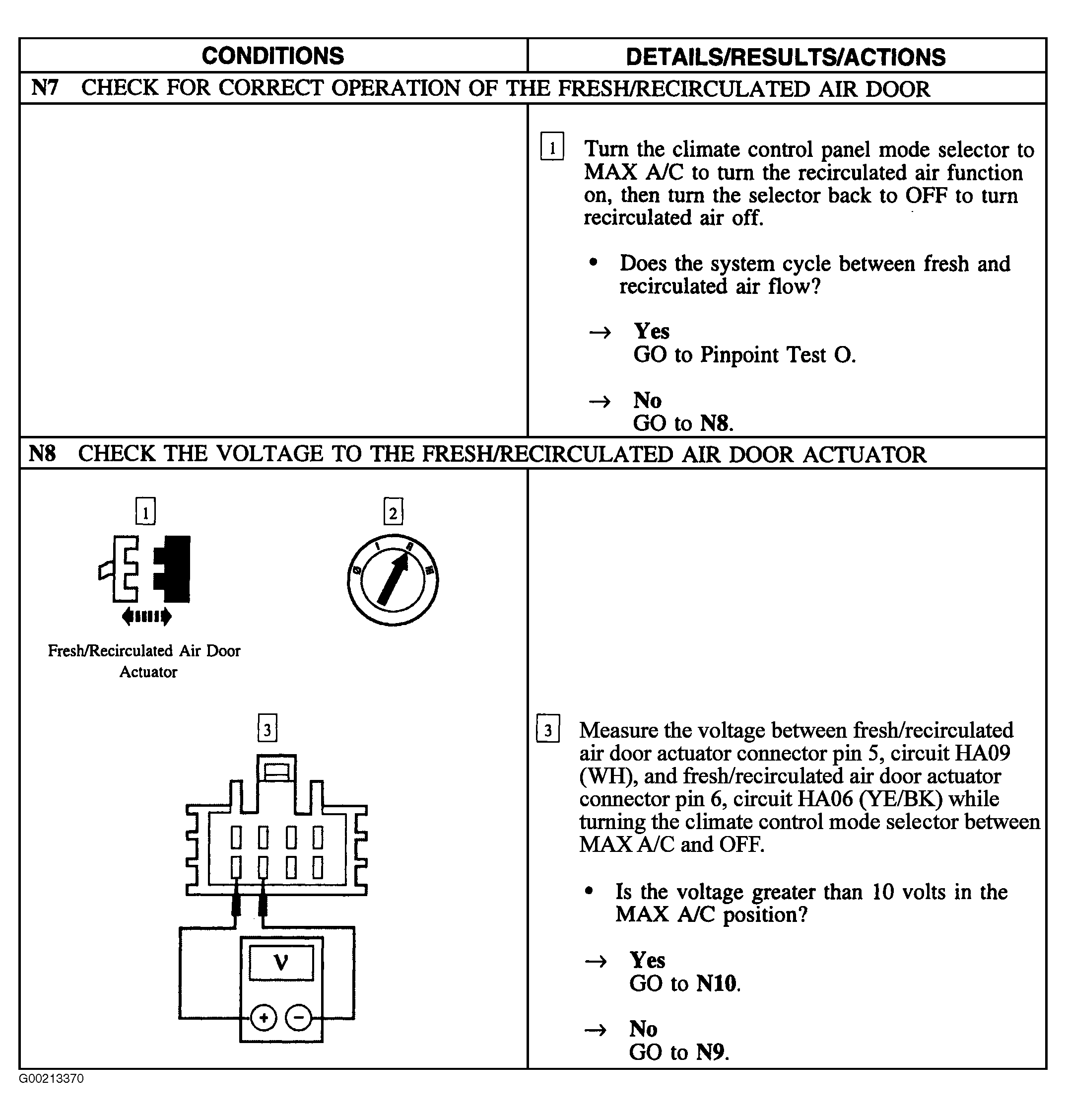

Fig 4: Test N (4 Of 6 - Steps N7-N8)

Courtesy of FORD MOTOR CO.

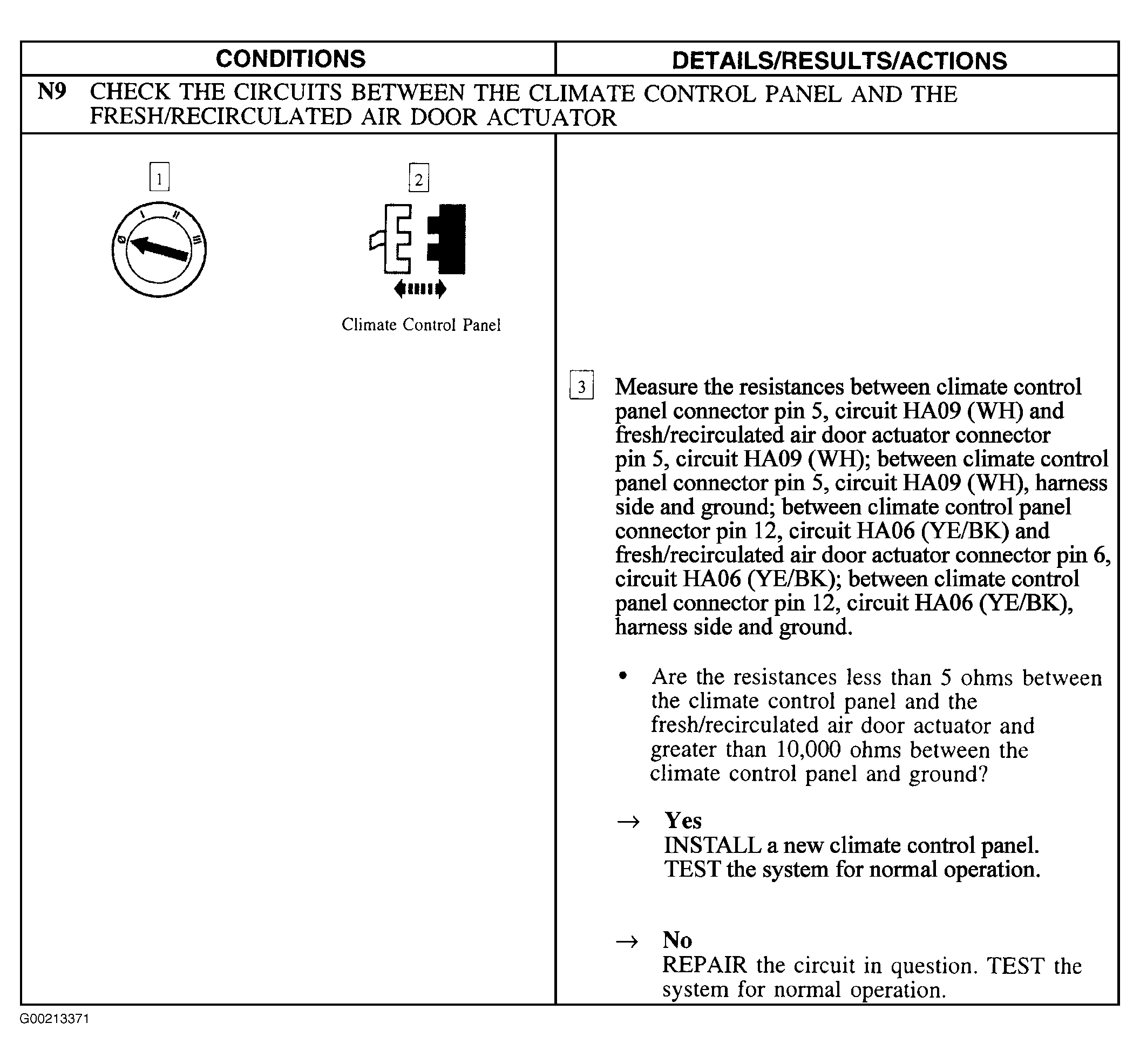

Fig 5: Test N (5 Of 6 - Step N9)

Courtesy of FORD MOTOR CO.

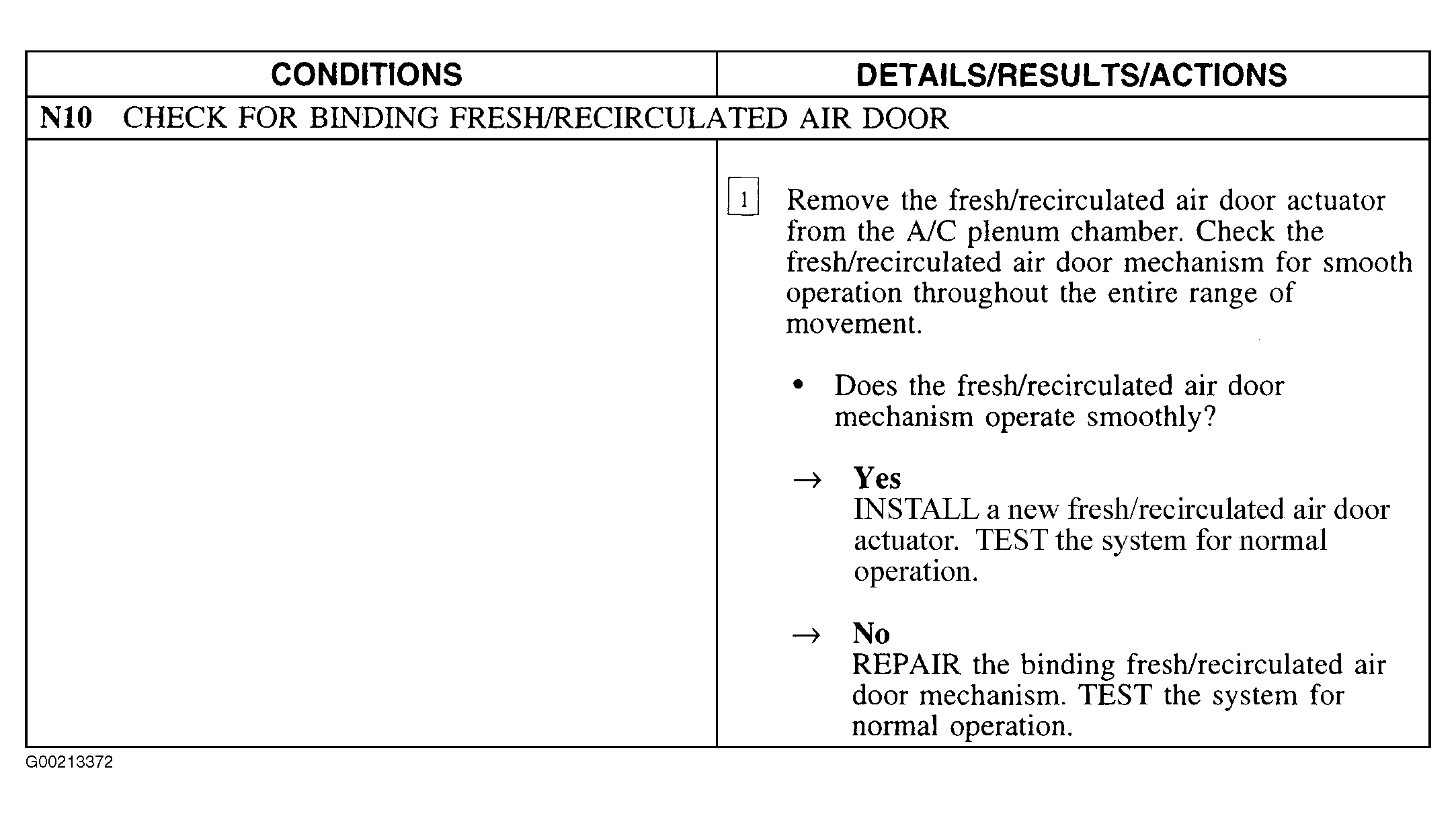

Fig 6: Test N (6 Of 6 - Step N10)

Courtesy of FORD MOTOR CO.
