Removal & Installation
WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

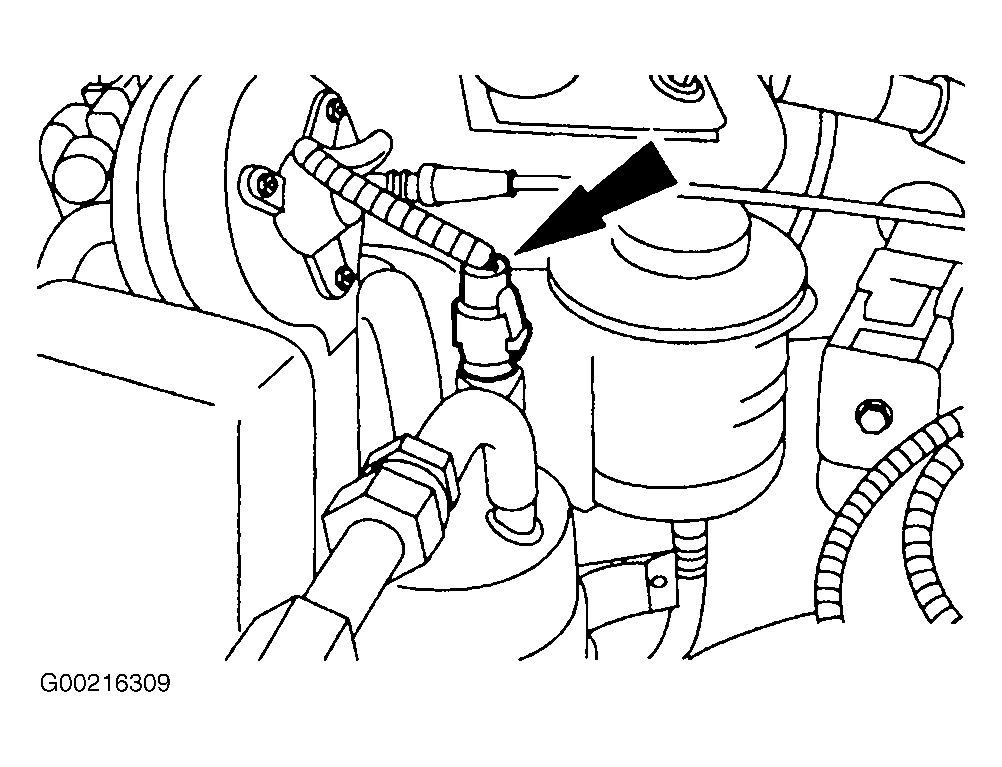

Compressor cycling switch is mounted on Schrader valve, located on top of accumulator-drier. See Figure. It is not necessary to discharge A/C system to replace switch.
