Removal & Installation: Accumulator-Drier: Removal

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. Discharge A/C system, using approved refrigerant recovery/recycling equipment. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Disconnect compressor cycling switch connector. See Fig 1. Disconnect accumulator-drier line to compressor nut. See Figure. Use a back-up wrench to prevent damage to tubes.
Remove accumulator-drier bracket clamp bolt and, if equipped, rear refrigerant line bracket nut. See Fig 2. Using special tool, disconnect evaporator core outlet line spring lock coupling. See Figure. Remove screws, nuts and speed control servo. See Fig 3. Remove 2 screws and position aside radiator coolant reservoir. See Fig 4. Remove accumulator-drier. See Fig 5. Drill two 0.5" (12.5 mm) holes in accumulator-drier/drier cylinder and drain oil into a calibrated container.

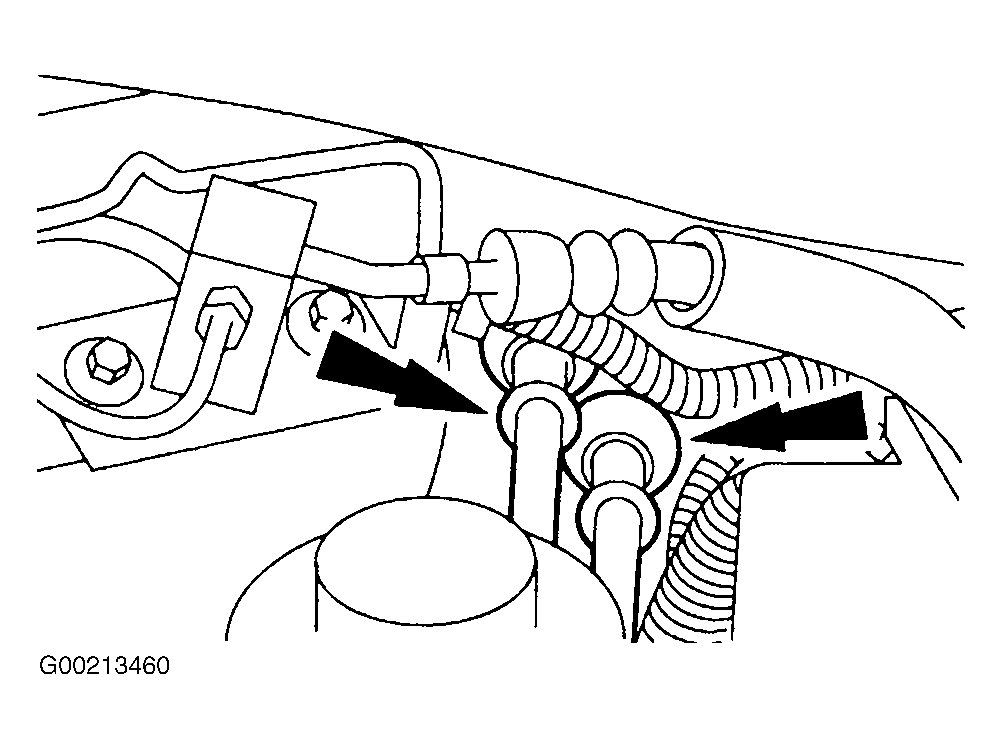

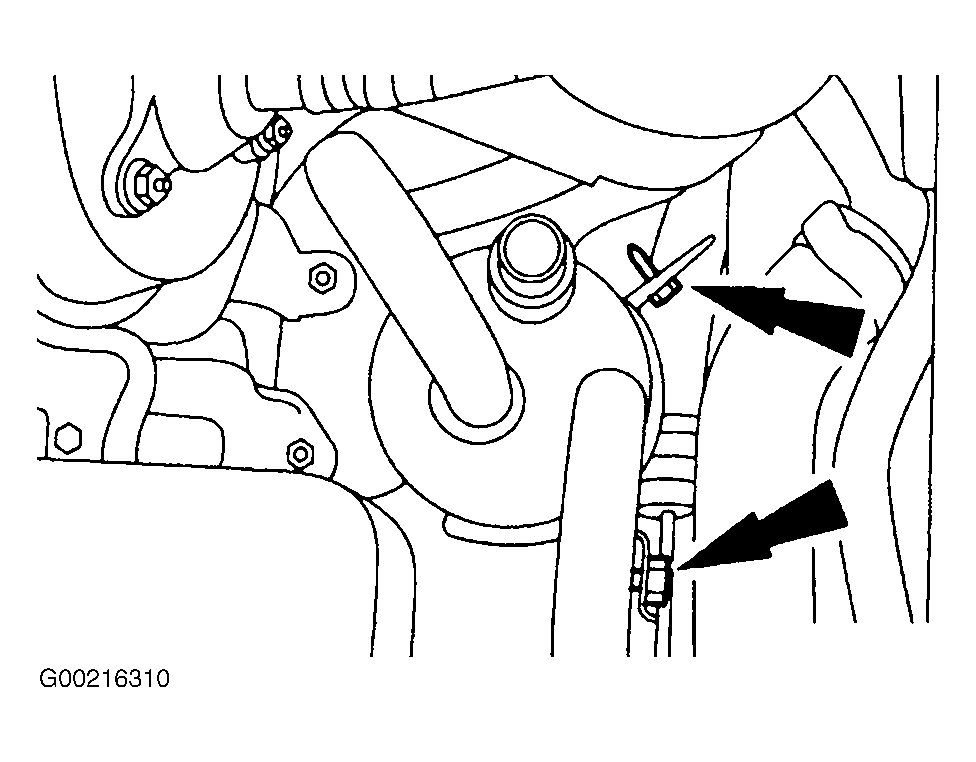

Fig 1: Identifying compressor Cycling Switch

Courtesy of FORD MOTOR CO.

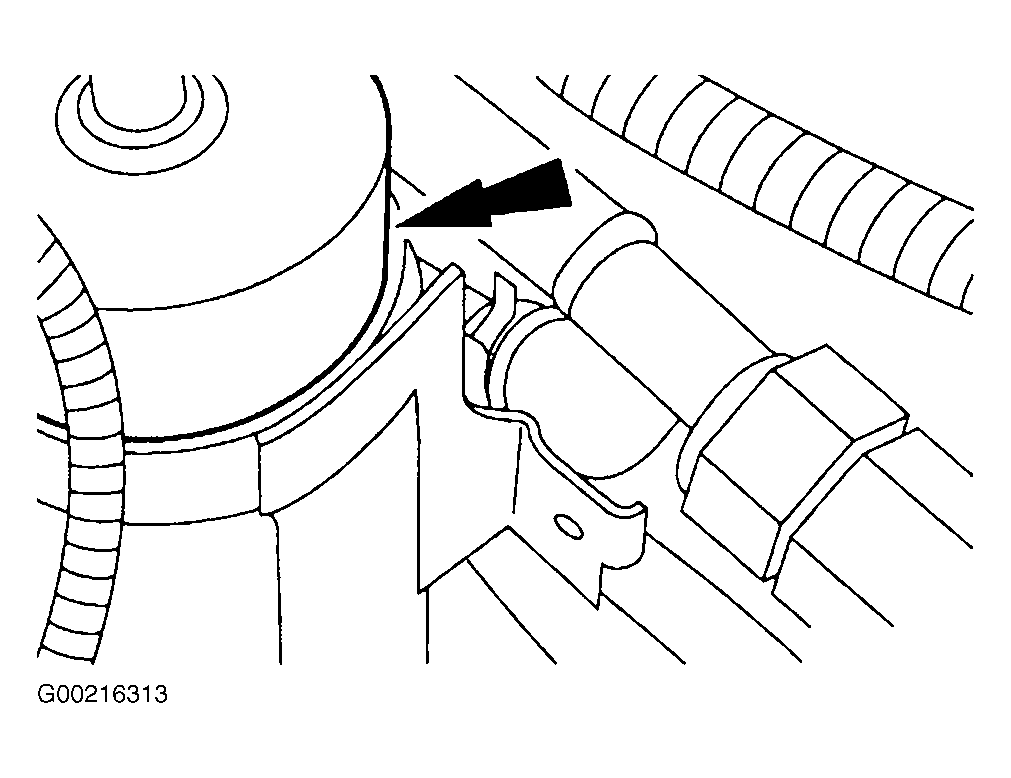

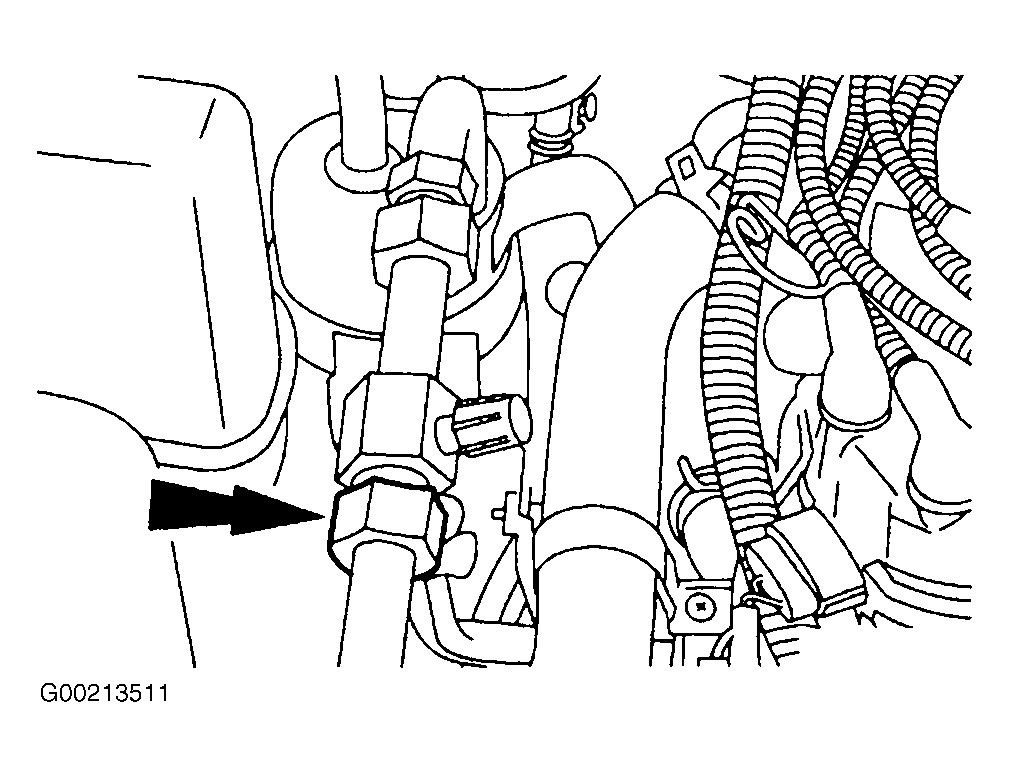

Fig 2: Identifying Accumulator-Drier Bracket Clamp Bolt & Rear Refrigerant Line Bracket Nut

Courtesy of FORD MOTOR CO.

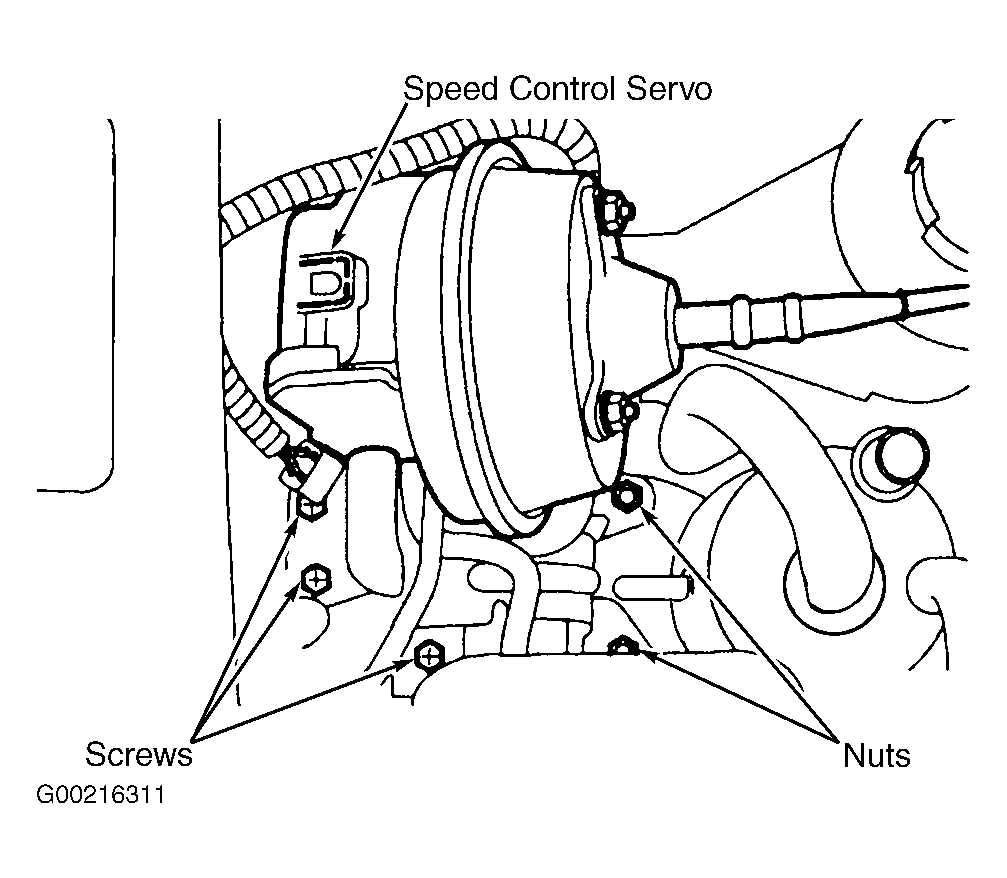

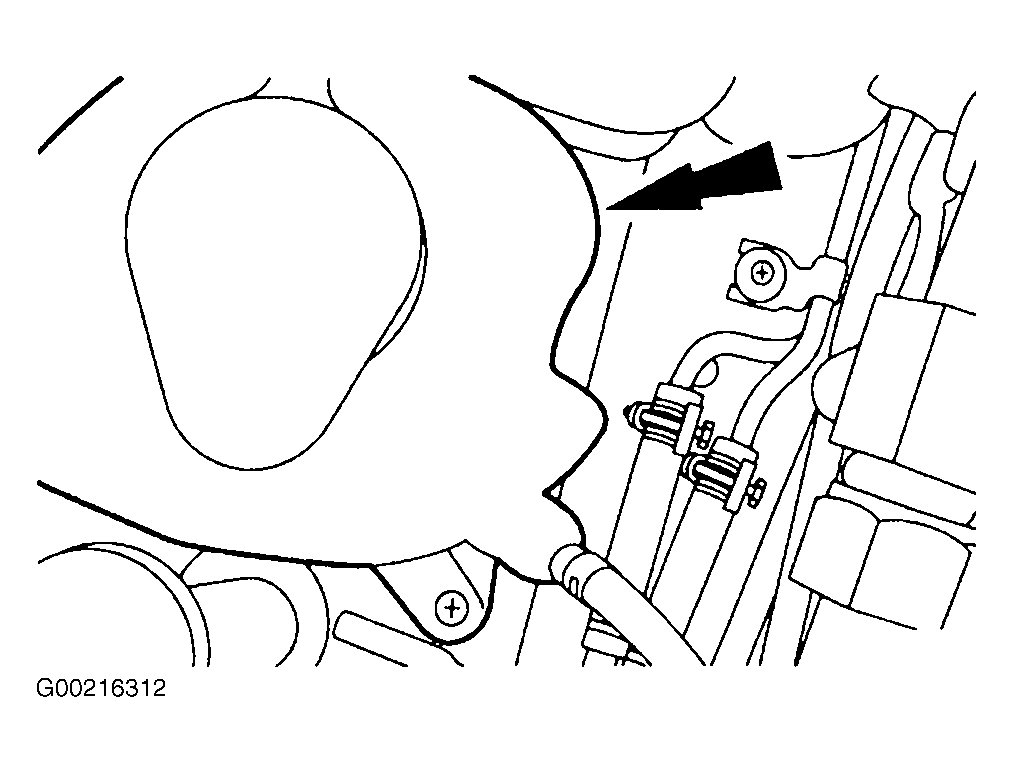

Fig 3: Removing & Installing Speed Control Servo

Courtesy of FORD MOTOR CO.

Fig 4: Removing & Installing Radiator Coolant Reservoir

Courtesy of FORD MOTOR CO.

Fig 5: Removing & Installing Accumulator-Drier

Courtesy of FORD MOTOR CO.
