A/C Clutch On Time
WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When ambient temperature is above 80°F (26°C), A/C clutch may not cycle.

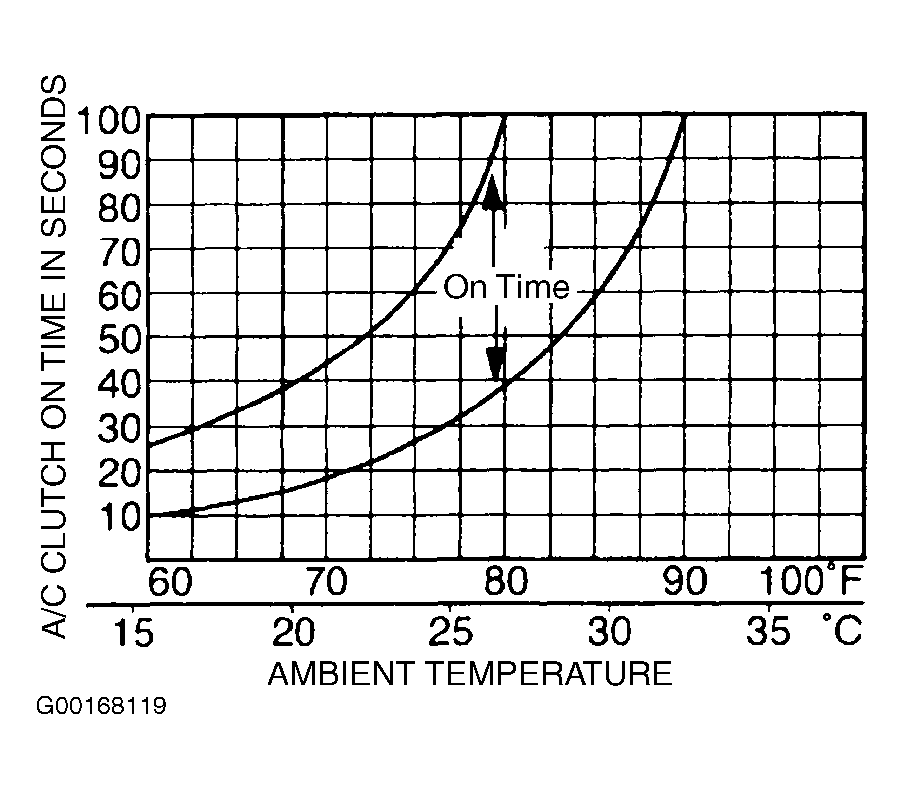

To determine A/C clutch on time, record ambient temperature. Record A/C clutch on time in seconds. System performance is acceptable when recorded time falls between upper and lower limits shown. See Fig 1.
