Compressor Drive Belt

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

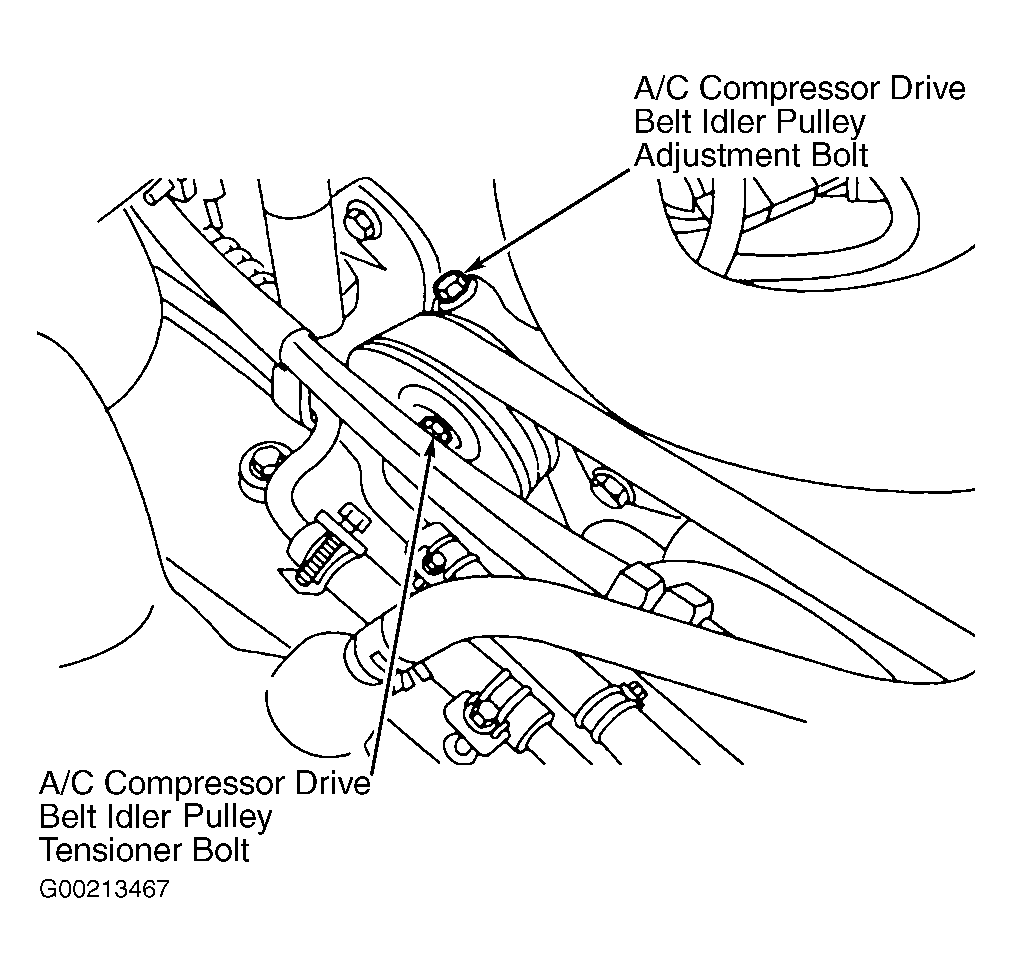

Loosen drive belt idler pulley tensioner bolt. See Figure. Tighten drive belt idler pulley adjustment bolt. Tighten drive belt idler pulley tensioner bolt securely. Ensure drive belt deflection is as specified. See SPECIFICATIONS  table.
