Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

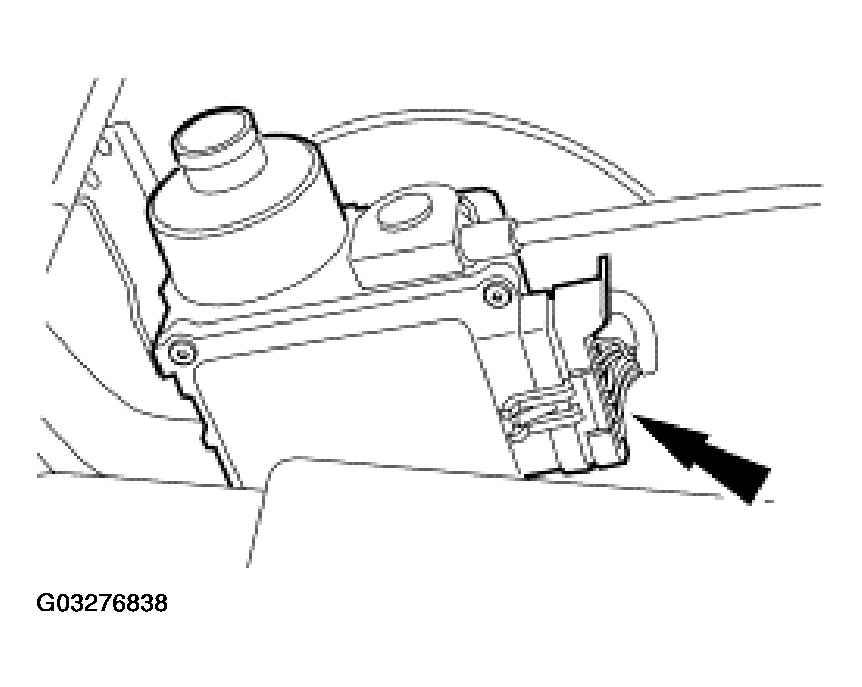

Disconnect the connector from the speed control servo (9C735).

Fig 1: Disconnecting Connector From Speed Control Servo
Courtesy of FORD MOTOR CO.

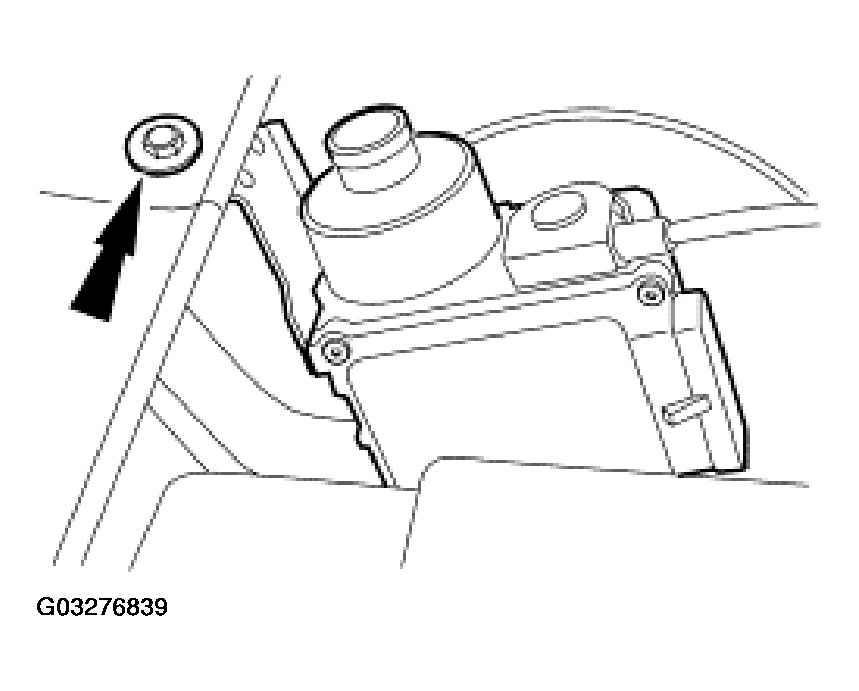

Remove the screw and reposition the speed control servo.

Fig 2: Removing Reposition Speed Control Servo
Courtesy of FORD MOTOR CO.

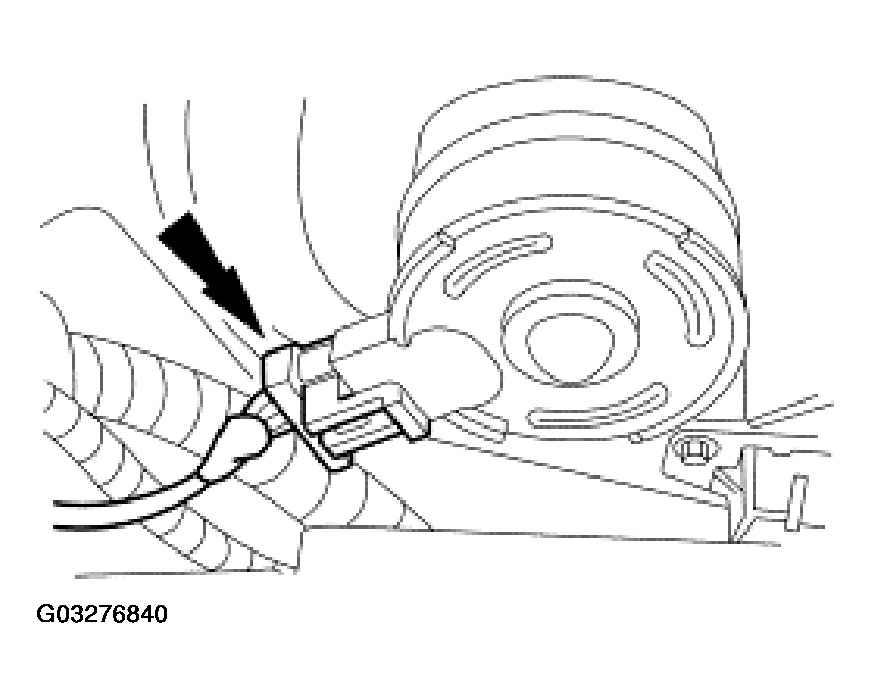

Disconnect the wire harness connector.

Fig 3: Disconnecting Wire Harness Connector
Courtesy of FORD MOTOR CO.

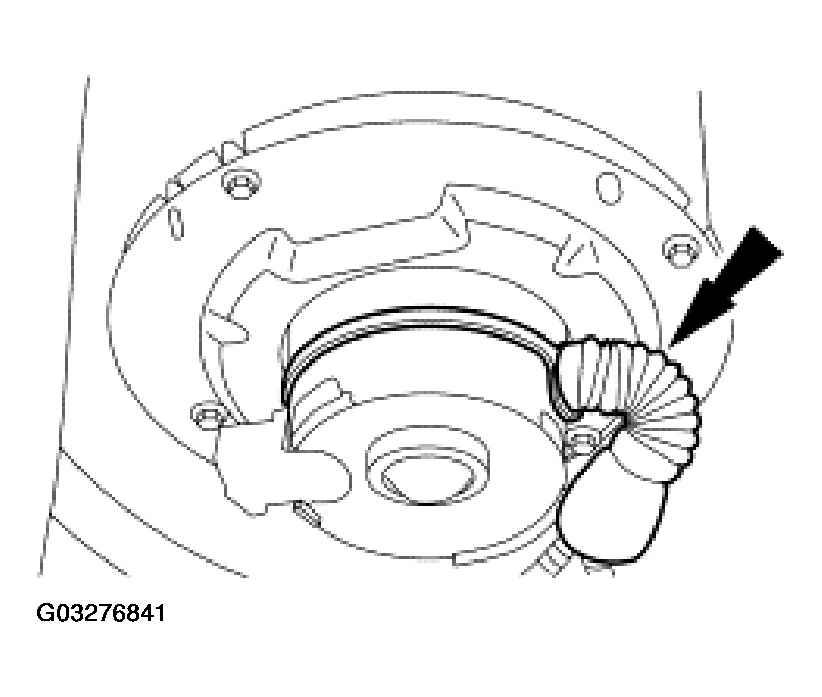

Remove the blower motor housing tube (19A786).

Fig 4: Removing Blower Motor Housing Tube
Courtesy of FORD MOTOR CO.

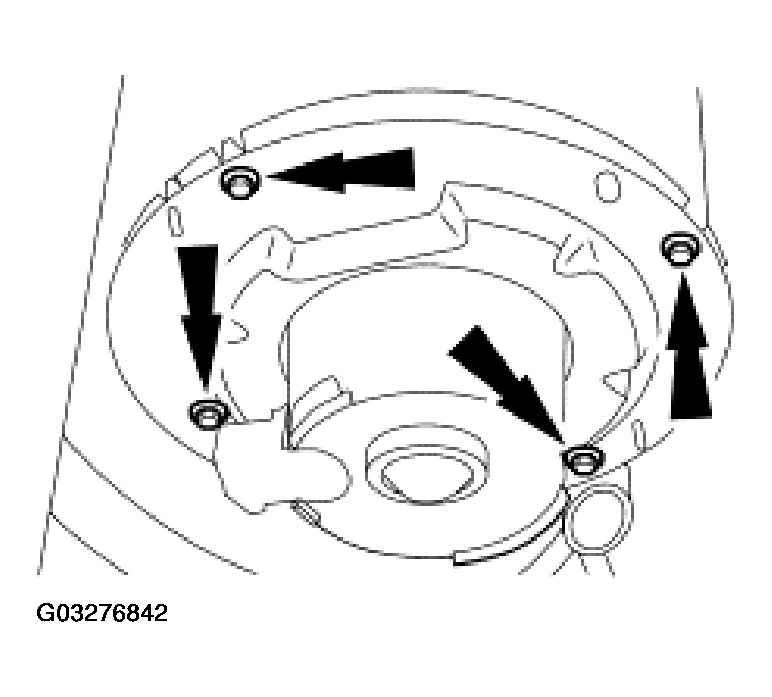

Remove the screws and the blower motor (19805).

Fig 5: Removing Blower Motor
Courtesy of FORD MOTOR CO.

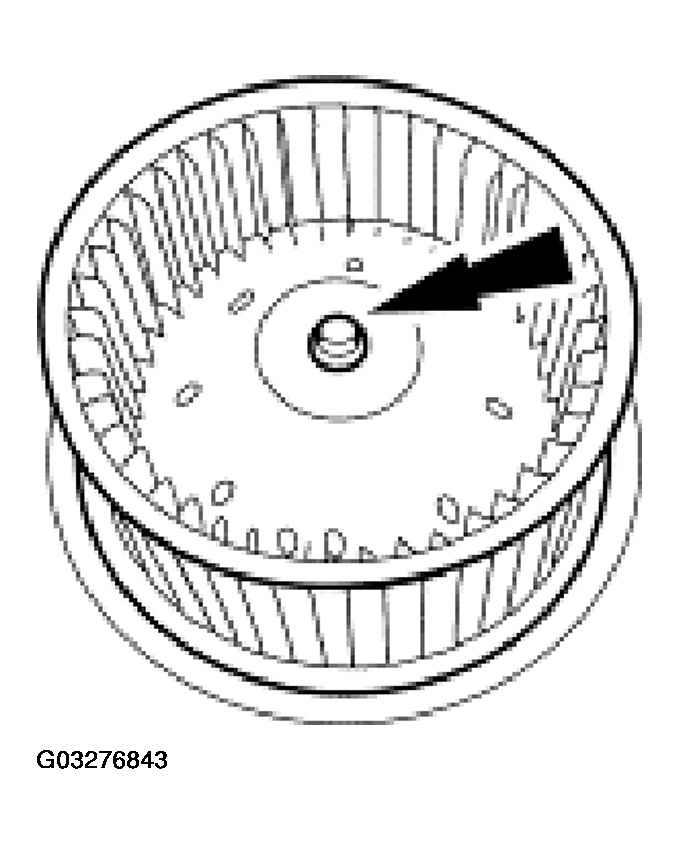

Remove the retaining clip and the blower motor wheel (18504) from the blower motor.

Fig 6: Removing Blower Motor Wheel From Blower Motor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
